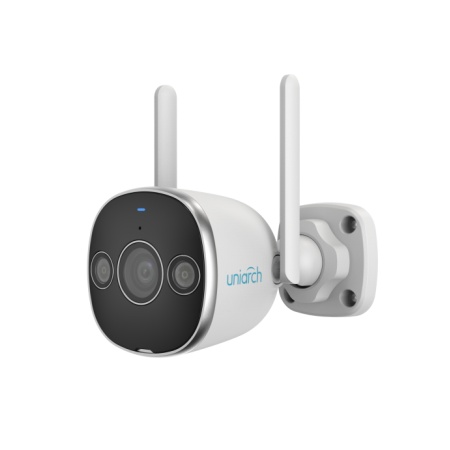

Uniview - Uho-B2D-M3F3D - Uniarch 3MP outdoor dual-light Wi-Fi bullet camera(2.8mm)
Part number:
Uho-B2D-M3F3D
Price:
Uniarch 3MP Outdoor Dual-light Wi-Fi Bullet Camera (2.8mm)
Features:
- High quality image with 3MP, 1/3.0"CMOS sensor and F1.6 aperture lens
- 3MP (2304*1296)@25/20fps; 2MP (1920*1080)@30/25fps; 720P (1280*720)@30/25fps
- Ultra 265, H.265, H.264, MJPEG
- Built-in Mic
- Built-in Speaker
- Smart IR, up to 20m (66ft) IR distance
- Warm Light, up to 10m (33ft) warm light distance
- Support Dual Light mode, switch between IR and warm lights when the preset is triggered.
- Support 128 G Micro SD card
- Wi-Fi connection and easy installation
- IP67 protection
- 3-Axis
| Uho-B2D-M3F3D | Uho-B2D-M3F4D | ||||||||
| Camera | |||||||||
| Sensor | 1/3.0", 3.0 megapixel, progressive scan, CMOS | ||||||||
| Minimum Illumination | Colour: 0.003 lux (F1.6 AGC ON) 0 lux with IR on | ||||||||
| Day/Night | IR-cut filter with auto switch (ICR) | ||||||||
| Shutter | Auto/Manual, 1 ~ 1/100000s | ||||||||
| Adjustment angle | Pan: 0°~360° | Tilt: 0°~90° | Rotate: 0°~360° | ||||||
| S/N | >52dB | ||||||||
| WDR | DWDR | ||||||||
| Lens | |||||||||
| Lens Type | 2.8mm@F1.6 | 4.0mm@F1.6 | |||||||
| Iris | Fixed | ||||||||
| Field of View (H) | 97.5° | 80.2° | |||||||
| Field of View (V) | 52.9° | 42.9° | |||||||
| Field of View (D) | 108.0° | 86.0° | |||||||
| DORI | |||||||||
| DORI Distance | Lens | Detect(m) | Observe(m) | Recognize(m) | Identify(m) | ||||
| 2.8mm | 46.7 | 18.7 | 9.3 | 4.7 | |||||
| 4.0mm | 66.7 | 26.7 | 13.3 | 6.7 | |||||
| Illuminator | |||||||||
| IR Range | Up to 20m (66ft) | ||||||||
| Warm Light Range | Up to 10m (33ft) | ||||||||
| Wavelength | 850nm | ||||||||
| IR On/Off Control | Auto/Manual | ||||||||
| Video | |||||||||
| Video Compression | Ultra 265, H.265, H.264, MJPEG | ||||||||
| H.264 code profile | Baseline profile, Main profile, High profile | ||||||||
| Frame Rate | Main Stream: 3MP (2304*1296) ), Max 25fps; 1080P (1920*1080), Max 30fps; 720P (1280*720), Max 30fps; Sub Stream: 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps; | ||||||||
| Video Bit Rate | 128 Kbps~6 Mbps | ||||||||
| U-code | Support | ||||||||
| OSD | Up to 4 OSDs | ||||||||
| Privacy Mask | Up to 4 areas | ||||||||
| ROI | Up to 8 areas | ||||||||
| Video stream | Dual streams | ||||||||
| Image | |||||||||
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 | ||||||||
| Digital Noise Reduction | 2D/3D DNR | ||||||||
| Smart IR | Support | ||||||||
| Flip | Normal/Vertical/Horizontal/180° | ||||||||
| Dewarping | N/A | ||||||||
| HLC | N/A | ||||||||
| BLC | N/A | ||||||||
| Defog | Digital Defog | ||||||||
| Events | |||||||||
| Basic Detection | Motion detection, Ultra motion detection, Audio detection, Tampering alarm | ||||||||
| General Function | IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication | ||||||||
| Audio | |||||||||
| Audio Compression | G.711U, G.711A | ||||||||
| Audio Bitrate | 64 Kbps | ||||||||
| Two-way Audio | Support | ||||||||
| Suppression | Support | ||||||||
| Sampling Rate | 8KHZ | ||||||||
| Storage | |||||||||
| Edge Storage | Micro SD, up to 128GB | ||||||||
| Network Storage | ANR | ||||||||
| Network | |||||||||
| Wi-Fi | 2.4G Wi-Fi (IEEE802.11b/g/n), built-in antenna | ||||||||
| Protocols | IPv4, TCP, UDP, DHCP, RTSP, DNS, DDNS, NTP, HTTP | ||||||||
| Compatible Integration | API , SDK | ||||||||
| User/Host | Up to 6 users. 2 user levels: administrator and common user | ||||||||
| Client | Uniarch Client Uniarch APP | ||||||||
| Web Browser | Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above | ||||||||
| Plug-in free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above | |||||||||
| Interface | |||||||||
| Audio I/O | N/A | ||||||||
| Alarm I/O | N/A | ||||||||
| Built-in Mic | Support | ||||||||
| Built-in Speaker | Support | ||||||||
| WIFI | Support | ||||||||
| Network | 1 * RJ45 10M/100M Base-TX Ethernet | ||||||||
| Video Output | N/A | ||||||||
| Certifications | |||||||||
| EMC | CE EMC (EN 55032,EN 61000-3-3,EN IEC 61000-3-2,EN 55035) FCC (FCC 47 CFR part15 B) | ||||||||
| RF | FCC ID (FCC CFR 47 part15 C) CE RED (EN 301 489-1, EN 301 489-17, EN 300 328, EN 62311) | ||||||||
| Safety | CE LVD (EN 62368-1) | ||||||||
| Environment | CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU) | ||||||||
| Protection | IP67 (IEC 60529) | ||||||||
| General | |||||||||
| Power | DC 12V±25% | ||||||||
| Power consumption: Max 5.7W | |||||||||
| Power Interface | Ø 5.5mm coaxial power plug | ||||||||
| Dimensions (L x W x H) | 148 × 78 × 78mm (5.8” × 3.1” × 3.1”) | ||||||||
| Weight | 0.31 kg (0.68 lb) | ||||||||
| Material | Metal + Plastic | ||||||||
| Working Environment | -30℃~60℃(-22°F ~ 140°F)，Humidity: ≤95% RH (non-condensing) | ||||||||
| Storage Environment | -30℃~60℃(-22°F ~ 140°F)，Humidity: ≤95% RH (non-condensing) | ||||||||
| Surge Protection | 4KV | ||||||||
| Reset Button | Support | ||||||||
| LED indicator | 1, red/blue | ||||||||
