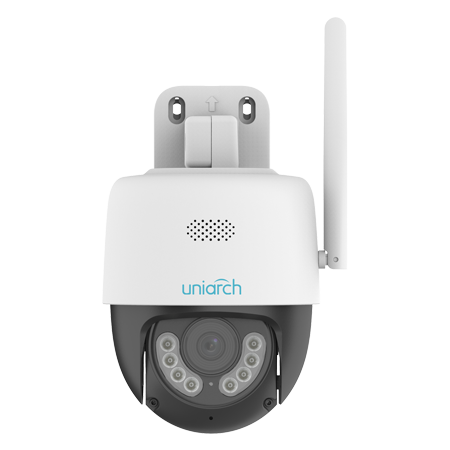

Uniview - Uho-P1A-M3F4D - Uniarch 3MP Outdoor Dual-Light Wi-Fi PT camera
Uniview - Uho-P1A-M3F4D - Uniarch 3MP Outdoor Dual-Light Wi-Fi PT camera
Uniview - Uho-P1A-M3F4D - Uniarch 3MP Outdoor Dual-Light Wi-Fi PT camera

Uniview - Uho-P1A-M3F4D - Uniarch 3MP Outdoor Dual-Light Wi-Fi PT camera

Part number:
Uho-P1A-M3F4D
Price:
Dealers only
Add to Quote/Project Registration
Description Specifications Downloads

3MP HD Outdoor Pan & Tilt Wi-Fi Camera



Features:

  • High quality image with 3MP, 1/2.8"CMOS sensor
  • 2304*1296@20fps in the main stream
  • Ultra 265, H.265, H.264
  • Support digital WDR (Wide Dynamic Range)
  • Built in Mic & Speaker, support two way audio, offer better interaction
  • Support sound and light warning, makes warning and alarming more noticeable
  • Smart IR, up to 30 m (98 ft) IR and 10m (33 ft) warm light distance, suitable for more scenes
  • Self contained bracket, support two kinds of mounting
  • Supports 512 GB Micro SD card
  • Wi Fi connection and easy installation
  • IP66 ingress protection
  • The front face is made of grapheme, which has better heat dissipation and more environmental protection
ModelUho‑P1A‑M3F4D
Camera
Max Resolution3 MP
Sensor1/2.8" CMOS
Min. IlluminationColour: 0.005Lux (F1.6, AGC ON)
0 Lux with IR on
Day/NightIR‑cut filter with auto switch (ICR)
ShutterAuto/Manual, 1 ~ 1/100000s
S/N>52 dB
WDRDWDR
Lens
Digital Zoom4X
Focal Length4.0 mm
Iris TypeFixed
IrisF1.6
Field of View (H)90.5°
Field of View (V)44.4°
Field of View (D)111.3°
DORI
DORI Distance (Lens)4.0mm
DORI Distance (Detect)73.5 (241.0ft)
DORI Distance (Observe)29.4 (96.4ft)
DORI Distance (Recognize)14.7 (48.2ft)
DORI Distance (Identify)7.3 (24.1ft)
Illuminator
Supplemental LightDual light
Illumination Distance (IR)Up to 30m (98ft)
Illumination Distance (Warm Light)Up to 10m (33ft)
Wavelength850 nm
IR On/Off ControlAuto/Manual
Video
Video CompressionUltra 265,  H.265,  H.264
Frame RateMain Stream: 3MP (2304*1296), Max 20fps;
Sub Stream: 640*360, Max 20fps;
Video Bit Rate128 Kbps to 2048 Kbps
U‑codeSupport
OSDUp to 2 OSDs
Privacy MaskSupport (only NVR)
ROIUp to 8 areas
Video StreamDual Streams
White BalanceAuto, Outdoor, Fine Tune, Sodium Lamp, Locked, Auto2
Digital Noise Reduction2D/3D DNR
Smart IRSupport
FlipNormal, Flip Vertical, Flip Horizontal, 180°
DewarpingN/A
HLCN/A
BLCN/A
DefogDigital Defog
Events
Basic DetectionHuman Body Detection, Motion Detection, Audio Detection
General FunctionIP Address Filtering, Access Policy, ARP Protection, RTSP Authentication, User Authentication, HTTP Authentication
Intelligent
Auto TrackingSupport
Audio
Audio CompressionG.711U, G.711A
Audio Bitrate64 Kbps
Two‑way AudioSupport
SuppressionSupport
Sampling Rate8 kHz
Storage
Edge StorageMicro SD, up to 512 GB
Network StorageANR
Network
Wi‑Fi2.4G Wi‑Fi (IEEE802.11b/g/n), built‑in antenna
ProtocolsIPv4, TCP, UDP, DHCP, RTSP, DNS, DDNS, NTP, HTTP
Compatible IntegrationAPI
ClientUniarch Client, Uniarch app
Web BrowserPlug‑in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+
Wi‑Fi
Wireless StandardsIEEE802.11b/g/n
Frequency Range2.4 GHz to 2.4835 GHz
Channel Bandwidth20 MHz Support
Modulation Mode802.11b: CCK, QPSK, BPSK
802.11g/n: OFDM/HT
Wi‑Fi Security64/128‑bit WEP,  WPA‑PSK/WPA2‑PSK
Transmit Power802.11b: 17±1.5 dBm@11 Mbps802.11g: 14±1.5 dBm@54 Mbps802.11n: 12.5±1.5 dBm@150 Mbps
Receive Sensitivity802.11b: ‑90 dBm@11 Mbps (Typical)802.11g: ‑75 dBm@54 Mbps (Typical)802.11n: ‑74 dBm@150 Mbps (Typical)
Transmission Rate802.11b: 11 Mbps802.11g: 54 Mbps802.11n: up to 150 Mbps
PTZ
Pan Range0° ~ 345°
Pan Speed1°/s ~ 40°/s
Preset speed: 40°/s
Tilt Range0° ~ 90°
Tilt Speed1°/s ~ 30°/s
Preset speed: 30°/s
Number of Presets20
Interface
Audio I/ON/A
Alarm I/ON/A
Built‑in MicSupport
Built‑in SpeakerSupport
WIFISupport
Network1 × RJ45 10 M/100 M Base‑TX Ethernet
Certification
EMCCE‑EMC (EN 55032, EN 61000‑3‑3, EN IEC 61000‑3‑2, EN 50130)
FCC (FCC 47 CFR part15 B)
RFFCC ID (FCC CFR 47 part15 C)
CE RED (EN 301 489‑1, EN 301 489‑17, EN 300 328, EN 62311)
SafetyCE LVD (EN 62368‑1)
EnvironmentCE‑RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU);
ProtectionIP66 (IEC 60529)
General
PowerDC 12V±25%
Power consumption: Max 10.0W
Power InterfaceØ5.5 mm coaxial power plug
DimensionsΦ118mm*118mm*199mm (Φ4.6”x 4.6”x 7.8”)
Weight0.53kg (1.17lb)
Working Environment‑30 ℃ to 60 ℃ (‑22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non‑condensing)
Storage Environment‑30 ℃ to 60 ℃ (‑22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non‑condensing)
Surge Protection4 KV
Reset ButtonSupport
LED Indicator1, red/green
