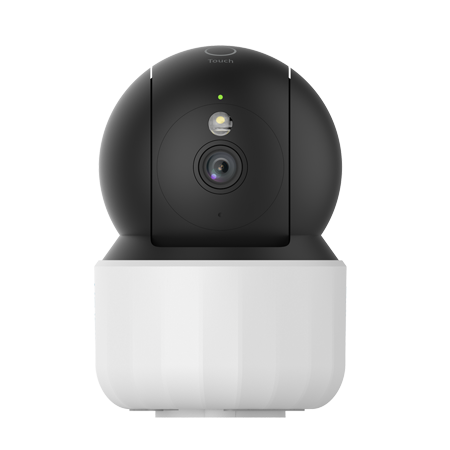

Uniview - Uho-S3E-M5TD - Uniarch 5MP Dual-light Wifi Smart PT Camera with RJ45
Part number:
Uho-S3E-M5TD
Price:

5MP Indoor Pan & Tilt Wi-Fi Camera



Features:

  • High quality image with 5MP, 1/3"CMOS sensor
  • 5MP (2880*1620)@25/20fps; 4MP (2560*1440)@25/20fps; 3MP (2304*1296)@30/25fps; 2MP (1920*1080)@30/25fps; 720P (1280*720)@30/25fps
  • Ultra 265, H.265, H.264
  • Built-in Mic & Speaker, support two-way audio, offer better interaction
  • Action touch, a physical button located on the top of the camera, support calling and privacy mode
  • IR night vision, up to 10m (33ft) IR distance
  • Warm Light, up to 10m (33ft) warm light distance
  • Support Dual Light mode, switch between IR and warm lights when the preset is triggered
  • Support 512 G Micro SD card
  • Wi-Fi connection and easy installation
Uho-S3E-M5TD
Camera
Sensor1/3", 5.0 megapixel, progressive scan, CMOS
Minimum IlluminationColour: 0.02 lux (F2.0, AGC ON)
0 lux with IR on
Day/NightIR-cut filter with auto switch (ICR)
ShutterAuto/Manual, 1 ~ 1/100000s
WDRDWDR
S/N>52dB
Lens
Lens Type4.0mm @F2.0
IrisFixed
Angle of View (H)79.0°
Angle of View (V)42.3°
Angle of View (O)85.1°
Illuminator
IR RangeUp to 10m (33ft)
Warm Light RangeUp to 10m (33ft)
Wavelength850nm
IR On/Off ControlAuto/Manual
Video
Video CompressionUltra 265, H.265, H.264
Frame RateMain Stream: 5MP (2880*1620), Max 25fps; 4MP (2560*1440), Max 25fps; 3MP (2304*1296), Max 30fps; 2MP (1920*1080), Max 30fps; 720P (1280*720), Max 30fps;
Sub Stream: 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;
Video Bit Rate128 Kbps~6144 Kbps
ROIUp to 8 areas
Video StreamDual streams
OSDUp to 4 OSDs
Privacy MaskSupport(Only NVR)
White BalanceAuto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
Digital Noise Reduction2D/3D DNR
Smart IRSupport
FlipNormal/Flip Vertical/Flip Horizontal/180°
HLCN/A
BLCN/A
DefogDigital Defog
Events
Basic DetectionHuman body detection, Motion detection, Ultra motion detection(human/vehicle/pet), Loud Sound Detection, Crying Detection, Tampering alarm
Auto trackingSupport
General FunctionIP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication
Audio
Audio CompressionG.711U,G.711A
Audio Bitrate64 Kbps
Two-way AudioSupport
SuppressionSupport
Sampling Rate8 kHz
Storage
Edge StorageMicro SD, up to 512GB
Network StorageANR
Network
Wi-Fi2.4G Wi-Fi (IEEE802.11b/g/n/ax), built-in antenna
ProtocolsIPv4, TCP, UDP, DHCP, RTSP, DNS, DDNS, NTP, HTTP
Compatible IntegrationAPI
ClientUniarch Client
Uniarch APP
Web BrowserPlug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above
Pan & Tilt
Pan Range0° ~ 355°
Pan Speed17°/s ~ 50°/s
Preset speed: 50°/s
Tilt Range-15° ~ 90°
Tilt Speed17°/s ~ 50°/s
Preset speed: 50°/s
Number of Presets20
Home PositionSupport
Interface
Built-in MicSupport
Built-in SpeakerSupport
WIFISupport
Network1 * RJ45 10M/100M Base-TX Ethernet
Certifications
EMCCE EMC (EN 55032,EN 61000-3-3,EN IEC 61000-3-2,EN 55035)
FCC (FCC 47 CFR part15 B)
RFFCC ID (FCC CFR 47 part15 C)
CE RED (EN 301 489-1, EN 301 489-17, EN 300 328, EN 62311)
SafetyCE LVD (EN 62368-1)
EnvironmentCE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU)
General
PowerDC 5V/1.5A
USB type-C interface
Dimensions (Ø x H)Φ80 x 120mm (Ø3.1” x 4.8”)
Weight0.23kg(0.51lb)
Working Environment-10℃~50℃(-14°F ~ 122°F),Humidity: ≤95% RH (non-condensing)
Storage Environment-10℃~50℃(-14°F ~ 122°F),Humidity: ≤95% RH (non-condensing)
Surge ProtectionN/A
Reset ButtonSupport
Call ButtonSupport
LED indicator1, red/blue
