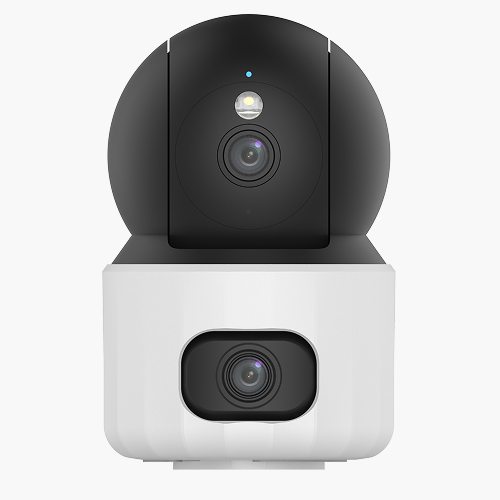

Uniview - Uho-S3S-M55D - 5MP dual lens indoor Wi-Fi PT camera, 4.0mm fixed lens, 10m IR, 10m WL, Mic&speaker, SD card slot, human/vehicle/pet/crying detection
Part number:
Uho-S3S-M55D
Price:
5MP dual lens indoor Wi-Fi PT camera, 4.0mm fixed lens, 10m IR, 10m WL, Mic&speaker, SD card slot, human/vehicle/pet/crying detection
Dual Lens for Complete Protection
Two angles coverage for zero blind spots – all with one camera system! Perfect for retail stores, warehouses, homes.
Two Cameras in One - Help You Save Money
Save 50%+ on installation and hardware costs vs buying two separate cameras!
Full Coverage Leaves No Blind Spots
The S3S camera features a 15° adjustable fixed lens and a 355° pan-tilt lens, both with 5MP resolution and 4X digital zoom. This combination ensures that no blind spots remain, delivering crystal-clear monitoring of every corner of your home.
Crystal Clear, Day or Night
See every detail in color—even in the dark!
Smart Detection That Actually Work
Detects people, cars, pets & crying – no useless alerts!
WiFi 6 Enhanced Coverage
Better signal penetration through walls for more consistent connectivity.
Flexible Storage Options
Store Your video with NVR, TF Card (Up to 512 G Slot), or Cloud. Secure, Scalable, and Always Accessible.
Features:
- Fixed camera and PT camera integration, dual channels with one IP, look at overall situation and consider details at the same time
- Ultra 265, H.265, H.264
- Support digital WDR (Wide Dynamic Range)
- Built-in Mic & Speaker, support two-way audio, offer better interaction
- Support sound and light warning, makes warning and alarming more noticeable
- Smart IR, up to 10m (33ft) IR and 10m (33ft) warm light distance, suitable for more scenes
- IR & warm light illumination to deal with different scenes and achieve full-color illumination
- Supports 512 GB Micro SD card
- Wi-Fi connection and easy installation
| Uho-S3S-M55D | |||||
| Camera | Panorama | Detail | |||
| Sensor | 1/3.0″ progressive scan, 5.0 megapixel, CMOS | 1/3.0″ progressive scan, 5.0 megapixel, CMOS | |||
| Min. Illumination | Color:0.01 lux (F2.0,AGC ON) 0 lux with IR | Color:0.01 lux (F2.0,AGC ON) 0 lux with IR | |||
| Day/Night | IR-cut filter with auto switch (ICR) | IR-cut filter with auto switch (ICR) | |||
| Shutter | Auto/Manual, shutter time: 1s ~ 1/100000s | ||||
| WDR | DWDR | ||||
| S/N | >52dB | ||||
| Lens | |||||
| Lens type | 4.0mm@F2.0 | 4.0mm@F2.0 | |||
| Digital Zoom | N/A | 4X | |||
| Iris | Fixed | Fixed | |||
| Field of View (H) | 79.0° | 79.0° | |||
| Field of View (V) | 42.3° | 42.3° | |||
| Field of View (D) | 85.1° | 85.1° | |||
| DORI | |||||
| DORI Distance | Lens (mm) | Detect (m) | Observe (m) | Recognize (m) | |
| 4.0 mm | 90 (295.3ft) | 36.0 (118.1ft) | 18.0 (59.1ft) | ||
| 4.0 mm | 90 (295.3ft) | 36.0 (118.1ft) | 18.0 (59.1ft) | ||
| Illuminator | |||||
| IR Range | Up to 10m (33ft) | Up to 10m (33ft) | |||
| Warm Light Range | N/A | Up to 10m (33ft) | |||
| Wavelength | 850nm | ||||
| IR On/Off Control | Auto/Manual | ||||
| Video | |||||
| Video Compression | Ultra 265, H.265, H.264 | ||||
| Frame Rate | Main Stream: 5MP (2880*1620), Max 15fps; 4MP (2560*1440), Max 15fps; 3MP (2304*1296), Max 15fps; 2MP (1920*1080), Max 15fps; Sub Stream: 720P (1280*720), Max 15fps; D1(720*576), Max 15fps; 640*360, Max 15fps; | Main Stream: 5MP (2880*1620), Max 15fps; 4MP (2560*1440), Max 15fps; 3MP (2304*1296), Max 15fps; 2MP (1920*1080), Max 15fps; Sub Stream: 720P (1280*720), Max 15fps; D1(720*576), Max 15fps; 640*360, Max 15fps; | |||
| Video Bit Rate | 128 Kbps~2048 Kbps | ||||
| ROI | Up to 4 areas | ||||
| Video Stream | Dual streams | ||||
| OSD | Up to 4 OSDs | ||||
| Privacy Mask | Support(Only NVR) | ||||
| Image | |||||
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 | ||||
| Digital Noise Reduction | 2D/3D DNR | ||||
| Smart IR | Support | ||||
| Flip | Normal/Flip Vertical/Flip Horizontal/180° | ||||
| HLC | N/A | ||||
| BLC | Support | ||||
| Defog | Digital Defog | ||||
| Events | |||||
| Basic Detection | Motion detection, Ultra motion detection(pedestrian/motor vehicle/pet), Loud Sound Detection, Crying detection, Tampering alarm | ||||
| Auto tracking | N/A | Support | |||
| General Function | IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication | ||||
| Audio | |||||
| Audio Compression | G.711U, G.711A | ||||
| Audio Bitrate | 64 Kbps | ||||
| Two-way Audio | Support | ||||
| Suppression | Support | ||||
| Sampling Rate | 8 kHz | ||||
| Storage | |||||
| Edge Storage | Micro SD, up to 512 GB | ||||
| Network Storage | ANR | ||||
| Network | |||||
| Wi-Fi | 2.4G Wi-Fi (IEEE802.11b/g/n/ax), built-in antenna | ||||
| Protocols | IPv4, TCP, UDP, DHCP, RTSP, DNS, DDNS, NTP, HTTP | ||||
| Compatible Integration | API | ||||
| Client | Uniarch Client Uniarch APP | ||||
| Web Browser | Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above | ||||
| Wi-Fi | |||||
| Wireless Standards | IEEE802.11b/g/n/ax | ||||
| Frequency Range | 2.4GHz~2.4835GHz | ||||
| Channel Bandwidth | 20/40 MHz Support | ||||
| Modulation Mode | 802.11b: CCK 802.11g/n: OFDM 802.11ax: OFDMA | ||||
| Security | 64/128-bitWEP,WPA-PSK/WPA2-PSK | ||||
| Transmit Power | 802.11b: 17±1.5dBm @11Mbps 802.11g: 16±1.5dBm @ 54Mbps 802.11n: 16±1.5dBm @MCS7 802.11ax: 16±1.5dBm @MCS9 | ||||
| Receive Sensitivity | 802.11b: -76dBm @11Mbps (Typical) 802.11g: -65dBm @54Mbps (Typical) 802.11n: -61dBm @MCS7,HT40(Typical) 802.11ax: -54dBm @MCS9,HE40(Typical) | ||||
| Transmission Rate | 802.11b: 11Mbps 802.11g: 54Mbps 802.11n: up to 150Mbps 802.11ax: up to 270Mbps | ||||
| Pan & Tilt | |||||
| Pan Range | N/A | 0° ~ 355° | |||
| Pan Speed | N/A | 17°/s ~ 50°/s | |||
| Preset speed: N/A | Preset speed: 50°/s | ||||
| Tilt Range | 0° ~ 15° | -15° ~ 90° | |||
| Tilt Speed | N/A | 17°/s ~ 50°/s | |||
| Preset speed: N/A | Preset speed: 50°/s | ||||
| Number of Presets | 20 | ||||
| Interface | |||||
| Built-in Mic | Support | ||||
| Built-in Speaker | Support | ||||
| Wi-Fi | Support | ||||
| Network | 1*RJ45 10M/100M Base-TX Ethernet | ||||
| Certifications | |||||
| EMC | CE EMC (EN 55032,EN 61000-3-3,EN IEC 61000-3-2,EN 55035) FCC (FCC 47 CFR part15 B) | ||||
| RF | FCC ID (FCC CFR 47 part15 C) CE RED (EN 301 489-1, EN 301 489-17, EN 300 328, EN 62311) | ||||
| Safety | CE LVD (EN 62368-1) | ||||
| Environment | CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU) | ||||
| General | |||||
| Power | DC 5V/1.5A | ||||
| USB type-C interface | |||||
| Dimensions (Ø x H) | Φ80 x 127mm (Ø3.1” x 4.8”) | ||||
| Weight | 0.22kg(0.49lb) | ||||
| Working Environment | -10℃~50℃(-14°F ~ 122°F), Humidity: ≤95% RH (non-condensing) | ||||
| Storage Environment | -10℃~50℃(-14°F ~ 122°F), Humidity: ≤95% RH (non-condensing) | ||||
| Surge Protection | N/A | ||||
| Reset Button | Support | ||||
| LED indicator | 1, red/blue | ||||
