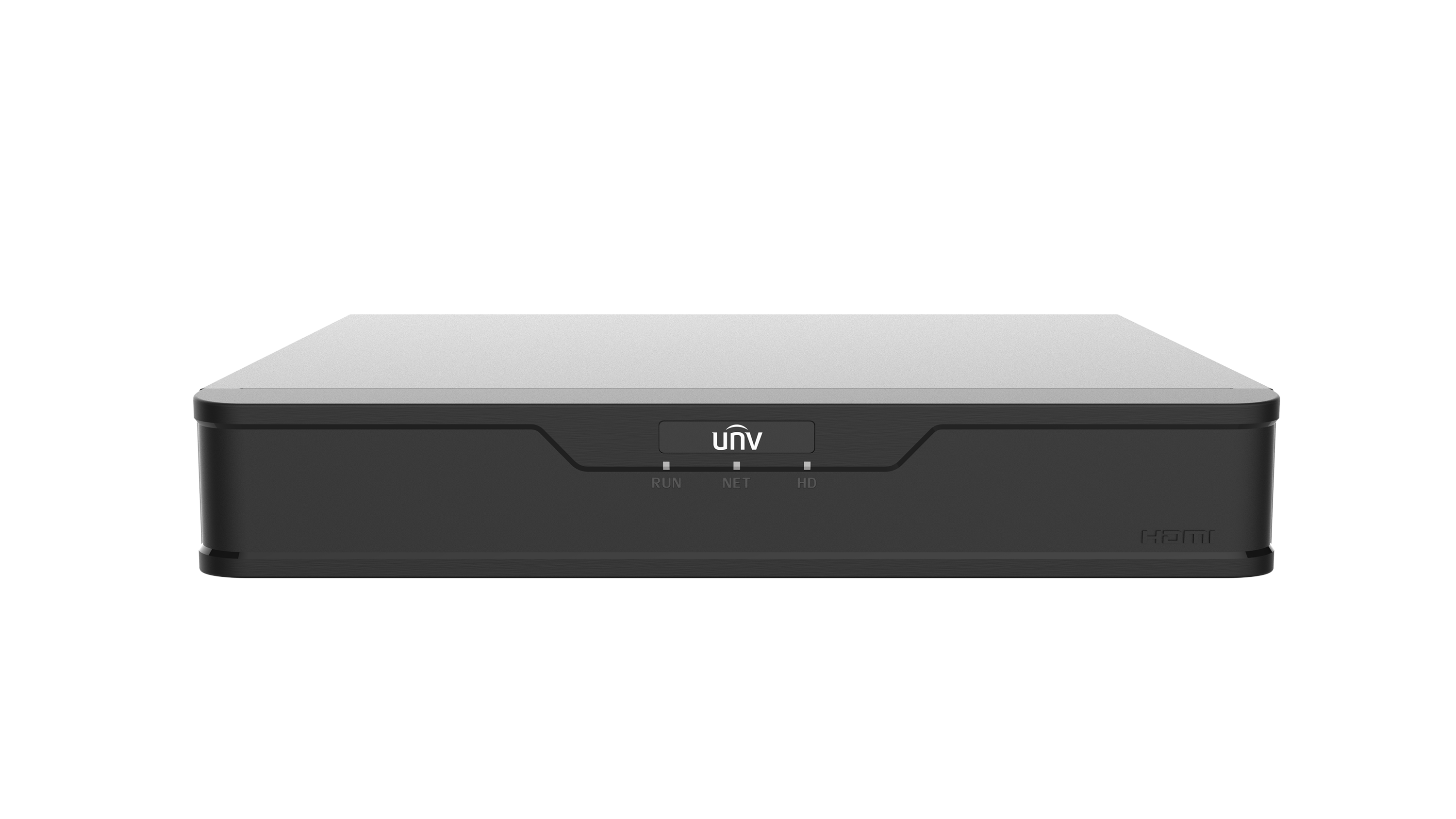

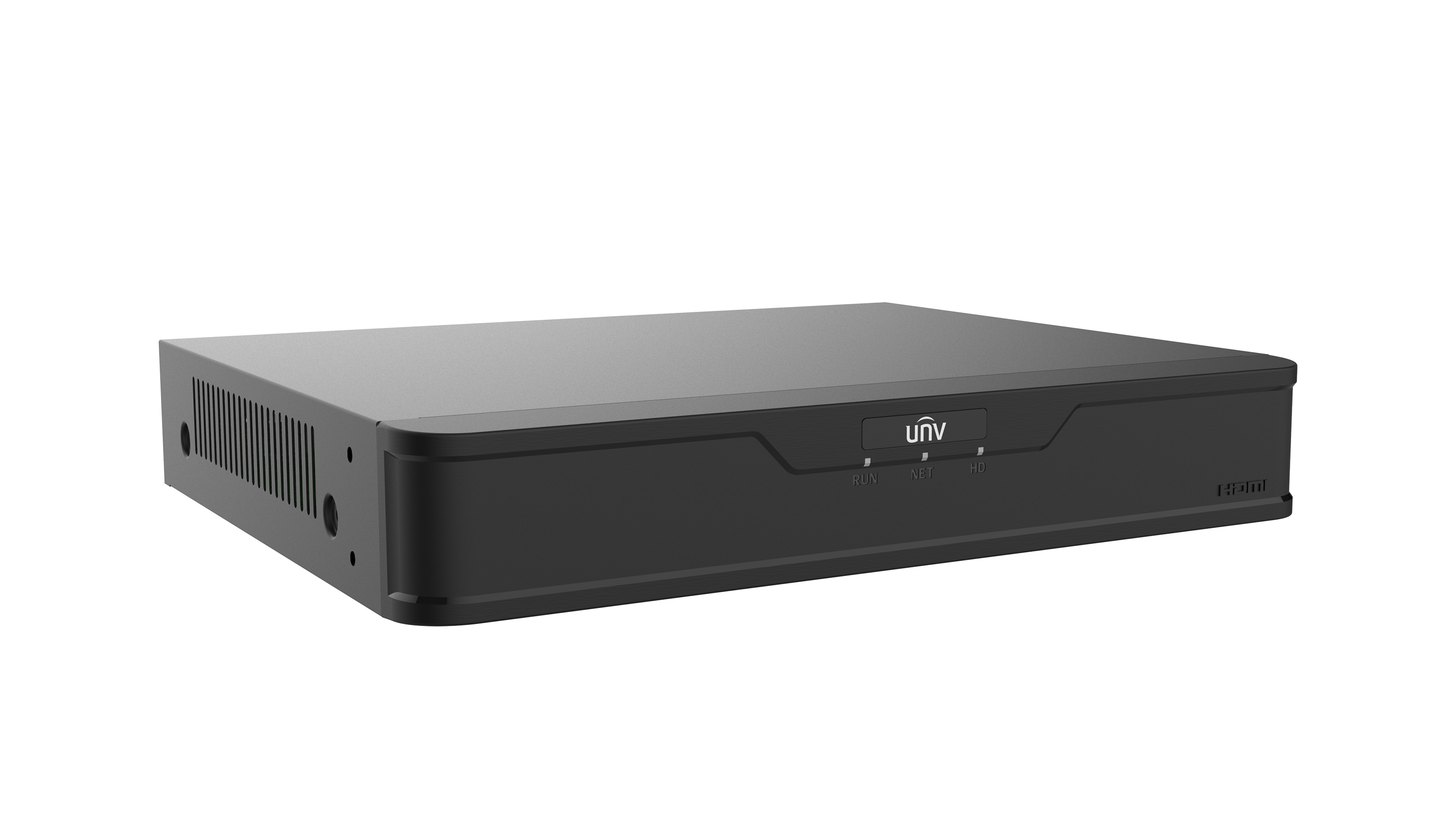

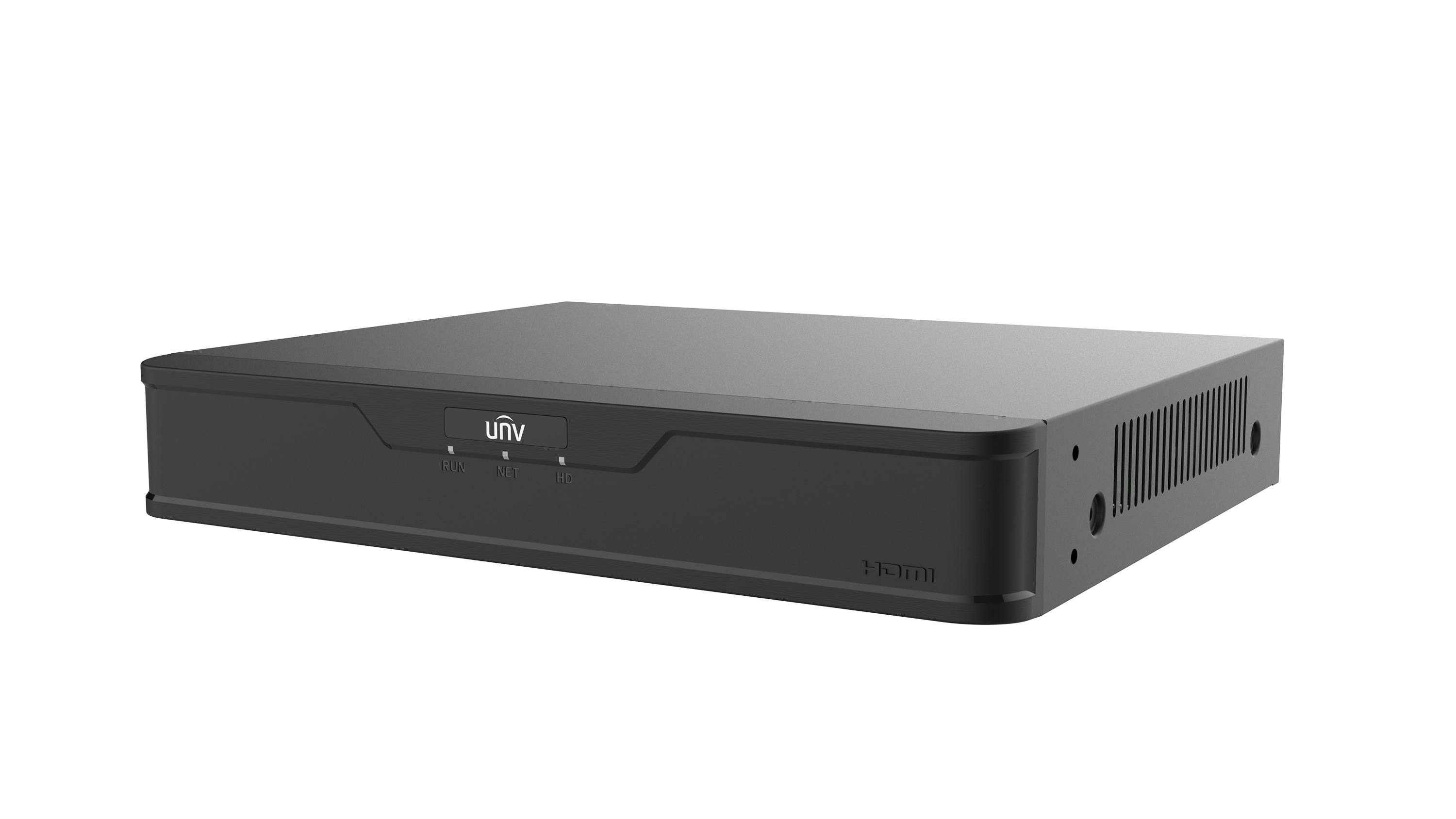

Uniview - XVR301-08G3 - UNV 1HDD 8CH 2MP XVR
Part number:
XVR301-08G3
Price:
1 HDD 8-Ch 1U Digital Video Recorder
Features:
- Support H.265/H.264 video formats
- Support audio over coaxial cable (only for TVI cameras)
- Control the dual-light of UNV analog cameras under TVI
- Support TVI, AHD, CVI, CVBS, IP cameras with adaptive access
- 4/8/16-channel BNC input
- Support 1-ch HDMI output, 1-ch VGA output at up to 1920*1080
- HDMI and VGA simultaneous output
- Long transmission distance over coaxial cable
- Support mainstream cameras of ONVIF and RTSP protocols
| XVR301-08G3 | |
| Video/Audio Input | |
| IP Video Input | 4-ch |
| Analog Video Input | 8-ch, BNC |
| Max IP Video Input | 8-ch |
| Supported Analog Camera Types | Support AHD input: 5MP@12.5fps 1080P@30fps 720P@30fps Support TVI input: 5MP@12.5fps 1080P@30fps 720P@30fps Support CVI input: 4MP@15fps 1080P@30fps 720P@30fps Support CVBS input |
| RCA Audio Input | 1-ch |
| Video/Audio Output | |
| HDMI Output | HDMI:1920x1080/60Hz, 1920x1080/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz |
| VGA Output | VGA:1920x1080/60Hz, 1920x1080/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz |
| RCA Audio Output | 1-ch |
| Live View Display | HDMI/VGA: 1/4/6/8/9/16 |
| Encoding/Decoding | |
| Recording Resolution | 5MP Lite/1080P Lite/720P/D1 |
| Recording Frame Rate | Main stream: 5MP Lite@6fps Sub stream: D1@6fps Main stream: 1080P Lite@12fps Sub stream: D1@12fps Main stream: 720P@12fps Sub stream: D1@12fps |
| Audio Sample Rate | 8 KHz, 16 bit per channel |
| Audio Bit Rate | 64Kbps per channel |
| Decoding Capability | Analog: 4 x 5MP Lite@6, 4x 1080P Lite @12fps IP: 1 x 4MP@30, 2 x 1080P@30 |
| Two-way Audio | |
| Two-way Audio | 1-ch, RCA(Using the audio input and output) |
| Analog Snapshot | |
| FTP/Schedule/Event Snapshot | FTP/Event snapshot:8-ch snapshot, up to 704*576 resolution, Schedule snapshot:not supported |
| Network | |
| Incoming Bandwidth | 32Mbps (Up to 40Mbps after all analog channel conversion) |
| Outgoing Bandwidth | 64Mbps |
| Remote Users | 128 |
| Protocols | TCP/IP, P2P, UPnP, DHCP, HTTP, HTTPS, DNS, DDNS, SMTP, NTP |
| Browser(Plugin) | Windows: IE (IE10/ 11), Firefox (version 52.0 and above), Chrome (version 45 and above), Edge (version 79 and above) |
| Smart | |
| Analog Smart by XVR | Ultra Motion Detection(UMD) |
| Smart Functions by XVR | 4-ch(UMD) |
| Alarm | |
| General Alarm | Motion |
| Alert Alarm | IP Conflict, Network Disconnected, Disk offline, Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal |
| GUI Language | |
| GUI Language | 20 languages: English, Vietnamese, Thai, Turkish, Spanish (Latin America), Portuguese (Brazil), Spanish, Portuguese, French, German, Italian, Dutch, Polish, Czech, Hungarian, Slovak, Russian, Hebrew, Arabic, Ukrainian |
| Hard Disk | |
| SATA | 1 SATA interface |
| Capacity | Up to 16TB for each HDD(The maximum HDD capacity varies with environment temperature) |
| External Interface | |
| Network Interface | 1 RJ45 10M/100M self-adaptive Ethernet Interface |
| USB | Rear panel: 2 x USB2.0 |
| Power Supply | DC 12V/2A |
| Working Environment | |
| Working Temperature | -10 °C ~ 55 °C (14 °F ~ 131 °F ) |
| Working Humidity | ≤ 90% RH(non-condensing) |
| Power Consumption (without HDD) | ≤ 8W |
| Dimensions | |
| Weight (without HDD) | ≤1.1 Kg ( 2.42lb ) |
| Dimensions | 260mm ×226mm× 47mm (10.2" × 8.9"×1.8") |
| Certification | |
| Certification | CE, FCC, UL, RoHS, WEEE |
| CE | EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035 |
| FCC | Part15 Subpart B |
