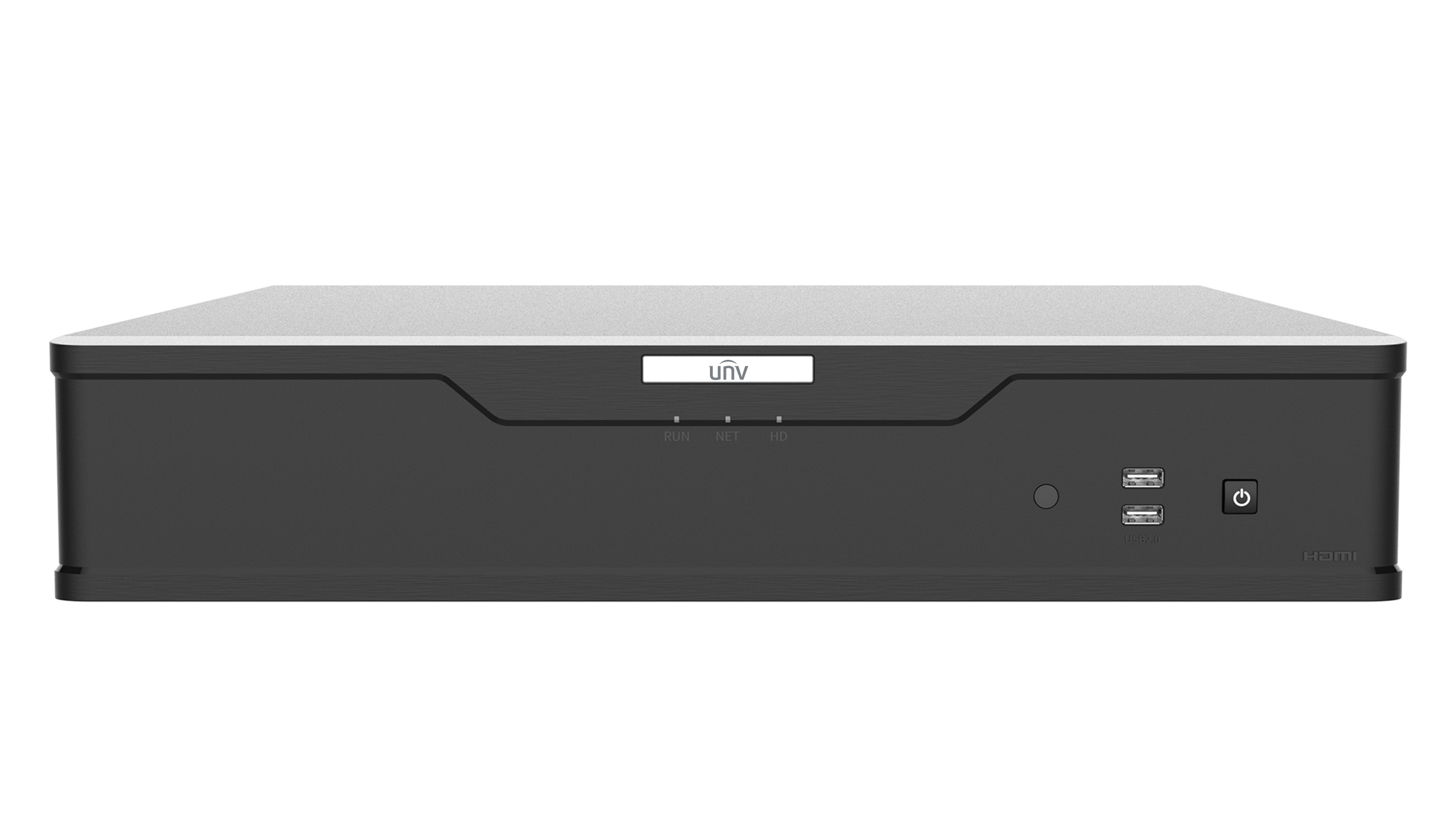

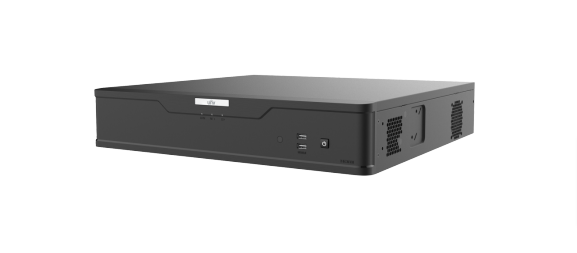

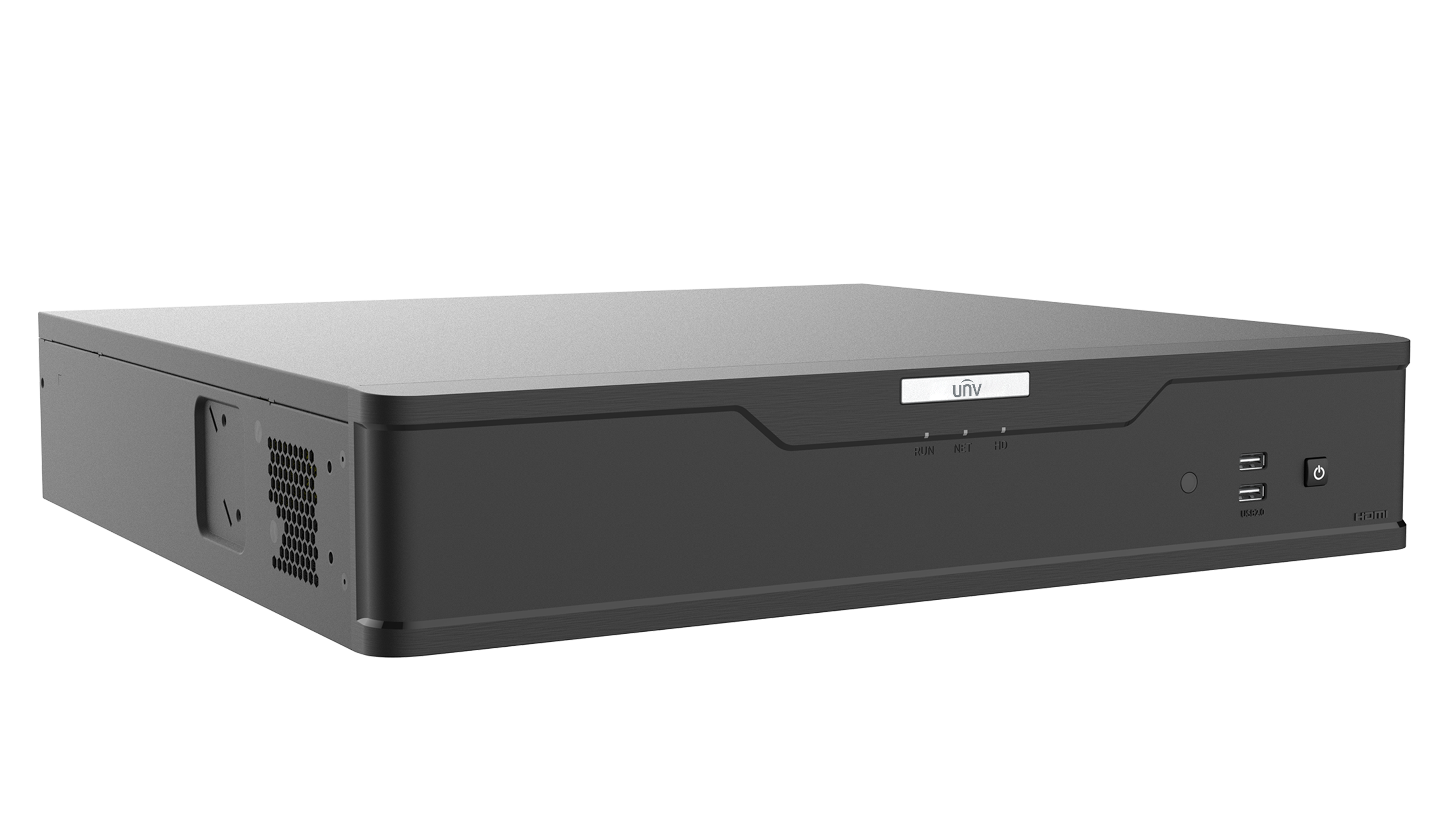

Uniview - XVR304-32Q3 - 4 HDDs 32-Ch 2U Digital Video Recorder
Part number:
XVR304-32Q3
Price:

4 Hard Disks 32-Channel 5MP TVI CVI AHD H.265 Hybrid Network Video Recorder



Features:

  • Support H.265/H.264 video formats
  • Support audio over coaxial cable(TVI & Uniview CVI protocol cameras)
  • Support TVI, AHD, CVI, CVBS, IP cameras with adaptive access
  • 32-channel BNC input
  • Support 1-ch CVBS output, 1-ch VGA output, 2-ch HDMI, HDMI2 output at up to 4K(3840 x 2160)
  • HDMI1 and VGA simultaneous output, HDMI2 and HDMI1/VGA independent output
  • Long transmission distance over coaxial cable
  • Support mainstream cameras of ONVIF and RTSP protocol
Video/Audio Input
IP Video Input4-ch
Analog Video Input32-ch, BNC
Max IP Video Input36-ch
Supported Analog Camera TypesSupport AHD input: 8MP@15fps, 5MP@20fps, 4MP@30fps, 1080P@30fps, 720P@30fps, Support TVI input: 8MP@15fps, 5MP@20fps, 4MP@30fps
1080P@30fps, 720P@30fps, Support CVI input: 8MP@15fps, 5MP@25fps, 4MP@30fps, 1080P@30fps, 720P@30fps, Support CVBS input
BNC Audio Input32-ch, channel audio
RCA Audio Input1-ch
Video/Audio Output
HDMI OutputHDMI1: 1920 × 1080/60 Hz, 1920 × 1080/50 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz; HDMI2: 4K (3840 × 2160)/30 Hz, 1920 × 1080/60 Hz, 1920 × 1080/50 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz
VGA OutputVGA: 1920 × 1080/60 Hz, 1920 × 1080/50 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz
BNC Video Output1-ch
RCA Audio Output1-ch
Live View DisplayHDMI/VGA: 1/4/6/8/9/16/25/36
Playback Screen1/4/9/16
Encoding/Decoding
Recording Resolution8MP Lite/5MP Lite/4MP Lite/1080P/720P/D1
Recording Frame RateMain stream: 8MP Lite@8fps, Sub stream: D1@8fps, Main stream: 5MP Lite@12fps, Sub stream: D1@12fps, Main stream: 4MP Lite@15fps, Sub stream: D1@15fps, Main stream: 1080P@15fps, Sub stream: D1@15fps, Main stream: 720P@30fps, Sub stream: D1@30fps
Audio Sample Rate8 kHz, 16 bit per channel
Audio Bit Rate64 Kbps per channel
Decoding CapabilityAnalog: 32 x 8MP Lite@8, 32 x 5MP Lite@12, 32 x 4MP Lite@15, 32 x 1080P@25, 32 x 720@30
IP: 2 x 8MP@30, 4 x 4MP@30, 8 x 1080P@30, 16 x 720P@30, 36 x D1, 16 x 720P@30
Num of Concurrent Playback in Local16-ch
Coaxial Cable
Audio over Coaxial Cable(Form)32-ch, One-way Audio(TVI&Uniview CVI protocol cameras)
Two-way Audio
Two-way Audio1-ch, RCA (Using the audio input and output)
Analog Snapshot
FTP/Schedule/Event SnapshotSchedule/FTP/Event snapshot:32-ch snapshot, up to 704*576 resolution
Network
Incoming Bandwidth160Mbps (Up to 224 Mbps after all analog channel conversion)
Outgoing Bandwidth160Mbps
Remote Users128
ProtocolsTCP/IP, P2P, UPnP, DHCP, HTTP, HTTPS, DNS, DDNS, SMTP, IPv6
Browser(Plugin)IE10, IE11, Chrome 45+, Edge 79+, Firefox 52+
Smart
Analog Smart by XVRUltra Motion Detection (UMD) , SIP (Intrusion Detection, Cross Line Detection, Enter Area, Leave Area), Face Detection
IP Smart by IPCFace Detection, Defocus Detection, Scene Change Detection, Object Removed, Object Left Behind, Auto Tracking, SIP (Intrusion Detection, Cross Line Detection, Enter Area, Leave Area)
VCA SearchFace Search, Behavior Search
Smart Functions by XVR16-ch (UMD), 8-ch (SIP)
Smart Functions by IP Camera8-ch (SIP)
Alarm
General AlarmMotion
Alert AlarmIP Conflict, Network Disconnected, Disk offline, Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal
GUI Language
GUI Language38 languages: Simplified Chinese, Traditional Chinese, English, Vietnamese, Thai, Turkish, Spanish (Latin America), Portuguese (Brazil), Spanish, Portuguese, French, German, Italian, Dutch, Polish, Czech, Hungarian, Slovak, Russian, Hebrew, Arabic, Ukrainian, Estonian, Bulgarian, Greek, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenia, Serbia, Korean, Japanese, Latvian, Lithuanian, Persian
Hard Disk
SATA4 SATA interfaces
CapacityUp to 16 TB for each HDD (The maximum HDD capacity varies with environment temperature)
External Interface
Network Interface2 RJ45 10 M/100 M/1000 M self-adaptive Ethernet Interface
USBFront panel: 2 × USB2.0, Rear panel: 1 × USB3.0
RS4851
RS4221
RS2321
eSATA1
Alarm In16-ch
Alarm Out6-ch
Power SupplyAC 100 ~ 240 V
Working Environment
Working Temperature-10 ℃ to 55 ℃ (14 ℉ to 131 ℉ )
Working Humidity≤ 90% RH (non-condensing)
Power Consumption (without HDD)≤ 45W
Dimensions
Weight (without HDD)≤6.0 Kg ( 13.23lb )
Height2U
Dimensions442.0mm × 435.9mm × 88.6mm (17.4" × 17.2" × 3.5")
Certification
CertificationCE, FCC, UL, RoHS, WEEE
CEEN 55032, EN 61000-3-3, EN IEC 61000-3-2
FCCPart15 Subpart B
