Cyber Power - CP1500AVRT - UPS SYSTEMS AVR 1500VA/900W, Simulated Sine Wave
Part number:
CP1500AVRT
Price:

A mini-tower UPS with line interactive topology, the CyberPower AVR Series CP1500AVRT provides battery backup (using simulated sine wave output) and surge protection for desktop computers, workstations, networking devices, and home entertainment systems. During longer power outages, the CP1500AVRT delivers enough battery backup power to perform a graceful shutdown to protect against the loss of data and damage to electronics. It uses Automatic Voltage Regulation (AVR) to correct minor power fluctuations without switching to battery power, which extends battery life. AVR is essential in areas where power fluctuations occur frequently. The CP1500AVRT comes with a three-year warranty (including coverage of batteries) and a $500,000 Connected Equipment Guarantee.



Features:

  • Battery Backup: Supplies power long enough for equipment to properly shut down when utility power fails. Helps prevent loss of data and minimizes the component stress caused by a hard shutdown.
  • Surge Protection: Diverts excess voltage away from sensitive electronic equipment during an AC power surge or power spike to prevent damage.
  • Automatic Voltage Regulation (AVR): Provides clean, consistent AC power by automatically increasing (boosting) low voltage without using battery power when incoming utility power experiences minor fluctuations.
  • Simulated Sine Wave Output: Uses pulse wave modulation to generate a stepped, approximated sine wave to supply cost-effective battery backup power for equipment that does not require sine wave output.
  • PowerPanel Personal Software: Includes a free software download that provides a user-friendly dashboard interface for controlling and monitoring the UPS.
  • Transformer-Spaced Outlets: Accommodates large transformer-based plugs without compromising the access of other outlets.
  • GreenPower UPS Bypass Design: Is a patented design that allows utility power to bypass the UPS transformer, when AC power is stable, which reduces energy consumption, noise, and heat buildup.
  • ENERGY STAR: This model is an ENERGY STAR certified Uninterruptible Power Supply (UPS) system. ENERGY STAR is the trusted, government-backed symbol for energy-efficient products and practices that help save money and protect the environment.
  • Three-Year Warranty: CyberPower will repair or replace a defective UPS system (including batteries) within three years of the purchase date. See warranty for details.
  • Connected Equipment Guarantee: CyberPower will repair or replace properly connected equipment if it is damaged by a power surge.
GENERAL
UPS TopologyLine Interactive
Energy SavingGreenPower UPS™ Bypass Technology
ENERGY STAR® CertifiedYes
INPUT
Voltage88 VAC - 144 VAC
Frequency60Hz ± 3Hz
Plug TypeNEMA 5-15P
Plug StyleRight Angle
Cord Length6’
OUTPUT
VA1,500
Watts900
Automatic Voltage RegulationSingle Boost
On Battery Voltage120Vac ± 5%
On Battery Frequency60Hz ± 1%
On Battery WaveformSimulated Sine Wave

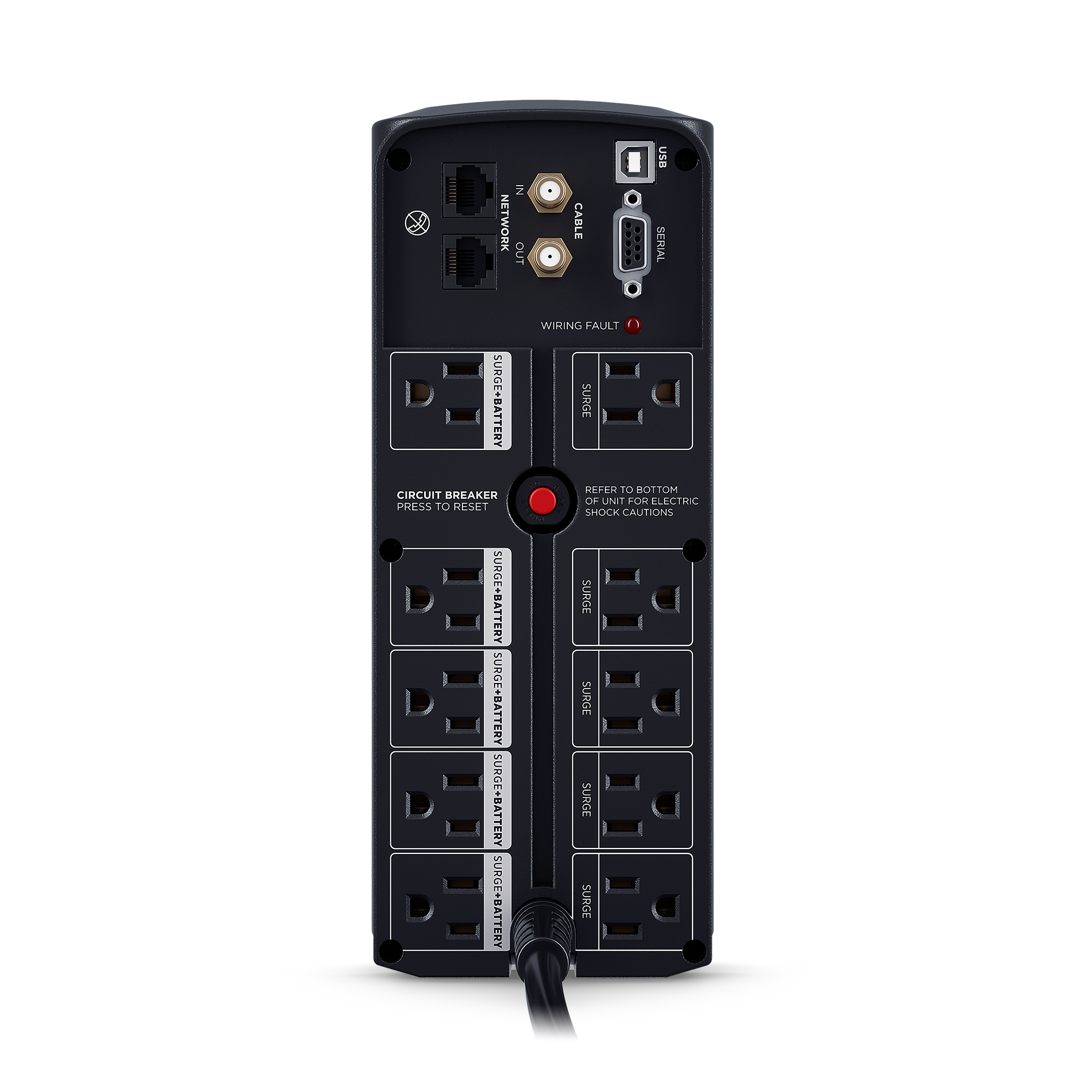

Outlets - Total10
Outlets - Battery & Surge Protected5
Outlets - Surge-Only Protected5
Outlets - Widely Spaced2
Overload ProtectionInternal circuitry limiting / circuit breaker
Transfer Time8ms
BATTERY
Runtime at Half Load (min)11
Runtime at Full Load (min)3
Battery TypeSealed Lead-Acid
Battery Size12V/9Ah
Replacement BatteryRB1290X2
Battery Quantity2
User ReplaceableYes
Typical Recharge Time8 Hours
SURGE PROTECTION & FILTERING
Surge Suppression1,500 Joules
Network Protection RJ451-In, 1-Out (10/100/1000)
Coax Protection RG61-In, 1-Out
EMI/RFI FiltrationYes
MANAGEMENT & COMMUNICATIONS
HID Compliant USB PortYes
Serial PortYes 1 Dry Contact
Management CableUSB Cable

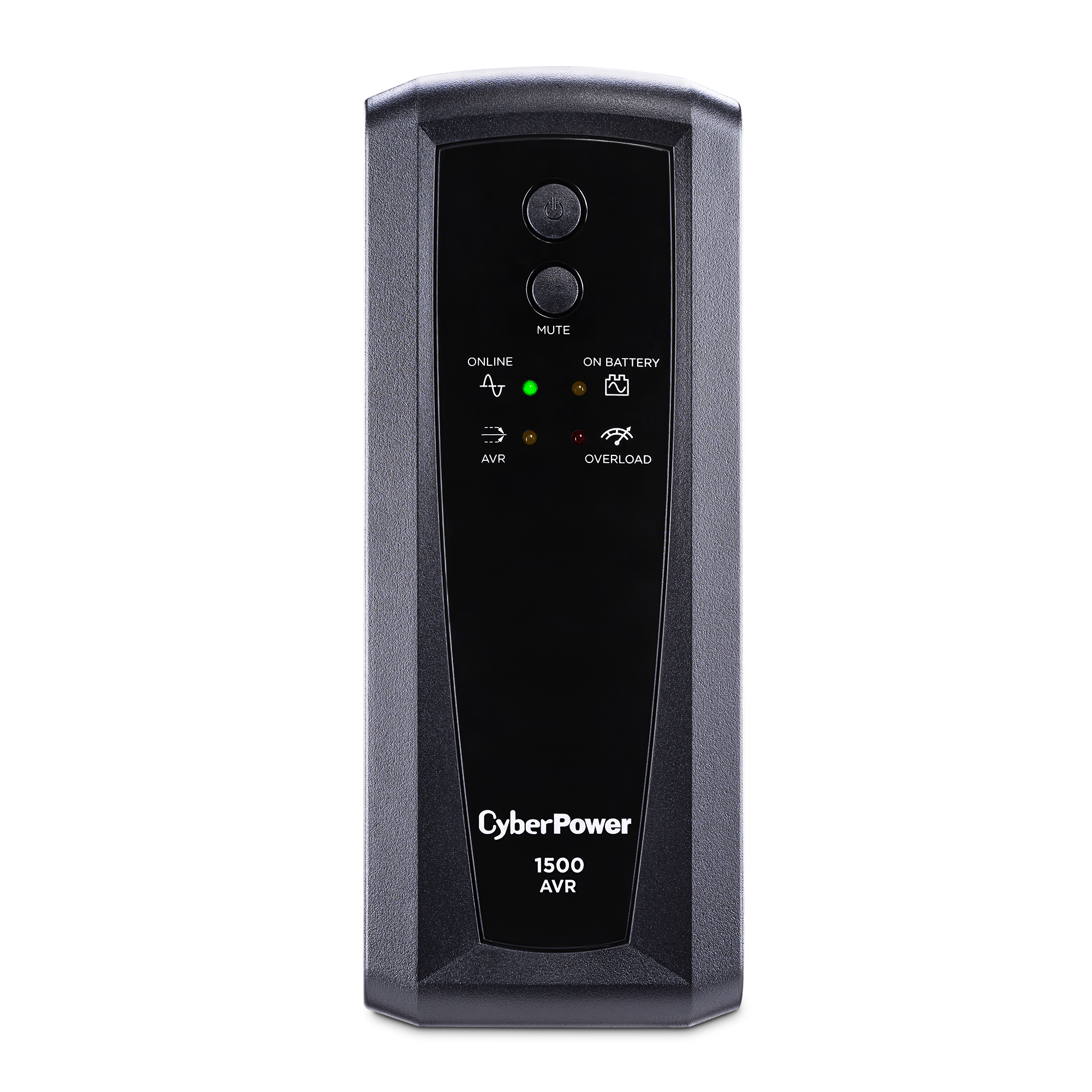

LED IndicatorsPower On, Wiring Fault, On Battery, AVR, Overload
Audible AlarmsOn Battery, Low Battery, Overload, Fault
SoftwarePowerPanel® Personal
PHYSICAL
Form FactorMini-Tower

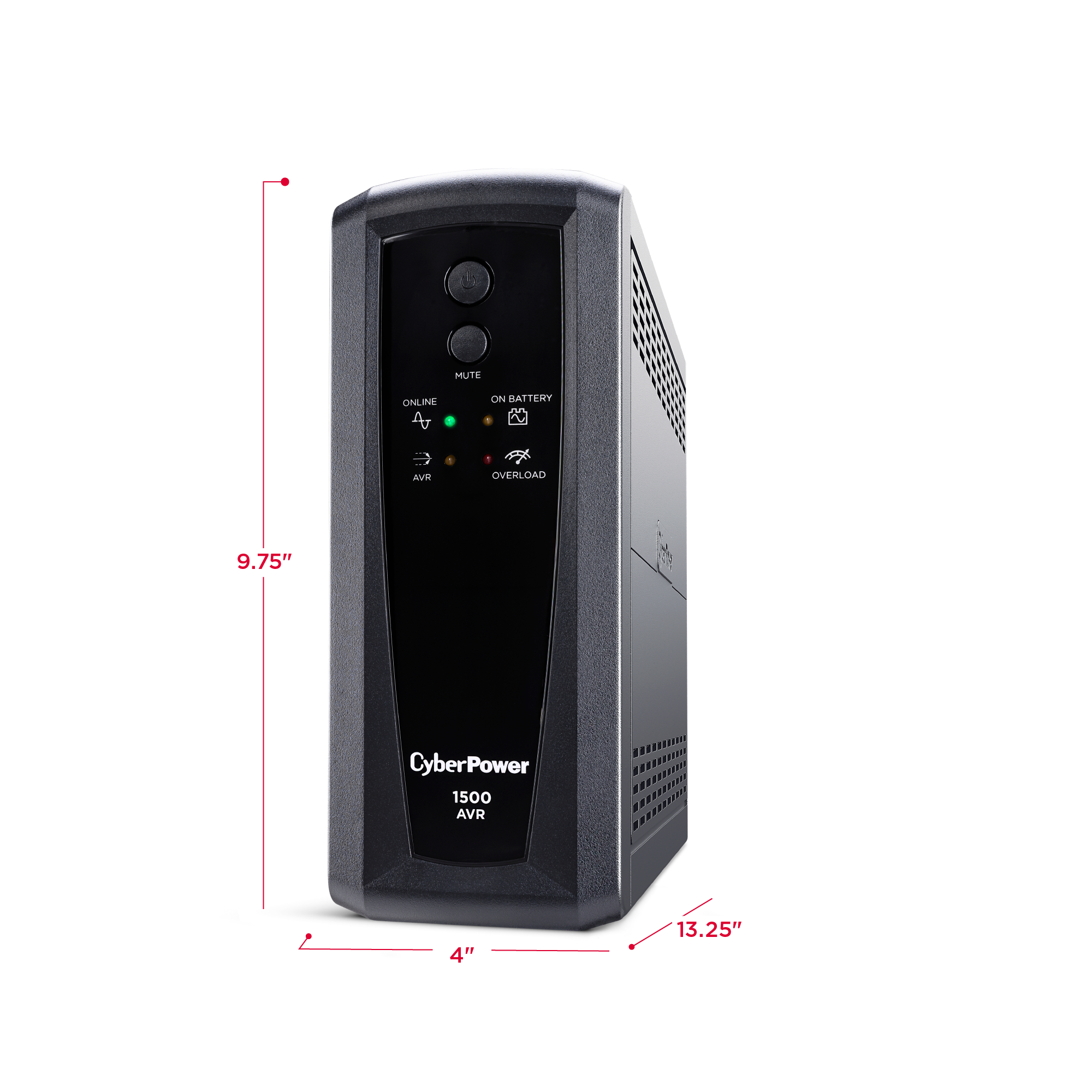

Dimensions (WxHxD) (in.)3.9 x 9.8 x 13.7
Weight (lbs.)24.1
ENVIRONMENTAL
Operating Temperature32°F to 104°F  (0°C to 40°C)
Operating Relative Humidity0% - 90% non-condensing
CERTIFICATIONS
SafetyUL1778, cUL 107 5th,
FCC DOC Class B
EnvironmentalRoHS Compliant
WARRANTY
Product Warranty3 Years Limited
Connected Equipment GuaranteeLifetime
CEG Amount$500,000
Name
Description
Size
Downloads
File
Data Sheet
1.2mb
File
User Manual
0.7mb
