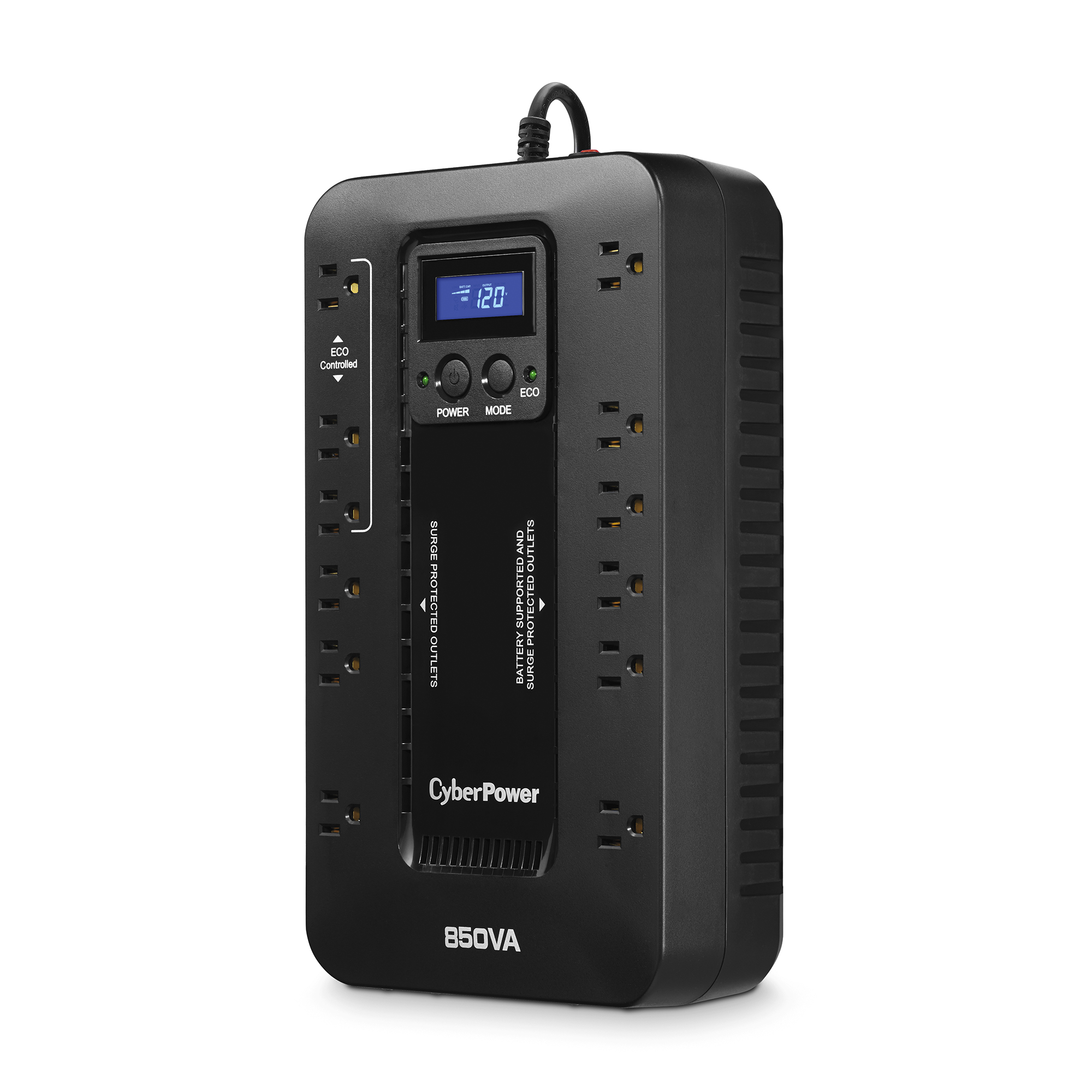

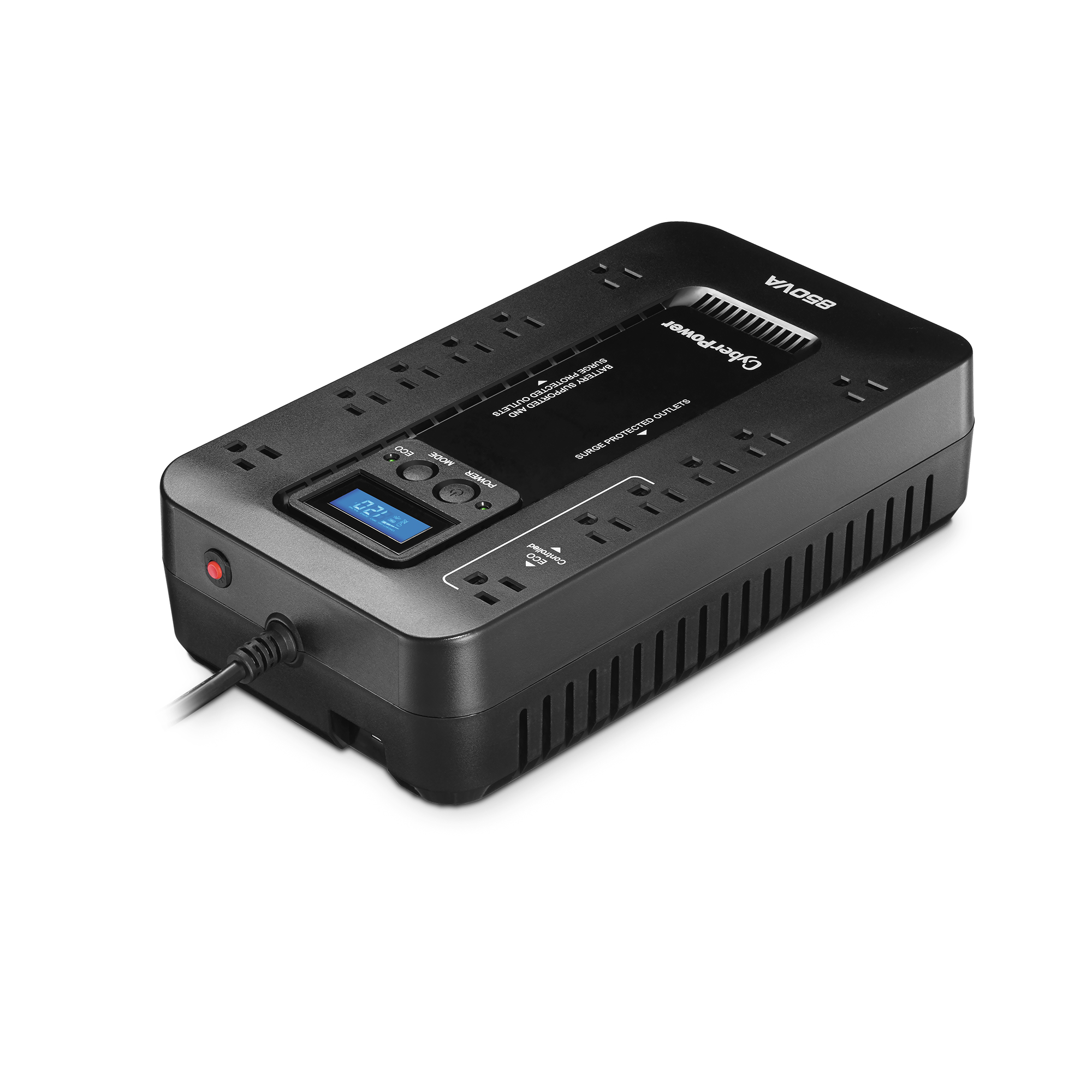

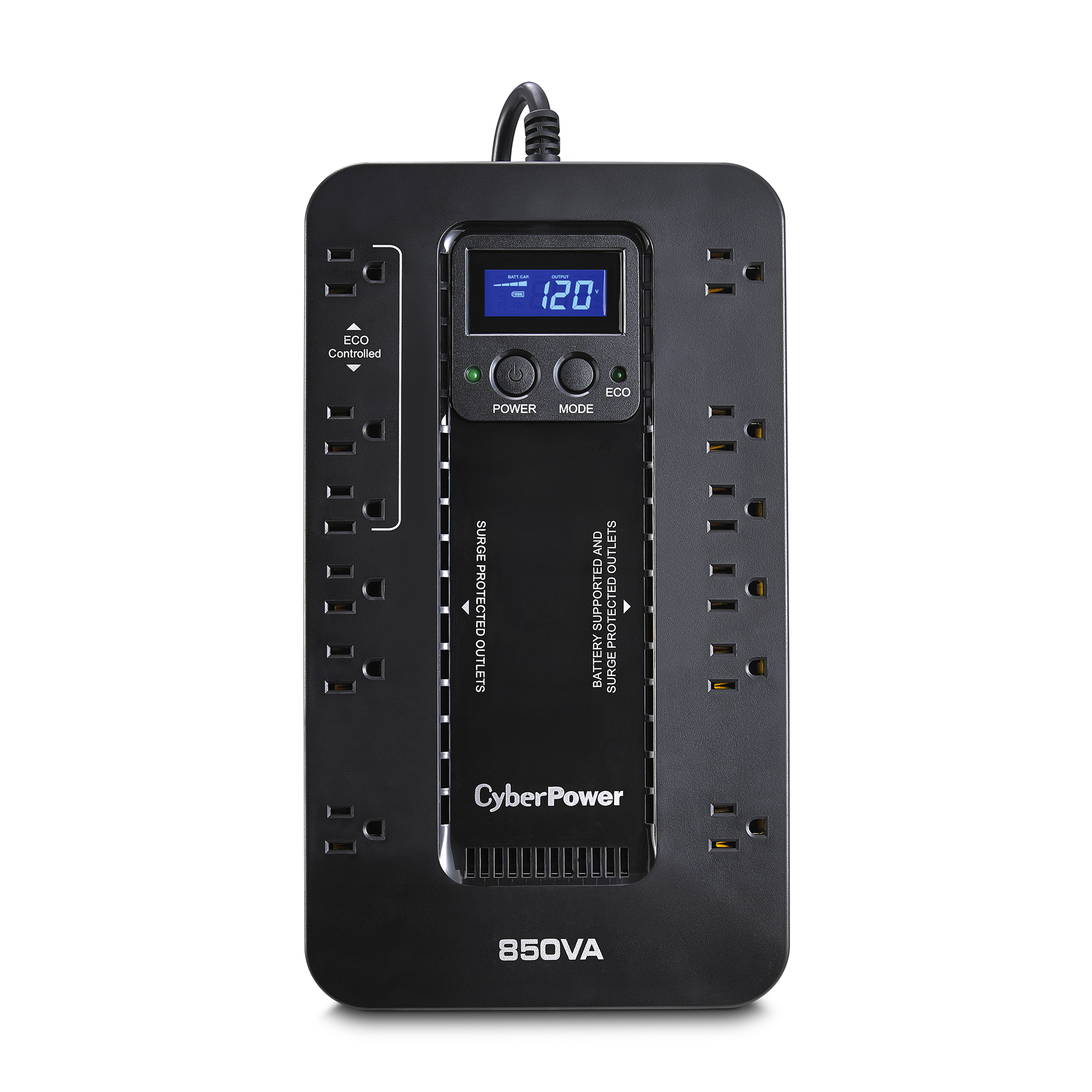

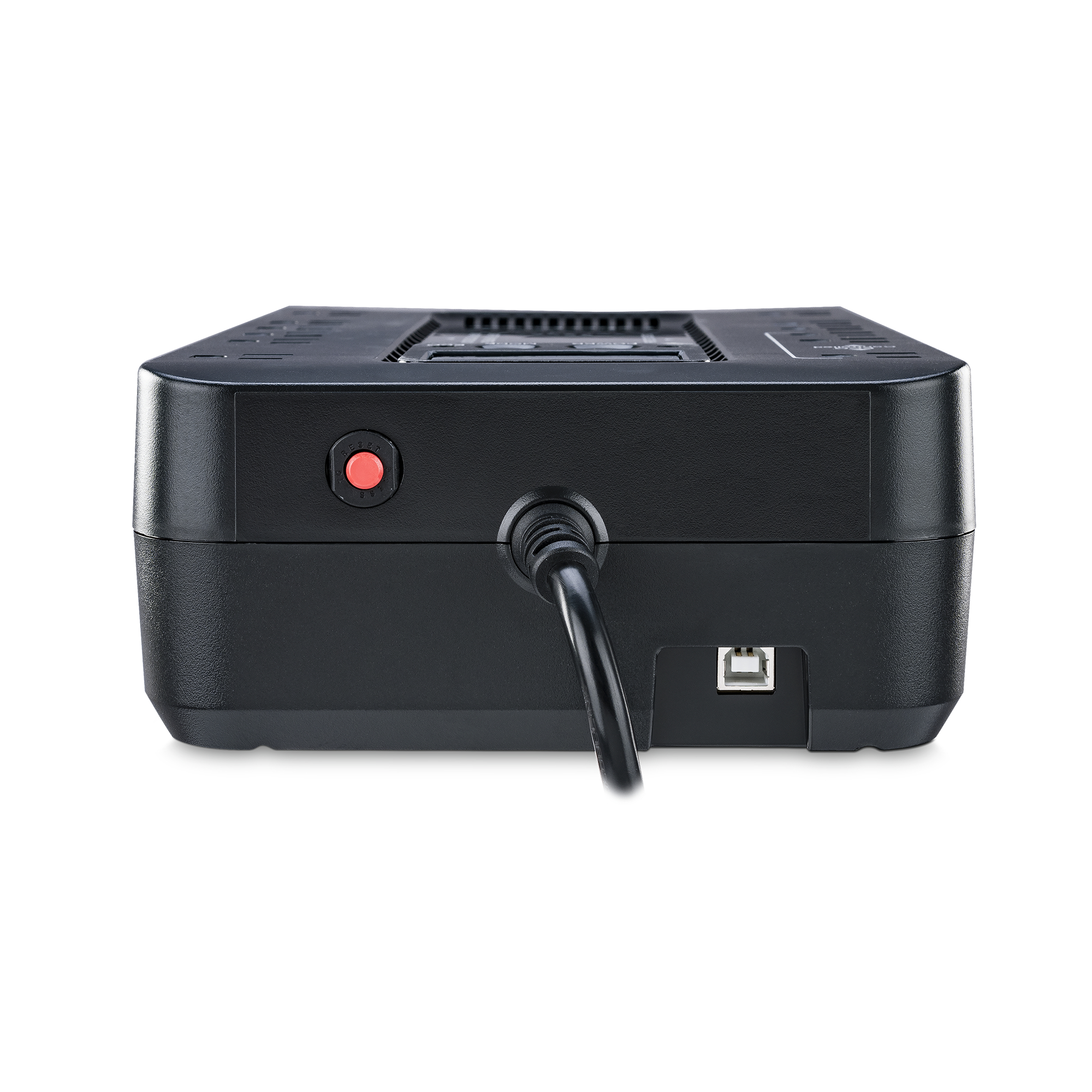

Cyber Power - EC850LCD - UPS SYSTEMS Ecologic 850VA/510W, Simulated Sine Wave
Part number:
EC850LCD
Price:

A compact UPS with standby topology, the CyberPower Ecologic EC850LCD provides battery backup (using simulated sine wave output) and surge protection for desktop computers, workstations, networking devices, and home entertainment systems. During power interruptions, the EC850LCD offers reliable power protection and battery backup. When the battery backup detects that the computer is off or in sleep mode, computer peripherals connected to the ECO Mode, surge protected outlets will be automatically turned off, reducing power usage and lowering energy costs (USB connection required). The multifunction LCD provides immediate, detailed information about the UPS battery and power conditions and generates alerts of potential problems before they can affect critical equipment and cause downtime. The EC850LCD comes with a three-year warranty (including coverage of batteries) and a $100,000 Connected Equipment Guarantee.



Features:

  • Battery Backup: Supplies power long enough for equipment to properly shut down when utility power fails. Helps prevent loss of data and minimizes the component stress caused by a hard shutdown.
  • Surge Protection: Diverts excess voltage away from sensitive electronic equipment during an AC power surge or power spike to prevent damage.
  • ECO Mode: Is an energy-efficient, user selectable feature for some surge-protected outlets. When the computer is off or is in sleep mode, the UPS automatically cuts power to computer peripherals connected to any outlets in ECO mode.
  • Multifunction LCD: Displays immediate, detailed information on the UPS battery and power conditions, alerting users to potential problems before they can affect critical equipment and cause downtime.
  • Widely Spaced Outlet(s): The widely-spaced outlet allow you to conveniently add transformer-sized plugs without blocking other outlets.
  • Audible Alarms: Provides audible notification of certain events such as running on battery power, low battery, or overload conditions.
  • LED Status Lights: Indicate Power On, ECO On/Off.
  • Ultra Quiet Design
    Minimizes noise during operation for a quieter work environment.
  • ENERGY STAR: This model is an ENERGY STAR certified Uninterruptible Power Supply (UPS) system. ENERGY STAR is the trusted, government-backed symbol for energy-efficient products and practices that help save money and protect the environment.
  • GreenPower UPS High-Efficiency: Reduces power consumption by utilizing a compact charger and power inverter to create an ultra-efficient backup power system for home and office use.
  • Standby Topology: Ensures that when incoming power drops below or surges above safe voltage levels, the UPS switches to DC battery power and then inverts to AC power to run connected equipment.
  • Simulated Sine Wave Output: Provides a manufactured waveform output to supply cost-effective battery backup power for equipment that does not require sine wave output.
  • PowerPanel Personal Software: Provides a user-friendly dashboard interface for controlling and monitoring the UPS.
  • Three-Year Warranty: CyberPower will repair or replace a defective UPS system (including batteries) within three years of the purchase date. See warranty for details.
  • Connected Equipment Guarantee: CyberPower will repair or replace properly connected equipment if it is damaged by a power surge.
GENERAL
UPS TopologyStandby
Energy SavingGreenPower UPS™ High Efficiency
ENERGY STAR® CertifiedYes
INPUT
Frequency47Hz - 63Hz
Plug TypeNEMA 5-15P
INPUT - CONT.
Plug StyleRight Angle - 45° Offset
Cord Length5'
OUTPUT
VA850
Watts510
On Battery Voltage120Vac ± 5%
On Battery Frequency50/60Hz ± 1% (auto-sensing)
On Battery WaveformSimulated Sine Wave
Outlets - Total12
Outlet TypeNEMA 5-15R
Outlets - Eco Controlled3
Outlets - Battery & Surge Protected6
Outlets - Surge-Only Protected6
Outlets - Widely Spaced4
Overload ProtectionInternal circuitry limiting / circuit breaker
Transfer Time4ms
BATTERY
Runtime at Half Load (min)7.9
Runtime at Full Load (min)2.3
Battery TypeSealed Lead-Acid
Field-serviceable BatteryReplaceable by qualified technician
Typical Recharge Time8 Hours
SURGE PROTECTION & FILTERING
Surge Suppression526 Joules
EMI/RFI FiltrationYes
MANAGEMENT & COMMUNICATIONS
HID Compliant USB PortYes
Management CableUSB Cable
LED IndicatorsPower On, ECO on/off
Audible AlarmsBattery Mode, On Battery, Low Battery, Overload
SoftwarePowerPanel® Personal
PHYSICAL
Form FactorCompact
Keyhole Mounting SlotsYes
Dimensions (WxHxD) (in.)12.2 x 3.1 x 7
Weight (lbs.)7.7
ENVIRONMENTAL
Operating Temperature32°F to 104°F / 0°C to 40°C
Operating Relative Humidity0% - 90% non-condensing
Operating Elevation0-10000 feet (0-3000 meters)
Storage Temperature5°F to 113°F / -15°C to 45 °C
Storage Relative Humidity0% - 95% non-condensing
Storage Elevation0-50000 feet (0-15000 meters)
CERTIFICATIONS
SafetyUL1778, cUL 107.3, FCC DOC Class B
EnvironmentalRoHS Compliant
WARRANTY
Product Warranty3 Years
Connected Equipment GuaranteeLifetime
CEG Amount$100,000
