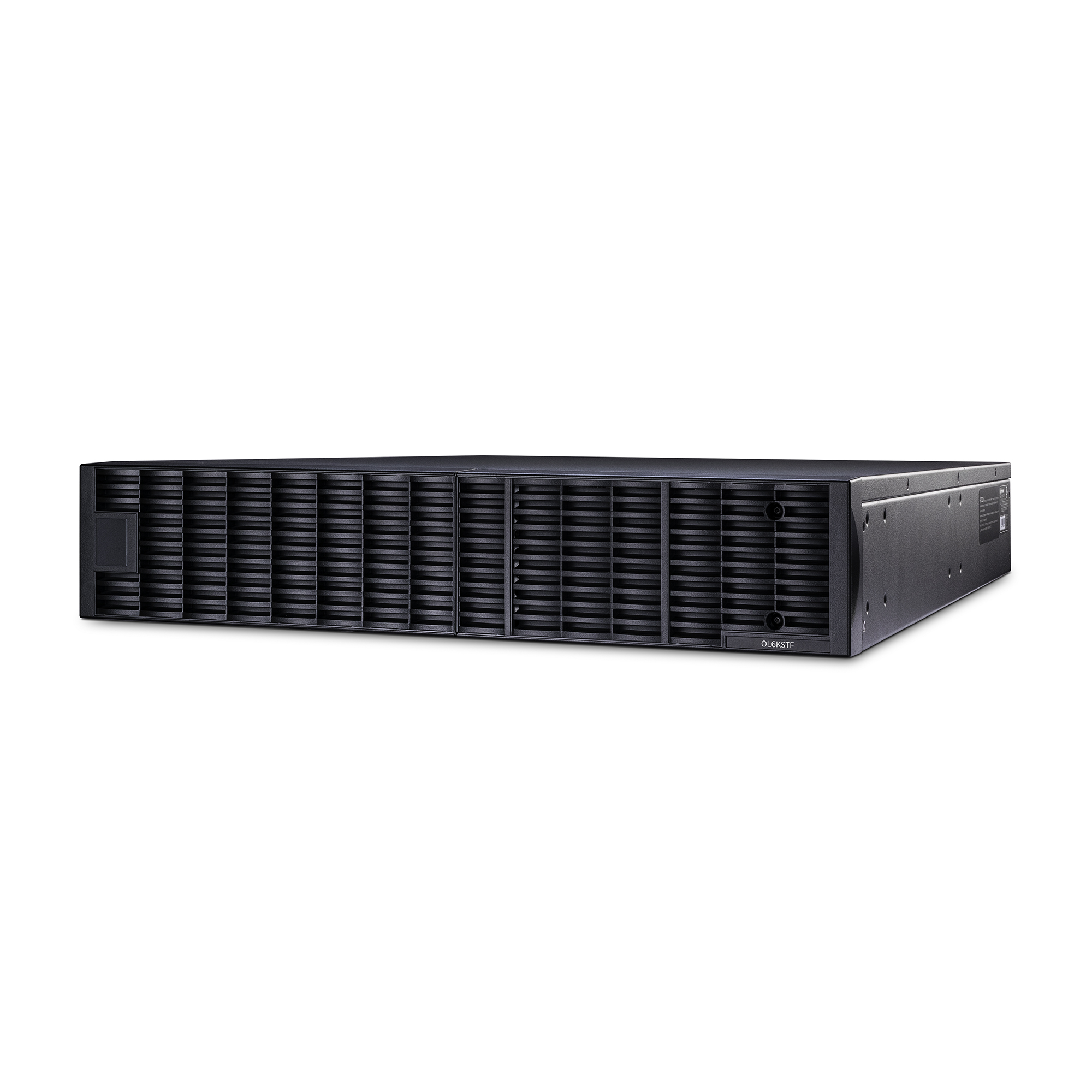

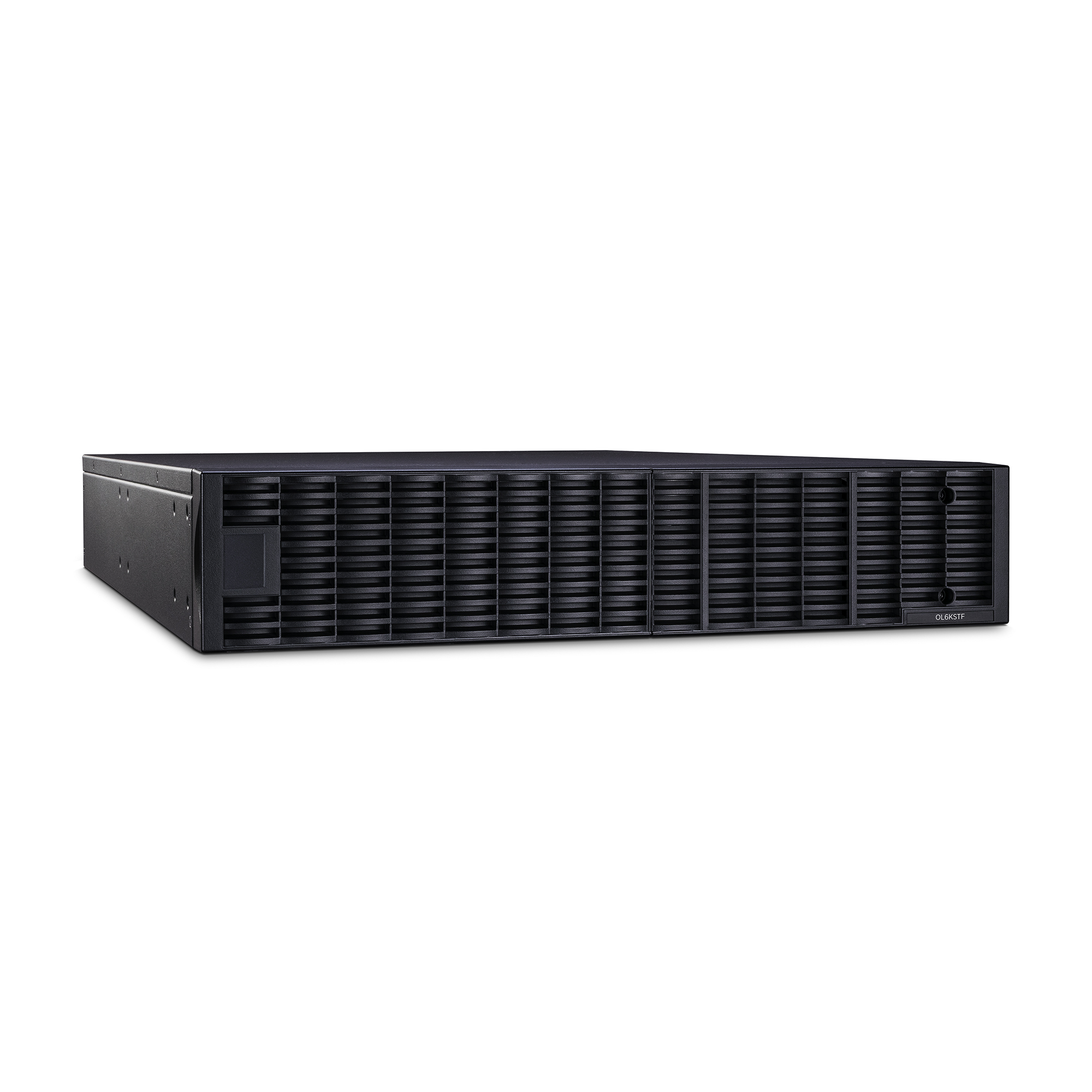

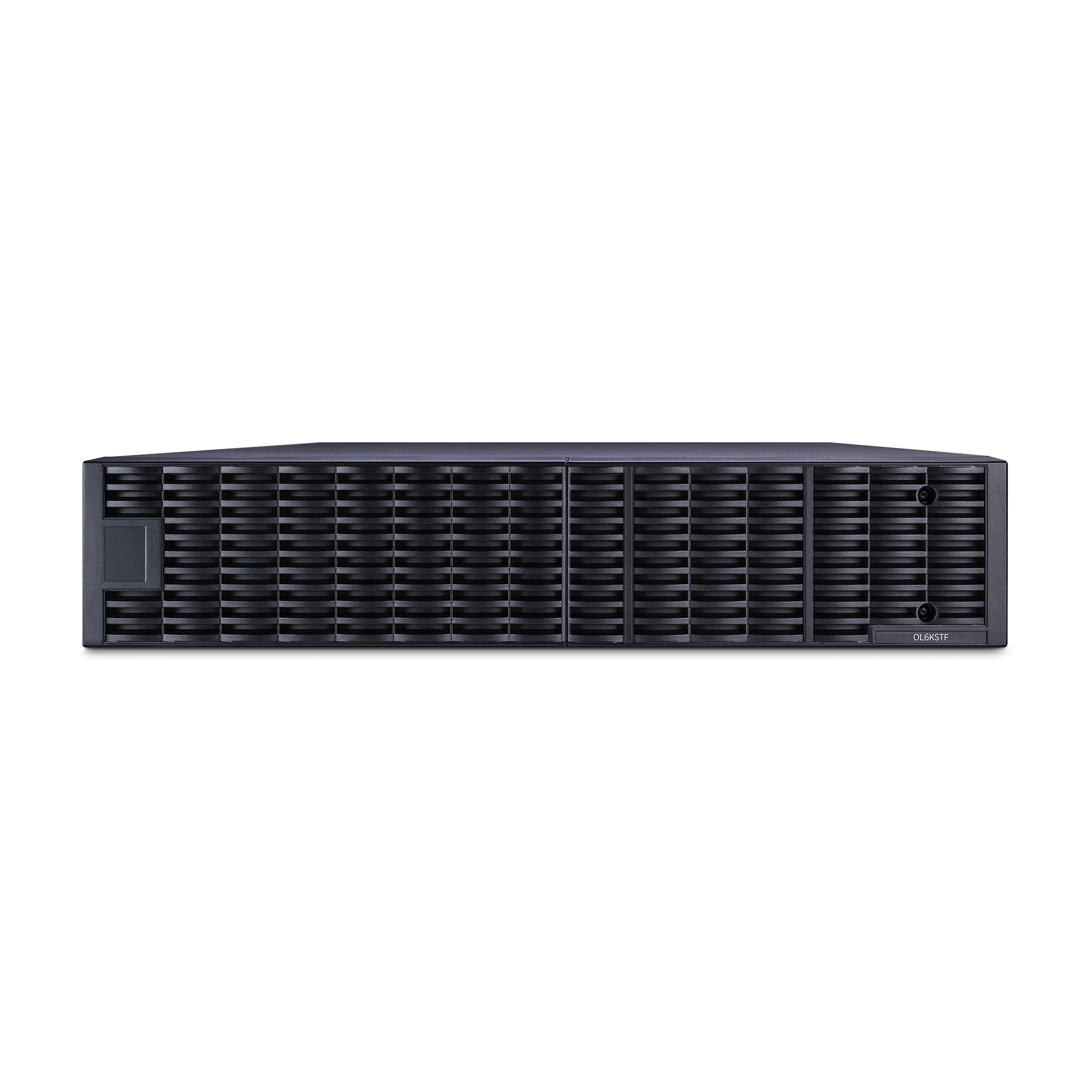

The CyberPower Smart App Online OL6KSTF rack/tower step-down isolation transformer converts 200 V to 240 V input voltage originating from utility power, a UPS, or a generator to 120 V output.

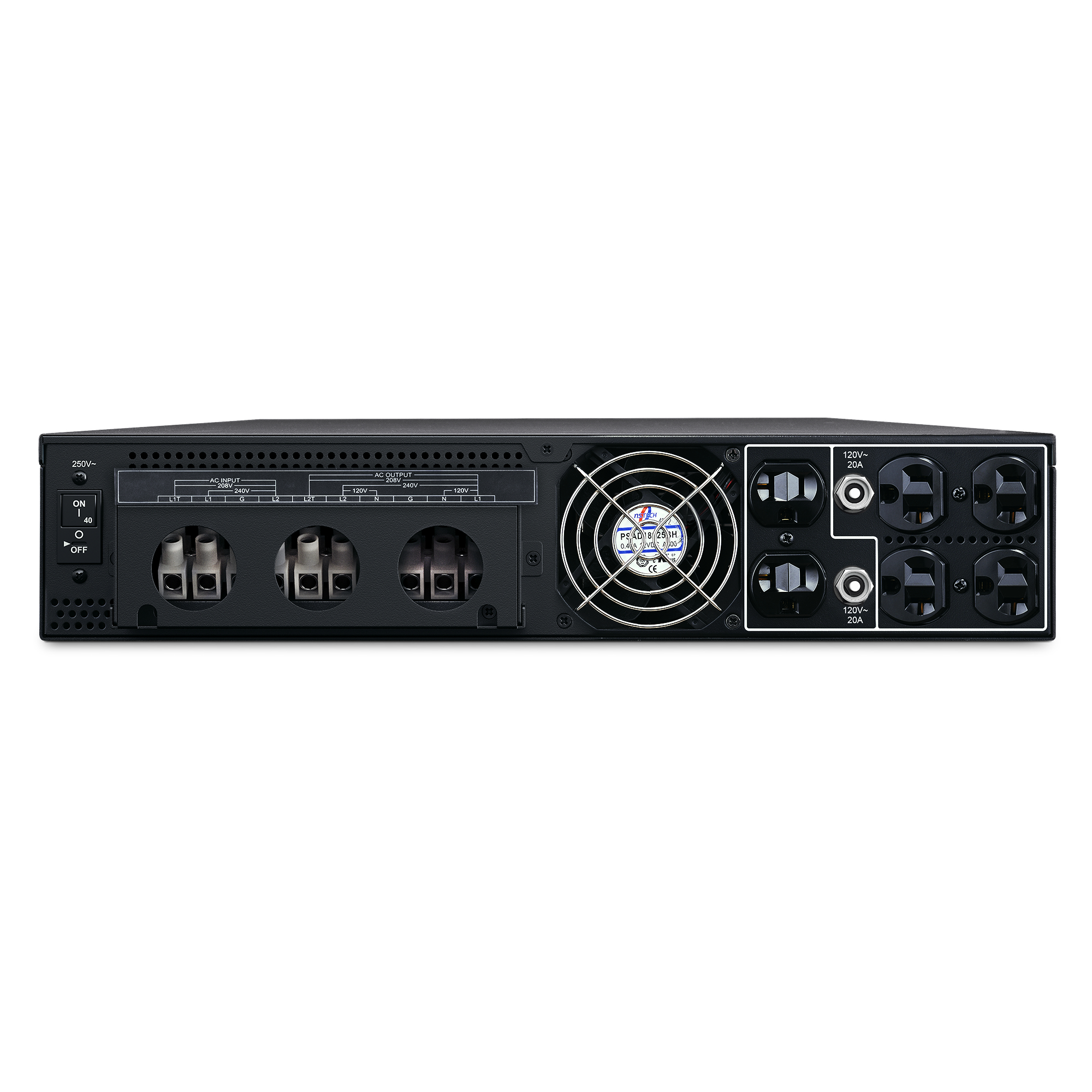

The OL6KSTF has a capacity of 6,000 VA / 6,000 Watts. It features six (6) NEMA 5-20R receptacles that can support output to NEMA 5-15P and 5-20P plug power cords. A hardwire output terminal block provides a means to connect to an electrical subpanel.
The included 6-foot cord (NEMA L6-30P plug to ROJ) connects the OL6KSTF to input power. Over temperature protection safeguards your OL6KSTF from damage if the internal heat exceeds safe operating parameters.
A Three-Year Warranty ensures that this step-down transformer has passed our highest quality standards in design, assembly, material or workmanship.
Features:
- Step-Down Transformer: The step-down transformer provides IT managers the ability to support both 120 V and 208 V output requirements. With six (6) NEMA 5-20R outlets available, users will have sufficient outlets to connect multiple 120 V devices running at 15 A and/or 20 A. If additional outlets are needed, CyberPower has a number of different Power Distribution Units (PDU) making it easy to address your specific outlet needs.
- NEMA L6-30P Plug: A 6 foot, 3 wire, power cord with a NEMA L6-30P plug to ROJ (removed outer jacket) is included.
- Rack/Tower Versatility: Allows for horizontal rack or vertical tower installation.
- Frequency Supported: The OL6KSTF has the flexibility to support both 50 Hz and 60 Hz output.
- Over Temperature Protection: Protects the OL6KSTF from damage if the internal heat exceeds safe operating parameters.
- Resettable Input and Output Circuit Breakers: Convenient, resettable switches that provide protection from an input or output overload and faults.
- Three Year Warranty: CyberPower will repair or replace a defective product within three years of the purchase date. See warranty for details.
| GENERAL | |
| Type | Step-Down Transformer |
| Over Temperature Protection | Yes |
| INPUT | |
| Nominal Voltage | 200 V to 240 V |
| Frequency | 50/60 Hz |
| Current Rating | 30 A |
| Plug Type | Hardwire (NEMA L6-30P power cord included) |
| Cord Length (ft) | 6 |
| OUTPUT | |
| VA | 6,000 (6 kVA) |
| Watts | 6,000 (6 kW) |
| Nominal Voltage | 120 V, 208 V |
| Frequency | 50/60 Hz |
| Outlets - Total | 7 |
| Outlet Type | (6) NEMA 5-20R, (1) Hardwire Terminal Block |
| Overload Protection | Circuit Breaker Protected |
| PHYSICAL | |
| Form Factor | Rack / Tower Convertible |
| Enclosure Construction | Steel |
| Rack Mounting Hardware | Included |
| PHYSICAL DIMENSIONS | |
| Dimensions (WxHxD, in) | 17.05 x 3.5 x 24 |
| Dimensions (WxHxD, mm) | 433 x 88 x 600 |
| Weight (lb) | 95.5 |
| Weight (kg) | 43.4 |
| Rack Units | 2U |
| SHIPPING DIMENSIONS | |
| Dimensions (WxHxD, in) | 23.6 x 13 x 35.4 |
| Dimensions (WxHxD,mm) | 600 x 330 x 900 |
| Weight (lb) | 128.2 |
| Weight (kg) | 58 |
| ENVIRONMENTAL | |
| Operating Temperature | 32°F to 104°F (0°C to 40°C) |
| Operating Humidity | 0% to 90% (non-condensing) |
| Operating Elevation | 0 ft to 10,000 ft (0 m to 3,000 m) |
| Storage Temperature | -4 °F to 113 °F (-20 °C to 45 °C) |
| Storage Relative | 0% to 95% (non-condensing) |
| Humidity | |
| Storage Elevation | 0 ft to 50,000 ft (0 to 15,000 m) |
| Thermal Dissipation | 1379 BTU/h |
| (100% Load) | |
| Audible noise at 1M from | 58 dBA |
| surface of unit | |
| CERTIFICATIONS | |
| Safety | UL 1778 5th Ed. |
| CSA C22.2 NO.107.3-05 | |
| Environmental | RoHS Compliant |
| WARRANTY | |
| Extended 2-Year | Optional WEXT5YR-ACC2C |
| Warranty | |
| Product Warranty | 3 Years Limited |
| COMPATIBILITY | |
| UPS Models | OL3000RTXL2UHV OL5KRTHD OL6000RT3UPDU OL6KRT OL6KRT3UHW OL6KRTHD OL6KRTHW OL6KRTMB OL8000RT3U OL8000RT3UPDU OL8KRT3UHW OL8KRTHW OL8KRTMB OL10000RT3U OL10000RT3UPDU OL10KRT3HW OL10KRTHW OL10KRTMB |
