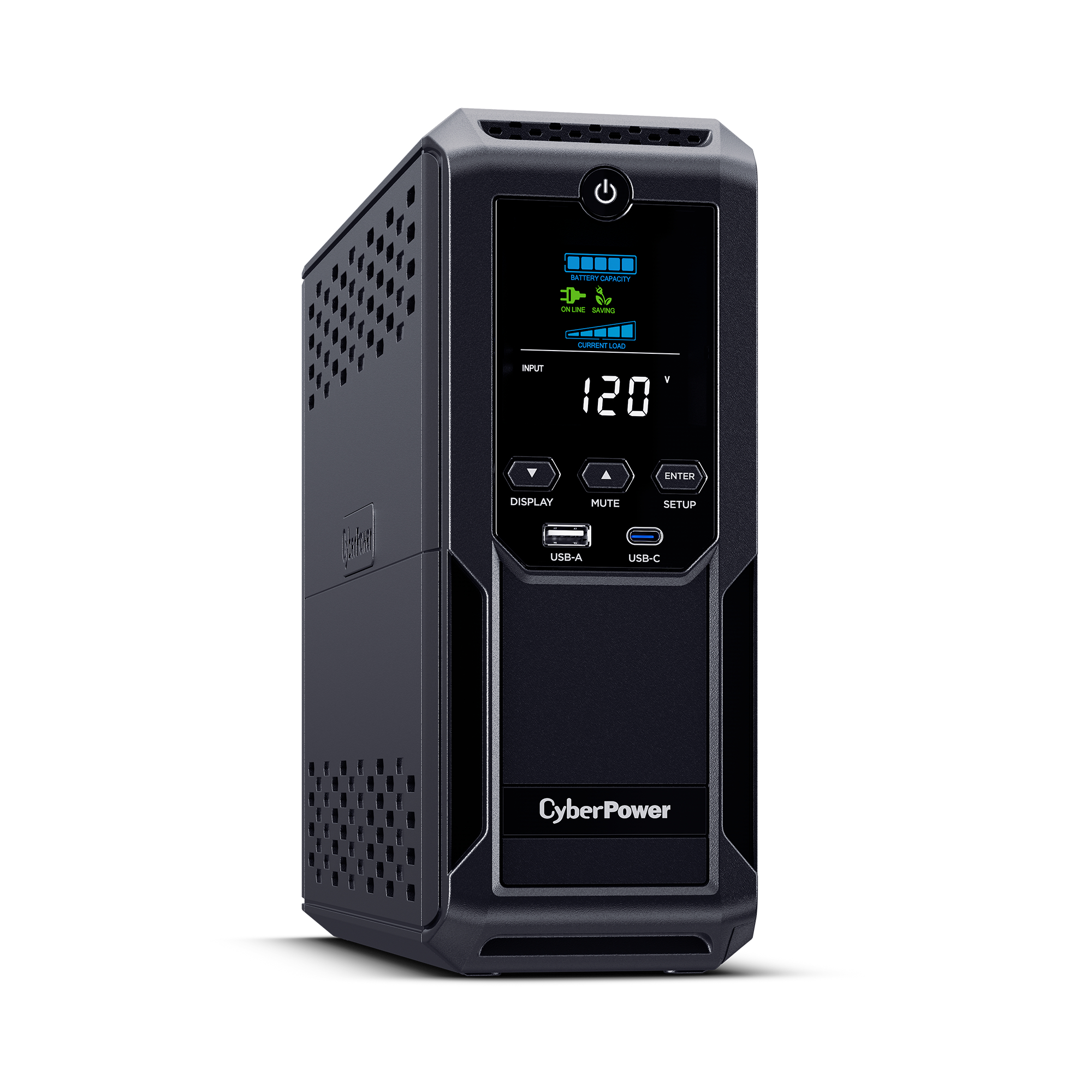

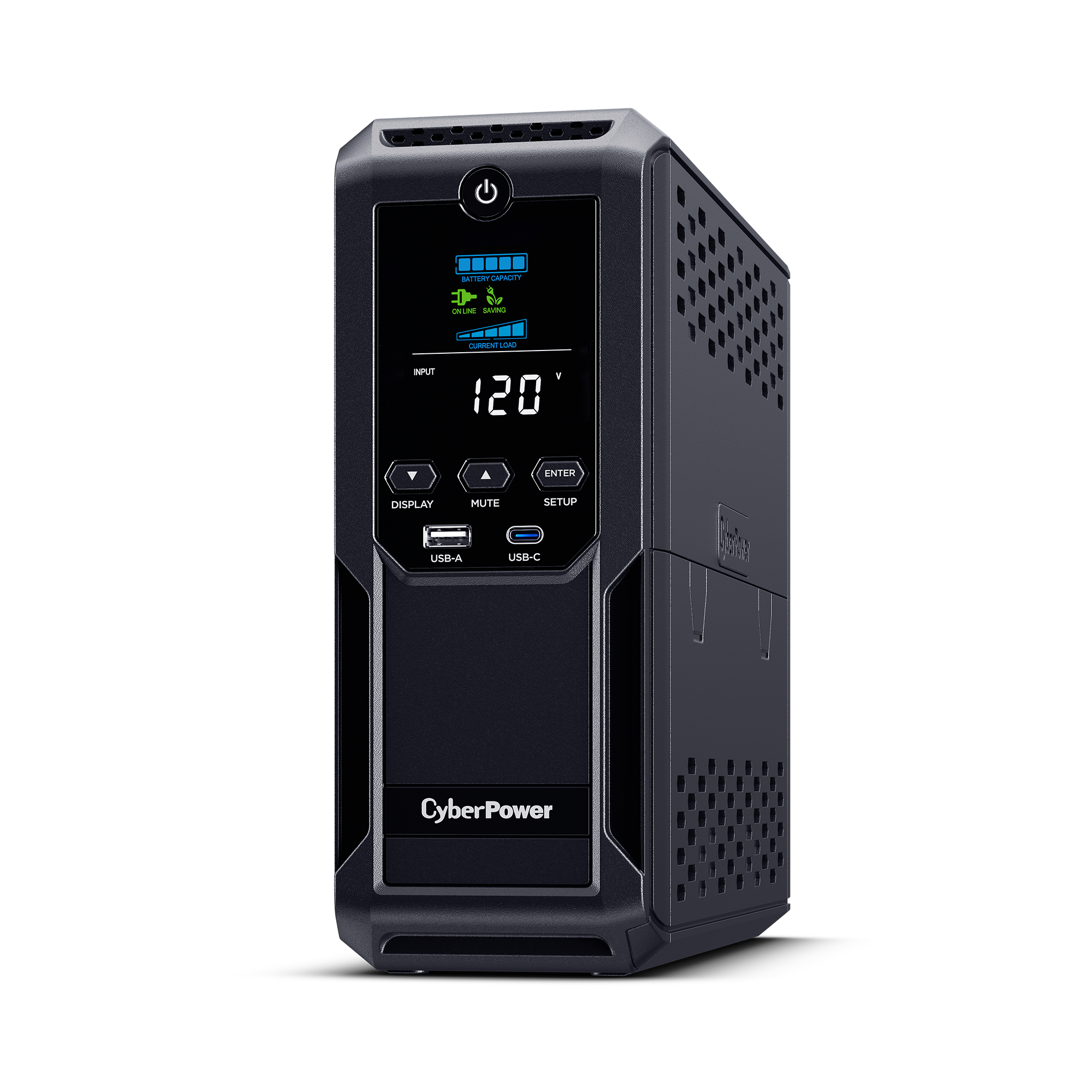

Cyber Power - BRG1500AVRLCD2 - UPS SYSTEMS Intelligent LCD 1500VA/900W Line Interactive, Mini-tower
Part number:
BRG1500AVRLCD2
Price:
A mini-tower UPS with line interactive topology, the CyberPower Intelligent LCD provides battery backup (using simulated sine wave output) and surge protection for desktop computers, workstations, networking devices, and home entertainment systems. The BRG1500AVRLD2 uses Automatic Voltage Regulation (AVR) to correct minor power fluctuations without switching to battery power, which extends battery life. AVR is essential in areas where power fluctuations occur frequently. The BRG1500AVRLD2 comes with a five year warranty (including coverage of batteries) and a $500,000 Connected Equipment Guarantee.
Features:
- Capacity: 1500 VA / 900 W
- Topology: Line Interactive
- Waveform: Simulated Sine Wave
- Output: 120 VAC ± 5%
- Runtime (half/full): 12 minutes / 2 minutes
- Automatic Voltage Regulation: Boost (+10%), Buck (-10%)
- Plug type & cord: NEMA 5-15P, 6ft. cord

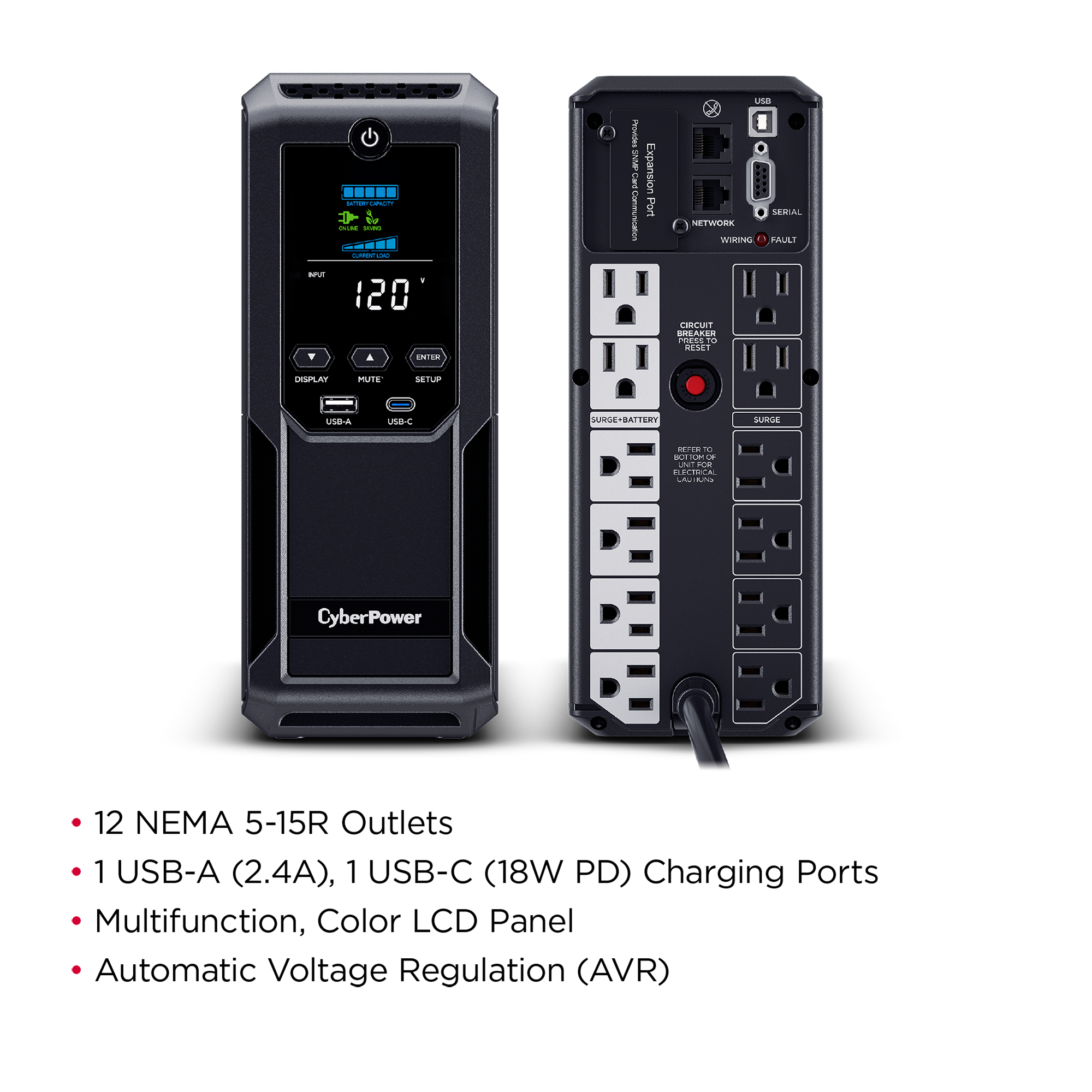

- Outlets: 12 (6 surge, 6 surge + battery backup)
- USB Charge Ports: 2 (1 USB-A 2.4A, 1 USB-C 18W PD)
- Communication: USB, Serial
- Data line protection: Ethernet
- Management software: PowerPanel Personal
- SNMP/HTTP Remote management: Yes, with optional RMCARD205, RCCARD100 or RWCCARD100
- ENERGY STAR certified: Yes
- Warranty: 5 year Limited
- Connected Equipment Guarantee: $500,000
| GENERAL | |
| Energy Saving | GreenPower UPS™ Bypass |
| Energy Star Certified | Yes |
| UPS Topology | Line Interactive |
| BATTERY | |
| Battery Quantity | 2 |
| Battery Size | 12 V / 9 Ah |
| Battery Type | Sealed Lead-Acid Battery |
| Replacement Battery Cartridge | RB1290X2E |
| Replacement Battery Cartridge Quantity | 1 |
| Runtime at Full Load | 2 min |
| Runtime at Half Load | 12 min |
| Typical Recharge Time | 8 Hours |
| User-Replaceable Battery | Yes |
| INPUT | |
| Circuit Breaker | 15 A |
| Cord Length | 6 ft (1.8 m) |
| Input Frequency Range | 57 Hz - 63 Hz |
| Input Plug Type | NEMA 5-15P |
| Nominal Input Voltage | 120 VAC |
| Plug Style | Right Angle, 45° Offset |
| OUTPUT | |
| Automatic Voltage Regulation | Boost (+10%) Buck (-10%) |
| On AC Waveform | Sine Wave |
| On Battery Frequency | 60Hz ± 1% |
| On Battery Voltage | 120 VAC ± 5% |
| On Battery Waveform | Simulated Sine Wave |

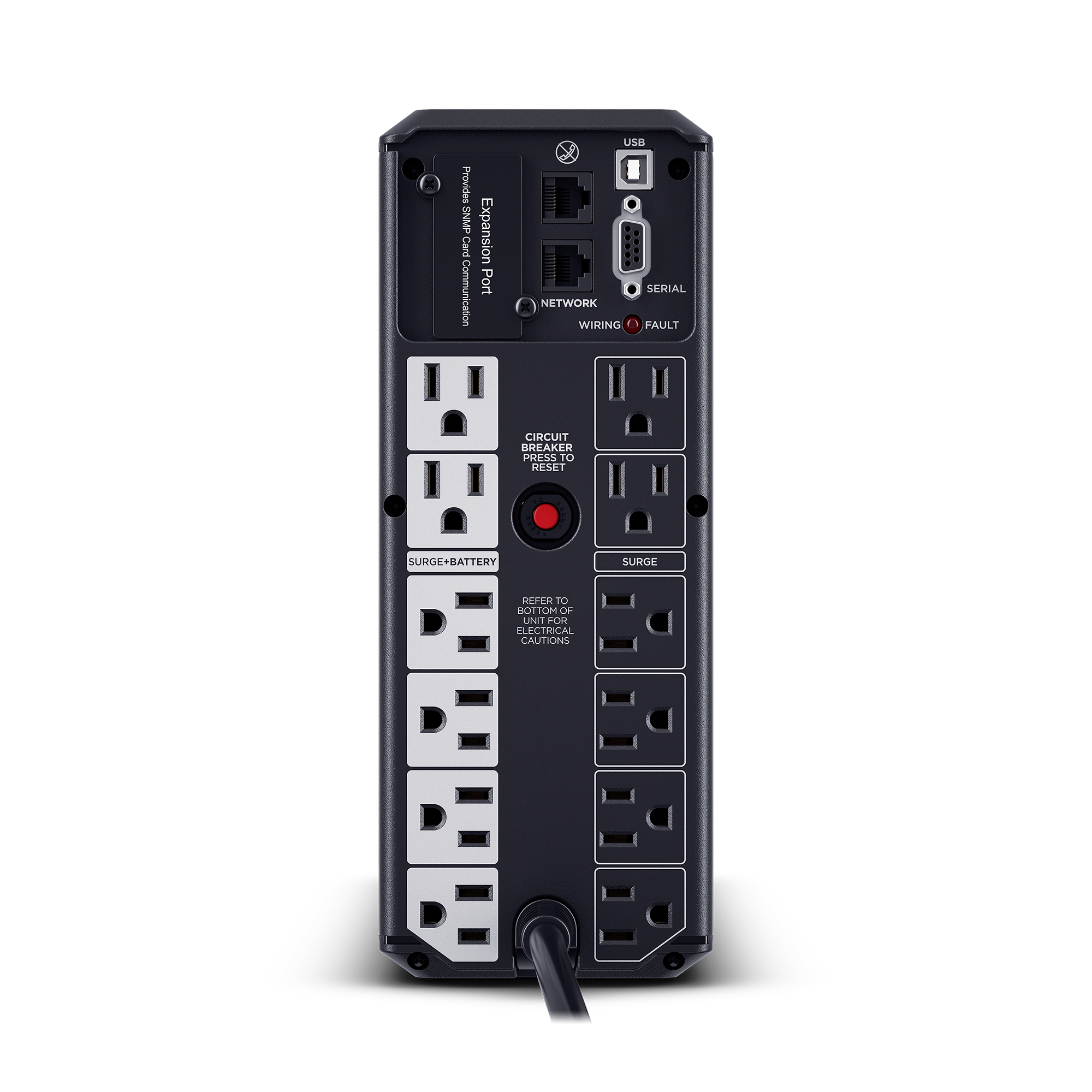

| Outlet Type | 12 - NEMA 5-15R |
| Outlets - Battery and Surge Protected | 6 |
| Outlets - Surge Only Protected | 6 |
| Outlets - Total | 12 |
| Output Power Factor | 0.6 |
| Overload Protection | Internal Circuitry Limiting Circuit Breaker Protected |
| OUTPUT - CONT. | |
| Typical Transfer Time | 4 ms |
| USB Charge Port Type | 1 Type A 1 Type C |
| USB Charge Port Voltage | 5 VDC |
| USB Charge Port Watts | 20 Watts |
| VA | 1500 VA |
| Watts | 900 W |
| SURGE PROTECTION & FILTERING | |
| EMI/RFI Filtering | Yes |
| Network Protection RJ45 | 1-in / 1-Out (10/100/1000) |
| Surge Suppression | 1500 J |
| MANAGEMENT & COMMUNICATIONS | |
| Audible Alarms | Battery Mode Low Battery Overload Fault |
| Management Software | PowerPanel® Personal |
| SNMP/HTTP Remote Management | Yes, with optional RMCARD205, RCCARD100 or RWCCARD100 |
| HID Compliant USB Port | Yes |

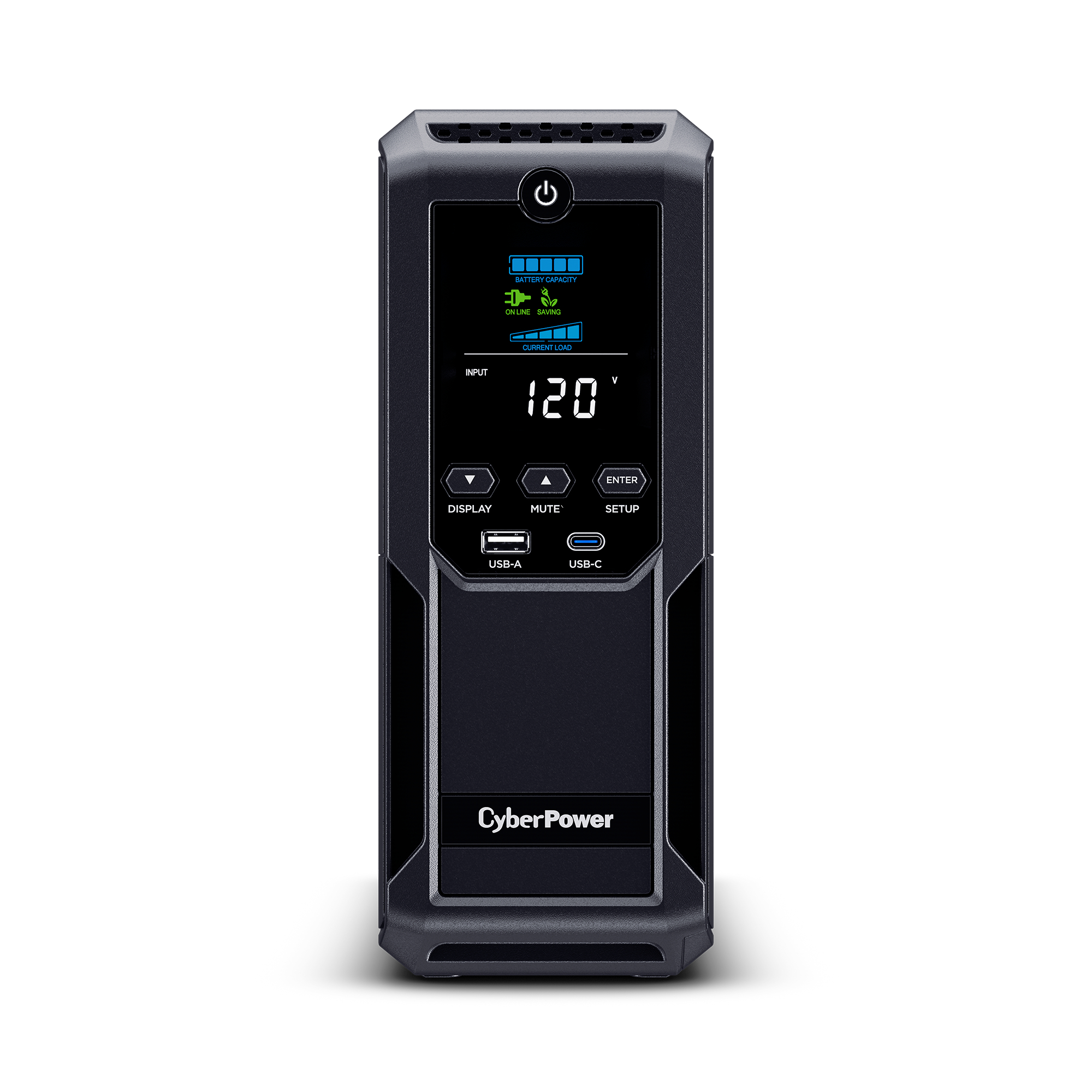

| LCD | Multifunction Color LCD |
| LED Indicators | Power On Wiring Fault |
| Management Cable | USB Cable |
| PHYSICAL | |
| Color | Black |
| Form Factor | Mini Tower |
| Material of Construction | Plastic |
