Cyber Power - PR1500ELCDRTXL2U - UPS SYSTEMS Smart App 1500VA/1125W 230V Sinewave 10 IEC outlet
Part number:
PR1500ELCDRTXL2U
Price:

A high-voltage rack/tower convertible UPS with line interactive topology and an adjustable output of either 220, 230 or 240 VAC, the CyberPower Smart App Sinewave PR1500ELCDRTXL2U provides battery backup, power protection (using sine wave output), and surge protection for corporate servers, department servers, storage appliances, network devices, and telecom installations requiring Active PFC power source compatibility. The PR1500ELCDRTXL2U uses Automatic Voltage Regulation (AVR) to correct minor power fluctuations without switching to battery power, which extends battery life. AVR is essential in areas where power fluctuations occur frequently. The PR1500ELCDRTXL2U comes with a $400,000 Connected Equipment Guarantee.



Features:

  • Battery Backup: Supplies power long enough for equipment to properly shut down when utility power fails. Helps prevent loss of data and minimizes the component stress caused by a hard shutdown.
  • Surge Protection: Diverts excess voltage away from sensitive electronic equipment during an AC power surge or power spike to prevent damage.
  • Data Line Protection: Prevents power surges that travel through telephone, coaxial, and Ethernet lines from causing damage to electronics.
  • Line Interactive Topology: Exists when a line interactive UPS has an auto-transformer that regulates low voltages (e.g., brownouts) and over voltages (e.g., spikes) without having to switch to battery.
  • Automatic Voltage Regulation (AVR): Provides clean, consistent AC power by automatically increasing (boosting) low voltage without using battery power when incoming utility power experiences minor fluctuations.
  • Sine Wave Output: Provides power protection to ENERGY STAR® 6.0 systems with Active PFC power supplies.
  • GreenPower UPS Bypass Design: Is a patented design that allows utility power to bypass the UPS transformer, when AC power is stable, which reduces energy consumption, noise, and heat buildup.

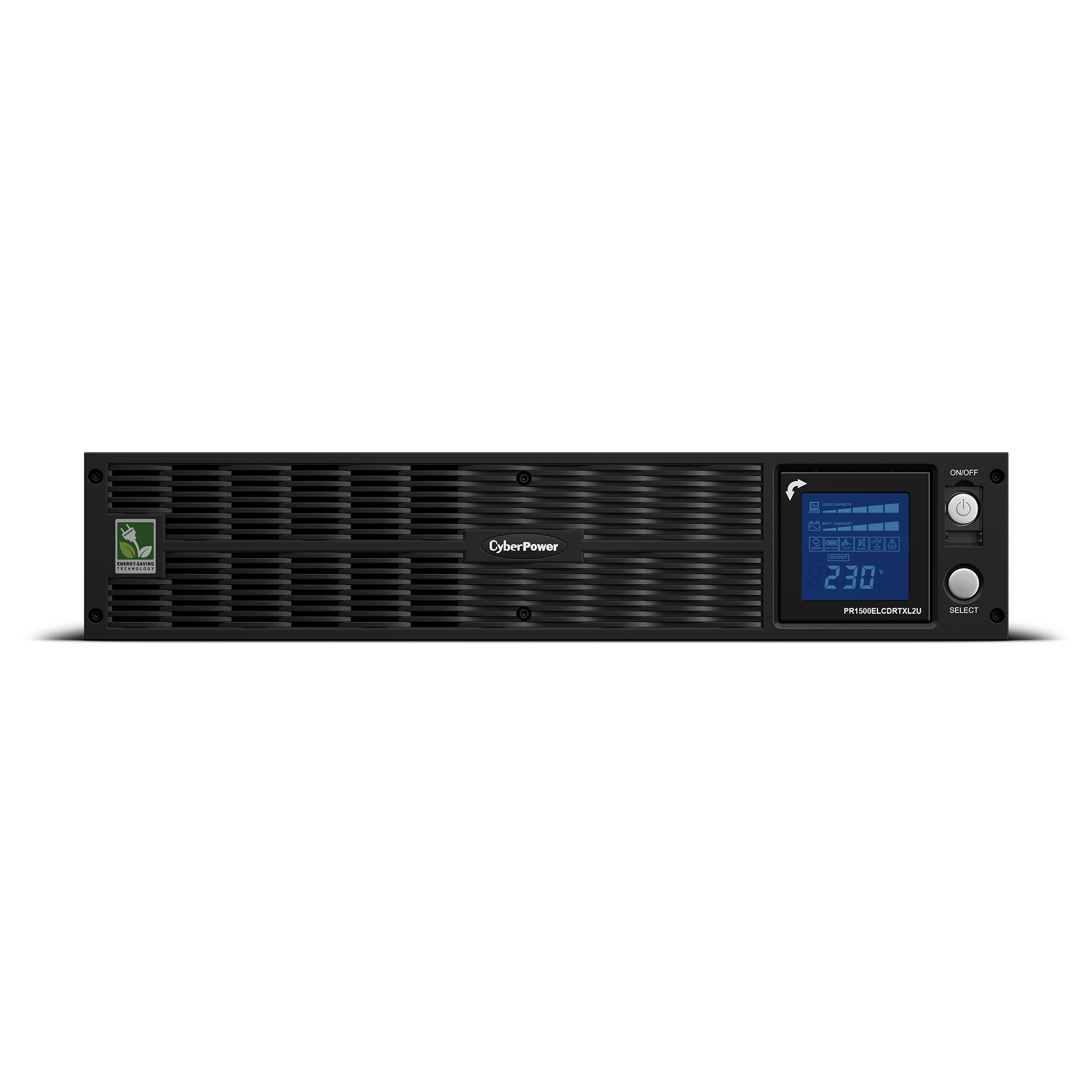

  • Rotatable Multifunction LCD Panel: Displays immediate, detailed information on the UPS battery and power conditions, alerting users to potential problems before they can affect critical equipment and cause downtime. The rotatable panel is easily readable whether the UPS is rack mounted or standing as a tower.

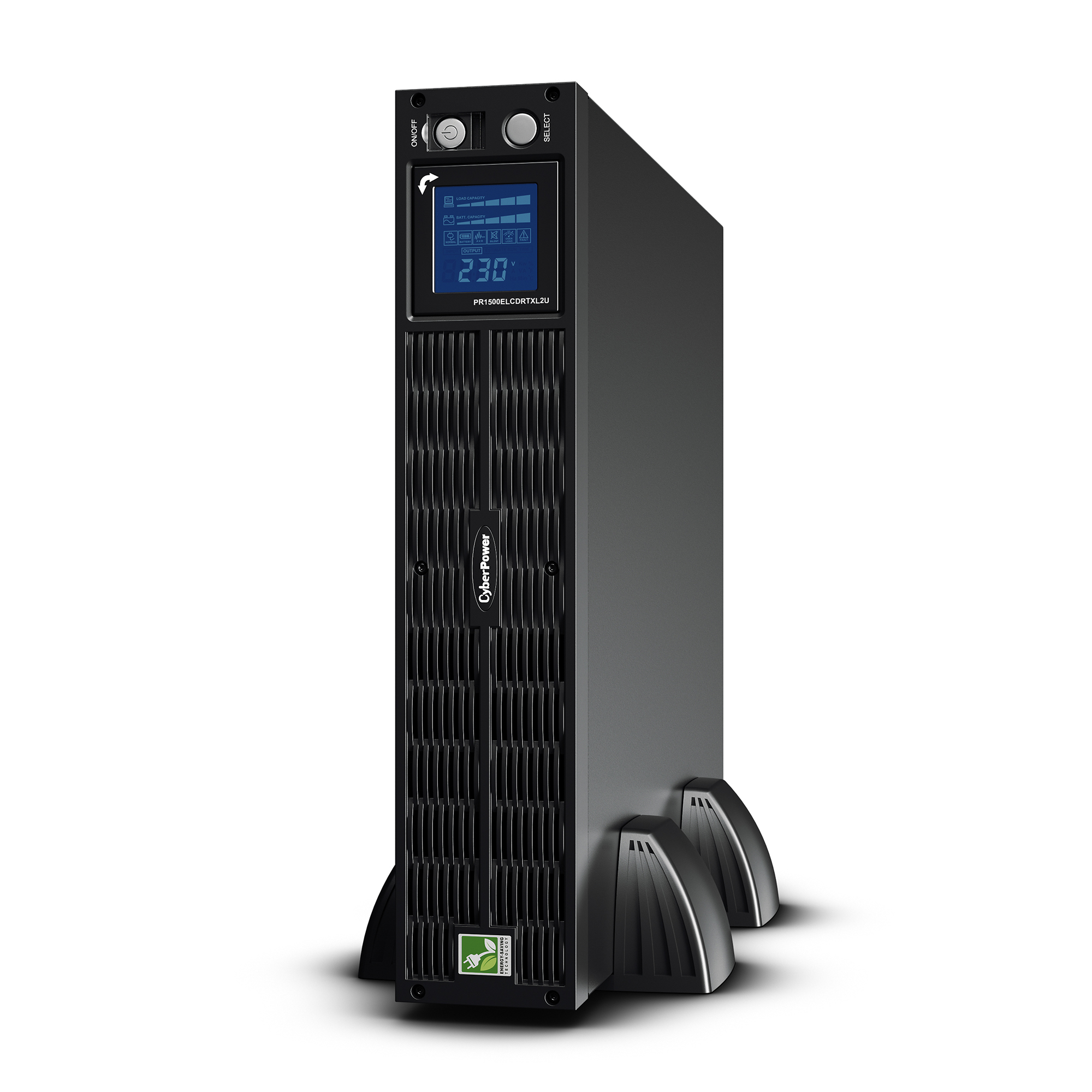

  • Rack/Tower Versatility: Allows for horizontal rack or vertical tower installation.
  • PowerPanel Business Edition Software: Provides IT professionals with tools for monitoring and managing the UPS and backup power. This software offers remote management functionality.
  • High-Voltage Input: 220V, 230V or 240V selectable input voltage allows for use in a wider variety of locations.
  • Cisco Compatible: This CyberPower UPS system is a Cisco EnergyWise compliant end device.
  • Three-Year Warranty: CyberPower will repair or replace a defective UPS system (including batteries) within three years of the purchase date. See warranty for details.
GENERAL
UPS TopologyLine Interactive
Energy SavingGreenPower UPS™ Bypass
INPUT
Voltage220 / 230 / 240 VAC
Input Voltage Range160 – 288 VAC
Adjustable Voltage Range150 – 300 VAC
Frequency Range50/60 Hz ±3 Hz
Plug TypeIEC320 C14
OUTPUT
VA1,500 VA
Watts1,125 W
Automatic Voltage RegulationDouble Boost, Single Buck
On Battery Voltage220 / 230 / 240 VAC ± 5%
On Battery Frequency50/60 Hz ±0.1 Hz
On Battery WaveformSine Wave
Outlet TypeIEC320 C13
Outlets – Total10
Outlets – Battery & Surge Protected10
Outlets – Critical Load4
Overload ProtectionInternal Circuitry Limiting
Circuit Breaker6
Transfer Time4 ms
BATTERY
Runtime at Half Load24 minutes
Runtime at Full Load9 minutes
Battery TypeSealed Lead-Acid
Battery Size12V/9Ah
Hot-SwappableYes
User ReplaceableYes
Typical Recharge Time6 hours
Replacement BatteryRBP0040
Extended Battery ModuleBP48V75ART2U
PROTECTION
Surge Suppression810 J
Phone RJ11 / Ethernet RJ451-In, 1-Out (Combo)
EMI/RFI FiltrationYes
MANAGEMENT & COMMUNICATIONS
Multifunction LCD PanelDisplays: Input/Output Volts Est. Run Time Normal
Battery AVR
Silent Overload Fault
Load Capacity
HID Compliant USB PortYes
Serial PortYes (2x)
Emergency Power Off (EPO) PortYes
LED IndicatorsPower On
Audible AlarmsOn Battery, Low Battery, Overload
LED IndicatorsPower On
Audible AlarmsOn Battery, Low Battery, Overload
SoftwarePowerPanel® Business Edition
SNMP / HTTP Remote MonitoringYes, with optional RMCARD205
PHYSICAL
Rack Size2U
Form FactorRack/Tower
Dimensions – W×H×D (in)17.05 × 3.46 × 18.88 inches
Weight (lbs)76.06 lb
ENVIRONMENTAL
Operating Temperature32 – 104 °F (0 – 40 °C)
Operating Humidity0 – 95% (non-condensing)
Storage Temperature5 – 113 °F (-15 – 45 °C)
Maximum Operating Elevation10,000 ft (3,000 m)
Maximum Storage Elevation50,000 ft (15,000 m)
Online Thermal Dissipation64 BTU/hr
Audible noise at 5ft from surface of unit34.5 dB
CERTIFICATIONS
SafetyCE
EnvironmentalYes
WARRANTY
Product Warranty3 years
Connected Equipment GuaranteeLifetime
CEG Amount$400,000
