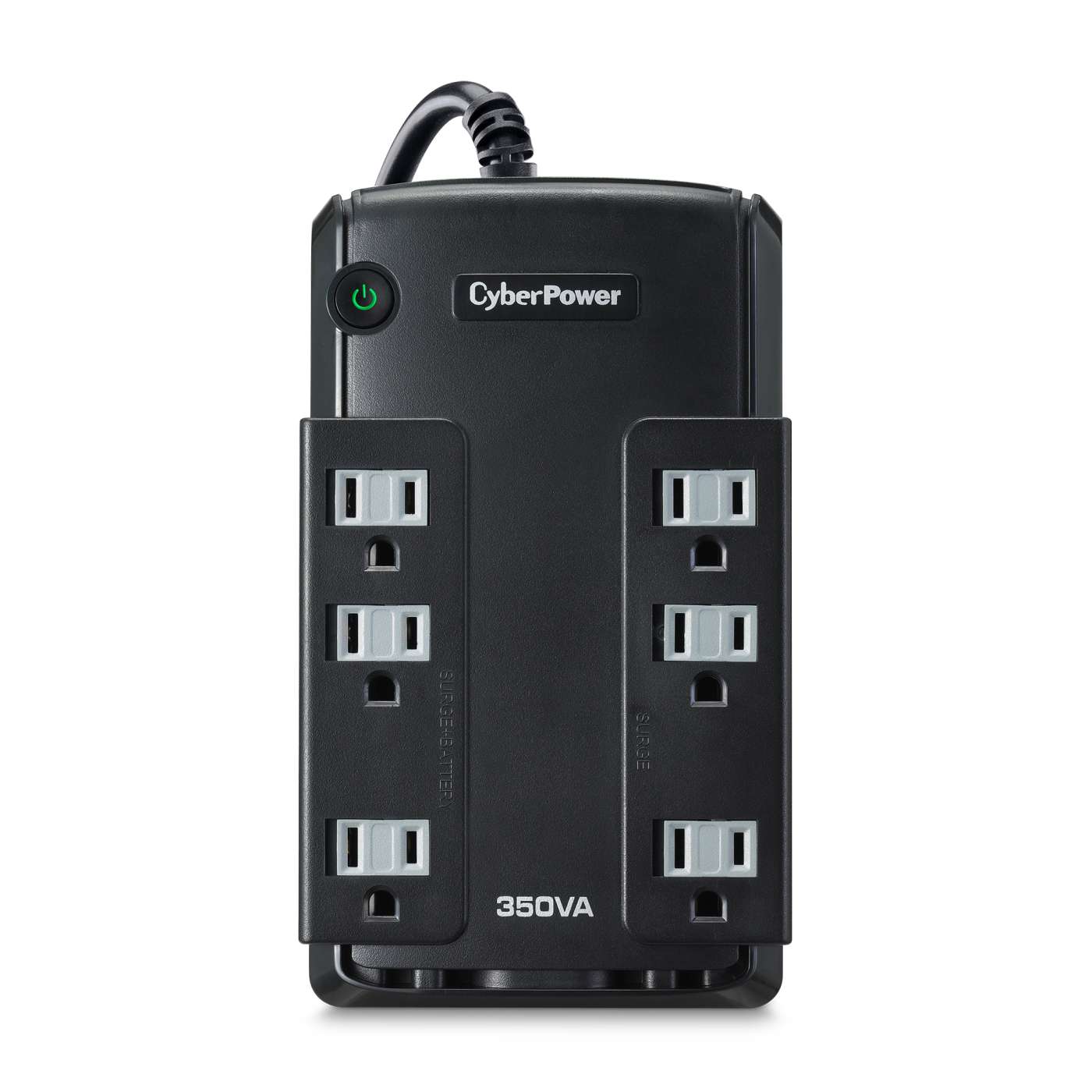

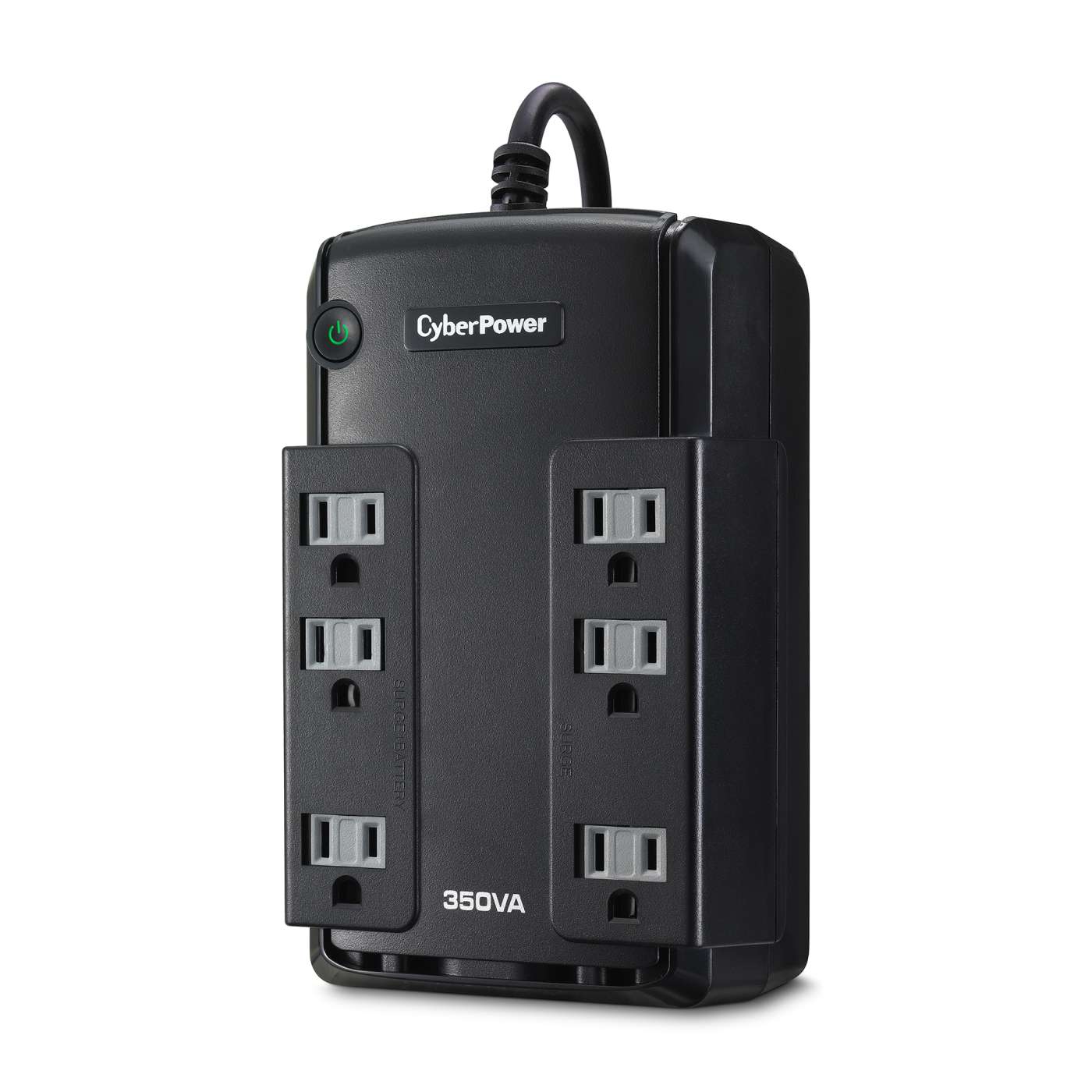

Cyber Power - CP350SLG - UPS SYSTEMS Standby 350VA/255W, Simulated Sine Wave
Part number:
CP350SLG
Price:

A compact UPS with standby topology, the CyberPower Standby CP350SLG provides battery backup (using simulated sine wave output) and surge protection for desktop computers, workstations, networking devices, and home entertainment systems. During power interruptions, the CP350SLG offers reliable power protection and battery backup. The CP350SLG comes with a three-year warranty and a $75,000 Connected Equipment Guarantee.



Features:

  • Battery Backup: Supplies power long enough for equipment to properly shut down when utility power fails. Helps prevent loss of data and minimizes the component stress caused by a hard shutdown.
  • Surge Protection: Diverts excess voltage away from sensitive electronic equipment during an AC power surge or power spike to prevent damage.
  • Standby Topology: Ensures that when incoming power drops below or surges above safe voltage levels, the UPS switches to DC battery power and then inverts to AC power to run connected equipment.
  • Simulated Sine Wave Output: Uses pulse wave modulation to generate a stepped, approximated sine wave to supply cost-effective battery backup power for equipment that does not require sine wave output.
  • GreenPower UPS High-Efficiency Design: Reduces power consumption by utilizing a compact charger and power inverter to create an ultra-efficient backup power system for home and office use.
  • Ultra Quiet Design: Minimizes noise during operation for a quieter work environment.
  • Three-Year Warranty: CyberPower will repair or replace a defective UPS system (including batteries) within three years of the purchase date. See warranty for details.
  • Connected Equipment Guarantee: CyberPower will repair or replace properly connected equipment if it is damaged by a power surge.
GENERAL
UPS TopologyStandby
Energy SavingGreenPower UPS™ High Efficiency
INPUT
Voltage96 V-140 V
Frequency47 Hz - 63 Hz
Circuit Breaker10 Amp
Plug TypeNEMA 5-15P
Plug STyleRight Angle, 45° Offset Right
Cord Length5’
OUTPUT
VA350
Watts255
On Battery Voltage120 V ± 5%
On Battery Frequency50/60 Hz ± 1%
On Battery WaveformSimulated Sine Wave
Outlets - Total6
Outlets - TypeNEMA 5-15R
Outlets - Battery & Surge Protected3
OUtlets - Surge-Only Protected3
Outlets - Widely Spaced2
OUTPUT CONT.
Overload ProtectionInternal Circuitry Limiting/ Circuit Breaker
Transfer Time4ms
BATTERY
Runtime at Half Load (min)8
Runtime at Full Load (min)2
Battery TypeSealed Lead-Acid
Battery Size12 V/3.6 Ah
Battery Quantity1
User ReplaceableNo
Typical Recharge Time8 Hours
SURGE PROTECTION & FILTERING
Surge Suppression810 Joules
EMI/RFI FiltrationYes
MANAGEMENT & COMMUNICATIONS
HID Compliant USB PortNo
Serial PortNo
Cable ManagementNone
LED IndicatorsPower On, Wiring Fault
MANAGEMENT & COMMUNICATIONS CONT.
Audible AlarmsOn Battery, Low Battery, Overload, UPS Fault, Replace Battery
SoftwareNone
PHYSICAL
Form FactorCompact
Keyhole Mounting SlotsNo
Dimensions (WxHxD) (in.)7.1 x 4.3 x 3.2
Weight (lbs.)3.5
ENVIRONMENTAL
Operating Temperature32°F to 104°F/0°C to 40°C
Operating Relative Humidity0%-90% (Non-condensing)
CERTIFICATIONS
SafetyUL1778, cUL 107.3,
FCC DOC Class B
EnvironmentalRoHS Compliant
WARRANTY
Product WarrantyThree-Years Limited
Connected Equipment GuaranteeLifetime
CEG Amount$75,000
Name
Description
Size
Downloads
File
Data Sheet
0.2mb
File
User Manual
0.3mb
