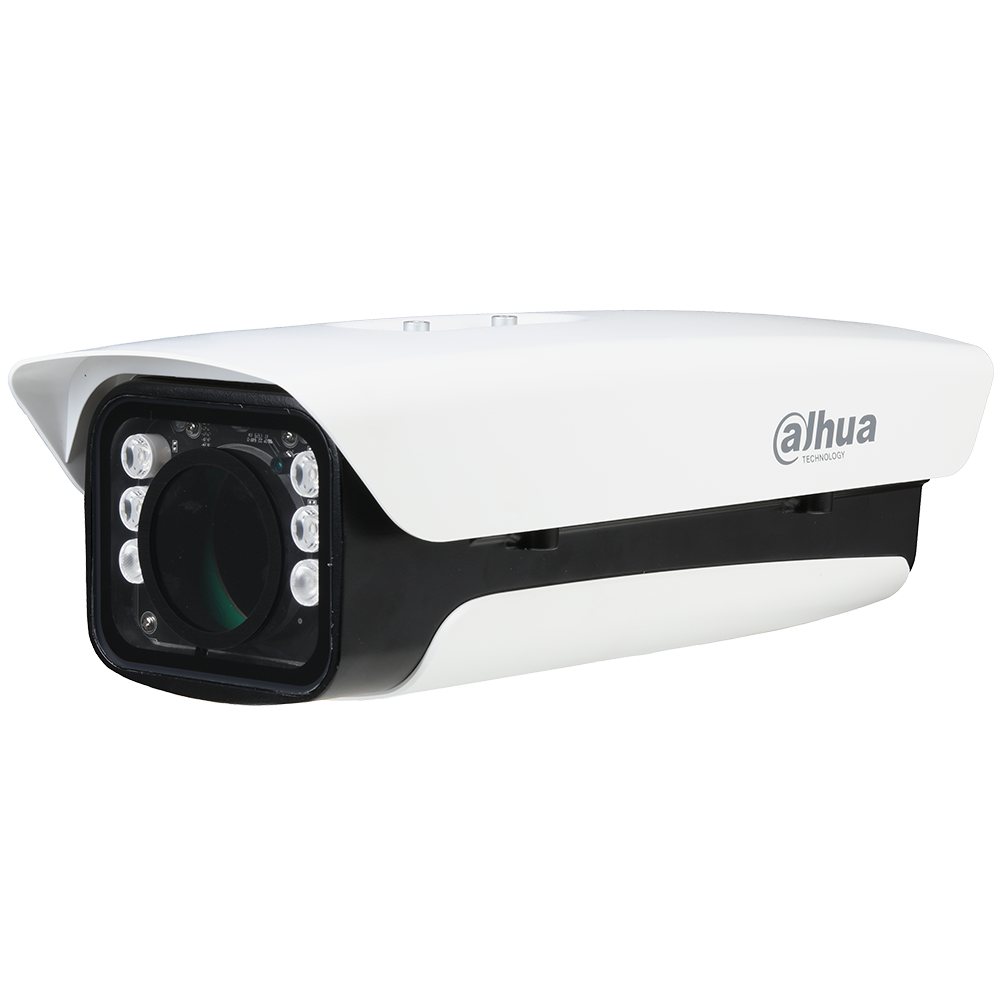

Dahua - PFH610V - Vandal-proof Housing
Part number:
PFH610V
Price:
Vandal-proof Housing
Features:
- Aluminum Construction (casing)
- Optional Built-in IR Illumination and Heater
- Designed for Reliability and Aesthetics
- IP67 Ingress Protection and IK10 Vandal Resistance
| Technical Specifications | |
| Environmental | |
| Operating Temperature | –30 °C to 60 °C (–22 °F to 140 °F) |
| Humidity | < 90% |
| Ingress Protection | IP67 |
| Impact Resistance | IK10 |
| Electrical | |
| Power Supply | 12 VDC or 24 VAC |
| Power Consumption | N/A |
| IR Distance | N/A |
| Construction | |
| Material | Case: Aluminum Other: PC Plastic |
| Color | White |
| Outer Dimensions (L x W x H) | 404.0 mm x 164.0 mm x 132.0 mm (15.91 in. x 6.46 in. x 5.20 in.) |
| Inner Dimensions (L x W x H) | 215.0 mm x 90.0 mm x 83.0 mm (8.46 in. x 3.54 in. x 3.27 in.) |
| Weight | 2.50 kg (5.51 lb) |
| Certifications | |
| Safety | UL 60950-1 CAN/CSA C22.2 No. 60950-1-07 |
| Electromagnetic Compatibility (EMC) | FCC 47 CFR Part 15 Subpart B EN 55032:2015, EN 55024, EN61000-3-2, EN 61000-3-3, EN 50130-4 ICES-003 Issue 6, 2016 FCC 47 CFR Part 15 Subpart B EN 55032:2015, EN 55024, EN61000-3-2, EN 61000-3-3, EN 50130-4 ICES-003 Issue 6, 2016 EAC |
Name
Description
Size
Downloads
File
Datasheet
0.4mb
