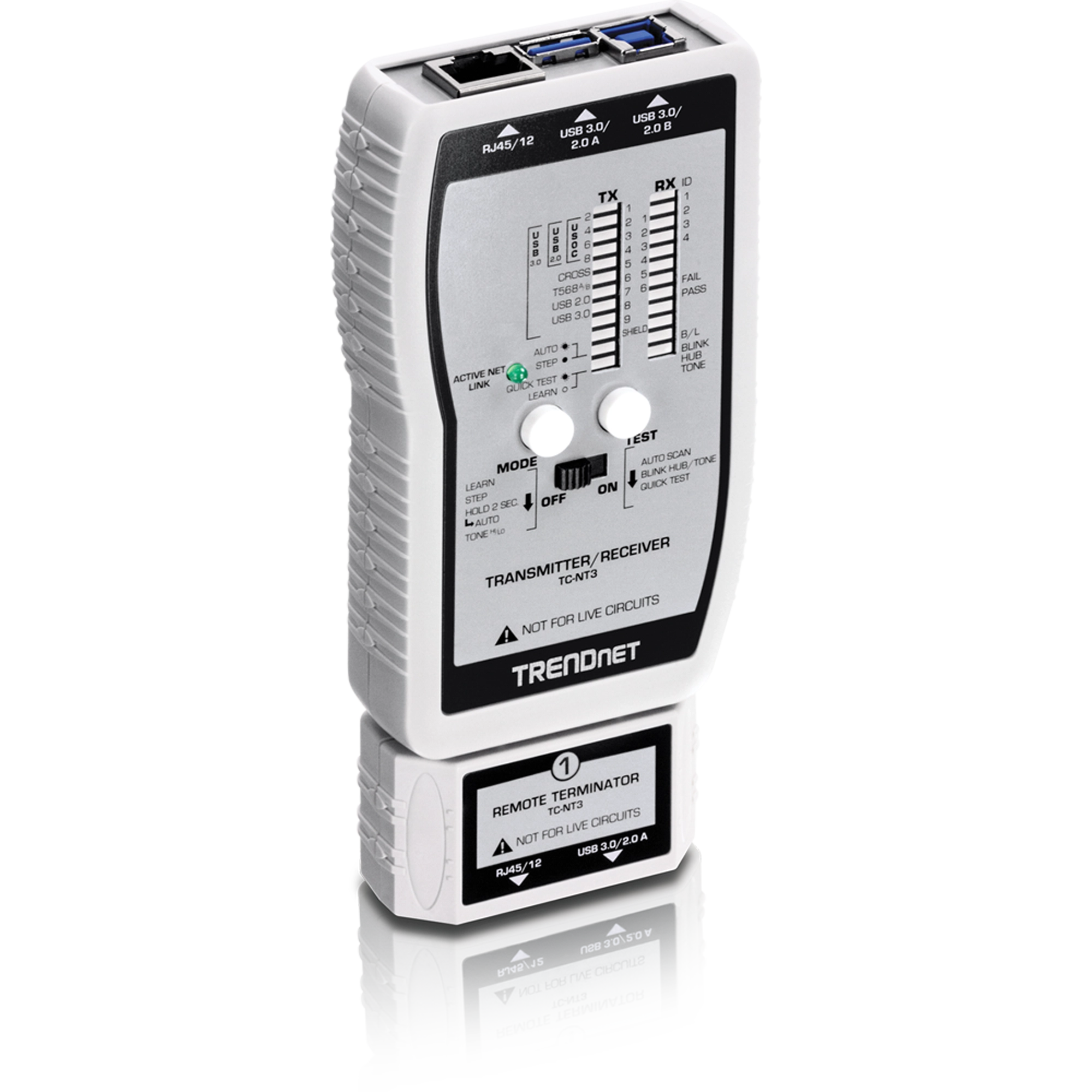

TRENDnet's VDV & USB Cable Tester, model TC-NT3, is a comprehensive cable tester for network professionals. It accurately tests a variety of voice, data, video, and USB cables. The TC-NT3 identifies proper, severed, short circuit, and cross connected pins for cable distances of up to 300 meters (1,000 ft.). Quick Test mode issues a pass/fail for large test batches. All components fit into a convenient travel case.
Local and Remote Testing

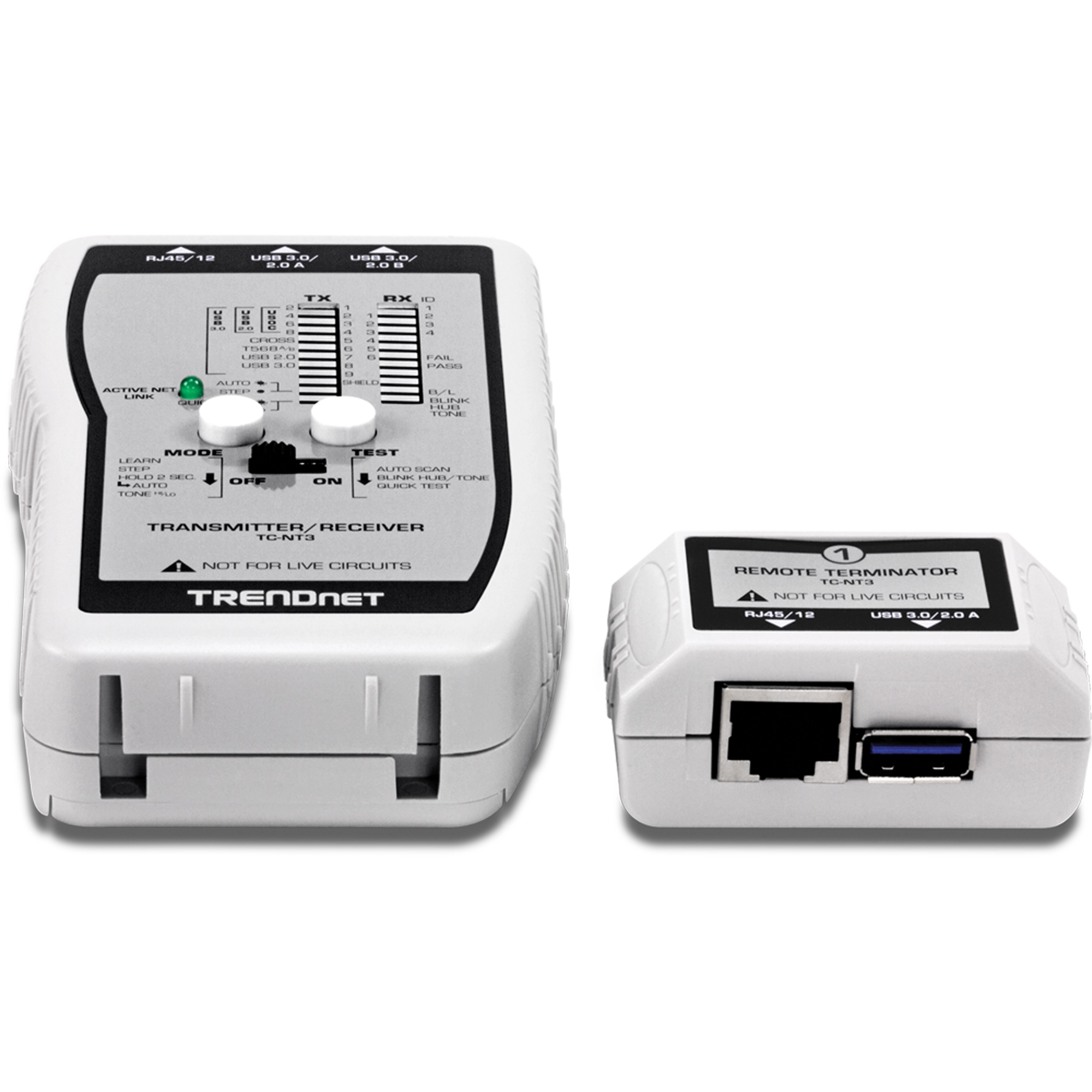

A master unit facilitates loop testing and a detachable remote terminal unit allows for cable testing in locations away from the master unit
Continuous Scan
Continuous scan mode is design to accommodate testing with cable ends in different locations
Manual Scan
Manual scan is well suited for loop back cable testing
Quick Test Mode
Designed to quickly test large cable quantities, Quick Test Mode identifies a given cable type and then immediately issues a Pass/Fail for the same cable type
Blinking Hub/Switch Mode
Designed to confirm which port on a hub/switch a given cable is networked to, Blinking Hub/Switch Mode causes the connected network port's LED indicator to blink
Cable Distance
Tests cables lengths of up to 300 meters (1,000 ft.)
Tone Generator
Compatible with TRENDnet's TC-TP1, Network Probe, to trace cables using two selectable tones
Features:
- Comprehensive cable tester for network professionals
- Tests voice, data, video, and USB cables
- Accurately test pin configurations for cable lengths up to 300 meters (1,000 ft.)
- Identifies severed, short circuit, and cross connected pins
- Quick pass/fail for large test quantities
- Blinking Hub/Switch Mode identifies connected hub/switch port

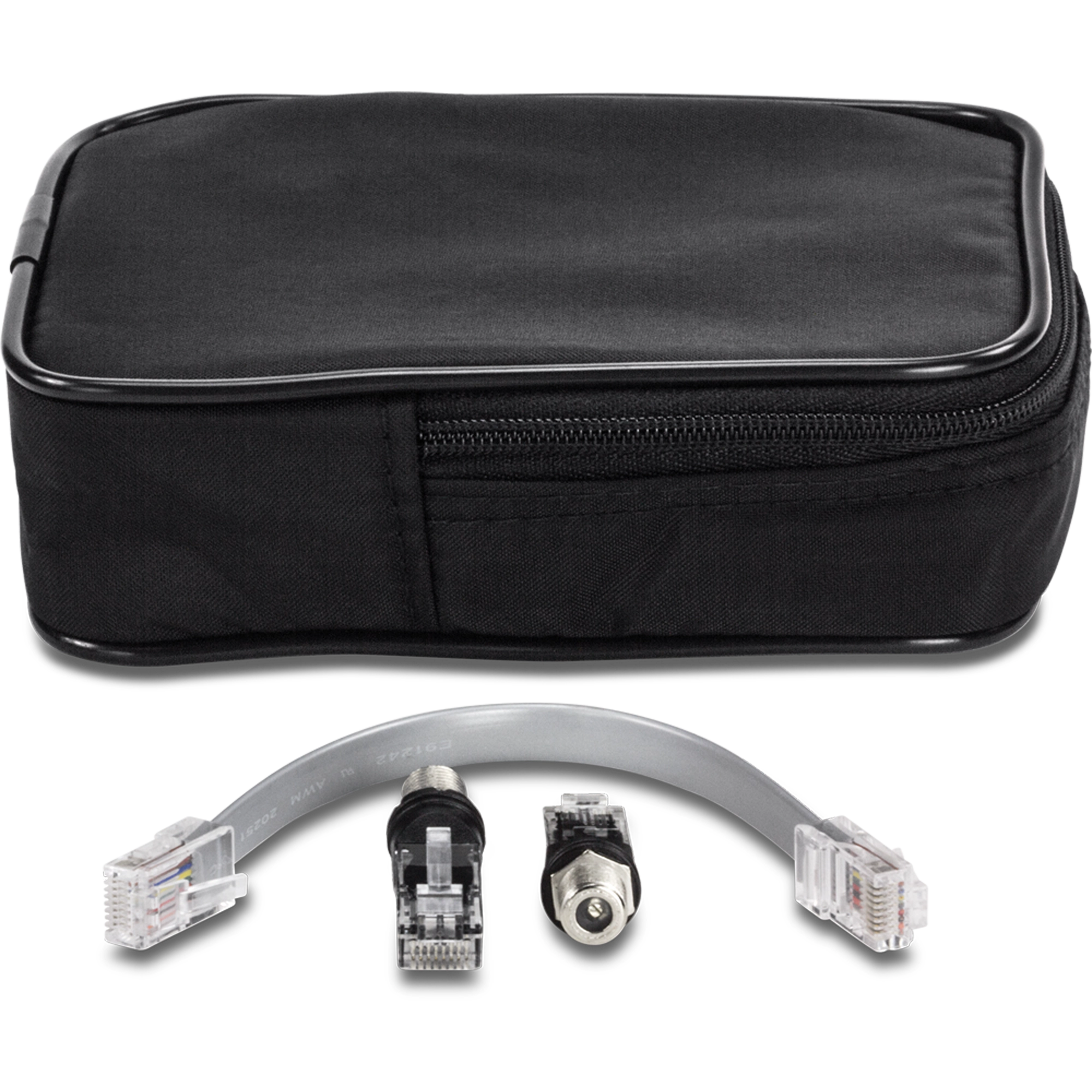

- Convenient travel case
- NDAA / TAA compliant (U.S. and Canada only)
| Technical Specifications | |
| Test Pin Configuration | RJ45 EIA, TIA-568A/568B, and crossover cables |
| RJ9, RJ11, RJ12, RJ14, RJ25, RJ45, and RJ61 | |
| USOC 2, 4, 6, and 8 | |
| Coax Video-BNC and CATV-F | |
| USB 3.0, USB 2.0 | |
| Transmitter Unit Interface | 1 x RJ port |
| 1 x USB 3.0/2.0 Type-A port | |
| 1 x USB 3.0/2.0 Type-B port | |
| Test button | |
| Mode button | |
| On/off button | |
| LED indicators | |
| Battery compartment | |
| Receiver unit attachment port | |
| Remote Unit Interface | 1 x RJ port |
| 1 x USB 3.0/2.0 Type-A port | |
| Compatible Cables* | Cat 8, 7, 6, 6e, 6a, 5, 5e, 4, 3, 3e |
| Coax Video-BNC and CATV-F cable (with included RJ45 to F adapters) | |
| RJ9, RJ11, RJ12, RJ14, RJ25, and RJ61 cables | |
| USOC 2, 4, 6, and 8 | |
| USB 3.0 A to B | |
| USB 2.0 A to B | |
| Tone Frequency | 600 – 1,000 Hz |
| Special Features | Tests grounding of shielded (screened) cables |
| Identifies proper, severed, short circuit, and cross connected pins | |
| Continuous scan mode is design to accommodate testing with cable ends in different locations | |
| Manual scan is well suited for loop back cable testing | |
| Designed to quickly test large cable quantities, Quick Test Mode identifies a given cable type and then immediately issues a Pass/Fail for the same cable type | |
| Blinking Hub/Switch Mode identifies connected hub/switch port | |
| Compatible with TRENDnet's TC-TP1, Network Probe, to trace cables using two selectable tones | |
| Tests cables lengths of up to 300 meters (1,000 ft.) | |
| Power Source | Transmitter: 9 V DC battery (not included) |
| Remote unit: No power needed | |
| Operating Temperature | 0 - 50 °C (32 - 122 °F) |
| Operating Humidity | Max. 95% non-condensing |
| Certifications | CE |
| Dimensions | Transmitter: 117 x 67 x 27 mm (4.6 x 2.6 x 1.1 in.) |
| Remote unit: 57 x 30 x 27 mm (2.2 x 1.2 x 1.1 in.) | |
| Weight | Transmitter: 144 g (5.1 oz.) |
| Remote unit: 26 g (0.9 oz.) | |
| Warranty | 1 year limited |
