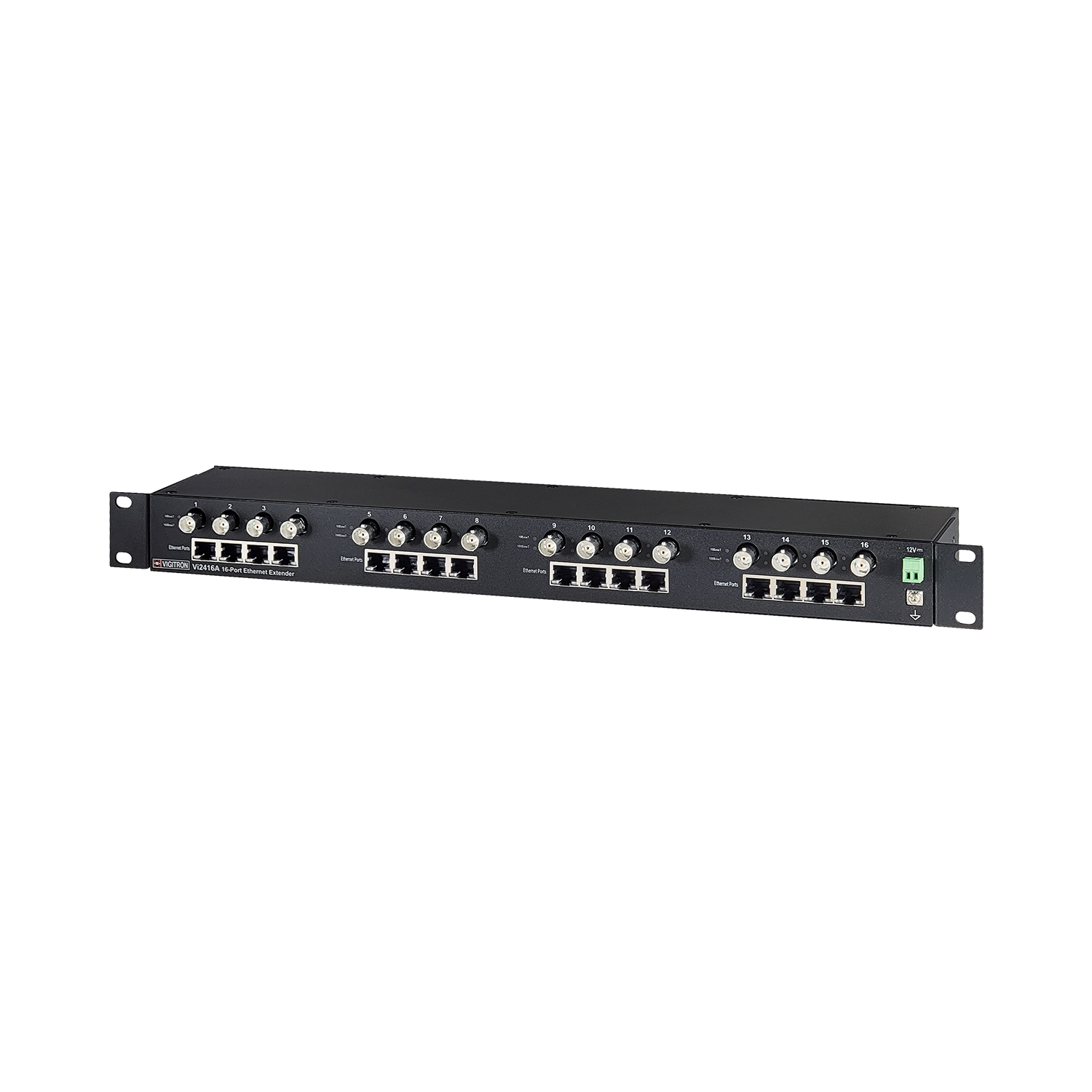

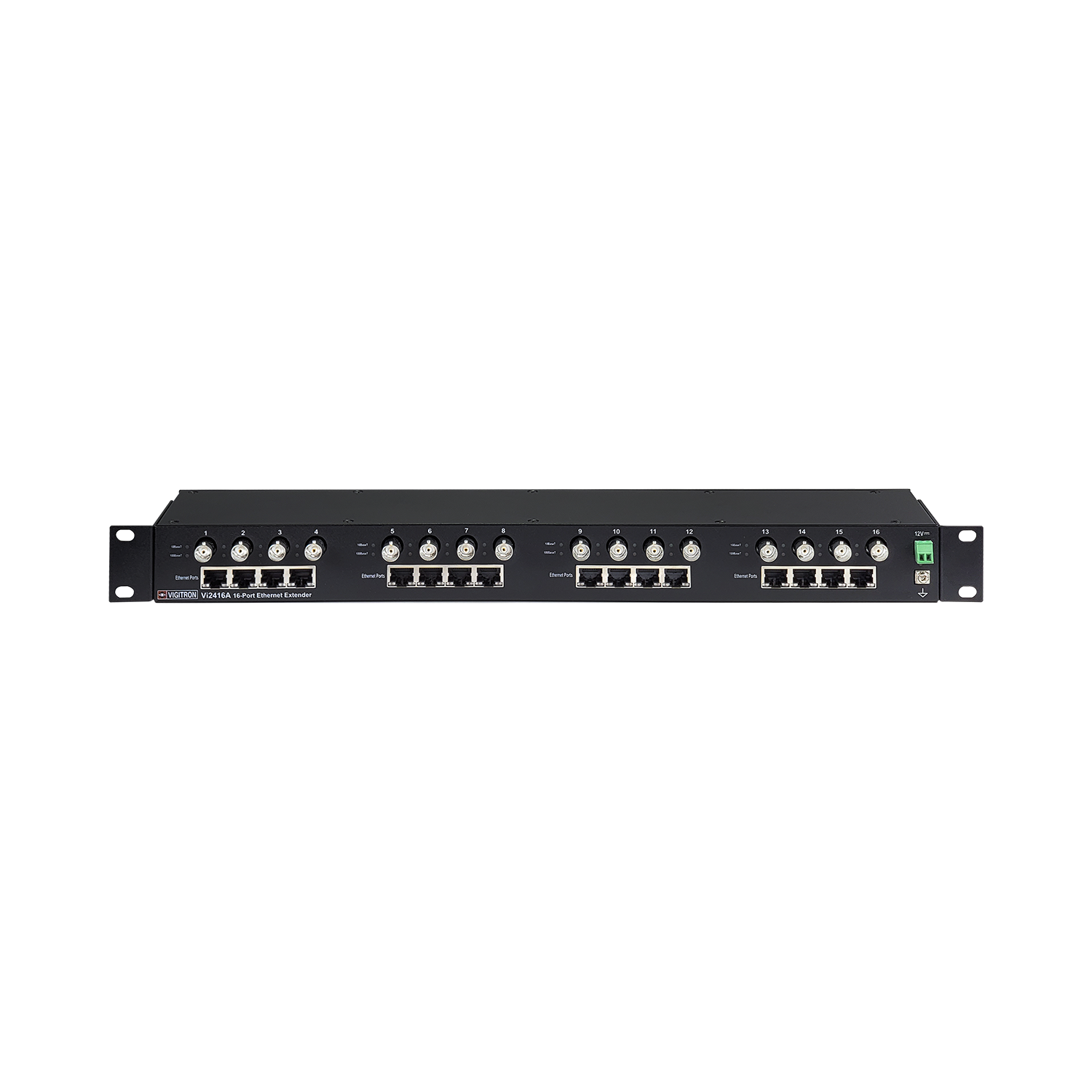

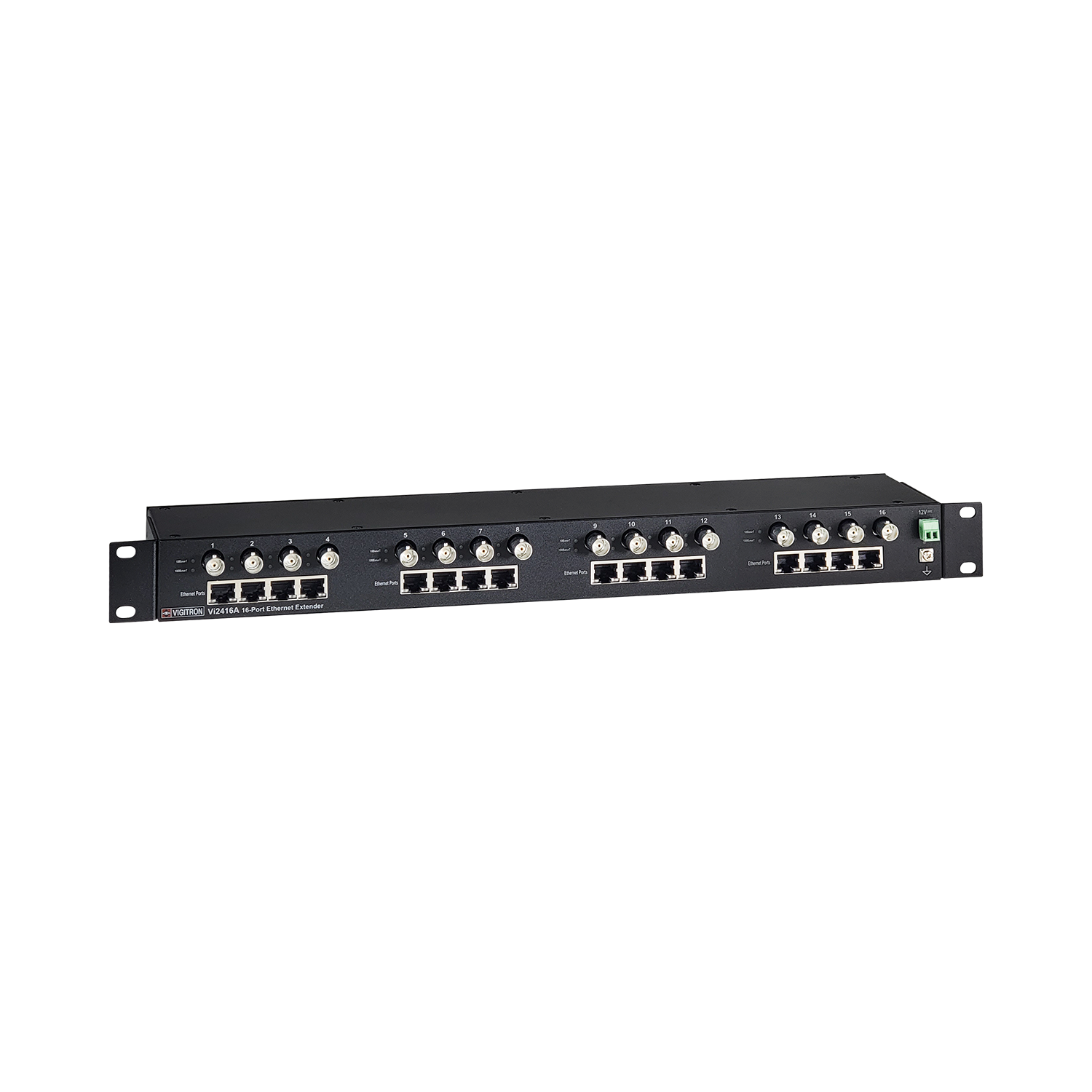

Vigitron's MaxiiCopper Vi2416A Ethernet extender brings new performance standards to the growing need for high-speed transmission full bandwidth Ethernet and power over extended distances. Its unique Symmetric Bandwidth (SBW) assures full bandwidth transmission is maintained over the entire operational distance for both uploads and downloads with Virtual Zero Packet Loss (VZPL). Bandwidth assurance also provides the ability to transmit multiple cameras on single cable runs. The Vi2416A has a compact EIA 19” 1U rack design for easy installation.
Pass-Through PoE (PTP) eliminates the need for additional cost for remote site power while providing power for both transmitter and receiver. Type tested under NEMA-TS2 environmental operation standards between -40°C to +75°C, the Vi2416A is the perfect solution for remote signal and power transmission for warehouse, parking lot, campus, and casino applications. Best of all, the Vi2416A is MegaPixel Certified (MPC), the type tested to network packet performance standards, and major camera brand compatible to assure you error-free, quality operations. The Vi2416A provides sixteen extended ports to meet the requirements of a wide variety of CCTV system applications. Installation cost savings, proven performance, and major camera brand compatibility all go into making the Vigitron's MaxiiCopper Vi2400A series your best choice for extended distance Ethernet and power transmission.
Features:
- Transnits Ethernet and PoE up to 5,000 feet (1,515 m) over Coax cables
- Provides 16 ports of extended Ethernet and PoE over Coax
- Pass-Through PoE (PTP) compatibility with 802.3af and 802.3at Power over Ethernet reduces installation costs while maintaining camera safeguards
- MegaPixel Certified (MPC) High data rate, ideal for high bandwidth requirements of Mega-pixel cameras, multiple IP cameras systems, and cameras requiring Jumbo Frame transmission
- Symmetric Bandwidth(SBW) provides consistent upload and download with Virtual Zero Packet Loss (VZPL) over a total specified distance
- Type tested to RFC-2544 TCP/IP network bandwidth packet transmission standards
- Type tested for -40°C to +75°C temperature range under NEMA-TS2 testing standards
- Complies to major IEEE standards and RFC network protocols for UDP, TCP/IP, HTTP/HTTPS
| Electrical | |
| Ethernet Interface | Standard 10/100BaseT |
| Data Rate | Auto select 10/100 Mb/s Full speed / full duplex at maximum rated distances |
| Coax | 75 Ohm, 5,000 feet (1,524 m) at 10-BaseT 1,800 feet (546 m) at 100BaseT |
| Power Consumption | 12VDC@ 2.5A Max. |
| Status LEDs | Power On Standard Ethernet: Traffic, Link Extended Ethernet: Traffic, 10/100BaseT |
| Connectors | Ethernet Interface: RJ-45 Connector Extended Interface: Female BNCs Power: 2-pin Pluggable Terninal Block |
| PoE Compatibility | IEEE 802.3af, at, bt PoE Standards up to 74W |
| RFC | 2544 TCP/IP Packet Transmission 768 UDP, 2068 HTTP, 793 TCP 791 IP, 1783 TFTP, 894 IP over Ethernet 2544 TCP/IP Packet Transmission |
| Jumbo Frame Support | Up to 9,600 bytes |
| Regulatory | |
| FCC | Part 15, Subpart B, Class B 2010 |
| Emissions | EN 5502:2006+A1:2007, EN 61000-3-2:2006+A1:2009+A2:2009 EN 61000-3-3:2008, EN 55024:1998+A1:2001+A2:2003 |
| Safety | CE |
| Environmental | RoHS, WEEE |
| Environmental | |
| Humidity | 0 to 95%, non-condensing |
| Temperature | Operating: -40°C to +75°C Storage: -40°C to +85°C |
| Mechanical | |
| Dimensions | 1.6x3.6x17 in., 4.1x9.2x43 cm (HxWxL) |
| Weight | 0.584 lb (265 g) |
| Material | Extruded Aluminum |
| Accessories | |
| Rack mount brackets |
