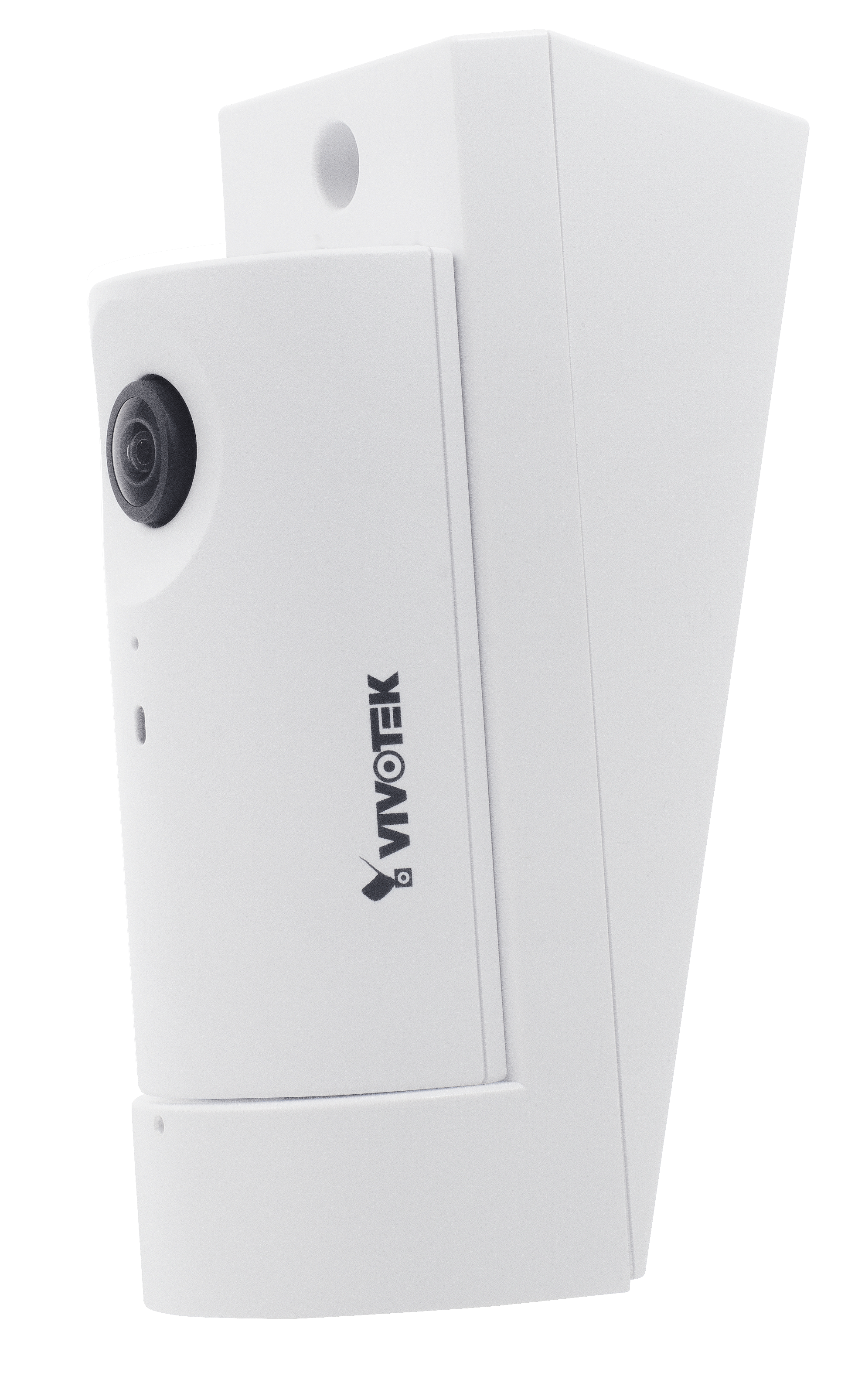

VIVOTEK's CC8160 is a low-profile network camera especially designed for 180° panoramic indoor surveillance. The unique design makes it a great choice for retail, convenience stores, hotels, classrooms, and offices. The 180° panoramic view in 1080P provides amazing situational surveillance coverage. The unique mounting design facilitates easy installation on a wall, or counter to capture faces at eye level. A built-in microphone further increases the level of surveillance while recording sound within a 5 meter radius.
The CC8160 supports industry-standard H.264 compression technology, reducing file sizes and conserving valuable network bandwidth. Together with the VAST multi-lingual 32-channel recording software, users can set up an easy-to-use IP surveillance system with ease.
Features:
- Image Sensor: 1/2.9" Progressive CMOS
- Maximum Resolution: 1920x1080
- Lens Type: Fixed-focal
- Focal Length: f = 1.66 mm
- Aperture: F1.95
- Field of View: 180° (Horizontal), 100° (Vertical), 180° (Diagonal)
- WDR Technology: WDR Enhanced
- Minimum Illumination: 0.22 Lux @ F1.66 (Color)
- ePTZ: 48x digital zoom (4x on IE plug-in, 12x built in)
- Compression: H.264 & MJPEG
- Maximum Frame Rate: H.264: 30 fps @ 1920x1080; MJPEG: 30 fps @ 1920x1080
- Image Settings: Adjustable image size, quality and bit rate, Time stamp, text overlay, flip & mirror, Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks, Scheduled profile settings
- Audio Capability: One-way audio via Built-in Microphone
- Effective Range: 5 meters
- Users: Live viewing for up to 10 clients
- ONVIF: Yes
- Alarm Events & Management: Five-window video motion detection, VCA (Line crossing detection, field detection, loitering detection, Available per project request), manual trigger, periodical trigger, system boot, recording notification, camera tampering detection, audio detection, Event notification using HTTP, SMTP, FTP and NAS server, File upload via HTTP, SMTP, FTP and NAS server
- Power / Consumption: IEEE 802.3af PoE Class 2 / Max. 4.5 W
- Dimensions: 28 mm (D) x 50 mm (W) x 88 mm (H) (Body only); 40 mm (D) x 58 mm(W) x 127 mm (H) (Tilt Mount)
- Weight Net: 66.7 g
- Operating Temperature: 0°C ~ 40°C (32°F ~ 104°F)
- Humidity: 90%
- Warranty: 24 months
- Included Accessories: Quick installation guide, warranty card, camera stand, screw pack
| Model | CC8160 |
| System Information | |
| CPU | Multimedia SoC (System-on-Chip) |
| Flash | 128MB |
| RAM | 256MB |
| Camera Features | |
| Image Sensor | 1/2.9" Progressive CMOS |
| Maximum Resolution | 1920x1080 |
| Lens Type | Fixed-focal |
| Focal Length | f = 1.66 mm |
| Aperture | F1.95 |
| Field of View | 180° (Horizontal) 100° (Vertical) 180° (Diagonal) |
| Shutter Time | 1/5 sec. to 1/32,000 sec. |
| WDR Technology | WDR Enhanced |
| Minimum Illumination | 0.22 Lux @ F1.95 (Color) |
| Tilt Range | 15 degrees with bracket |
| Pan/Tilt/Zoom Functionalities | ePTZ: 48x digital zoom (4x on IE plug-in, 12x built in) |
| Video | |
| Compression | H.264 & MJPEG |
| Maximum Frame Rate | H.264: 30 fps @ 1920x1080 MJPEG: 30 fps @ 1920x1080 |
| Maximum Streams | 4 simultaneous streams |
| S/N Ratio | 58.2 dB |
| Dynamic Range | 50.6 dB |
| Video Streaming | Adjustable resolution, quality and bitrate Smart Stream II |
| Image Settings | Adjustable image size, quality and bit rate Time stamp, text overlay, flip & mirror Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks Scheduled profile settings |
| Audio | |
| Audio Capability | One-way audio |
| Compression | G.711, G.726 |
| Interface | Built-in Microphone |
| Effective Range | 5 meters |
| Network | |
| Users | Live viewing for up to 10 clients |
| Protocols | IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X |
| Interface | 10 Base-T/100 BaseTX Ethernet (RJ-45) *It is highly recommended to use standard CAT5e & CAT6 cables which are compliant with the 3P/ETL standard. |
| ONVIF | Supported, specification available at www. onvif.org |
| Intelligent Video | |
| Video Motion Detection | Five-window video motion detection |
| VCA | Line crossing detection, field detection, loitering detection *Available per project request |
| General | |
| Connectors | RJ-45 for Network/PoE connection |
| LED Indicator | System power and status indicator |
| Power Input | IEEE 802.3af PoE Class 2 |
| Power Consumption | Max. 2.01 W |
| Dimensions | 28 mm (D) x 50 mm (W) x 88 mm (H) (Body only) 40 mm (D) x 58 mm(W) x 127 mm (H) (Tilt Mount) |
| Weight | Net: 66.7 g |
| Safety Certifications | CE, LVD, FCC Class B, VCCI, C-Tick |
| Operating Temperature | 0°C ~ 40°C (32°F ~ 104°F) |
| Humidity | 90% |
| Warranty | 24 months |
| System Requirements | |
| Operating System | Microsoft Windows 7/Vista/XP/2000/8 |
| Web Browser | Mozilla Firefox 7~43 (streaming only) Internet Explorer 7/8/9/10/11 |
| Other Players | VLC: 1.1.11 or above QuickTime: 7 or above |
| Included Accessories | |
| Others | Quick installation guide, warranty card, camera stand, screw pack |
