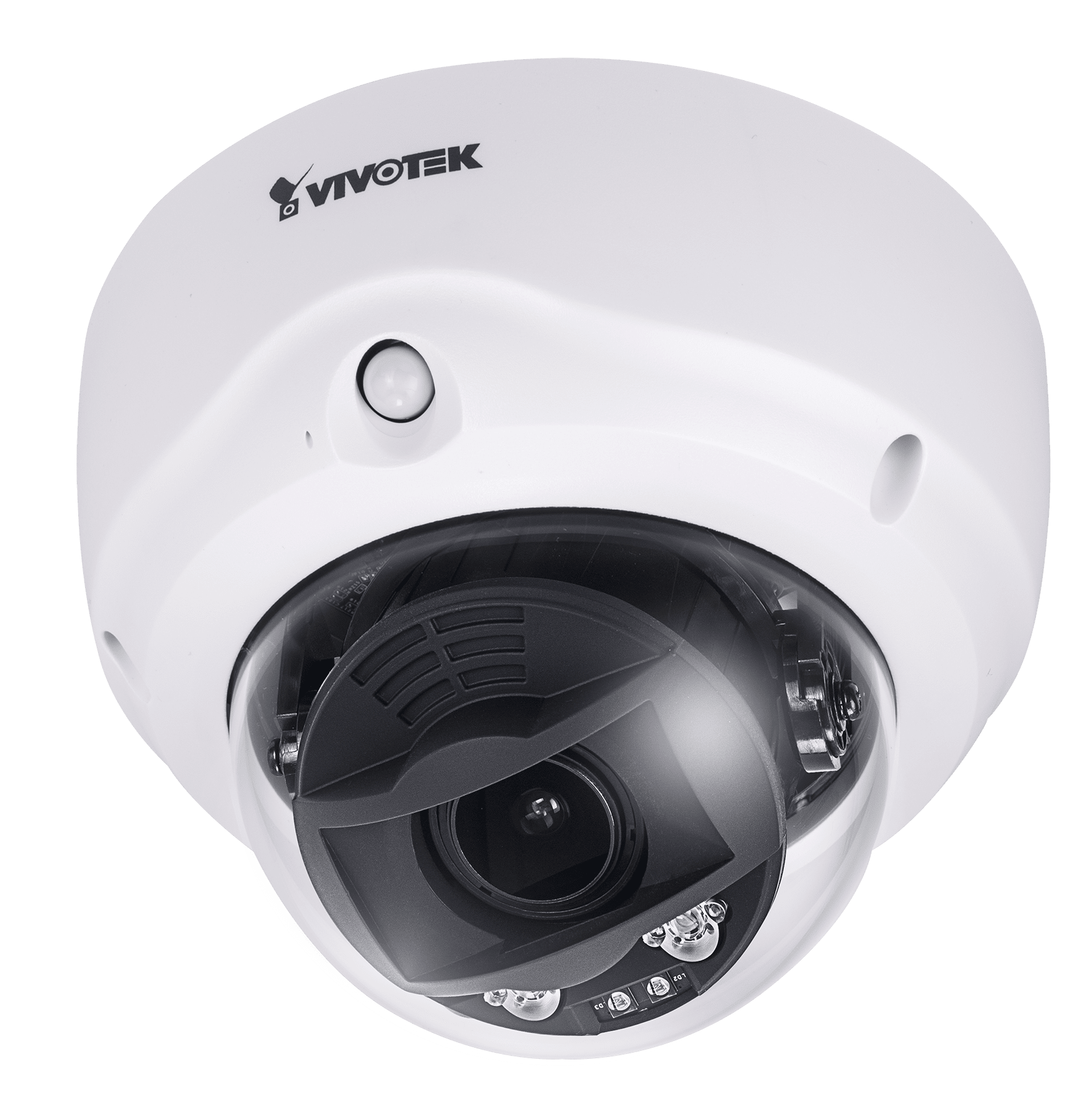

The FD9165-HT is the new flagship indoor dome network camera from VIVOTEK, equipped with a full HD sensor capable of 1920x1080 resolution at 60 fps. With the most updated VIVOTEK SNV and WDR Pro technology, the FD9165-HT is capable of capturing the highest quality images in both low light and high contrast environments. The FD9165-HT also offers the best in night time surveillance technology. By adopting Smart IR II technology from VIVOTEK speed domes, the FD9165-HT IR illuminators now align with the remote focus lens' focus angle to provide the best IR image quality at any lens setting. This feature optimizes IR intensity, reduces IR hotspots, and increases the IR effective range up to 50 meters. Additionally, the FD9165-HT employs VIVOTEK's Smart Stream III technology and H.265 compression codec, reducing bandwidth more than 90%* while still maintaining excellent image quality compared to traditional H.264 without smart streaming. Furthermore, the VIVOTEK VADP (VIVOTEK Application Development Platform) allows users to add customized programs for various applications and user scenarios. The FD9165-HT also includes a PIR sensor as well as a built-in microphone, enabling further detection of unexpected events.

Features :

• Max Resolution: 1920x1080 (2MP)
• Image Sensor: 1/2.7" Progressive CMOS
• Day/Night: Removable IR-cut filter for day & night function
• Mechanical IR Cut Filter: Yes
• Minimum Illumination: 0.04 Lux @ F1.3 (Color), 50IRE 0.002 Lux @ F1.3 (Color), 30IRE 0 Lux with IR LED on
• IR Illuminators: Built-in IR illuminators, effective up to 50 meters with Smart IR II, IR LED*5
• IR Illuminator Range: up to 50m
• Lens Type: Vari-focal, Remote Focus
• Focal Length: f = 4 ~ 9 mm / F1.3 ~ 2.2
• Zoom: ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in)
• Iris: Auto P-iris
• Focus: Remote Focus
• Field of View: 46° ~ 120° (Horizontal) 26° ~ 60° (Vertical) 53° ~ 152° (Diagonal)
• Compression Styles: H.265, H.264, MJPEG
• Frame Rate: 60 fps @ 1920X1080
• WDR Technology: WDR Pro II
• Image Settings: Time stamp, text overlay, flip & mirror; Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks; Scheduled profile settings, video Rotation, 3DNR, DIS, HLC
• Privacy Mask: Yes
• Built-in Microphone: Yes
• Audio Capabilities: Supports two-way audio via Built-in microphone, External Mic input, & External line output
• Alarm/Event Management: Motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection, audio detection, MicroSD card life expectancy / Event notification using digital output, HTTP, SMTP, FTP, NAS server and MicroSD card File upload via HTTP, SMTP, FTP, NAS server and MicroSD card
• ONVIF: Yes
• Security: N/A
• Users: Live viewing for up to 10 clients
• On-board Storage: Yes, built-in microSD/SDHC/SDXC card slot
• Indoor/Outdoor: Indoor
• Housing/Enclosure Rating: None
• Dimensions: Ø 139 x 104 mm
• Weight: 490 g
• Operating Temperature: -10°C ~ 50°C (14°F~ 122°F)
• Operating Humidity: 90%
• Power/Consumption: AC 24V, DC 12V, IEEE 802.3af PoE Class 0 / Max. 10.7 W
• Warranty: 3 years
• What's Included: FD9165-HT, L-wrench, screws. Quick Installation Guide & alignment sticker.
