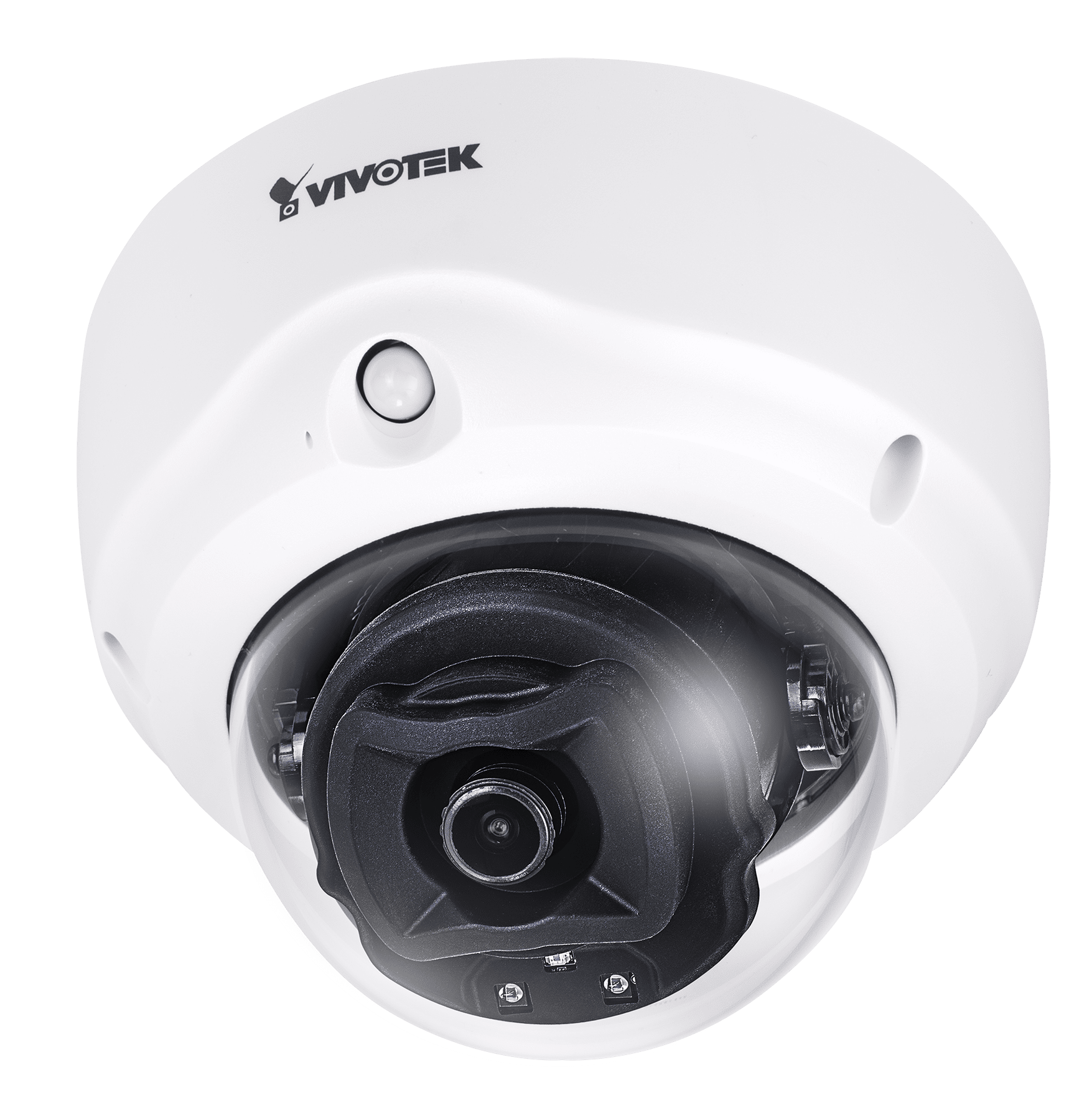

FD9187-H - EOL

VIVOTEK FD9187-H is indoor dome network camera equipped with a full HD sensor enabling resolution of 2560 x 1944 at 30 fps. And FD9187-H also supports standard 1920x1080 resolution at 60 frames per second. Featuring VIVOTEK SNV and WDR Pro technology, FD9187-H is capable of capturing high quality image whether in high contrast or low light environment.

The FD9187-H offers fixed lens for different user scenario. IR illuminators are equipped with 30 meter effective range for better night visibility. For indoor applications, PIR sensor is built-in to detect unexpected events.

Employing VIVOTEK's Smart Stream III technology and H.265 codec support, the FD9187-H reduces bandwidth up to 90%* while keeping great image quality. Additionally, VIVOTEK VADP (VIVOTEK Application Development Platform) allows users to add customized application for various application and user scenarios.

Features:

• Image Sensor 1/2.7" Progressive CMOS
• Max. Resolution 2560x1920 (5MP)
• Lens Type Fixed-focal
• Focal Length f = 2.8 mm
• Aperture F2.0
• Auto-iris Fixed-iris
• Field of View 103° (Horizontal), 76° (Vertical), 134° (Diagonal)
• Shutter Time 1/5 sec. to 1/32,000 sec.
• WDR Technology WDR Pro
• Day/Night Yes
• Removable IR-cut Filter Yes
• Minimum Illumination 0.06 Lux @ F2.0 (Color), <0.01 lux, F2.0 (B/W), 0 Lux with IR illumination on
• Pan/Tilt/Zoom Functionalities ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in)
• IR Illuminators Built-in IR illuminators, effective up to 30 meters with Smart IR, IR LED*2
• On-board Storage Slot type: MicroSD/SDHC/SDXC card slot, Seamless Recording
• Video Compression H.265, H.264, MJPEG
• Maximum Frame Rate 30 fps @ 2560x1920, 60 fps @ 1920x1080
• Maximum Streams 3 simultaneous streams
• S/N Ratio 54 dB
• Dynamic Range 120 dB
• Video Streaming Adjustable resolution, quality and bit rate control, Smart Stream III
• Image Settings Time stamp, text overlay, flip & mirror; Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks; Scheduled profile settings, video rotation, 3DNR, DIS, HLC
• Audio Capability Two-way Audio (full duplex)
• Audio Compression G.711, G.726
• Audio Interface External microphone input, External line output
• Users Live viewing for up to 10 clients
• Protocols IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, CIFS/SMB, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X, UDP, ICMP, ARP, SSL/TLS
• Interface 10 Base-T/100 Base-TX Ethernet (RJ-45)
• ONVIF Supported
• Smart Motion Detection Five-window video motion detection, human detection, time filter
• VCA Standard VCA (optional) *Including line crossing detection, field detection, loitering detection
• VADP Package Genetec package, Trend Micro IoT Security, Stratocast, Smart Motion Detection
• Alarm Triggers Motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection, audio detection, PIR detection, MicroSD card life expectancy
• Alarm Events Event notification using digital output, HTTP, SMTP, FTP, NAS server and MicroSD card, File upload via HTTP, SMTP, FTP, NAS server and MicroSD card
• Connectors RJ-45 cable connector for 10/100Mbps Network/PoE connection, Audio line input, Audio line output, AC 24V power input (optional), DC 12V power input, Digital input *1, Digital output *1
• LED Indicator System power and status indicator
• Power Input IEEE 802.3af PoE Class 0 , DC 12V, AC 24V (optional) (Redundant Power)
• Power Consumption PoE: Max. 8.1 W, DC 12V: Max. 7.4 W, AC 24V: Max. 7.5 W
• Dimensions Ø 139 x 104 mm
• Weight 538 g
• Safety Certifications CE, FCC Class B, UL, LVD, VCCI, C-Tick
• Operating Temperature Starting Temperature: 0°C ~ 45°C (32°F ~ 113°F), Working Temperature: -10°C ~ 45°C (14°F ~ 113°F)
• Humidity 90%
• Warranty 36 Months
• Operating System Microsoft Windows 7/8
• Web Browser, Mozilla Firefox 7~43 (streaming only), Internet Explorer 10/11
• Other Players VLC: 1.1.11 or above, QuickTime: 7 or above
• Quick installation guide, warranty card, alignment sticker, screw pack, conduit ring
