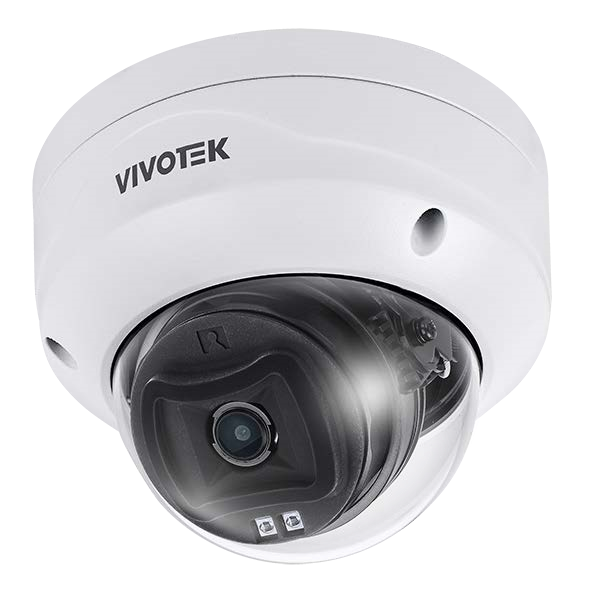

Vivotek - FD9383-HV(2.8MM) - C-Ser, Outdr Dome,2.8mm, 5MP, AI Analytics,IP66/IK10,30M IR
Part number:
FD9383-HV(2.8MM)
Price:
The 9383 is your gateway to smarter security. As our first AI camera in the C-Series, it boasts an advanced Sony image sensor coupled with STARVIS 2 technology, delivering 2.5x greater dynamic range and light sensitivity. With Smart VCA, and vision object analytics, it’s a powerhouse of AI intelligence, making your security solutions simpler, smarter, and safer.
Experience class-leading image performance with the 9383. Its advanced Sony image sensor, combined with STARVIS 2 technology, delivers exceptional clarity and precision. Enjoy a 2.5x increase in dynamic range and light sensitivity, ensuring superior visibility in all lighting conditions. From bright daylight to low-light environments, rest assured that every detail is captured with remarkable clarity.
Features:
- 30 fps @ 2560×1920
- H.265 Compression Technology with Smart Stream III
- SNV (Supreme Night Visibility) for Low Light Conditions
- WDR Pro for Unparalleled Visibility in Extremely Bright and Dark Environments
- 30M Smart IR III
- Signed Firmware and Secure Boot
- Smart Motion Detection
- Trend Micro IoT Security
- Smart VCA and Vision Object Analytics
| System Information | |
| Model | FD9383-HV (2.8mm) FD9383-HV (3.6mm) |
| CPU | Multimedia SoC (System-on-Chip) |
| Flash | 8 GB |
| RAM | 2GB |
| Camera Features | |
| Image Sensor | 1/2.8″ Progressive CMOS |
| Max. Resolution | 2560×1920 (5MP) |
| Lens Type | Fixed-focal |
| Focal Length | FD9383-HV (2.8mm): f = 2.8 mm FD9383-HV (3.6mm): f = 3.6 mm |
| Aperture | F2.0 |
| Auto-iris | Fixed iris |
| Field of View | FD9383-HV (2.8mm): 103.4° (Horizontal) 75.3° (Vertical) 135.2° (Diagonal) FD9383-HV (3.6mm): 79.6° (Horizontal) 57.8° (Vertical) 105.8° (Diagonal) |
| Shutter Time | 1/5 sec. to 1/32,000 sec. |
| WDR Technology | WDR Pro |
| Day/Night | Yes |
| Removable IR-cut Filter | Yes |
| IR Illuminators | Built-in IR illuminators, effective up to 30 meters with Smart IR II, IR LED*2 |
| Minimum Illumination | 0.055 lux @ F2.0 (Color) 0.005 lux @ F2.0 (B/W) 0 lux with IR illumination on |
| Pan Range | 350° |
| Tilt Range | 75° |
| Rotation Range | 350° |
| Pan/Tilt/Zoom Functionalities | ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in) |
| On-board Storage | Seamless Recording to MicroSD/SDHC/SDKC card (1TB capacity supported) and recording to network-attached storage (NAS) |
| Built-in Installation Aids | Pixel calculator |
| Video | |
| Video Compression | H.265, H.264, MJPEG |
| Maximum Frame Rate | 30 fps @ 2560×1920 |
| Maximum Streams | 3 video streams (Up to 8 configurable profiles) |
| Main Stream | 30fps @2560×1920,2048×1536,1920×1440,1600×1200,1280×960,800×600,640×480 (4:3) 30fps @ 2560×1440, 1920×1080, 1600×904, 1360×768,1280×720, 640×360 (16:9) 60 fps @ 1920×1080, 1600×904, 1360×768, 1280×720, 640×360 (16:9) |
| 2nd Stream | 30fps @ 1920×1440, 1600×1200, 1280×960, 640×480 (4:3); 30fps @ 1920×1080, 1600×904, 1360×768, 1280×720, 640×360 (16:9) 60 fps @ 1920×1080, 1600×904, 1360×768, 1280×720, 640×360 (16:9) |
| 3rd Stream | 30fps @ 1280×960, 800×600, 640×480 (4:3); 30 fps @ 1280×720, 640×360 (16:9); 60 fps @ 1280×720, 640×360 (16:9) |
| S/N Ratio | FD9383-HV (2.8mm): 58 dB FD9383-HV (3.6mm): 56 dB |
| Dynamic Range | 120 dB |
| Video Streaming | Adjustable resolution, quality and constant bit rate control, Smart Stream III |
| Image Settings | General settings: video title and time stamp overlay, video orientation (flip, mirror, rotation), day/night settings; Illuminators: illuminators, anti-overexposure/smart IR; Image settings: white balance, image adjustment (brightness, contrast, saturation, sharpness, gamma curve), defog, 3DNR; Exposure: BLC, HLC, exposure control (exposure level, exposure time, gain control), Image sharpener for motion blur, AE speed adjustment, WDR; Privacy mask; Pixel calculator; Scheduled profile settings |
| Network | |
| Users | Live viewing for up to 10 clients |
| Security | Access list, CSRF protection, digest authentication, HTTPS , IEEE 802.1x, Password protection, secure boot, signed firmware, Trend Micro IoT Security (brute force attack event, cyberattack event, quarantine event), user access log, user account management |
| Protocols | 802.1X, ARP, Bonjour, CIFS/SMB, DDNS, DHCP, DNS, FTP/SFTP, HTTP, HTTPS, ICMP, IGMPv3, IPv4, IPv6, NTCIP, NTP, PPPoE, QoS (CoS/DSCP), RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS 1.2/1.3, UDP, UPnP |
| Interface | 10 Base-T/100 Base-TX Ethernet (RJ-45) *It is highly recommended to use standard CAT5e & CAT6 cables which are compliant with the 3P/ETL standard. |
| ONVIF | Profile G, S, T supported, specification available at www.onvif.org |
| Al Analytics | |
| Compute Capability | SoC with built-in hardware deep learning accelerator |
| Vision Object Analytics | Object Detection: People, Vehicle (4-wheeled, 2-wheeled); Attribute Extraction: People (gender, clothing color, bag, hat), Vehicle (bike, bus, car, motorcycle, truck, color); Re-Search Extraction; Path Extraction |
| Application | Deep Learning VCA (Smart Motion Detection, Smart VCA) Smart Motion Detection (Five-window video motion detection, People detection, Vehicle detection, Time filter), Smart VCA (Intrusion detection, Loitering detection, Line crossing detection, Face detection) |
| Application available with license | Unattended object detection, Missing object detection, Crowd detection, Running detection, Parking Violation Detection, Restricted Zone Detection Support for more analytic applications and free trial, please visit vivotek.com/video-analytics |
| Solution Integration | |
| Applications | Trend Micro (Default, 1-year free trial) |
| Alarm and Event | |
| Event Triggers | camera tampering detection, cybersecurity events (brute force attack event, cyberattack event, quarantine event), manual trigger, motion detection, periodical trigger, recording notification, SD card life expectancy, shock detection, system boot |
| Events Action | Event notification via camera link, email, HTTP, FTP/SFTP, NAS server, SD card File upload via email, HTTP, FTP/SFTP, NAS server, SD card |
| General | |
| Connectors | RJ-45 cable connector for 10/100 Mbps Network/PoE connection |
| LED Indicator | System power and status indicator |
| Power Input | IEEE 802.3af PoE Class 3 |
| Power Consumption | Max. 8.5 W/ 6.0 W (IR on/off) |
| Dimensions | Ø 117.2 x 89.6 mm |
| Weight | 550 g |
| Safety Certifications | EMC: CE (EN 55032/EN 55035 Class A), UKCA (BS EN 55032/BS EN 55035 Class A), FCC (FCC Part 15 Subpart B Class A), RCM (AS/NZS CISPR 32 Class A), VCCI (VCCI-CISPR 32 Class A), IC (ICES-003 Issue 7, Class A) Safety: UL (UL 62368-1), CB (IEC/EN 62368-1, IEC/EN 60950-22, IEC/EN 62471), LVD (IEC/EN 62368-1), UKCA (BS EN 62368-1); Environment: IK10 (IEC 62262), IP66 (IEC 60529); IA: BIS (IS 13252), BSMI (EMC: CNS 15936, Safety: CNS 15598-1) |
| Operating Temperature | Starting Temperature: -10°C ~ 50°C (-14°F ~ 122°F) Working Temperature: -30°C ~ 55°C (-22°F ~ 131°F) (IR off) -30°C ~ 50°C (-22°F ~ 122°F) (IR on) |
| Humidity | 90% |
| System Requirements | |
| Operating System | Microsoft Windows 10/8/7 Mac 10.12 (Chrome only) |
| Web Browser | Chrome 58.0 or abov |
| Other Players | VLC: 1.1.11 or above |
| Included Accessories | |
| Packing Contents | Quick installation guide, alignment sticker, screw pack, cable gland |
| DORI (EN 62676-4 Standard) | |
| Detect (25PPM/ 8PPF) | FD9383-HV (2.8mm): 60.4 m (198.1 ft) FD9383-HV (3.6mm): 78.3 m (256.8 ft) |
| Observe (63PPM/ 19PPF) | FD9383-HV (2.8mm): 24.1 m (79.2 ft) FD9383-HV (3.6mm): 31.3 m (102.7 ft) |
| Recognize (125PPM/ 38PPF) | FD9383-HV (2.8mm): 12 m (39.5 ft) FD9383-HV (3.6mm): 15.6 m (51.3 ft) |
| Identify (250PPM/ 76PPF) | FD9383-HV (2.8mm): 6.0 m (19.6 ft) FD9383-HV (3.6mm): 7.8 m (25.5 ft) |
