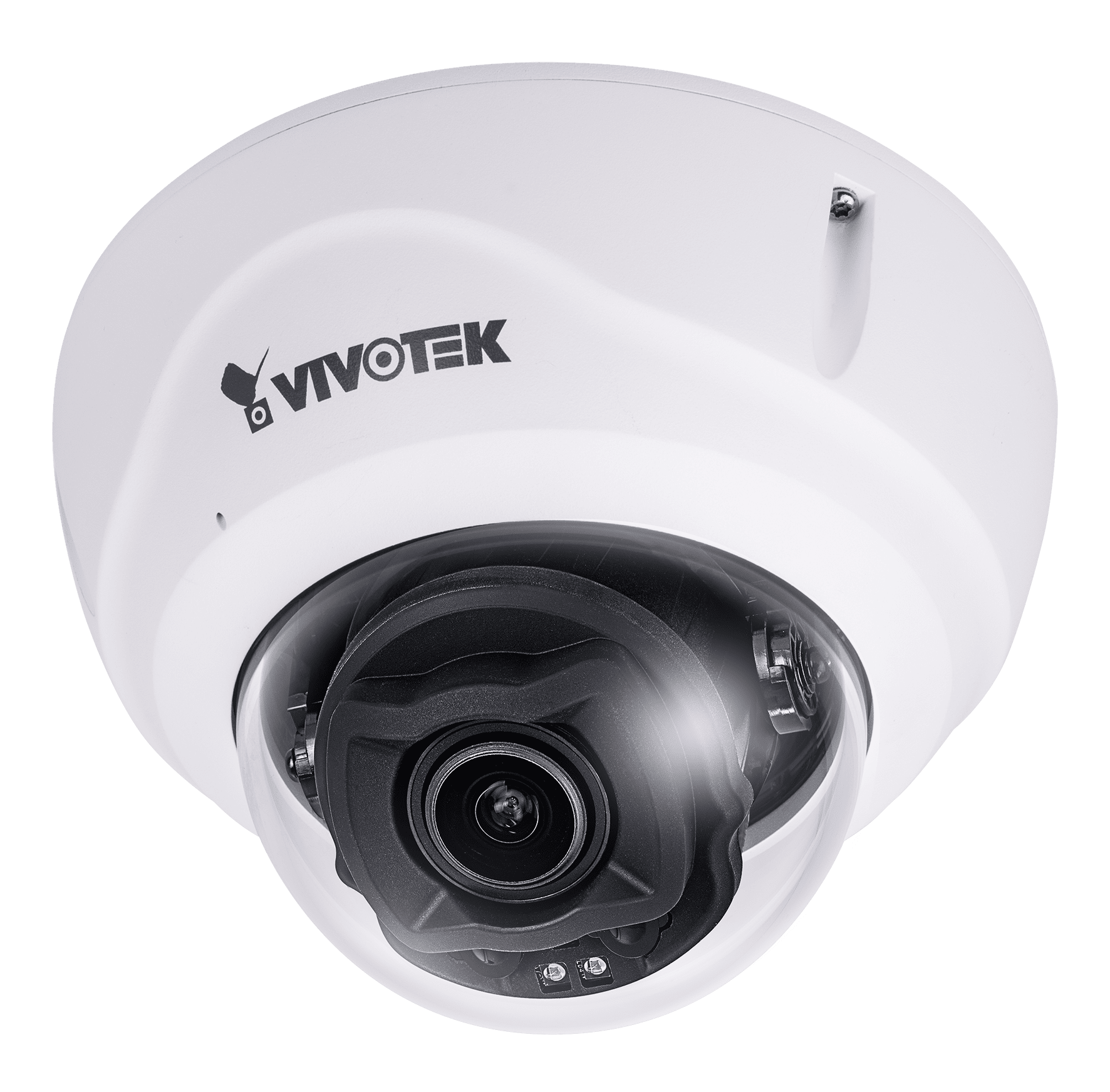

VIVOTEK FD9387 is a series of outdoor dome network camera offering up to 30 fps @ 5-Megapixel or 60 fps @ full HD sensor with superb image quality at all resolutions or frame rates. And FD9387 Series also supports standard 1920x1080 resolution at 60 frames per second. Featuring VIVOTEK SNV and WDR Pro technology, FD9387 Series is capable of capturing high quality image whether in high contrast or low light environment.

The FD9387 series offers remote focus lens for different user scenario. IR illuminators are equipped with 50 meter effective range for better night visibility. For harsh outdoor environment, FD9387 series is encased in IP66, IP67 and IK10 housing.

Employing VIVOTEK's Smart Stream III technology and H.265 codec support, the FD9387 Series reduces bandwidth up to 90%* while keeping great image quality. Additionally, VIVOTEK VADP (VIVOTEK Application Development Platform) allows users to add customized application for various application and user scenarios. Protecting all these features is the FD9387's IP66, IP67 and IK10 rated housing, capable of operating from -50°C to 60°C (FD9387-EHTV).

Features:

• Image Sensor 1/2.7" Progressive CMOS
• Max. Resolution 2560x1920 (5MP)
• Lens Type Vari-focal, Remote Focus
• Focal Length f = 2.7 ~ 13.5 mm
• Aperture F1.4 ~ F2.8
• Auto-iris P-iris
• Field of View 30 ~ 100° (Horizontal), 23 ~ 72°(Vertical), 38 ~ 135° (Diagonal)
• Shutter Time 1/5 sec. to 1/32,000 sec.
• Minimum Illumination 0.06 Lux @ F1.4 (Color), <0.01 lux, F1.4 (B/W), 0 Lux with IR illumination on
• Pan/Tilt/Zoom Functionalities ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in)
• On-board Storage Slot type: MicroSD/SDHC/SDXC card slot, Seamless Recording
• WDR Technology Pro
• Day/Night Yes
• Removable IR-cut Filter Yes
• IR Illuminators Built-in IR illuminators, effective up to 50 meters with Smart IR II, IR LED*4
• Video Compression H.265, H.264, MJPEG
• Maximum Frame Rate 30 fps @ 2560x1920, 60 fps @ 1920x1080
• Maximum Streams 3 simultaneous streams
• S/N Ratio 52 dB
• Video Streaming Adjustable resolution, quality and bit rate control, Smart Stream III
• Image Settings Time stamp, text overlay, flip & mirror; Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks; Scheduled profile settings, video rotation, 3DNR, DIS, HLC
• Dynamic Range 120 dB
• Audio Capability Two-way Audio (full duplex)
• Audio Compression G.711, G.726
• Audio Interface Built-in microphone, External microphone input, External line output
• Users Live viewing for up to 10 clients
• Protocols IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, CIFS/SMB, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X, UDP, ICMP, ARP, SSL/TLS
• Interface 10 Base-T/100 Base-TX Ethernet (RJ-45)
• ONVIF Supported, specification available at www.onvif.org
• VCA Standard VCA (optional, Including line crossing detection, field detection, loitering detection)
• Smart Motion Detection Five-window video motion detection, human detection, time filter
• VADP Package Genetec package, Trend Micro IoT Security, Stratocast, Smart Motion Detection
• Connectors RJ-45 cable connector for 10/100Mbps Network/PoE connection, Audio line input, Audio line output, AC 24V power input (optional), DC 12V power input, Digital input *1, Digital output *1
• LED Indicator System power and status indicator
• Power Input IEEE 802.3at PoE Class 4, DC 12V, AC 24V (optional) (Redundant Power)
• Power Consumption PoE: Max. 24.7/11.4 W (Heater on/off), DC 12V: Max. 22.3/10.4 W (Heater on/off), AC 24V: Max. 23.15/10.56 W (Heater on/off)
• Dimensions Ø 155 x 104 mm
• Weight 909 g (2 lb)
• Safety Certifications CE, FCC Class B, UL, LVD, VCCI, C-Tick
• Operating Temperature Starting Temperature: -40°C ~ 60°C (-40°F ~ 140°F), Working Temperature: -50°C ~ 60°C (-58°F ~ 140°F)
• Humidity 90%
• Warranty 36 Months
• Casing IP66, IP67, IK10 (Metal Housing)
• Quick installation guide, warranty card, alignment sticker, screw pack, conduit ring
• Alarm Triggers Motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection, audio detection, MicroSD card life expectancy
• Alarm Events Event notification using digital output, HTTP, SMTP, FTP, NAS server and MicroSD card, File upload via HTTP, SMTP, FTP, NAS server and MicroSD card
