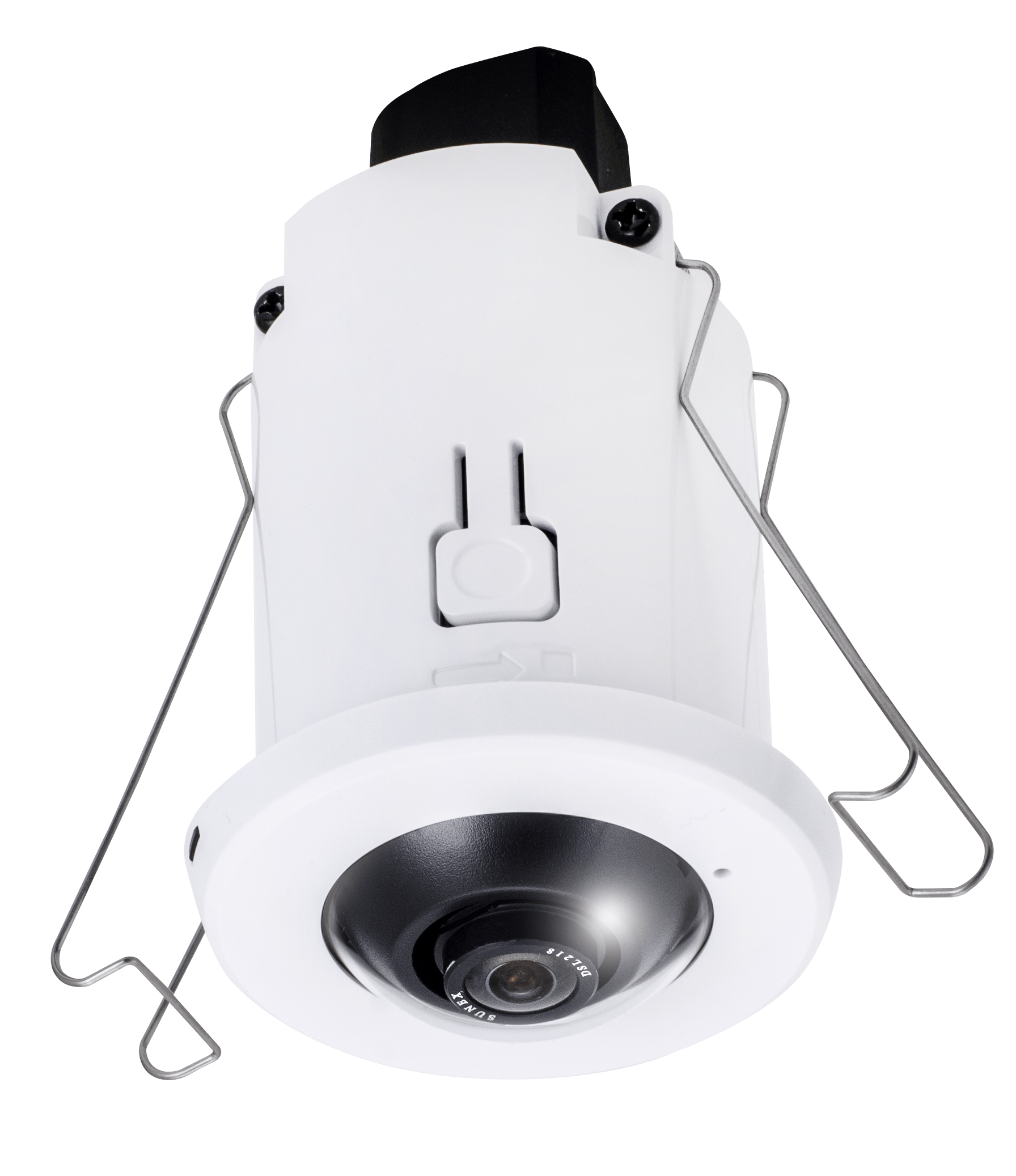

VIVOTEK’s FE8182 is a recessed-mount fisheye network camera, featuring a detailed 5-Megapixel resolution sensor with superb image quality. A small camera with large functionality, VIVOTEK’s FE8182, with a diameter of only 60 mm, is truly an all-in-one surveillance solution that meets a wide variety of needs for indoor surveillance. Equipped with a fisheye lens for 180° panoramic view (wall mount) or 360° surround view without blind spots (ceiling/floor mount), the camera is able to provide full video coverage of wide, open areas, such as airport lobbies, shopping malls, retail stores, offices and more.
The FE8182 offers various display layouts, including original surround view, panoramic view, and regional view to suit a variety of applications. In addition, in both the panoramic and regional viewing modes, users can utilize the ultra-smooth ePTZ function to effortlessly zoom in and focus on a region of interest (ROI). Further, a new cutting-edge pixel calculation function helps users to ensure high image quality for a designated area.
At the darker end of the spectrum, 3D Noise Reduction Technology allows users to enjoy an increased level of image detail in extremely dim environments without consuming or wasting unreasonably high bandwidth. To dramatically reduce file sizes and conserve valuable network bandwidth, the FE8182 supports Smart Stream and industry-standard H.264 compression technology. Further, the recessed-mount design allows users to install the camera without the need for screws. The FE8182 is not just perfect for blending into any surroundings or any roof space, but also produces substantial savings on both cost and time.
Features:
- Max Resolution: 1920x1920 (5MP)
- Image Sensor: 1/3.2" Progressive CMOS sensor
- Day/Night: No
- Mechanical IR Cut Filter: No
- Minimum Illumination: 0.6 Lux @ F2.0 (Color)
- IR Illuminators: No
- IR Illuminator Range: N/A
- Lens Type: Fixed fisheye
- Focal Length: f = 3.72mm, F2.0
- Zoom: ePTZ; 4x digital zoom IE plug-in
- Iris: N/A
- Focus: Auto
- Field of View: 180° Horizontal, Vertical, and Diagonal
- Compression Styles: H.264 & MJPEG
- Frame Rate: 15 fps at 1920x1920 in all compression styles
- WDR Technology: Yes, WDR Enhanced
- Image Settings: Adjustable resolution, quality and bitrate; Smart Stream, Adjustable image size, quality and bit rate; Time stamp, text overlay, flip & mirror; Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks; Scheduled profile settings, 3D noise reduction
- Privacy Mask: No
- Built-in Microphone: Yes, up to 5m
- Audio Capabilities: One way listening only
- Alarm/Event Management: 5-window video motion detection, manual trigger, periodical trigger, system boot, recording notification, camera tampering detection, audio detection, Event notification using HTTP, SMTP, FTP and NAS server, SD Card File upload via HTTP, SMTP, FTP, NAS server and SD card
- ONVIF: Yes
- Users: Live viewing for up to 10 clients
- On-board Storage: Yes, MicroSD/SDHC/SDXC Card Slot
- Indoor/Outdoor: Indoor
- Housing/Enclosure Rating: None
- Dimensions: Ø 60 x 102.5 mm
- Weight: 133 g (.29 lb)
- Operating Temperature: -10°C ~ 40°C (14°F ~ 104°F)
- Operating Humidity: N/A
- Power/Consumption: IEEE 802.3af PoE Class 1 / Max. 3W
- Warranty: 2 Years
- What's Included: Camera, Quick installation guide, alignment sticker, screws pack, software CD
| System Information | |
| Model | FE8182 |
| CPU | Multimedia SoC (System-on-Chip) |
| Flash | 128 MB |
| RAM | 256 MB |
| Camera Features | |
| Image Sensor | 1/3.2" Progressive CMOS |
| Max. Resolution | 1920x1920 |
| Lens Type | Fixed-focal |
| Focal Length | f = 1.05 mm |
| Aperture | F2.0 |
| Auto-iris | Fixed iris |
| Field of View | 180° (Horizontal) 180° (Vertical) 180° (Diagonal) |
| Shutter Time | 1/5 sec. to 1/32,000 sec. |
| WDR Technology | WDR Enhanced |
| Minimum Illumination | 0.6 lux @ F2.0 (Color) |
| Pan/Tilt/Zoom Functionalities | ePTZ: 4x digital zoom (4x on IE plug-in) |
| Storage | Seamles Recording to MicroSD/SDHC/SDXC card |
| Video | |
| Video Compression | H.264, MJPEG |
| Maximum Frame Rate | 15 fps @ 1920x1920 |
| Maximum Streams | 3 simultaneous streams |
| S/N Ratio | 64 dB |
| Dynamic Range | 70 dB |
| Video Streaming | Adjustable resolution, quality and bit rate control, Smart Stream |
| Image Settings | General settings: video title and time stamp overlay, video orientation (flip, mirror), day/night settings; Image settings: white balance, image adjustment (brightness, contrast, saturation, sharpness, gamma curve), defog, 3DNR, HLM, DIS; Exposure: BLC, HLC, exposure control (exposure level, iris adjustment, exposure time, gain control, iris mode); Privacy mask; Scheduled profile settings |
| Display Mode | Client dewarping Ceiling mounted: 1O Fisheye, 1P Panoramic, 2P Two Panoramics, 1R One Region, 4R Four Regions, 1O3R One Fisheye Three Regions, 1O8R One Fisheye Eight Regions Wall mounted: 1O Fisheye, 1P Panoramic, 1R One Region, 4R Four Regions, 1P2R One Panoramic Two Regions, 1P3R One Panoramic Three Regions, 1O3R, One Fisheye Three Regions |
| Audio | |
| Audio Capability | One-way Audio |
| Audio Compression | G.711, G.726 |
| Audio Interface | Built-in microphone |
| Effective Range | 5 meters |
| Network | |
| Users | Live viewing for up to 10 clients |
| Security | Access list, digest authentication, HTTPS, IEEE 802.1x, password protection, user access log, user account management |
| Protocols | 802.1X, ARP, CIFS/SMB, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, NTP, PPPoE, QoS (CoS/DSCP), RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS, UDP, UPnP |
| Interface | 10 Base-T/100 Base-TX Ethernet (RJ-45) *It is highly recommended to use standard CAT5e & CAT6 cables which are compliant with the 3P/ETL standard. |
| ONVIF | Profile G, S supported, specification available at www.onvif.org |
| Solution Integration | |
| Video Motion Detection | Five-window video motion detection |
| Alarm and Event | |
| Event Trigger | Audio detection, camera tampering detection, manual trigger, motion detection, periodical trigger, recording notification, SD card life expectancy, system boot |
| Event Action | Event notification via email, HTTP, FTP, NAS server, SD card File upload via email, HTTP, FTP, NAS server, SD card |
| General | |
| Connectors | RJ-45 cable connector for 10/100Mbps Network/PoE connection |
| LED Indicator | System power and status indicator |
| Power Input | IEEE 802.3af PoE Class 1 |
| Power Consumption | Max. 3 W |
| Dimensions | Ø 60 x 102.5 mm |
| Weight | 133 g |
| Certifications | EMC: CE (EN55032 Class B, EN55024), FCC (FCC Part 15 Subpart B Class B), RCM (AS/NZS CISPR 32 Class B), VCCI (V-3/2015.04 Class B, V-4/2012.04); Safety: UL (UL60950-1), CB (IEC/EN 60950-1) |
| Operating Temperature | Starting Temperature: 0°C ~ 40°C (32°F ~ 104°F) Working Temperature: -10°C ~ 40°C (14°F ~ 104°F) |
| Humidity | 90% |
| Warranty | 36 months |
| System Requirements | |
| Operating System | Microsoft Windows 10/8/7 Mac 10.12 (Chrome only) |
| Web Browser | Chrome 58.0 or above Internet Explorer 10/11 |
| Other Players | VLC: 1.1.11 or above |
| Included Accessories | |
| Others | Quick installation guide |
