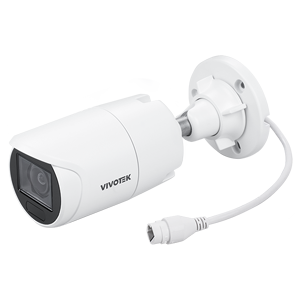

Vivotek - IB9383-HTV - C-Ser, Vari-Focal Bullet, 5MP,AI Analytics,IP66/IK10,30M IR
Part number:
IB9383-HTV
Price:
The 9383 is your gateway to smarter security. As our first AI camera in the C-Series, it boasts an advanced Sony image sensor coupled with STARVIS 2 technology, delivering 2.5x greater dynamic range and light sensitivity. With Smart VCA, and vision object analytics, it's a powerhouse of AI intelligence, making your security solutions simpler, smarter, and safer.
Features:
- 30 fps @ 2560x1920
- H.265 Compression Technology with Smart Stream III
- SNV (Supreme Night Visibility) for Low Light Conditions
- WDR Pro for Unparalleled Visibility in Extremely Bright and Dark Environments
- 30M Smart IR III
- Signed Firmware and Secure Boot
- Smart Motion Detection
- Trend Micro IoT Security
- Smart VCA and Vision Object Analytics
| System Information | |
| Model | IB9383-HTV |
| CPU | Multimedia SoC (System-on-Chip) |
| Flash | 8 GB |
| RAM | 2GB |
| Camera Features | |
| Image Sensor | 1/2.8″ Progressive CMOS |
| Max. Resolution | 2560×1920 (5MP) |
| Lens Type | Motorized, Vari-focal, Remote Focus |
| Focal Length | f = 2.8 ~ 12mm |
| Aperture | F1.6 ~ F3.3 |
| Auto-iris | DC iris |
| Field of View | 95.4° ~ 28.7° (Horizontal) 68.8° ~ 21.5° (Vertical) 129.6° ~ 35.9°(Diagonal) |
| Shutter Time | 1/5 sec. to 1/32,000 sec. |
| WDR Technology | WDR Pro |
| Day/Night | Yes |
| Removable IR-cut Filter | Yes |
| IR Illuminators | Built-in IR illuminators, effective up to 30 meters with Smart IR II, IR LED*2 |
| Minimum Illumination | 0.04 lux @ F1.6 (Color) 0.005 lux @ F1.6 (B/W) 0 lux with IR illumination on |
| Pan Range | 353° |
| Tilt Range | 90° |
| Rotation Range | 180° |
| Pan/Tilt/Zoom Functionalities | ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in) |
| Storage | Seamless Recording to MicroSD/SDHC/SDKC card (1TB capacity supported) and recording to network-attached storage (NAS) |
| Built-in Installation Aids | Remote focus, remote zoom, pixel calculator |
| Video | |
| Video Compression | H.265, H.264, MJPEG |
| Maximum Frame Rate | 30 fps @ 2560×1920 |
| Maximum Streams | 3 video streams (Up to 8 configurable profiles) |
| Main Stream | 30 fps @2560×1920,2048×1536,1920×1440,1600×1200,1280×960,800×600,640×480 (4:3) 30 fps @ 2560×1440, 1920×1080, 1600×904, 1360×768,1280×720, 640×360 (16:9) 60 fps @ 1920×1080, 1600×904, 1360×768, 1280×720, 640×360 (16:9) 60 fps @ 1920×1080, 1600×904, 1360×768, 1280×720, 640×360 (16:9) |
| 2nd Stream | 30 fps @ 1920×1440, 1600×1200, 1280×960, 640×480 (4:3); 30 fps @ 1920×1080, 1600×904, 1360×768, 1280×720, 640×360 (16:9) 60 fps @ 1920×1080, 1600×904, 1360×768, 1280×720, 640×360 (16:9) |
| 3rd Stream | 30 fps @ 1280×960, 800×600, 640×480 (4:3); 30 fps @ 1280×720, 640×360 (16:9); 60 fps @ 1280×720, 640×360 (16:9) |
| S/N Ratio | 59 dB |
| Dynamic Range | 120 dB |
| Video Streaming | Adjustable resolution, quality and constant bit rate control, Smart Stream III |
| Image Settings | General settings: video title and time stamp overlay, video orientation (flip, mirror, rotation), day/night settings; Illuminators: illuminators, anti-overexposure/smart IR; Image settings: white balance, image adjustment (brightness, contrast, saturation, sharpness, gamma curve), defog, 3DNR; Exposure: BLC, HLC, exposure control (exposure level, exposure time, gain control), Image sharpener for motion blur, AE speed adjustment, WDR; Focus: zoom, focus; Privacy mask; Pixel calculator; Scheduled profile settings |
| Audio | |
| Audio Capability | One-way Audio |
| Audio Compression | MPEG-2 AAC-LC, G.711, G.726 |
| Audio Interface | Built-in microphone |
| ffective Range | 5 meters |
| Network | |
| Users | Live viewing for up to 10 clients |
| Security | Access list, CSRF protection, digest authentication, HTTPS , IEEE 802.1x, Password protection, secure boot, signed firmware, Trend Micro IoT Security (brute force attack event, cyberattack event, quarantine event), user access log, user account management |
| Protocols | 802.1X, ARP, Bonjour, CIFS/SMB, DDNS, DHCP, DNS, FTP/SFTP, HTTP, HTTPS, ICMP, IGMPv3, IPv4, IPv6, NTCIP, NTP, PPPoE, QoS (CoS/DSCP), RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS 1.2/1.3, UDP, UPnP |
| Interface | 10 Base-T/100 Base-TX Ethernet (RJ-45) * It is highly recommended to use standard CAT5e & CAT6 cables which are compliant with the 3P/ETL standard. |
| ONVIF | Profile G, S, T supported, specification available at www.onvif.org |
| Al Analytics | |
| Compute Capability | SoC with built-in hardware deep learning accelerator |
| Vision Object Analytics | Object Detection: People, Vehicle (4-wheeled, 2-wheeled); Attribute Extraction: People (gender, clothing color, bag, hat), Vehicle (bike, bus, car, motorcycle, truck, color); Re-Search Extraction; Path Extraction |
| Application | Deep Learning VCA (Smart Motion Detection, Smart VCA) Smart Motion Detection (Five-window video motion detection, People detection, Vehicle detection, Time filter), Smart VCA (Intrusion detection, Loitering detection, Line crossing detection, Face detection) |
| Application available with license | Unattended object detection, Missing object detection, Crowd detection, Running detection, Parking Violation Detection, Restricted Zone Detection Support for more analytic applications and free trial, please visit vivotek.com/video-analytics |
| Solution Integration | |
| Applications | Trend Micro (Default, 1-year free trial) |
| Alarm and Event | |
| Event Triggers | Audio detection, camera tampering detection, cybersecurity events (brute force attack event, cyberattack event, quarantine event), manual trigger, motion detection, periodical trigger, recording notification, SD card life expectancy, shock detection, system boot |
| Events Action | Event notification via camera link, email, HTTP, FTP/SFTP, NAS server, SD card File upload via email, HTTP, FTP/SFTP, NAS server, SD card |
| General | |
| Connectors | RJ-45 cable connector for 10/100 Mbps Network/PoE connection |
| LED Indicator | System power and status indicator |
| Power Input | IEEE 802.3af PoE Class 3 |
| Power Consumption | Max. 12.4 W/ 8.0 W (IR on/off) |
| Dimensions | Ø 91.0 x 226.6 mm |
| Weight | 940 g |
| Certifications | EMC: CE (EN 55032/EN 55035 Class A), UKCA (BS EN 55032/BS EN 55035 Class A), FCC (FCC Part 15 Subpart B Class A), RCM (AS/NZS CISPR 32 Class A), VCCI (VCCI-CISPR 32 Class A), IC (ICES-003 Issue 7, Class A) Safety: UL (UL 62368-1), CB (IEC/EN 62368-1, IEC/EN 60950-22, IEC/EN 62471), LVD (IEC/EN 62368-1), UKCA (BS EN 62368-1); Environment: IK10 (IEC 62262), IP66 (IEC 60529); IA: BIS (IS 13252), BSMI (EMC: CNS 15936, Safety: CNS 15598-1) |
| Operating Temperature | Starting Temperature: -10°C ~ 50°C (-14°F ~ 122°F) Working Temperature: -30°C ~ 55°C (-22°F ~ 131°F) (IR off) -30°C ~ 50°C (-22°F ~ 122°F) (IR on) |
| Humidity | 90% |
| System Requirements | |
| Operating System | Microsoft Windows 10/8/7 Mac 10.12 (Chrome only) |
| Web Browser | Chrome 58.0 or abov |
| Other Players | VLC: 1.1.11 or above |
| Included Accessories | |
| Packing Contents | Quick installation guide, alignment sticker, screw pack, cable gland |
| DORI (EN 62676-4 Standard) | |
| Detect (25PPM/ 8PPF) | Wide: 67.0 m (219.9 ft) Tele: 205.7 m (674.8 ft) |
| Observe (63PPM/ 19PPF) | Wide: 26.7 m (87.5 ft) Tele: 81.6 m (267.8 ft) |
| Recognize (125PPM/ 38PPF) | Wide: 13.3 m (43.7 ft) Tele: 41.0 m (134.4 ft) |
| Identify (250PPM/ 76PPF) | Wide: 6.6 m (21.7 ft) Tele: 20.5 m (67.1 ft) |
