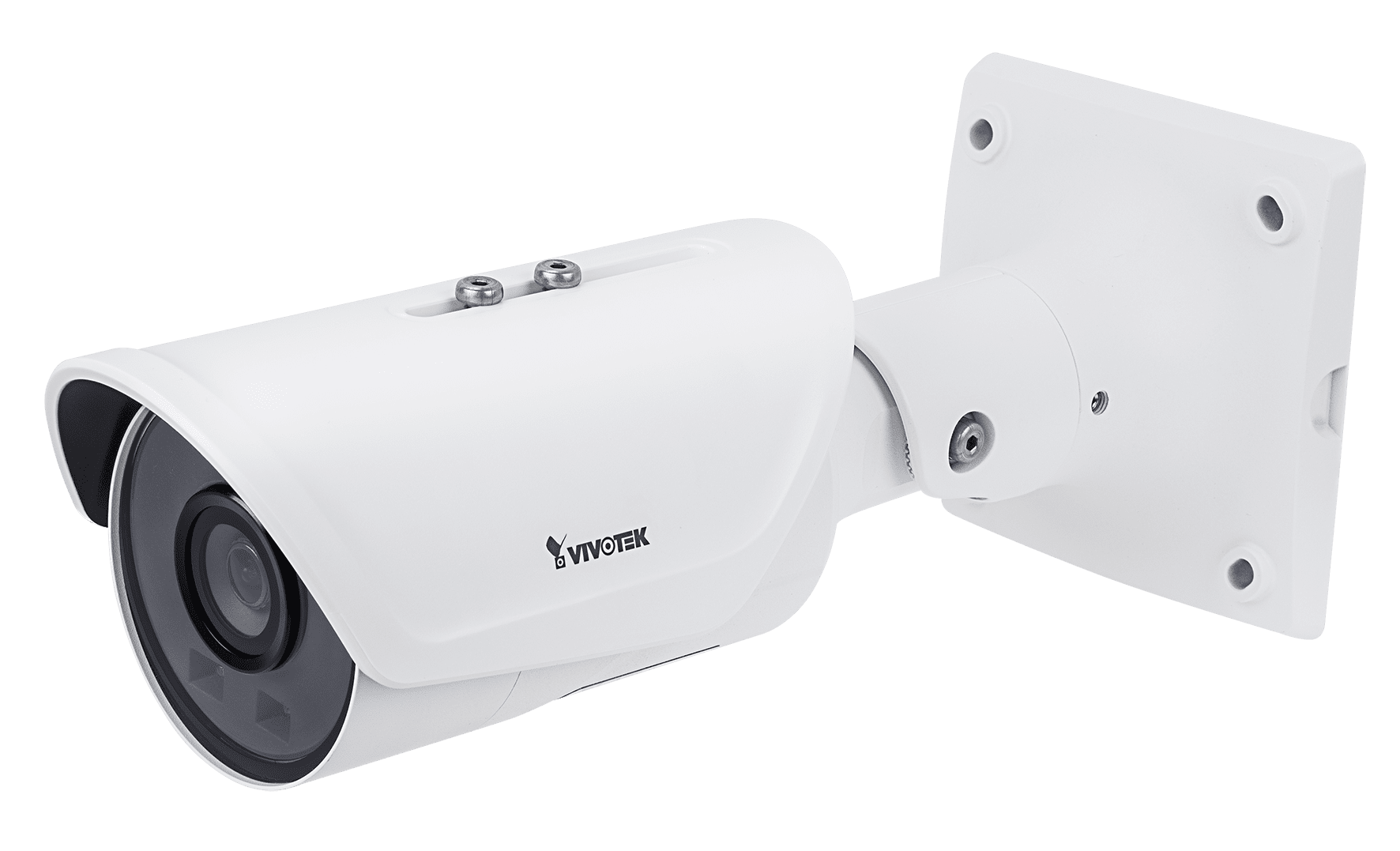

The IB9387 is a series of outdoor bullet network cameras offering up to 30 fps @ 5-Megapixel or 60 fps @ full HD sensor with superb image quality at all resolutions or frame rates. Featuring VIVOTEK SNV and WDR Pro technology, the IB9387 series is capable of capturing high-quality imagery whether in high contrast or low light environment. The IR illuminator is equipped with 30-meter effective range for better night visibility. In order to maintain operation even in harsh outdoor environments, the IB9387 series is encased in IP66, IP67, IK10 housing, rendering it impervious to rain and dust. Employing VIVOTEK's Smart Stream III technology and H.265 compression codec support, the IB9387 series reduces bandwidth by up to 90% while retaining impressive image quality. Additionally, the VADP (VIVOTEK Application Development Platform) allows users to customize operation to match a range of applications and scenarios.
Features:
Camera Features
- Image Sensor 1/2.7" Progressive CMOS
- Max. Resolution 2560x1920 (5MP)
- Lens Type Fixed-focal
- Focal Length f = 3.6 mm
- Aperture F2.0
- Auto-iris Fixed-iris
- Field of View 76° (Horizontal), 56° (Vertical), 100° (Diagonal)
- Shutter Time 1/5 sec. to 1/32,000 sec.
- WDR Technology WDR Pro
- Day/Night Yes
- Removable IR-cut Filter Yes
- Minimum Illumination 0.06 Lux @ F2.0 (Color), <0.01 lux, F2.0 (B/W), 0 Lux with IR illumination on
- Pan/Tilt/Zoom Functionalities ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in)
- IR Illuminators Built-in IR illuminators, effective up to 30 meters with Smart IR, IR LED*2
- On-board Storage Slot type: MicroSD/SDHC/SDXC card slot, Seamless Recording
Video
- Video Compression H.265, H.264, MJPEG
- Maximum Frame Rate 30 fps @ 2560x1920, 60 fps @ 1920x1080
- Maximum Streams 3 simultaneous streams
- S/N Ratio 52 dB
- Dynamic Range 120 dB
- Video Streaming Adjustable resolution, quality and bit rate control, Smart Stream III
- Image Settings Time stamp, text overlay, flip & mirror; Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks; Scheduled profile settings, video rotation, 3DNR, DIS, HLC
Audio
- Audio Capability Two-way Audio (full duplex)
- Audio Compression G.711, G.726
- Audio Interface External microphone input, External line output
Network
- Users Live viewing for up to 10 clients
- Protocols IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, CIFS/SMB, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X, UDP, ICMP, ARP, SSL/TLS
- Interface 10 Base-T/100 Base-TX Ethernet (RJ-45)
- ONVIF supported
Intelligent Video
- Smart Motion Detection
- Five-window video motion detection, human detection, time filter
- VCA Standard VCA (optional) *Including line crossing detection, field detection, loitering detection
- VADP Package Genetec package, Trend Micro IoT Security, Stratocast, Smart Motion Detection
- Alarm Triggers Motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection, audio detection, MicroSD card life expectancy
- Alarm Events Event notification using digital output, HTTP, SMTP, FTP, NAS server and MicroSD card, File upload via HTTP, SMTP, FTP, NAS server and MicroSD card
General
- Connectors RJ-45 cable connector for 10/100Mpbs Network/PoE connection, Audio input , Audio output, AC 24V power input (optional), DC 12V power input, Digital input*1, Digital output*1
- LED Indicator System power and status indicator
- Power Input IEEE 802.3at PoE Class 4, DC 12V, AC 24V (optional) (Redundant Power)
- Power Consumption PoE: Max. 19.3/8 W (Heater on/off), DC 12V: Max. 15/6 W (Heater on/off) , AC 24V: Max. 17.2/7.2 W (Heater on/off)
- Dimensions 118 x 118 x 266 mm
- Weight 1,142g
- Casing IP66, IP67, IK10 (Metal Housing)
- Safety Certifications CE, LVD, FCC Class A, VCCI, C-Tick, UL, EN50121-4
- Operating Temperature Starting Temperature: -40°C ~ 60°C (-40°F ~ 140°F), Working Temperature: -50°C ~ 60°C (-58°F ~ 140°F)
- Humidity 90%
- Warranty 36 months
System Requirements
- Operating System Microsoft Windows 7/8
- Web Browser Mozilla Firefox 7~43 (streaming only), Internet Explorer 10/11
- Other Players VLC: 1.1.11 or above, QuickTime: 7 or above
| System Information | |
| Model | I B9387-EH |
| CPU | Multimedia SoC (System-on-Chip) |
| Flash | 256MB |
| RAM | 1GB |
| Camera Features | |
| Image Sensor | 1/2.7" Progressive CMOS |
| Max. Resolution | 2560x1920 (5MP) |
| Lens Ty pe | Fixed-f ocal |
| Focal Length | f= 3.6 mm |
| Aperture | F2.0 |
| Auto-iris | Fixed-iris |
| 76° (Horizontal) | |
| Field of View | 56° (Vertical) |
| 100° (Diagonal) | |
| Shutter Time | 1/5 sec. to 1/32,000 sec. |
| WDR Technology | WDR Pro |
| Day/Night | Yes |
| Removable IR-cut Filter | Yes |
| IR Illuminators | Built-in IR illuminators, effective up to 30 meters with Smart IR, IR LED*2 |
| 0.06 Lux @ F2.0 (Color) | |
| Minimum Illumination | <0.01 lux, F2.0 (B/ W) |
| 0 Lux with IR illumination on | |
| Tilt Range | 90° |
| Rotation Range | 180° |
| Pan/ Tilt/ Zoom Functionalities | ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in) |
| On-board Storage | Slot type: MicroSD/ SDHC/ SDXC card slot |
| Seamless Recording | |
| Video | |
| Video Compression | H.265, H.264, MJPEG |
| 30 fps @ 2560x1920 | |
| Maximum Frame Rate | 30 fps @ 2560x1440 |
| 60 fps @ 1920x1080 | |
| Maximum Streams | 3 simultaneous streams |
| S/ N Ratio | 52 dB |
| Dynamic Range | 120 dB |
| Video Streaming | Adjustable resolution, quality and bit rate control, Smart Stream III |
| Time stamp, text overlay, f lip & mirror; Configurable brightness, contrast, saturation, | |
| Image Settings | sharpness, white balance, exposure control, gain, backlight compensation, privacy |
| masks; Scheduled profile settings, video rotation, 3DNR, DIS, HLC, defog, deblur, | |
| metering | |
| Audio | |
| Audio Capability | Two-way Audio (f ull duplex) |
| Audio Compression | G.711, G.726 |
| Audio Interface | External microphone input |
| External line output | |
| Network | |
| Users | Liv e viewing f or up to 10 clients |
| 802.1X, ARP, CIFS/SMB, CoS, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMP, | |
| Protocols | I Pv 4, IPv 6, NTP, PPPoE, QoS, RTSP/ RTP/ RTCP, SMTP, SNMP, SSL, TCP/ IP, TLS, UDP, |
| UPnP | |
| 10 Base-T/100 Base-TX Ethernet (RJ-45) | |
| Interf ace | *It is highly recommended to use standard CAT5e & CAT6 cables which are compliant |
| with the 3P/ ETL standard. | |
| ONVIF | Supported, specification available at www.onv if .org |
| Solution Integration | |
| Smart Motion Detection | Five-window video motion detection, human detection, time filter |
| Intrusion detection, loitering detection, line crossing detection, unattended object | |
| Smart VCA | detection, missing object detection, f ace detection |
| * Please access http://license.v iv otek.com/ to get the free trial license. | |
| VADP Package | Stratocast, Trend Micro IoT Security, Deep Learning VCA (Smart Motion Detection, Smart |
| VCA) | |
| Alarm and Event | |
| Motion detection, manual trigger, digital input, periodical trigger, sy stem boot, recording | |
| Alarm Triggers | notification, camera tampering detection, audio detection, shock detection, SD card lif e |
| expectancy, cybersecurity events (brute force attack event, cyberattack event, | |
| quarantine event) | |
| Alarm Ev ents | Event notification via digital output, email, HTTP, FTP, NAS server, SD card |
| File upload via email, HTTP, FTP, NAS server, SD card | |
| General | |
| RJ-45 cable connector f or 10/100Mpbs Network/PoE connection | |
| Audio input | |
| Audio output | |
| Connectors | AC 24V power input (optional) |
| DC 12V power input | |
| Digital input*1 | |
| Digital output*1 | |
| LED Indicator | System power and status indicator |
| I EEE 802.3at PoE Class 4 | |
| Power Input | DC 12V |
| AC 24V (optional) | |
| (Redundant Power) | |
| PoE: Max. 19.3/8 W (Heater on/of f ) | |
| Power Consumption | DC 12V: Max. 15/6 W (Heater on/of f ) |
| AC 24V: Max. 17.2/7.2 W (Heater on/of f ) | |
| Dimensions | 118 x 118 x 266 mm |
| Weight | 1,142 g |
| Casing | I P66, IP67, IK10 (Metal Housing) |
| Safety Certifications | CE, LVD, FCC Class A, VCCI, C-Tick, UL, EN50121-4 |
| Starting Temperature: -40°C ~ 60°C (-40°F ~ 140°F) | |
| Operating Temperature | Working Temperature (IR of f ): -50°C ~ 60°C (-58°F ~ 140°F) |
| Working Temperature (IR on): -50°C ~ 50°C (-58°F ~ 122°F) | |
| Humidity | 90Q |
| Warranty | 36 months |
| System Requirements | |
| Operating System | Microsoft Windows 8/7 |
| Mac 10.12 (Chrome only ) | |
| Web Browser | Chrome 58.0 or above |
| Internet Explorer 10/11 | |
| Other Players | VLC: 1.1.11 or above |
| Included Accessories | |
| Others | Quick installation guide, warranty card, screw pack, alignment sticker |
