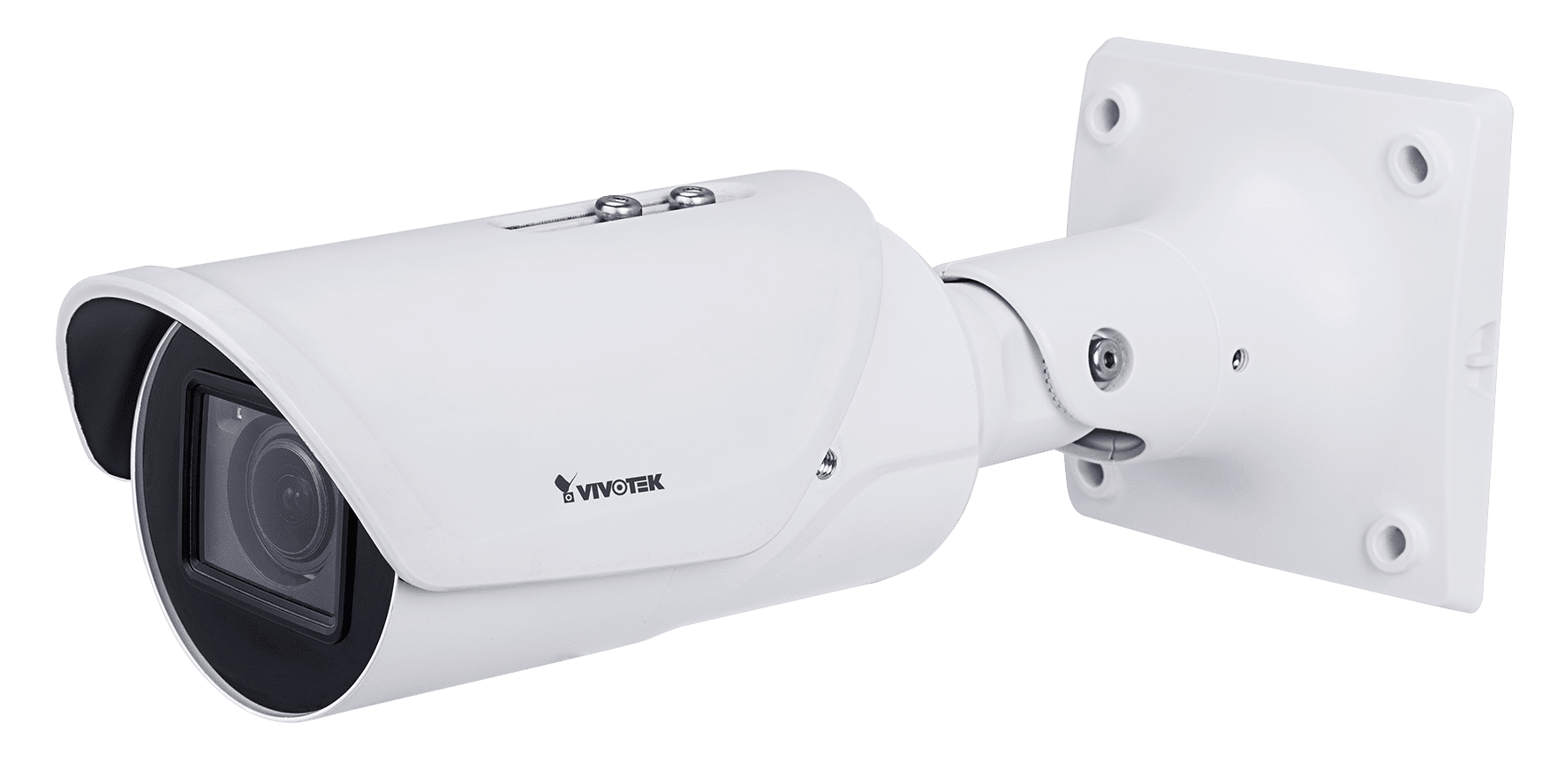

The IB9387 is a series of outdoor bullet network cameras offering up to 30 fps @ 5-Megapixel or 60 fps @ full HD sensor with superb image quality at all resolutions or frame rates. Featuring VIVOTEK SNV and WDR Pro technology, the IB9387 series is capable of capturing high-quality imagery whether in high contrast or low light environment.
The IR illuminator is equipped with 30-meter effective range for better night visibility. In order to maintain operation even in harsh outdoor environments, the IB9387 series is encased in IP66, IP67, IK10 housing, rendering it impervious to rain and dust. Employing VIVOTEK's Smart Stream III technology and H.265 compression codec support, the IB9387 series reduces bandwidth by up to 90% while retaining impressive image quality.
Additionally, the VADP (VIVOTEK Application Development Platform) allows users to customize operation to match a range of applications and scenarios.
Features:
- Image Sensor 1/2.7" Progressive CMOS
- Max. Resolution 2560x1920 (5MP)
- Lens Type Remote focus
- Focal Length f = 2.7 ~ 13.5 mm
- Aperture F1.4 ~ F2.8
- Auto-iris P-iris
- Field of View 30° ~ 100° (Horizontal), 23° ~ 72° (Vertical), 38° ~ 135° (Diagonal)
- Shutter Time 1/5 sec. to 1/32,000 sec.
- Minimum Illumination 0.06 Lux @ F1.4 (Color), <0.01 Lux @ F1.4 (B/W), 0 Lux with IR illumination on
- Pan/Tilt/Zoom Functionalities ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in)
- On-board Storage Slot type: MicroSD/SDHC/SDXC card slot, Seamless Recording
- WDR Technology WDR Pro
- Day/Night Yes
- Removable IR-cut Filter Yes
- IR Illuminators Built-in IR illuminators, effective up to 50 meters with Smart IR II, IR LED*6
- Rotation Range 180°
- Video Compression H.265, H.264, MJPEG
- Maximum Frame Rate 30 fps @ 2560x1920, 30 fps @ 2560x1440, 60 fps @ 1920x1080
- Maximum Streams 3 simultaneous streams
- S/N Ratio 50 dB
- Video Streaming Adjustable resolution, quality and bit rate control, Smart Stream III
- Image Settings Time stamp, text overlay, flip & mirror; Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks; Scheduled profile settings, video rotation, 3DNR, DIS, HLC
- Dynamic Range 120 dB
- Audio Capability Two-way Audio (full duplex)
- Audio Compression G.711, G.726
- Audio Interface External microphone input, External line output
- Users Live viewing for up to 10 clients
- Protocols IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, CIFS/SMB, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X, UDP, ICMP, ARP, SSL/TLS
- Interface 10 Base-T/100 Base-TX Ethernet (RJ-45)
- ONVIF Supported
- VCA
- Standard VCA (optional)
- *Including line crossing detection, field detection, loitering detection
- Smart Motion Detection
- Five-window video motion detection, human detection, time filter
- VADP Package
- Genetec package, Trend Micro IoT Security, Stratocast, Smart Motion Detection
- Connectors RJ-45 cable connector for 10/100Mpbs Network/PoE connection, Audio input, Audio output, AC 24V power input (optional), DC 12V power input, Digital input*1, Digital output*1, LED Indicator, System power and status indicator
- Power Input IEEE 802.3at PoE Class 4, DC 12V, AC 24V (optional) (Redundant Power)
- Power Consumption PoE: Max. 23.3/12 W (Heater on/off), DC 12V: Max. 19/10 W (Heater on/off), AC 24V: Max. 21.8/11.5 W (Heater on/off)
- Dimensions 118 x 118 x 294 mm
- Weight 1,254 g
- Safety Certifications CE, LVD, FCC Class A, VCCI, C-Tick, UL, EN50121-4
- Operating Temperature Starting Temperature: -40°C ~ 60°C (-40°F ~ 140°F), Working Temperature: -50°C ~ 60°C (-58°F ~ 140°F)
- Humidity 90%
- Warranty 36 months
- Casing IP66, IP67, IK10 (Metal Housing)
- Quick installation guide, warranty card, screw pack, alignment sticker
- Alarm Triggers Motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection, audio detection, MicroSD card life expectancy
- Alarm Events Event notification using digital output, HTTP, SMTP, FTP, NAS server and MicroSD card, File upload via HTTP, SMTP, FTP, NAS server and MicroSD card
| Technical Specifications | |
| System Information | |
| Model | IB9387-EHT |
| CPU | Multimedia SoC (Sy stem-on-Chip) |
| Flash | 256MB |
| RAM | 1GB |
| Camera Features | |
| Image Sensor | 1/2.7" Progressive CMOS |
| Max. Resolution | 2560x1920 (5MP) |
| Lens Ty pe | Motorized, Vari-f ocal, |
| Focal Length | f = 2.7 ~ 13.5 mm |
| Aperture | F1.4 ~ F2.8 |
| Auto-iris | P-iris |
| Field of View | 30° ~ 100° (Horizontal) 23° ~ 72° (Vertical) 38° ~ 135° (Diagonal) |
| Shutter Time | 1/5 sec. to 1/32,000 sec. |
| WDR Technology | WDR Pro |
| Day /Night | Yes |
| Remov able IR-cut Filter | Yes |
| IR Illuminators | Built-in IR illuminators, ef f ectiv e up to 50 meters with Smart |
| Minimum Illumination | 0.06 Lux @ F1.4 (Color) <0.01 Lux @ F1.4 (B/W) 0 Lux with IR illumination on |
| Pan Range | 350° |
| Tilt Range | 90° |
| Rotation Range | 180° |
| Pan/Tilt/Zoom Functionalities | ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in) |
| On-board Storage | Slot type: MicroSD/SDHC/SDXC card slot Seamless Recording |
| Video | |
| Video Compression | H.265, H.264, MJPEG |
| Maximum Frame Rate | 30 f ps @ 2560x1920 30 f ps @ 2560x1440 60 f ps @ 1920x1080 |
| Maximum Streams | 3 simultaneous streams |
| S/N Ratio | 50 dB |
| Dy namic Range | 120 dB |
| Video Streaming | Adjustable resolution, quality |
| Image Settings | Time stamp, text overlay, flip & mirror; Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks; Scheduled profile settings, video rotation, 3DNR, DIS, HLC, defog, deblur, metering |
| Audio | |
| Audio Capability | Two-way |
| Audio Compression | G.711, G.726 |
| Audio Interf ace | External microphone input External line output |
| Network | |
| Users | Liv e v iewing f or up to 10 clients |
| Protocols | 802.1X, ARP, CIFS/SMB, CoS, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv 4, IPv 6, NTP, PPPoE, QoS, RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS, UDP, UPnP |
| 10 Base-T/100 Base-TX Ethernet (RJ-45) | |
| Interface | *It is highly recommended to use standard CAT5e & CAT6 cables which are compliant |
| with the 3P/ETL standard. | |
| ONVIF | Supported, specif ication av ailable at www.onv if .org |
| Solution Integration | |
| Smart Motion Detection | Five-window video motion detection, human detection, time f ilter |
| Smart VCA | Intrusion detection, loitering detection, line crossing detection, unattended object detection, missing object detection, face detection |
| VADP Package | Stratocast, VCA) Trend Micro IoT Security,Deep Learning VCA (Smart Motion Detection,) |
| Alarm and Event | |
| Alarm Triggers | Motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection, audio detection, shock detection, SD card life expectancy, cybersecurity ev ents (brute force attack event, cyberattack event, quarantine event) |
| Alarm Events | Event notification via digital output, email, HTTP, FTP, File upload via email, HTTP, FTP, NAS serv er, SD card |
| General | |
| RJ-45 cable connector f or 10/100Mpbs Network/PoE connection | |
| Audio input | |
| Audio output | |
| Connectors | AC 24V power input (optional) |
| DC 12V power input | |
| Digital input*1 | |
| Digital output*1 | |
| LED Indicator | System power and status indicator |
| IEEE 802.3at | |
| DC 12V | |
| Power Input | |
| AC 24V (optional) | |
| (Redundant | |
| Power Consumption | PoE: Max. 23.3/12 W (Heater on/of f ) DC 12V: Max. 19/10 W (Heater on/of f ) AC 24V: Max. 21.8/11.5 W (Heater on/of f ) |
| Dimensions | 118 x 118 x 294 mm |
| Weight | 1,254 g |
| Casing | IP66, IP67, |
| Safety Certifications | CE, LVD,FCC Class A, VCCI, C-Tick, EN50121-4 |
| Operating Temperature | Starting Temperature: -40°C ~ 60°C (-40°F ~ 140°F) Working Temperature (IR of f ): -50°C ~ 60°C (-58°F ~ 140°F) Working Temperature (IR on): -50°C ~ 50°C (-58°F ~ 122°F) |
| Humidity | 90% |
| Warranty | 36 months |
| System Requirements | |
| Operating System | Microsoft Windows 8/7 Mac 10.12 (Chrome only ) |
| Web Browser | Chrome 58.0 or abov e Internet Explorer 10/11 |
| Other Play ers | VLC: 1.1.11 or abov e |
| Included Accessories | |
| Others | Quick installation guide, warranty |
