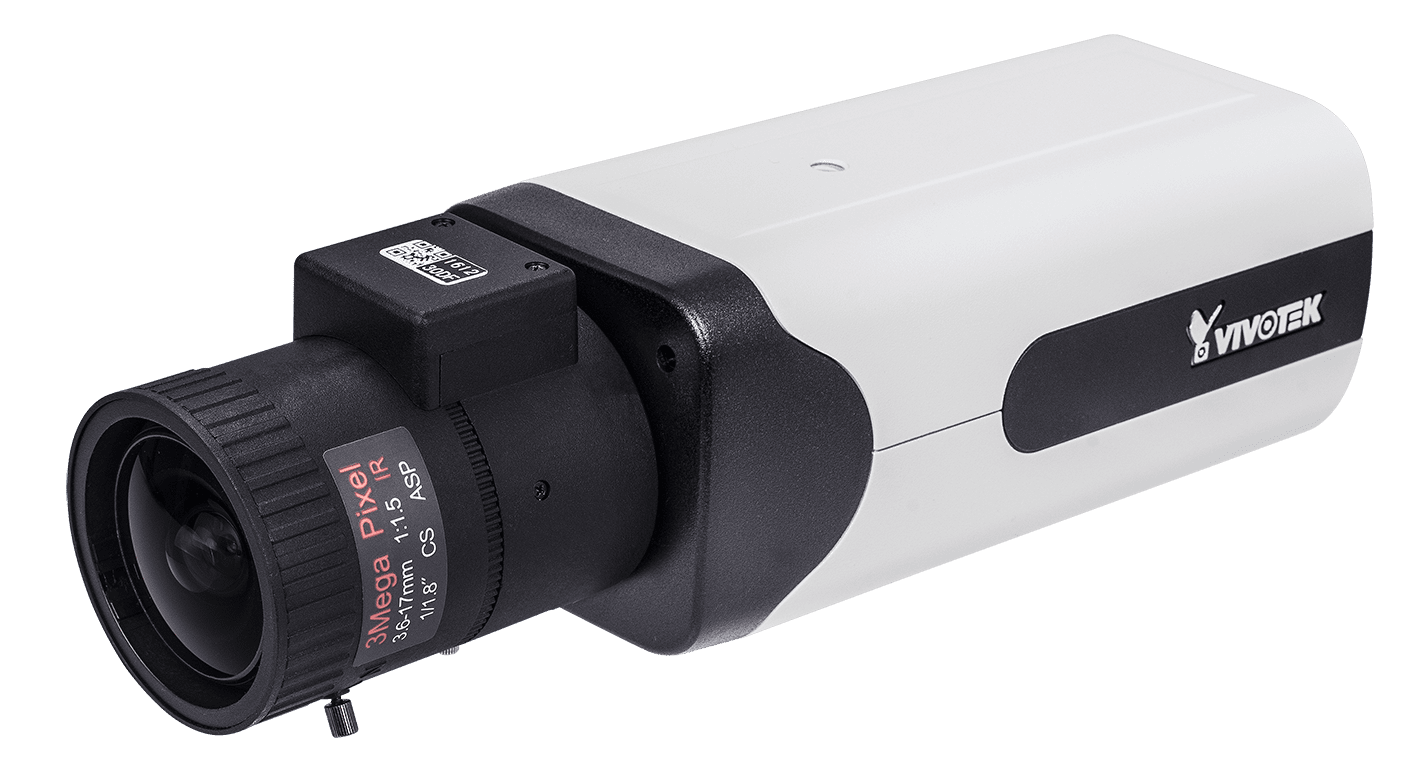

VIVOTEK’s IP9165-HP is a professional H.265 box network camera offering up to 60 fps at 1080p with outstanding image quality that sets it apart from the competition. With the latest VIVOTEK’s SNV II, WDR Pro II and Smart Stream III technologies, the camera provides clear imagery in both low light and high contrast environments and greatly reduces bandwidth and storage while retaining the highest quality of video. This unique combination makes the IP9165-HP suitable for a wide range of video surveillance applications, including government and industrial buildings, retail, airports, railway stations, traffic intersections and university campuses.

To enhance the camera’s ability to adapt to the challenging environments, precise software controls maintain the iris opening of the IP9165-HP's lens at an optimal level at all times, resulting in superior sharpness as well as depth of field. Finally, the IP9165-HP is also endowed with VIVOTEK's RBF (Remote Back Focus) system, enabling the installer to adjust the focus with greater flexibility and precision.

Features:

• Image Sensor 1/2" Progressive CMOS
• Maximum Resolution 1920x1080
• Lens Type Vari-focal, Remote Back Focus
• Focal Length f = 3.6 ~ 17 mm
• Aperture F1.5 ~ F2.8
• Iris type P-iris (DC-iris reserved)
• Field of View 28° ~ 100° (Horizontal), 16° ~ 55° (Vertical), 32° ~ 119° (Diagonal)
• Shutter Time 1/5 sec. to 1/32,000 sec.
• WDR Technology WDR Pro II
• Day/Night Yes
• Removable IR-cut Filter Yes
• Minimum Illumination 0.01 Lux @ F1.5 (Color), 0.005 Lux @ F1.5 (B/W)
• ePTZ:48x digital zoom (4x on IE plug-in, 12x built in)
• On-board Storage Slot type: MicroSD/SDHC/SDXC card slot (Max. SD card capacity:128GB), Seamless Recording
• Compression H.265, H.264, MJPEG
• Maximum Frame Rate 60 fps @ 1920x1080
• Maximum Streams 4 simultaneous streams
• S/N Ratio 66.2 dB
• Dynamic Range 140 dB
• Video Streaming Adjustable resolution, quality and constant, bit rate control; Smart Stream III
• Image Settings Adjustable image size, quality and bit rate; Time stamp, text overlay, flip & mirror; Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, AE speed, privacy masks; Scheduled profile settings, HLC, defog, 3DNR, DIS, video rotation, lens profile
• Audio Capability Two-way audio
• Compression G.711, G.726
• Interface External microphone input, External line output
• Users Live viewing for up to 10 clients
• Protocols IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, CIFS/SMB, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X, UDP, ICMP, ARP, TLS
• Interface 10 Base-T/100 Base-TX/1000 Base-T Ethernet (RJ-45)
• ONVIF Supported, specification available at www.onvif.org
• Video Motion Detection Five-window video motion detection
• Alarm Triggers Motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection, audio detection, advanced motion detection, MicroSD card life expectancy
• Alarm Events Event notification using digital output, HTTP, SMTP, FTP, NAS server and MicroSD card, File upload via HTTP, SMTP, FTP, NAS server and MicroSD card
• Connectors RJ-45 cable connector for Network/PoE connection *1, Audio input *1, Audio output *1, DC 12V/AC 24V power in *1, Digital input *2, Digital output *2, RS485 *1, BNC *1
• LED Indicator System power and status indicator
• Power Input IEEE 802.3af PoE Class 0, DC 12V, AC 24V
• Power Consumption DC 12V: Max. 9 W, AC 24V: Max. 18 W, PoE: Max. 9.06 W
• Dimensions 151 x 70 x 61 mm (w/o lens), 227 x 70 x 61 mm (w/ lens)
• Weight 680 g (w/o lens), 800 g (w/ lens)
• Safety Certifications CE, LVD, FCC Class B, VCCI, C-Tick, UL
• Operating Temperature Start Temperature:, 0°C ~ 50°C (32°F ~ 122°F)
• Working temperature:, -10°C ~ 60°C (14°F ~ 140°F)
• Humidity 90%
• Warranty 36 months
• Operating System Microsoft Windows 8/7
• Web Browser Mozilla Firefox 7~43 (streaming only)
• Internet Explorer 10/11
• Other Players VLC: 1.1.11 or above
• Quicktime: 7 or above
• Quick installation guide, warranty card, lens (AE-24B), camera stand, screw pack
