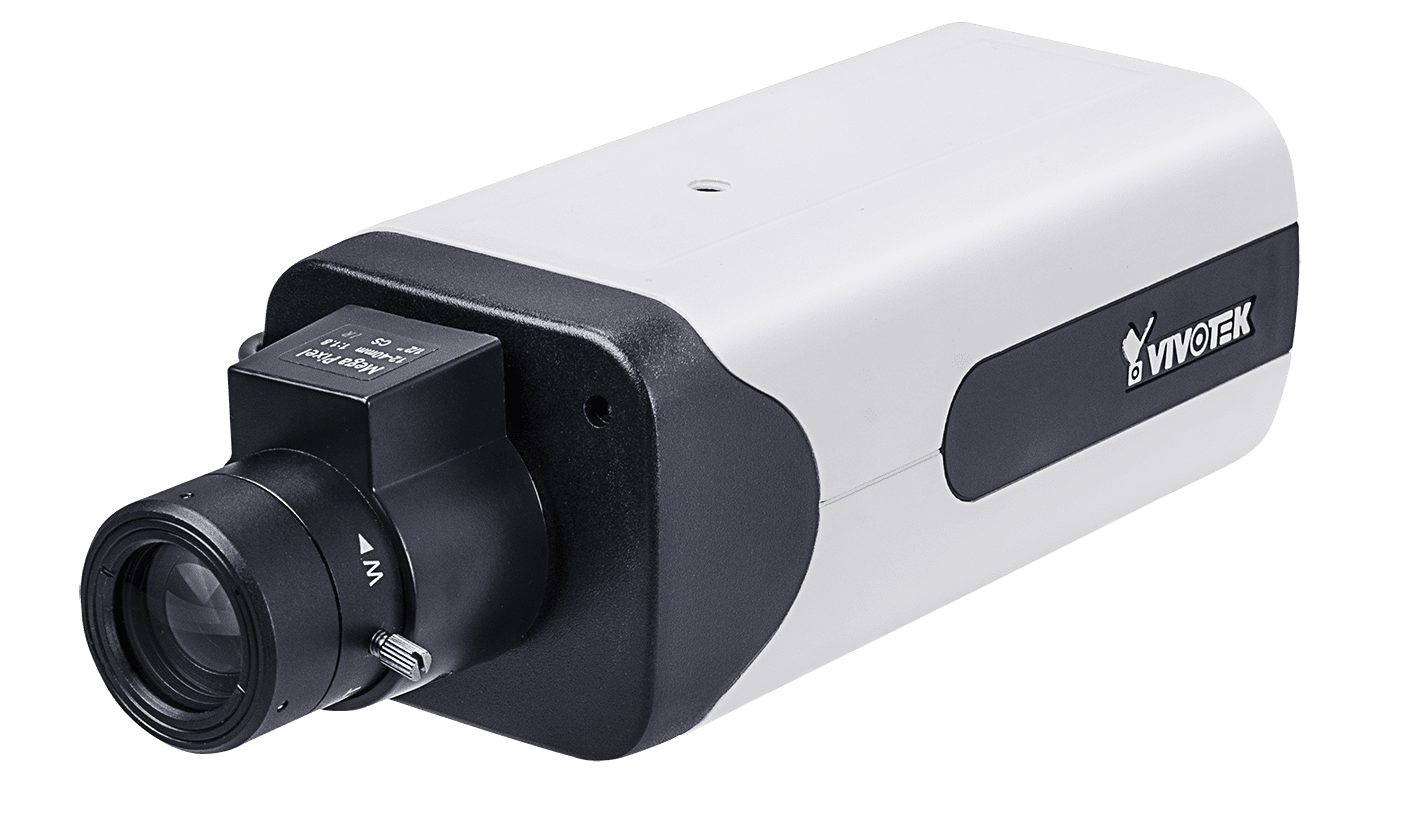

VIVOTEK’s IP9165-LPC is a professional H.265 Full HD box network camera offering specialized solutions for License Plate Capture with a unique headlight filter design for traffic monitoring. Featuring dedicated LPC firmware and a compatible lens, the IP9165-LPC provides three different scene modes: LPC-Parking, LPC-Street, and LPC-Highway to match different traffic applications in which cars move at different speeds. With a suitable selection of external IR illuminators, the IP9165-LPC camera will be ideal for 24/7 license plate capture, producing high-detail polished images for reliable license plate recognition of cars travelling up to speeds of 110mph (180km/h).

Equipped with a P-iris lens and a headlight filter design, the camera is capable of capturing clear, high quality video with a resolution of 1920x1080 at a smooth 60 fps in any condition. Further, by employing VIVOTEK’s WDR Pro II, 3DNR and SNV II technologies, no matter whether in high contrast or in low light environments, the camera will ensure clear image quality for license plate capture or traffic monitoring. Finally, VIVOTEK’s RBF (Remote Back Focus) system for easy focus adjustments and value-added features like DIS and support for i-CS lens ensure image stability and intelligent, precise focus, and in conjunction make the IP9165-LPC the perfect LPR solution for any application, in any condition.

Features:

• Image Sensor 1/2" Progressive CMOS
• Maximum Resolution 1920x1080
• Lens Type Vari-focal, Remote Back Focus
• Focal Length f = 12 ~ 40 mm
• Aperture F1.8 ~ F2.3
• Iris type P-iris (i-CS/DC-iris reserved)
• Field of View 11.6° ~ 34.2° (Horizontal), 6.6° ~ 18.7° (Vertical), 13.3° ~ 39.8° (Diagonal)
• Shutter Time 1/60 sec. to 1/16,000 sec.
• WDR Technology WDR Pro II
• Day/Night Yes
• Removable IR-cut Filter Yes (Headlight filter design for Anti-Glare)
• Minimum Illumination 0.08 Lux @ F1.8 (Color)
• Pan/tilt/zoom Functionalities ePTZ:48x digital zoom (4x on IE plug-in, 12x built in)
• On-board Storage Slot type: MicroSD/SDHC/SDXC card slot (Max. SD card capacity:128GB), Seamless Recording
• Compression H.265, H.264, MJPEG
• Maximum Frame Rate 60 fps @ 1920x1080
• Maximum Streams 4 simultaneous streams
• S/N Ratio 66.2 dB
• Dynamic Range 140 dB
• Video Streaming Adjustable resolution, quality and constant, bit rate control; Smart Stream III
• Image Settings Adjustable image size, quality and bit rate; Time stamp, text overlay, flip & mirror; Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, AE speed, privacy masks; Scheduled profile settings, HLC, defog, 3DNR, DIS, video rotation, lens profile
• Audio Capability Two-way audio
• Compression G.711, G.726
• Interface External microphone input, External line output
• Users Live viewing for up to 10 clients
• Protocols IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, CIFS/SMB, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X, UDP, ICMP, ARP, TLS
• Interface 10 Base-T/100 Base-TX/1000 Base-T Ethernet (RJ-45)
• ONVIF Supported
• Video Motion Detection Five-window video motion detection
• Alarm Triggers Motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection, audio detection, advanced motion detection, MicroSD card life expectancy
• Alarm Events Event notification using digital output, HTTP, SMTP, FTP, NAS server and MicroSD card
• File upload via HTTP, SMTP, FTP, NAS server and MicroSD card
• Connectors RJ-45 cable connector for Network/PoE connection *1, Audio input *1, Audio output *1, DC 12V/AC 24V power in *1, Digital input *2, Digital output *2, RS485 *1, BNC *1
• LED Indicator System power and status indicator
• Power Input IEEE 802.3af PoE Class 0 / DC 12V / AC 24V
• Power Consumption DC 12V: Max. 9 W
• AC 24V: Max. 18 W / PoE: Max. 9.06 W
• Dimensions 151 x 70 x 61 mm (w/o lens), 203 x 70 x 61 mm (w/ lens)
• Weight 680 g (w/o lens), 790 g (w/ lens)
• Safety Certifications CE, LVD, FCC Class B, VCCI, C-Tick, UL
• Operating Temperature Start Temperature: 0°C ~ 50°C (32°F ~ 122°F)
• Working temperature: -10°C ~ 60°C (14°F ~ 140°F)
• Humidity 90%
• Warranty 36 months
• Quick installation guide, warranty card, lens, camera stand, screw pack
