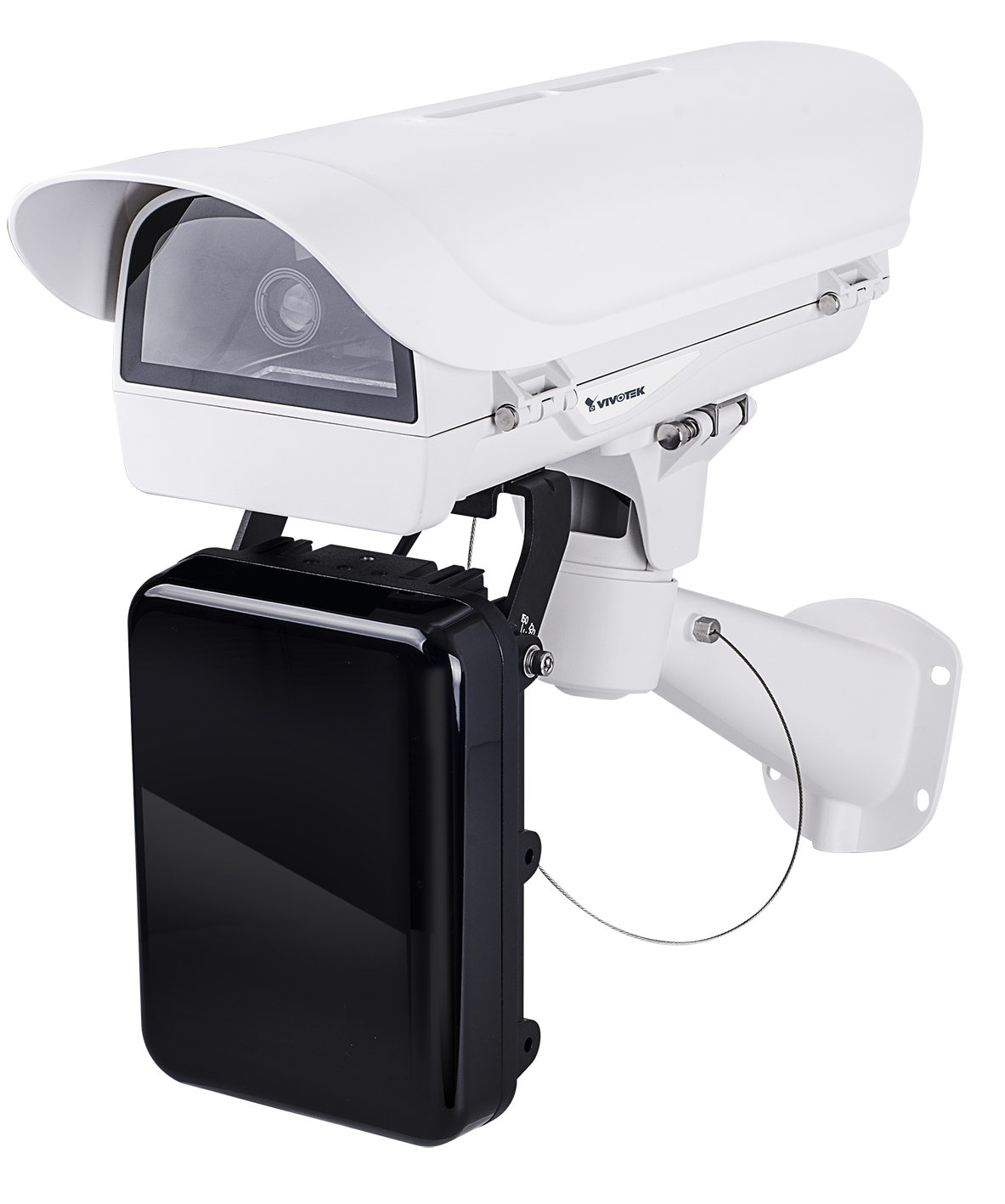

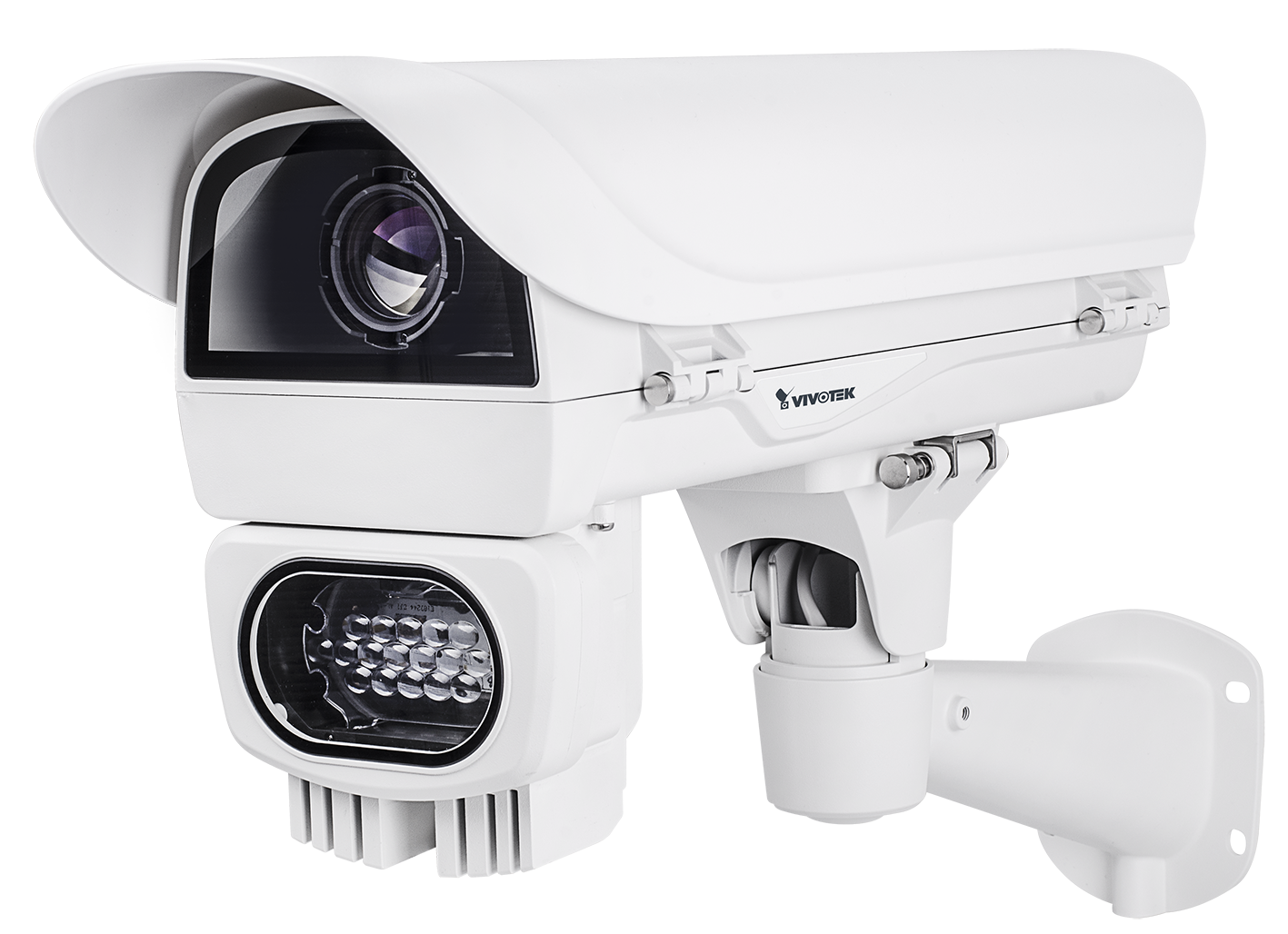

VIVOTEK’s IP9165-LPC Kit represents a total solution for LPC (License Plate Capture) applications by leveraging the top tier image quality and traffic monitoring ability of the IP9165-LPC box camera. The CaMate IR Illuminator utilizing CVA Tech provides adjustable beam angles for different distances. The Headlight filter is implemented to reduce instances of glare from direct headlight contact. The IP9165-LPC Kit delivers clear license plate images for reliable recognition, in both the sunniest days, and in the darkest nights.

Empowered with VIVOTEK Scene Mode, which provides different exposure levels to avoid overexposure in some lighting conditions, the IP9165-LPC Kit can capture clear plate images from the vehicles moving at speeds of up to 110MPH (180km/hr).

Value-added features such as i-CS (intelligent-CS) lens, DIS (Digital Image Stabilization) and remote IR beam angle adjustment ensure that the IP9165-LPC Kit can be easily installed and adjusted to provide the perfect LPR solution. Further, with the high-resolution images supporting a wide range of up to two lanes, the IP9165-LPC Kit is also the most economic solution in LPR applications.

Features:

• LPR Speed Range: 60MPH (90 km/hr), with AI-109 IR
• IR Threshold IR on: 300 Lux, IR off: 600 Lux, RS485 configurable
• Shutter Time 1/1,000 to 1/10,000 sec.
• Max. Shutter Time 1/5 to 1/32,000 sec.
• IR Illuminators AI-109 *1, 48W, 10° ~ 30° remote control beam angle, embedded IR illuminator
• Capture Range Up to 35 meters *Suggested Distance: 10 ~ 20 m
• Captured Lanes Road-side: 1 Lane, Gantry: 2 Lanes *Suggested width per lane: 3.5 ~ 4M
• Power Input AC/DC 24V
• Power Consumption Max. 78 W, AC/DC 24V
• Suggested Power: DC 24V or AC 24V / 3.5A
• Weight 6,200 g (13.66 lb)
• Housing Weather-proof IP68-rated housing
• Vandal-proof IK10-rated housing
• Starting Temperature: 0°C ~ 60°C (32°F ~ 140°F)
• Working Temperature: -20°C ~ 60°C (-4°F ~ 140°F), -40°C ~ 60°C (-40°F ~ 140°F), with optional cold start heater
• Humidity 90%
• Compression H.265, H.264, MJPEG
• Maximum Streams 4 simultaneous streams
• Image Settings Adjustable image size, quality and bit rate;Time stamp, text overlay, flip & mirror; Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, AE speed, privacy masks; Scheduled profile settings, HLC, defog, 3DNR, DIS, video rotation, lens profile, LPC scene mode
• Users Live viewing for up to 10 clients
• Protocols IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, CIFS/SMB, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X, UDP, ICMP, ARP, TLS
• Interface 10 Base-T/100 Base-TX/1000 Base-T Ethernet (RJ-45)
• ONVIF Supported
• Video Motion Detection Five-window video motion detection
• Alarm Triggers Motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection, audio detection, advanced motion detection, MicroSD card life expectancy
• Alarm Events Event notification using digital output, HTTP, SMTP, FTP, NAS server and MicroSD card
• File upload via HTTP, SMTP, FTP, NAS server and MicroSD card
• IP Camera Connectors RJ-45 cable connector for Network/PoE connection *1, Audio input *1, Audio output *1, DC 12V/AC 24V power input *1, Digital input *2, Digital output *2, RS485 *1, BNC *1
• Safety Certifications IP Camera: CE, LVD, FCC Class B, VCCI, C-Tick, UL
• Warranty 36 months
• May also be know by model number IP9165-LPC-S1
