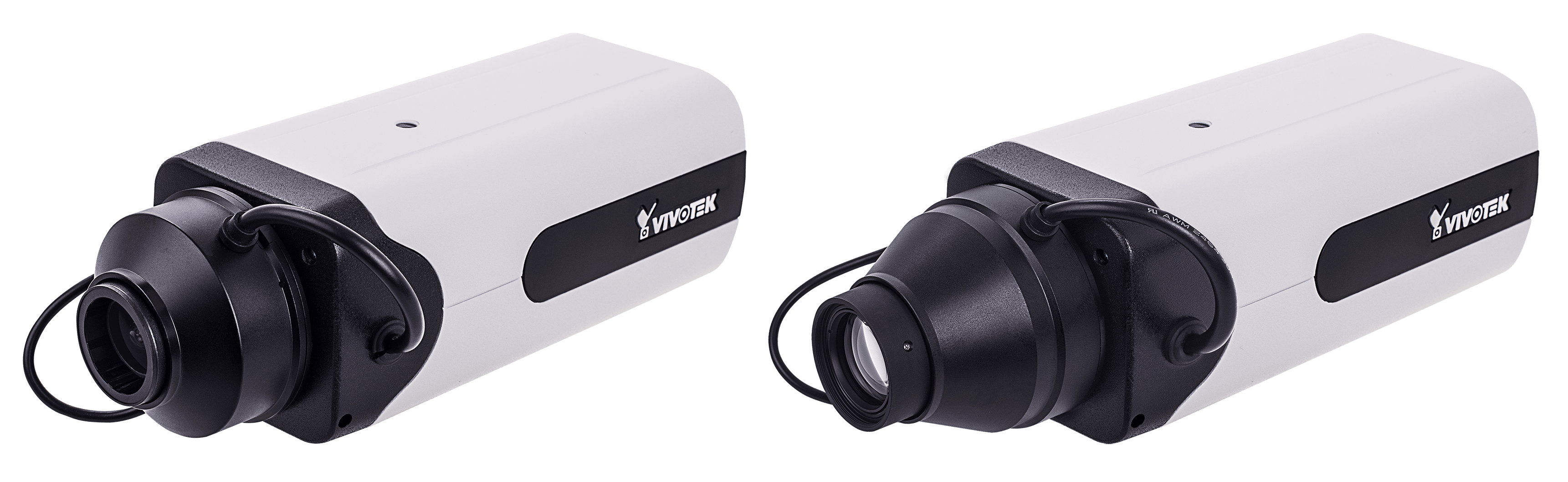

VIVOTEK’s IP9167-HT is a brand-new professional H.265 box network camera designed for a wide range of surveillance application, such as city surveillance, banking and SMB. It is equipped with a 2MP sensor with a viewing resolution of 1920x1080 at 30 fps. Furthermore, IP9167-HT includes either a f2.8-12mm or a f12-40mm remote focus lens, allowing the installer to have great coverage flexibility.


With the most up to date VIVOTEK Smart Stream III technology, the camera is able to optimize quality for desired regions and thus ensure maximum bandwidth efficiency. By combining both H.265 and Smart Stream III, the IP9167-HT can reduce both bandwidth and storage consumption by up to 90%*.

In addition, the IP9167-HT is equipped with WDR Pro enabling the camera to capture both the dark and bright areas of an image, then combining the differences to create a highly realistic representation of the original scene. Even further improving the camera’s versatility, the IP9167-HT includes SNV technology, making possible high quality full-color surveillance video under low-light conditions. These combined features enable the IP9167-HT to provide video quality strikingly close to the capabilities of the human eye.

* Depending on scenes

Features:

• Image Sensor 1/2.8" Progressive CMOS
• Max. Resolution 1920x1080 (2MP)
• Lens Type Vari-focal, Manual Focus, CS-mount
• Auto-iris P-iris/DC-iris
• Shutter Time 1/5 sec. to 1/32,000 sec.
• WDR Technology WDR Pro
• Day/Night Yes
• Removable IR-cut Filter Yes
• Minimum Illumination 0.07 Lux @ F1.6 (Color), 0.01 Lux @ F1.6 (B/W) *Depends on lens aperture
• Pan/Tilt/Zoom Functionalities ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in)
• On-board Storage Slot type: MicroSD/SDHC/SDXC card slot, Seamless Recording
• Video Compression H.265, H.264, MJPEG
• Maximum Frame Rate 30 fps @ 1920x1080
• Maximum Streams 3 simultaneous streams
• S/N Ratio 61 dB
• Dynamic Range 120 dB
• Video Streaming Adjustable resolution, quality and bit rate control, Smart Stream III
• Image Settings Timestamp, text overlay, flip & mirror, configurable brightness/contrast/saturation/sharpness, white balance, exposure control, gain, AE speed, backlight compensation, privacy masks, scheduled profile settings, HLC, defog, 3D noise reduction, DIS, video rotation, lens profile
• Audio Capability Two-way Audio (full duplex)
• Audio Compression G.711, G.726
• Audio Interface External microphone input, External line output
• Users Live viewing for up to 10 clients
• Protocols 802.1X, ARP, CIFS/SMB, CoS, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, NTP, PPPoE, QoS, RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS, UDP, UPnP
• Interface 10 Base-T/100 Base-TX Ethernet (RJ-45)
• ONVIF Supported
• Video Motion Detection Five-window video motion detection
• Alarm Triggers Motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection, audio detection, SD card life expectancy
• Alarm Events Event notification via digital output, email, HTTP, FTP, NAS server, SD card, push notification, File upload via email, HTTP, FTP, NAS server, SD card
• Connectors RJ-45 cable connector for 10/100Mpbs Network/PoE connection, Audio input, Audio output, DC 12V power input, Digital input*2, Digital output*2, RS-485
• LED Indicator System power and status indicator
• Power Input IEEE 802.3af PoE Class 2, DC 12V
• Power Consumption Max 6.5 W
• Dimensions 151 (D) x 70 (W) x 61 (H) mm
• Weight 590 g
• Safety Certifications CE, LVD, FCC Class B, VCCI, C-Tick, UL, EN50121-4
• Operating Temperature Start Temperature: 0°C ~ 50°C (32°F ~ 122°F) / Working temperature: -10°C ~ 50°C (14°F ~ 122°F)
• Humidity 90%
• Warranty 36 months
• Quick installation guide, warranty card, camera stand, screw pack
