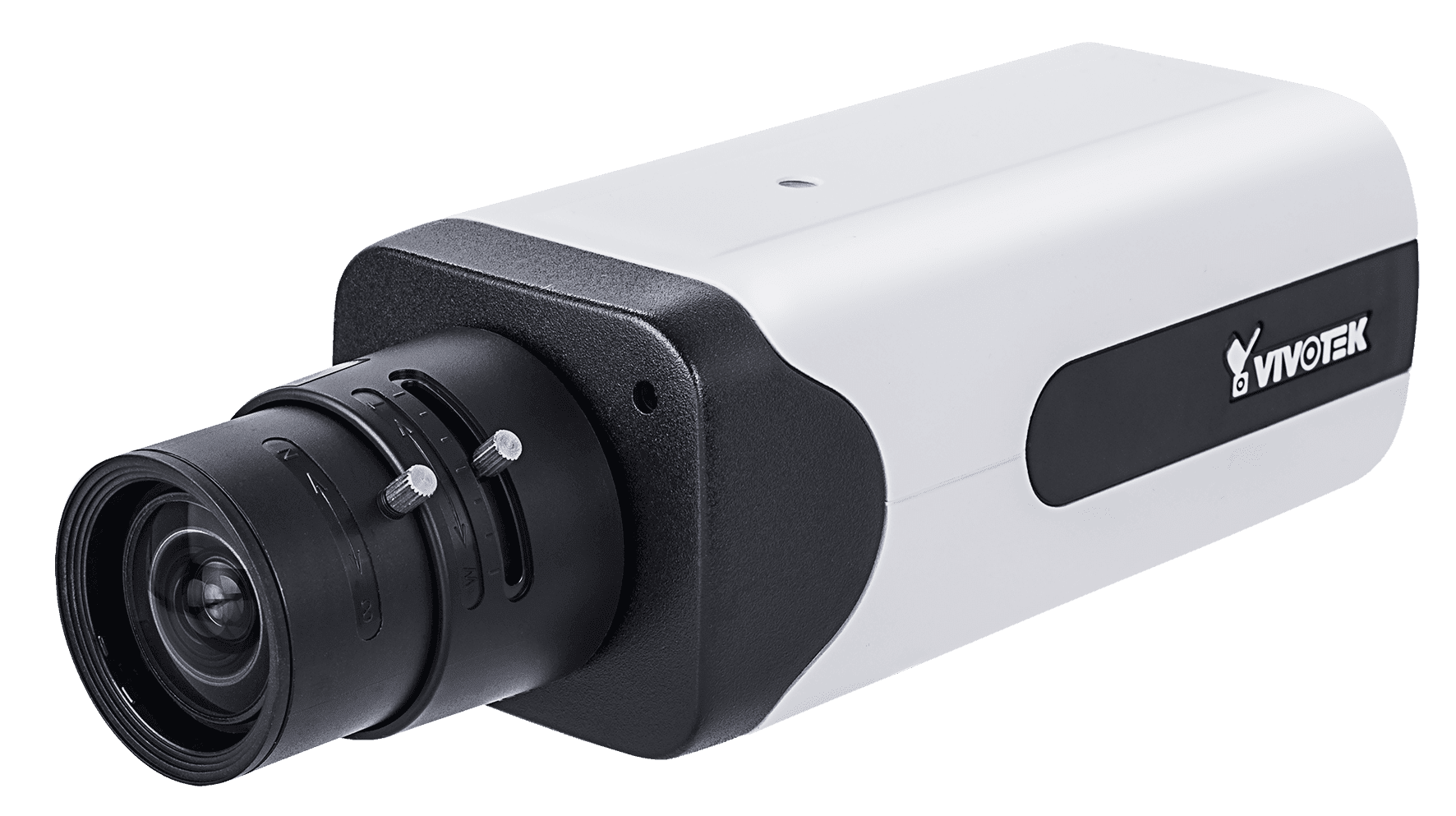

VIVOTEK’s IP9191-HP is a professional H.265 box network camera offering true 3840x2160 resolution at 30 fps. With ultra HD resolution at 30 frames per second, this camera is capable of delivering clear and detailed images for a variety of applications such as city surveillance, transportation and industrial monitoring.


With the most up to date VIVOTEK Smart Stream III technology, the IP9191-HP delivers excellent images while keeping bandwidth and storage levels to a minimum. VIVOTEK's self-developed algorithm brings video compression into the next level and reduces the 4K image compression size to even smaller than a 2-Megapixel image size.

The IP9191-HP also employs VIVOTEK’s SNV and WDR Pro technologies which allows the camera to capture the highest quality images in both low light and high contrast environments. Furthermore, if combined with VIVOTEK’s AE Series Enclosure and equipped with the AL-248 (12~50mm) lens, the IP9191-HP is an outstanding choice for long-range outdoor applications, capable of delivering exceptional images even from surveillance objects over 100 meters away.

Features:

• Image Sensor 1/2" Progressive CMOS
• Maximum Resolution 3840x2160
• Lens Type Vari-focal, Remote Back Focus
• Focal Length f = 3.9 ~ 10 mm
• Aperture F1.5 ~ F2.7
• Auto-iris P-iris (DC-iris reserved)
• Field of View 45° ~ 119° (Horizontal), 25° ~ 63° (Vertical), 52° ~ 142° (Diagonal)
• Shutter Time 1/5 sec. to 1/32,000 sec.
• WDR Technology WDR Pro
• Day/Night Removable IR-cut filter for day & night function
• Minimum Illumination 0.02 Lux @ F1.5 (Color), 0.01 Lux @ F1.5 (B/W)
• ePTZ:48x digital zoom (4x on IE plug-in, 12x built in)
• On-board Storage Slot type: MicroSD/SDHC/SDXC card slot, Seamless Recording
• Compression H.265, H.264, MJPEG
• Maximum Frame Rate 30 fps @ 3840x2160 (WDR Pro on), 120 fps @ 1920x1080 (WDR Pro off)
• Maximum Streams 3 simultaneous streams
• S/N Ratio 60.5 dB
• Dynamic Range 120 dB
• Video Streaming Adjustable resolution, quality and constant bit rate control, Smart Stream III
• Image Settings Adjustable image size, quality and bit rate; Time stamp, text overlay, flip & mirror; Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, AE speed, privacy masks; Scheduled profile settings, HLC, defog, 3DNR, DIS, video rotation, lens profile
• Audio Capability Two-way audio
• Compression G.711, G.726
• Interface External Mic input, External line output
• Users Live viewing for up to 10 clients
• Protocols IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, CIFS/SMB, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X, UDP, ICMP, ARP, SSL/ TLS
• Interface 10 Base-T/100 Base-TX Ethernet /1000 Base-T (RJ-45)
• ONVIF Supported, specification available at www.onvif.org
• Video Motion Detection Five-window video motion detection
• Alarm Triggers Motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection, audio detection, advanced motion detection, MicroSD card life expectancy
• Alarm Events Event notification using digital output, HTTP, SMTP, FTP, NAS server and MicroSD card
• File upload via HTTP, SMTP, FTP, NAS server and MicroSD card
• Connectors RJ-45 cable connector for Network 10/100/1000 Mbps, PoE connection *1, Audio input *1, Audio output *1, DC 12V/AC 24V power input *1, Digital input *2, Digital output *2, RS-485 *1
• LED Indicator System power and status indicator
• Power Input DC 12V, AC 24V, IEEE 802.3af PoE Class 0
• Power Consumption Max. 12 W
• Dimensions 151 x 70 x 61 mm (w/o lens), 209 x 70 x 61 mm (w/ lens)
• Weight 671 g (w/o lens), 743 g (w/ lens)
• Safety Certifications CE, LVD, FCC Class B, VCCI, C-Tick, UL
• Operating Temperature Starting Temperature: 0°C ~ 50°C (32°F ~ 122°F)
• Working Temperature: -10°C ~ 50°C (14°F ~ 122°F)
• Humidity 90%
• Warranty 36 months
• Operating System Microsoft Windows 8/7
• Web Browser Mozilla Firefox 7~43 (streaming only)
• Internet Explorer 10/11
• Other Players VLC: 1.1.11 or above
• Quicktime: 7 or above
• Quick installation guide, warranty card, lens (AL-251), camera stand, screw pack
