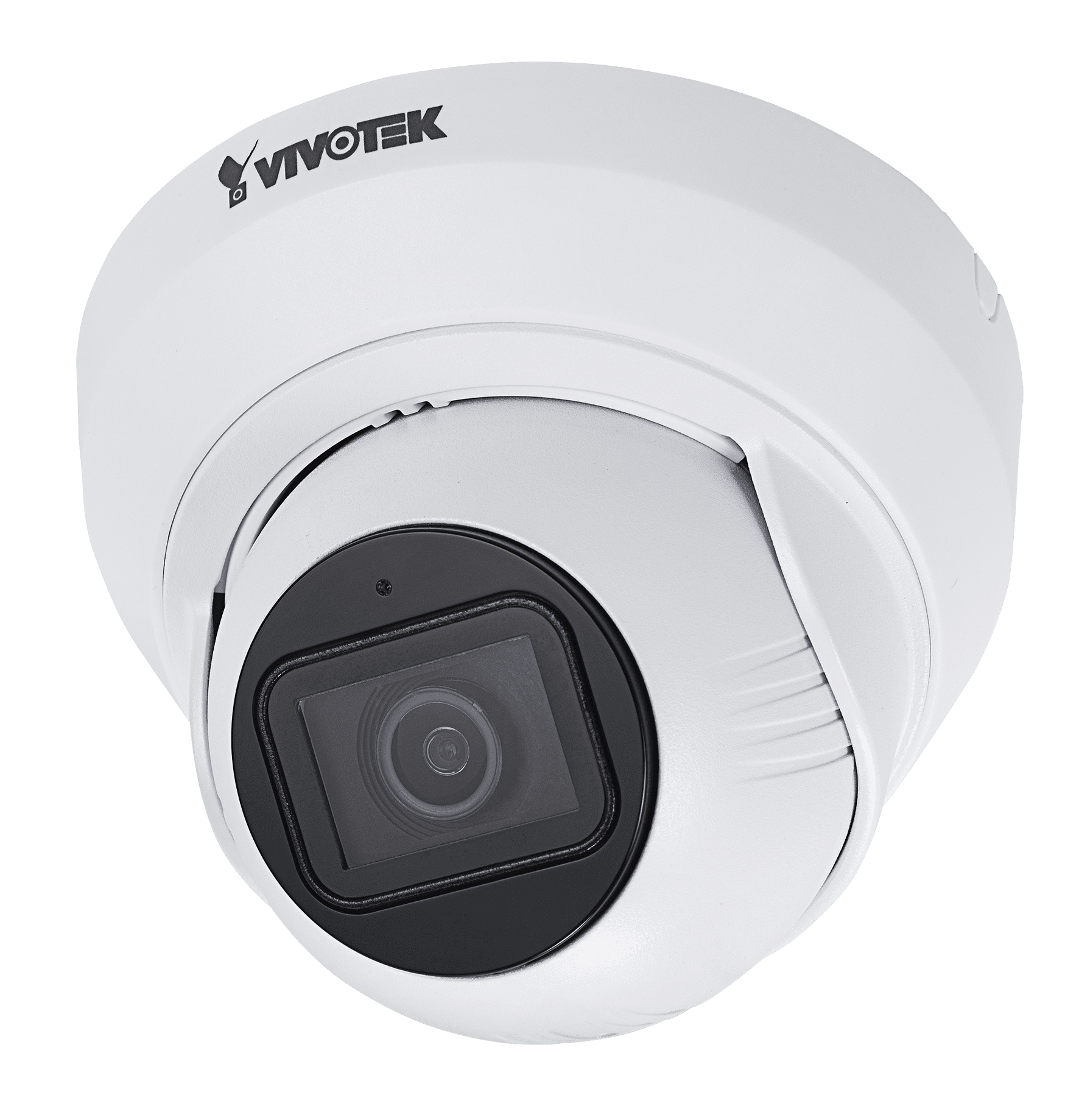

VIVOTEK’s IT9389-HT is a H.265 outdoor turret network camera equipped with a 5-Megapixel sensor, enabling resolution of 2560x1920 at 30 fps. Featuring VIVOTEK SNV and WDR Pro technology, the IT9389-HT is capable of capturing high-quality imagery in both high contrast and low light environments.
The IT9389-HT offers a remote focus lens for different user scenarios. IR illuminators are equipped with 30-meter effective range for better night visibility. To provide reliable coverage in harsh outdoor environments, the IT9389-HT is encased in IP66 and IK08 housing.
By employing VIVOTEK's Smart Stream III technology and H.265 compression, the IT9389-HT is able to reduce bandwidth up to 90%* while maintaining supreme image quality. Additionally, VIVOTEK VADP (VIVOTEK Application Development Platform) allows users to customize applications for the ever-expanding number of user scenarios in the diversified surveillance market.
Features:
- Image Sensor 1/2.7" Progressive CMOS
- Max. Resolution 2560x1920 (5MP)
- Lens Type Motorized, Vari-focal, Remote Focus
- Focal Length f = 3.7 ~ 7.7 mm
- Aperture F1.9 ~ F2.9
- Auto-iris Fixed-iris
- Field of View 38° ~ 80° (Horizontal), 29° ~ 60° (Vertical), 48° ~ 101° (Diagonal)
- Shutter Time 1/5 sec. to 1/32,000 sec.
- WDR Technology WDR Pro
- Day/Night Yes
- Removable IR-cut Filter Yes
- IR Illuminators Built-in IR illuminators, effective up to 30 meters with Smart IR, IR LED*2
- Minimum Illumination 0.09 Lux @ F1.9 (Color), 0.01 Lux @ F1.9 (B/W), 0 Lux with IR illumination on
- Pan/Tilt/Zoom Functionalities ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in)
- On-board Storage Slot type: MicroSD/SDHC/SDXC card slot, Seamless Recording
- Video Compression H.265, H.264, MJPEG
- Maximum Frame Rate 30 fps @ 2560x1920, 60 fps @ 1920x1080
- Maximum Streams 3 simultaneous streams
- S/N Ratio 52 dB
- Dynamic Range 120 dB
- Video Streaming Adjustable resolution, quality and bit rate control, Smart Stream III
- Image Settings Time stamp, text overlay, flip & mirror; Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks; Scheduled profile settings, HLC, defog, 3DNR, DIS, video rotation
- Audio Capability One-way Audio
- Audio Compression G.711, G.726
- Audio Interface Built-in microphone, Effective Range, 5 meters
- Users Live viewing for up to 10 clients
- Protocols 802.1X, ARP, CIFS/SMB, CoS, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, NTP, PPPoE, QoS, RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS, UDP, UPnP
- Interface 10 Base-T/100 Base-TX Ethernet (RJ-45)
- ONVIF Supported
- Smart Motion Detection Five-window video motion detection, human detection, time filter
- VCA Standard VCA (optional, Including line crossing detection, field detection, loitering detection), VADP Package, Genetec package, Trend Micro IoT Security, Smart Motion Detection, Stratocast(support)
- Alarm Triggers Motion detection, manual trigger, periodical trigger, system boot, recording notification, camera tampering detection, audio detection, SD card life expectancy, shock detection, cybersecurity events (brute force attack event, cyberattack event, quarantine event)
- Alarm Events Event notification via email, HTTP, FTP, NAS server, SD card, push notification, File upload via email, HTTP, FTP, NAS server, SD card
- Connectors RJ-45 cable connector for 10/100Mpbs Network/PoE connection*1
- LED Indicator System power and status indicator
- Power Input IEEE 802.3af PoE Class 0
- Power Consumption Max. 9 W (IR on), Max. 8 W (IR off)
- Dimensions Ø 122 x 99 mm (w/ mounting bracket), Ø 108 x 79 mm (w/o mounting bracket)
- Weight 392 g (w/ mounting bracket), 332 g (w/o mounting bracket)
- Casing IP66, IK08
- Safety Certifications CE, FCC Class A, UL, LVD, VCCI, C-Tick
- Operating Temperature Starting Temperature: -10°C ~ 50°C (14°F ~ 122°F), Working Temperature: -20°C ~ 50°C (-4°F ~ 122°F)
- Humidity 90%
- Warranty 36 months
- Quick installation guide, alignment sticker, screw pack, mounting bracket
| Technical Specifications | |
| Model | IT9389-HT |
| System Information | |
| CPU | Multimedia SoC (System-on-Chip) |
| Flash | 128 MB |
| RAM | 512 MB |
| Camera Features | |
| Image Sensor | 1/2.7" Progressive CMOS |
| Max. Resolution | 2560x1920 (5MP) |
| Lens Type | Vari-focal, Remote Focus |
| Focal Length | f = 3.7 ~ 7.7 mm |
| Aperture | F1.9 ~ F2.9 |
| Iris type | Fixed iris |
| Field of View | 80° ~ 38° (Horizontal)60° ~ 29° (Vertical) |
| 101° ~ 48° (Diagonal) | |
| Shutter Time | 1/5 sec. to 1/32,000 sec. |
| WDR Technology | WDR Pro |
| Day/Night | Yes |
| Removable IR-cut filter | Yes |
| Illuminators | Built-in IR illuminators, effective up to 30meters with Smart IR, IR LED*2 |
| Minimum Illumination | 0.09 Lux @ F1.9 (Color)0.01 Lux @ F1.9 (B/W)0 Lux with IR illumination on |
| Pan Range | 359° |
| Tilt Range | 75° |
| Rotation Range | 180° |
| Pan/Tilt/Zoom Functionalities | ePTZ: 48x digital zoom (4x on IE plug-in, 12xbuilt-in) |
| Storage | Seamless Recording to MicroSD/SDHC/SDXC card and recording to network- |
| attached storage (NAS) | |
| Built-in Installation Aids | Remote focus, remote zoom |
| Video | |
| Compression | H.265, H.264, MJPEG |
| Maximum Frame Rate | 30 fps @ 2560x1920 |
| 60 fps @ 1920x1080 | |
| Maximum Streams | 3 video streams (Up to 8 configurable profiles) |
| S/N Ratio | 52dB |
| Dynamic Range | 120 dB |
| Video Streaming | Adjustable resolution, quality and bitrate, Smart Stream III |
| General settings: video title and time stamp | |
| overlay, video orientation (flip, mirror, rotation), day/night settings; Illuminators: illuminators, anti-overexposure; Image | |
| Image Settings | settings: white balance, image adjustment(brightness, contrast, saturation, sharpness, |
| gamma curve), defog, 3DNR, HLM, DIS, scene mode (auto, deblur); Exposure: BLC, HLC, exposure control, AE speed | |
| adjustment, WDR; Focus: zoom, focus; Privacy mask; Scheduled profile settings | |
| Audio | |
| Audio Capability | One-way Audio |
| Compression | G.711, G.726 |
| Interface | Build-in microphone |
| Effective Range | 5 meters |
| Network | |
| Users | Live viewing for up to 10 clients |
| Access list, digest authentication, HTTPS , | |
| Security | IEEE 802.1x, Password protection, signed firmware, Trend Micro IoT Security (brute |
| force attack event, cyberattack event, quarantine event), user access log, user account management | |
| 802.1X, ARP, Bonjour, CIFS/SMB, DDNS,DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMPv3, | |
| Protocols | IPv4, IPv6, NTP, PPPoE, QoS (CoS/DSCP),RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS1.2, UDP, UPnP |
| Interface | 10 Base-T/100 Base-TX Ethernet (RJ-45)*It is highly recommended to use standardCAT5e & CAT6 cables which are compliant |
| with the 3P/ETL standard. | |
| ONVIF | Profile G, S, T supported, specification available at www.onvif.org |
| Solution Integration | |
| Smart Motion Detection | Five-window video motion detection, human detection, time filter |
| Intrusion detection, loitering detection, line | |
| Smart VCA | cdreotsesicntigo nd, etmeiscstiinogn , oubnjeatctt ednedteedc tioobnj,e fcatce |
| detection, crowd detection, running detection | |
| VADP Package | Deep Learning VCA (Smart Motion Detection, Smart VCA), Trend Micro IoT |
| Security (3-year free trial) | |
| Alarm and Event | |
| Audio detection, camera tampering detection, cybersecurity events (brute | |
| Event Trigger | force attack event, cyberattack event, quarantine event), manual trigger, motion detection, periodical trigger, recording |
| notification, SD card life expectancy, shock detection, system boot | |
| Event Action | Event notification via email, HTTP, FTP, NAS server, SD card File upload via email, HTTP, FTP, NAS server, |
| SD card | |
| General | File upload via email, HTTP, FTP, NAS server, SD card |
| Connectors | RJ-45 cable connector for Network 10/100Mbps PoE connection |
| Power Input | IEEE 802.3af PoE Class 0 |
| Power Consumption | Max. 9 W (IR on) |
| Max. 8 W (IR off) | |
| Ø 122 x 99 mm (w/ mounting bracket) | |
| Dimensions | Ø 108 x 79 mm (w/o mounting bracket) |
| 392 g (w/ mounting bracket) | |
| Weight | 332 g (w/o mounting bracket) |
| EMC: CE (EN 55032 Class B, EN 55024), | |
| FCC (FCC Part 15 Subpart B Class B), VCCI | |
| (VCCI-CISPR 32 Class B); Safety: UL (UL | |
| Certifications | 62368-1), CB (IEC/EN 62368-1, IEC/EN 60950- |
| 22, IEC/EN 62471); Environment: IK08 (IEC | |
| 62262), IP66 (IEC 60529); IA: BIS (IS 13252) | |
| Starting Temperature: | |
| -10°C ~ 50°C (14°F ~ 122°F) | |
| Operating Temperature | |
| Working Temperature: | |
| -20°C ~ 50°C (-4°F ~ 122°F) | |
| Humidity | 90% |
| Warranty | 36 months |
| System Requirements | |
| Operating System | Microsoft Windows 10/8/7Mac 10.12 (Chrome only) |
| Web Browser | Chrome 58.0 or above Internet Explorer 10/11 |
| Other Players | VLC: 1.1.11 or above |
| Included Accessories | |
| Packing Contents | Quick installation guide, alligment sticker, screw pack, mounting bracket |
