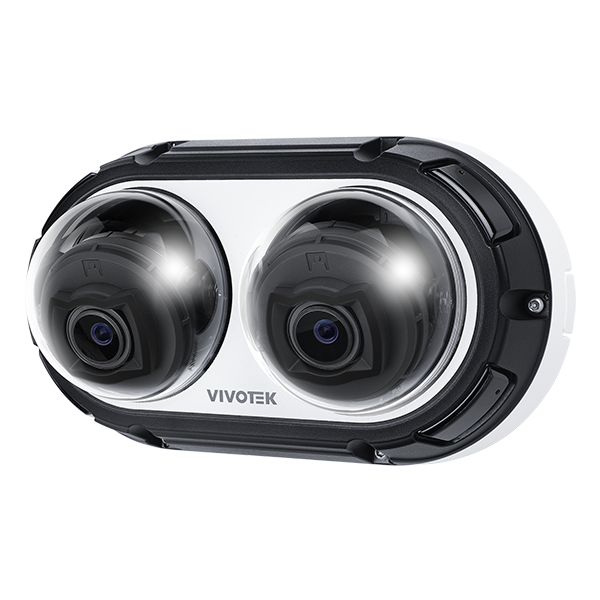

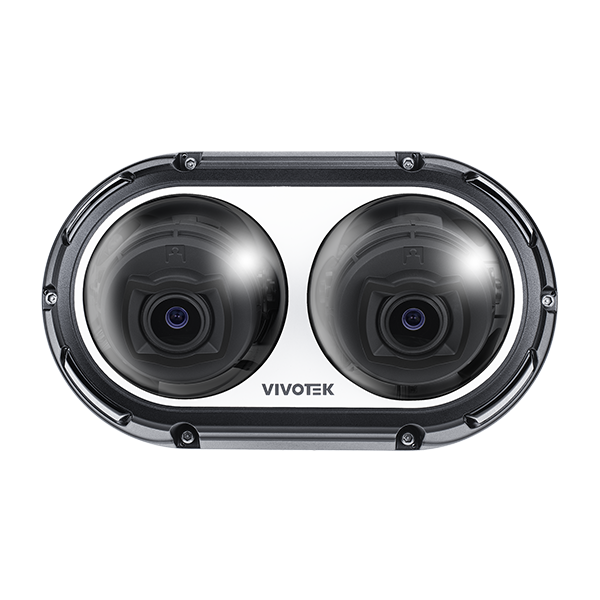

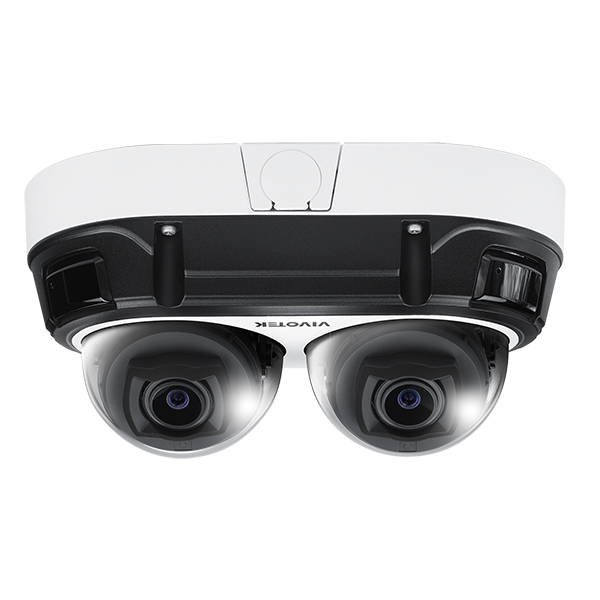

5MP x 2CH Dual-Directional Panoramic AI Camera
One camera, one IP, one installation, one license
A single installation provides complete coverage while reducing deployment complexity. Additionally, with a reduced number of cameras, licenses and maintenance cost will be cut down as well.
Exceptional clarity in any lighting condition
The V-series Dual-Directional Panoramic AI Camera features with 1/2.8" Progressive CMOS sensor, 20m IR distance, and WDR technology, ensuring sharp, clear visuals with minimal noise in low-light and high-contrast conditions—perfect for 24/7 panoramic surveillance.
Sharper vision with P-Iris
The Dual-Directional Panoramic AI Camera features advanced P-Iris technology, ensuring precise aperture control for sharper images, enhanced clarity, and improved depth of field. This ensures consistent, high-quality performance in varying lighting conditions, making it ideal for detailed and reliable surveillance across expansive areas.
AI Detection for Accurate Alarm
VIVOTEK Smart VCA offers precise object and attribute tracking, providing detailed video analytics for targeted monitoring and quick searches.
Features:
- 30 fps @ 2560x1920 per channel
- IP66/67, IK10, NEMA 4X-rated Protection
- AI-powered Smart Motion Detection and Smart VCA
- Signed Firmware, Secure Boot and TPM 2.0
- Built-in IR illuminators, effective up to 20 meters
| System Information | |
| CPU | Multimedia SoC (System-on-Chip) |
| Flash | 8GB |
| RAM | 4GB |
| Pan/Tilt/Zoom Functionalities | ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in) |
| Storage | Seamless Recording to MicroSD/SDHC/SDXC card (1T capacity supported) and recording to networkattached storage (NAS) |
| Built-in Installation Aids | Remote focus, remote zoom, Micro USB* , pixel calculator *Requires Wi-Fi dongle and Micro B converter |
| Video | |
| Compression | H.265, H.264, MJPEG |
| Maximum Frame Rate | 30 fps @ (2560x1920) x 2 |
| Maximum Streams | 3 streams each channel; (up to total 14 profiles) |
| S/N Ratio | 64 dB |
| Dynamic Range | 120 dB |
| Video Streaming | Adjustable resolution, quality and constrained bit rate control |
| Image Settings | General settings video title and time stamp overlay, video orientation (flip, mirror, rotation), day/night settings Illuminators illuminators, anti-overexposure, VCA-based Smart IR III Image settings white balance, image adjustment (brightness, contrast, saturation, sharpness, gamma curve), defog, 3DNR, HLM, scene mode (auto, deblur) Exposure BLC, HLC, exposure control (exposure level, iris adjustment, exposure time, gain control, iris mode), AE speed adjustment, WDR Focus zoom, focus Privacy mask (Color, Mosaic) Pixel calculator Scheduled profile settings |
| Audio | |
| Audio Capability | Two-way audio (Full duplex)* * Requires AO-015 cable |
| Compression | G.711, G.726, MPEG-2 AAC-LC |
| Interface | Built-in microphone External microphone Input* External line output* * Requires AO-015 cable |
| Effective Range | 5 meters |
| Network | |
| Users | Live viewing for up to 20 clients |
| Security | Access list, Account block, Audit log, Configurable password strength protection, CSRF protection, Digest authentication, HTTPS, IEEE 802.1x, Secure boot, Session timeout, Signed firmware, Trend Micro IoT Security (brute force attack event, cyberattack event, quarantine event), User access log, User account management, certificate management, Built-in FIPS 140-2 Level 2 certified Trusted Platform Module (TPM) |
| Protocols | 802.1X, ARP, Bonjour, CIFS/SMB, DDNS, DHCP, DNS, FTP/SFTP, HTTP, HTTPS, ICMP, IGMPv3, IPv4, IPv6, NTP, PPPoE, QoS (CoS/DSCP), RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS 1.2/1.3, UDP, UPnP |
| Interface | 10 Base-T/100 BaseTX/1000 Base-T Ethernet (RJ-45) *It is highly recommended to use standard CAT5e & CAT6 cables which are compliant with the 3P/ETL standard. |
| ONVIF | Profile G, S, T ,M supported, specification available at www.onvif.org |
| AI Analytics | |
| Compute Capability | SoC with built-in hardware deep learning accelerator |
| Vision Object Analytics | Object Detection People, Vehicle (4-wheeled, 2-wheeled) Attribute Extraction People (gender, clothing color, bag, hat), Vehicle (bike, bus, car, motorcycle, truck, color) Re-Search Extraction Path Extraction |
| Application | Deep Learning VCA (Smart Motion Detection, Smart VCA) Smart Motion Detection (Five-window video motion detection, People detection, Vehicle detection, Time filter), Smart VCA (Intrusion detection, Loitering detection, Line crossing detection, Unattended object detection, Missing object detection, Face detection, Crowd detection |
| Application available with license | Running detection, Parking Violation Detection, Restricted Zone Detection Support for more analytic applications and free trial, please visit vivotek.com/video-analytics |
| RealSight Engine | Smart IR III, Deblur, WDR, White Balance, Exposure Control |
| Solution Integration | |
| VADP Package | Trend Micro (Default, 3-year free trial) |
| Video Motion Detection | Motion Detection (Five-window video motion detection) |
| Alarm and Event | |
| Event Trigger | Audio detection*, camera tampering detection, cybersecurity events (brute force attack event, cyberattack event, quarantine event), digital input*, manual trigger, motion detection, periodical trigger, recording notification, SD card life expectancy, shock detection, system boot * Requires AO-015 cable |
| Event Action | Event notification via audio clip*, camera link, digital output*, email, HTTP, FTP/SFTP, NAS server, SD card File upload via email, HTTP, FTP/SFTP, NAS server, SD card *Requires AO-015 cable |
| General | |
RJ-45 cable connector for 10/100/1000 Mbps Network/PoE connection Audio line input* Audio line output* Connectors Digital input: 1* Digital output: (DO+: 12V, 50mA; DO-: 30V, Open Drain, 1A)* * Requires AO-015 cable | |
| LED Indicator System power and status indicator | |
| Power Input IEEE 802.3 at PoE Class 4 | |
| Power Consumption Max 25.5W /19.8W (IR on/off) | |
| Dimensions 230 x 135 x 112mm | |
| Weight 1.55kg | |
| Certifications | EMC CE (EN 55032 Class A, EN 55035), UKCA (BS EN 55032: 2015 +A11: 2020, BS EN 55035: 2017 +A11: 2020), FCC (FCC Part 15 Subpart B Class A), RCM (AS/NZS CISPR 32 Class A), VCCI (VCCI-CISPR 32 Class A), ICES-003 Issue 7 Safety UL (UL 62368-1), CB (IEC/EN 62368-1 including annex Y, IEC/EN 62471) Environment NEMA (NEMA 250 Type 4X) , IK10 (IEC 60529), IP66 / IP67 (IEC 60529) IA BIS (IS 13252), BSMI (EMC: CNS 15936, Safety: CNS 15598-1) |
| Operating Temperature | Starting Temperature: -30°C ~ 55°C (-22°F ~ 131°F) Working Temperature: -40°C ~ 55°C (-40°F ~ 131°F) (IR off) -40C ~ 50°C (-40F ~ 122°F) (IR on) |
| Humidity | 98% RH (non-condensing) |
| System Requirements | |
| Operating System | Microsoft Windows 10/8/7 Mac 10.12 (Chrome only) |
| Web Browser | Chrome 58.0 or above Internet Explorer 11 |
| Other Players | VLC: 1.1.11 or above |
| Included Accessories | |

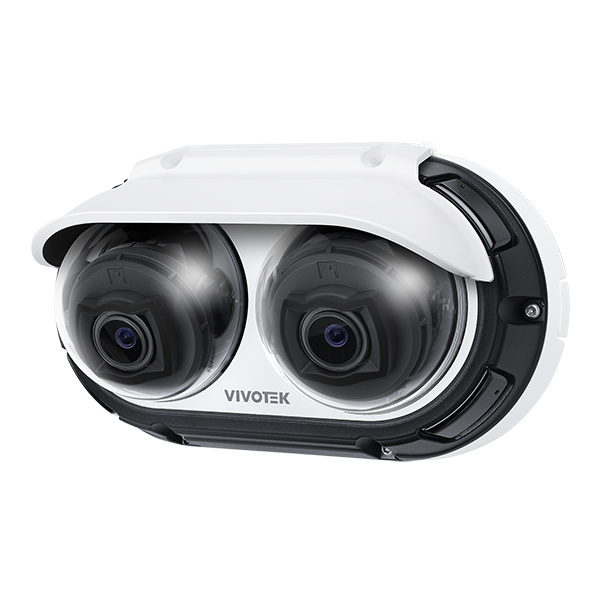

| Packing Contents | Quick installation guide, alignment sticker, L-shaped wrench, screws pack,sunshield |
| DORI (EN 62676-4 Standard) | |
| Detection (25PPM/ 8PPF) | Wide: 66.7m (218.9 ft) Tele: 204.6m (671.3 ft) |
| Observation (63PPM/ 19PPF) | Wide:26.7m (87.5 ft) Tele: 81.8m ( 268.5 ft) |
| Recognition (125PPM/ 38PPF) | Wide: 13.3m (43.7 ft) Tele: 40.9m ( 134.2 ft) |
| Identification (250PPM/ 76PPF) | Wide: 6.6m (21.7 ft) Tele: 20.5m ( 67.1 ft) |
