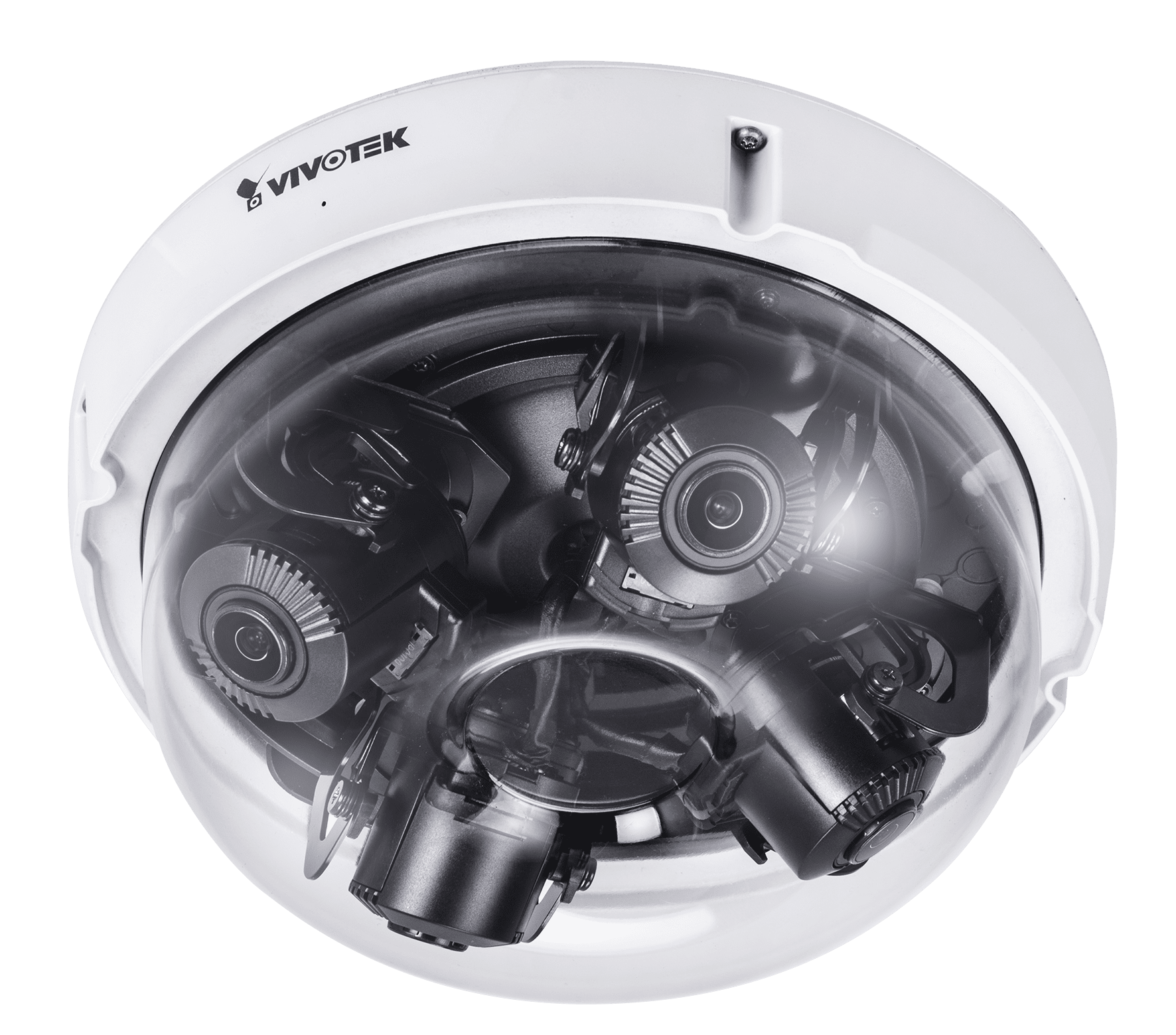

The new MA9321-EHTV is the most versatile product offering to date from VIVOTEK. The MA9321-EHTV provides high resolution images through four independent sensors, and remote focus lenses. By having each sensor independent of each other, the MA9321-EHTV can view four different regions simultaneously and therefore reduce the total number of cameras needed for surveillance, helping to lower total installation time and costs. Featuring four independent 5MP CMOS Sensors, the MA9321-EHTV network camera can provide the most flexibility in surveillance monitoring. Each sensor utilizes a 3.7 to 7.7 mm remote focus lens and 3-axis design along a circular track to enable full 360° coverage. This enables the MA9321-EHTV to capture every angle for comprehensive video coverage from a single IP address, making this camera ideally suited for surveillance in areas such as hallway intersections, building corners, parking garages/lots, and shopping malls. The MA9321-EHTV is equipped with a removable IR-cut filter and WDR Pro technology, enabling the camera to maintain optimal image quality and unparalleled visibility in high contrast lighting environments. Furthermore, the MA9321-EHTV employs VIVOTEK's Smart Stream III technology and H.265 compression codec, reducing bandwidth more than 90%* while still maintaining excellent image quality compared to traditional H.264 without smart streaming. In addition to its versatile coverage, the MA9321-EHTV is armed with a robust IP66 and IK10-rated housing to enable the multidirectional camera to withstand rain and dust as well as to protect against vandalism or tampering.
Features:
- Image Sensor 1/2.7" Progressive CMOS
- Max. Resolution 2688x1920 (5MP) x 4
- Lens Type Vari-focal, Remote Focus
- Focal Length f = 3.7 ~ 7.7 mm
- Aperture F1.9 ~ F2.9
- Auto-iris Fixed-iris
- Field of View 40.2° ~ 88.8° (Horizontal), 28.6° ~ 59.8° (Vertical), 49.6° ~ 116° (Diagonal)
- Shutter Time 1/5 sec. to 1/32,000 sec.
- WDR Technology WDR Pro
- Day/Night Yes
- Removable IR-cut Filter Yes
- Minimum Illumination 0.095 Lux @ F1.9 (Color), 0.005 Lux @ F1.9 (B/W)
- Tilt Range 0° ~ 105° each lens
- Rotation Range ±90° each lens
- Pan/Tilt/Zoom Functionalities ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in)
- On-board Storage Slot type: MicroSD/SDHC/SDXC card slot
- Seamless Recording Video
- Video Compression H.265, H.264, MJPEG
- Maximum Frame Rate 30 fps @ (2688x1920) x 4
- Maximum Streams 3 simultaneous streams
- S/N Ratio 67 dB
- Dynamic Range 120 dB
- Adjustable resolution, quality and bit rate control, configurable video cropping for bandwidth saving, Smart Stream III
- Image Settings Timestamp, text overlay, flip & mirror, scheduled profile settings, configurable brightness/contrast/saturation/sharpness, white balance, exposure control, gain, backlight compensation, privacy masks, 3D noise reduction
- Audio Capability Two-way Audio (full duplex)
- Audio Compression G.711, G.726
- Audio Interface Built-in microphone, External microphone input, External line output
- Effective Range 5 meters
- Users Live viewing for up to 10 clients
- Protocols IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X, ARP, SSL, TLS, CIFS/SMB
- Interface 10 Base-T/100 Base-TX/1000 Base-T Ethernet (RJ-45)
- ONVIF Supported
- Intelligent Video
- Video Motion Detection Five-window video motion detection
- VADP Package Genetec package, Trend Micro IoT Security
- Alarm Triggers Motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection, audio detection, MicroSD card life expectancy
- Alarm Events Event notification using digital output, HTTP, SMTP, FTP, NAS server and MicroSD card, File upload via HTTP, SMTP, FTP, NAS server and MicroSD card
- Connectors RJ-45 cable connector for 10/100/1000Mpbs Network/PoE connection, Audio input, Audio output, AC 24V power input, Digital input*1, Digital output*1
- LED Indicator System power and status indicator
- Power Input AC 24V, IEEE 802.3at PoE Class 4
- Power Consumption Max. 24 W
- Dimensions, Ø 210 x 110.4 mm, Ø 210 x 96.7 mm (without cover plate)
- Weight 1,572 g
- Casing IP66, IK10
- Safety Certifications CE, LVD, FCC Class A, VCCI, C-Tick, UL
- Operating Temperature Starting Temperature: -30°C ~ 50°C (-22°F ~ 122°F), Working Temperature: -40°C ~ 50°C (-40°F ~ 122°F)
- Humidity 90%
- Warranty 36 months
| Technical Specifications | |
| Model | MA9321-EHTV |
| System Information | |
| CPU | Multimedia SoC (System-on-Chip) |
| Flash | 8 GB |
| RAM | 4 GB |
| Camera Features | |
| Image Sensor | 1/2.7" Progressive CMOS |
| Maximum Resolution | 2688x1920 (5MP) x 4 |
| Lens Type | Motorized, Vari-focal, Remote Focus |
| Focal Length | f = 3.7 ~ 7.7 mm |
| Aperture | F1.9 ~ F2.9 |
| Iris Type | Fixed-iris |
| Field of View | 84.4° ~ 40.0° (Horizontal)59.8° ~ 28.6° (Vertical) 104.5° ~ 49.2° (Diagonal) |
| Shutter Time | 1/5 sec. to 1/32,000 sec. |
| WDR Technology | WDR Pro |
| Day/Night | Yes |
| Removable IR-cut Filter | Yes |
| Minimum Illumination | 0.095 Lux @ F1.9 (Color) |
| 0.005 Lux @ F1.9 (B/W) | |
| Tilt Range | 0° ~ 105° each lens |
| Rotation Range | ±90° each lens |
| Pan/Tilt/ZoomFunctionalities | ePTZ: 48x digital zoom(4x on IE plug-in,12x built-in) |
| Storage | Seamless Recording to MicroSD/SDHC/SDXC card and recording to network- |
| attached storage (NAS) | |
| Built-in Installation Aids | Remote Focus, Remote Zoom |
| Video | |
| Compression | H.265, H.264, MJPEG |
| Maximum Frame Rate | 30 fps @ (2688x1920) x 4 |
| Maximum Streams | 3 simultaneous streams |
| S/N Ratio | 67 dB |
| Dynamic Range | 120 dB |
| Video Streaming | Adjustable resolution, quality and bitrate,configurable video cropping for bandwidth |
| saving, Smart Stream III | |
| General settings: video title and time | |
| stamp overlay, video orientation (flip,mirror, rotation), day/night settings; Imagesettings: white balance, image adjustment (brightness, contrast, saturation, sharpness, | |
| Image Settings | gamma curve), defog, 3DNR, HLM, DIS,scene mode (auto, deblur); Exposure: BLC, |
| HLC, exposure control (exposure level, iris | |
| adjustment, exposure time, gain control, iris | |
| mode), AE speed adjustment, WDR; Privacy | |
| mask; Scheduled profile settings | |
| Audio | |
| Audio Capability | Two-way Audio (full duplex) |
| Compression | G.711, G.726 |
| Interface | Built-in microphoneExternal microphone input |
| External line output | |
| Effective Range | 5 meters |
| Network | |
| Users | Live viewing for up to 10 clients |
| Security | Access list, digest authentication, HTTPS,IEEE 802.1x, Password protection, user |
| access log, user account management | |
| Protocols | 802.1X, ARP, CIFS/SMB, DDNS, DHCP, DNS,FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, NTP, |
| PPPoE, QoS (CoS/DSCP), RTSP/RTP/RTCP,SMTP, SNMP, SSL, TCP/IP, TLS, UDP, UPnP | |
| Interface | 10 Base-T/100 Base-TX/1000 Base-T Ethernet(RJ-45) *It is highly recommended to use standardCAT5e & CAT6 cables which are compliant |
| with the 3P/ETL standard. | |
| ONVIF | Profile G, S supported, specificationavailable at www.onvif.org |
| Solution Integration | |
| Five-window video motion detection, | |
| Video Motion Detection | human detection, time filter |
| Genetec, Trend Micro IoT Security (3-year | |
| VADP Package | free trial) |
| Alarm and Event | |
| Event Trigger | Audio detection, camera tamperingdetection, digital input, manual trigger,motion detection, periodical trigger, |
| recording notification, SD card lifeexpectancy, system boot | |
| Event notification via audio clip, digital | |
| Event Action | Foiluet puuptl, oeamd aviil,a HeTTmP,a iFl,T PH, TNTPA, SF TsPe, rvNeAr,S SsDe rcvaerr,d |
| SD card | |
| General | |
| RJ-45 cable connector for 10/100/1000MbpsNetwork/PoE connection | |
| Connectors | Audio input Audio outputAC 24V power input |
| Digital input *1Digital output *1 | |
| LED Indicator | System power and status indicator |
| Power Input | IEEE 802.3at PoE Class 4, AC 24V |
| Max. 24/7 W (Heater on/off) | |
| Power Consumption | Heater on: 4.87 °C |
| Dimensions | Ø 210 x 110.4 mmØ 210 x 96.7 mm (without cover plate) |
| Weight | 1.6 kg |
| EMC: CE (EN55032 Class A, EN55024), FCC | |
| (FCC Part 15 Subpart B Class A), RCM (AS/ | |
| NZS CISPR 32 Class A), VCCI (VCCI-CISPR 32 | |
| Certifications | Class A); Safety: UL (UL 60950-1), CB (IEC/ |
| EN 60950-1, IEC/EN 60950-22); Environment: | |
| IK10 (IEC 62262), IP66 (IEC 60529); IA: BIS (IS | |
| 13252) | |
| Starting Temperature: | |
| -30°C ~ 50°C (-22°F ~ 122°F) | |
| Operating Temperature | Working Temperature: |
| -40°C ~ 50°C (-40°F ~ 122°F) | |
| Humidity | 90% |
| Warranty | 36 months |
