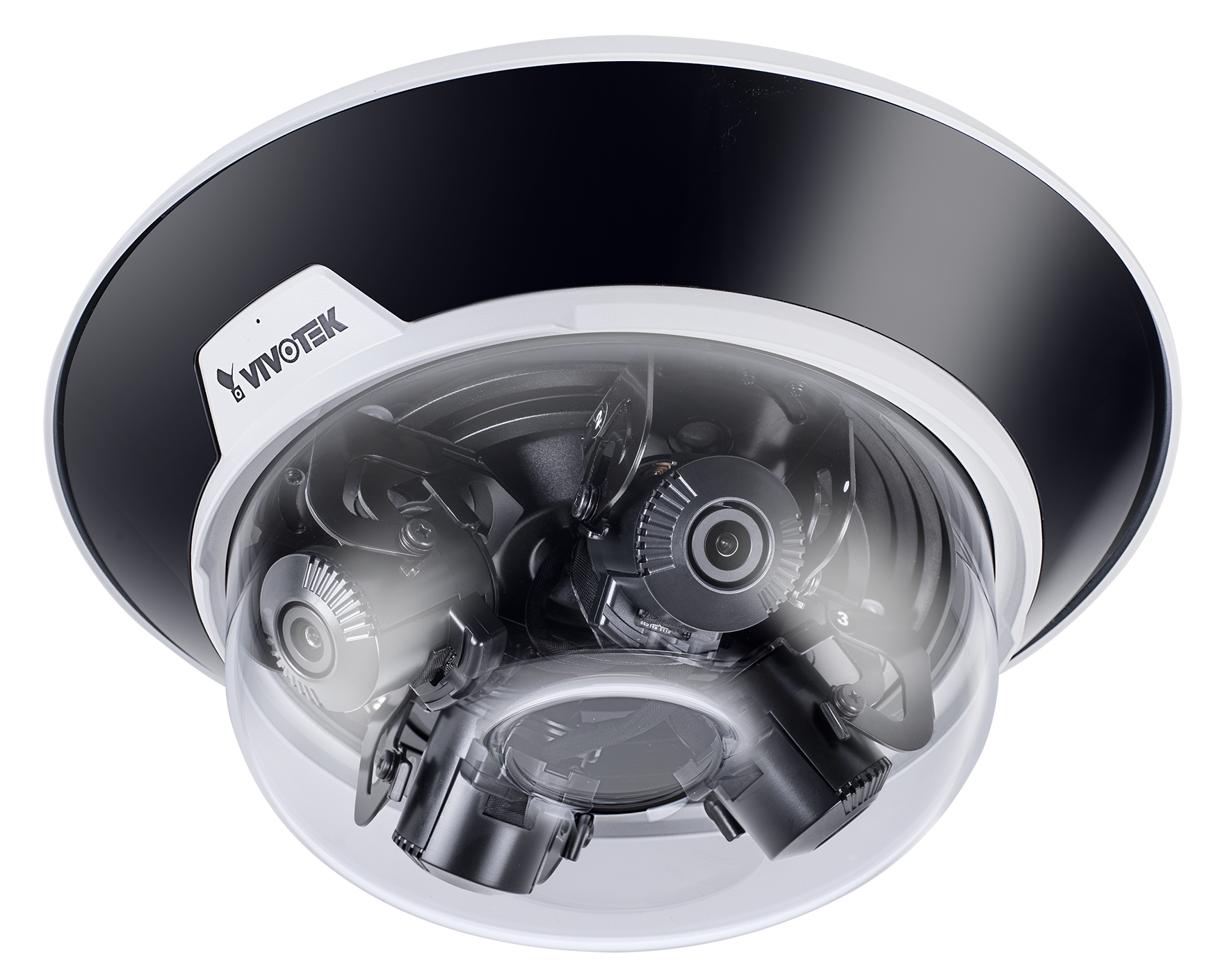

The new MA9321-EHTV is the most versatile product offering to date from VIVOTEK. The MA9321-EHTV provides high resolution images through four independent sensors, and remote focus lenses. By having each sensor independent of each other, the MA9321-EHTV can view four different regions simultaneously and therefore reduce the total number of cameras needed for surveillance, helping to lower total installation time and costs. Featuring four independent 5MP CMOS Sensors, the MA9321-EHTV network camera can provide the most flexibility in surveillance monitoring. Each sensor utilizes a 3.7 to 7.7 mm remote focus lens and 3-axis design along a circular track to enable full 360° coverage. This enables the MA9321-EHTV to capture every angle for comprehensive video coverage from a single IP address, making this camera ideally suited for surveillance in areas such as hallway intersections, building corners, parking garages/lots, and shopping malls. The MA9321-EHTV is equipped with a removable IR-cut filter and WDR Pro technology, enabling the camera to maintain optimal image quality and unparalleled visibility in high contrast lighting environments. Furthermore, the MA9321-EHTV employs VIVOTEK's Smart Stream III technology and H.265 compression codec, reducing bandwidth more than 90%* while still maintaining excellent image quality compared to traditional H.264 without smart streaming. In addition to its versatile coverage, the MA9321-EHTV is armed with a robust IP66 and IK10-rated housing to enable the multidirectional camera to withstand rain and dust as well as to protect against vandalism or tampering.

Features:

• Image Sensor 1/2.7" Progressive CMOS
• Max. Resolution 2688x1920 (5MP) x 4
• Lens Type Motorized, Vari-focal, Remote Focus
• Focal Length f = 3.7 ~ 7.7 mm
• Aperture F1.9 ~ F2.9
• Iris type Fixed-iris
• Field of View 40.2° ~ 88.8° (Horizontal), 28.6° ~ 59.8° (Vertical), 49.6° ~ 116° (Diagonal)
• Shutter Time 1/5 sec. to 1/32,000 sec.
• WDR Technology WDR Pro
• Day/Night Yes
• Removable IR-cut filter Yes
• IR Illuminators Built-in IR illuminators, effective up to 30
• meters with Smart IR
• Minimum Illumination 0.095 Lux @ F1.9 (Color), 0.005 Lux @ F1.9 (B/W, 0 Lux with IR Illuminators on
• Tilt Range 0° ~ 105° each lens
• Rotation Range ±90° each lens
• Pan/Tilt/Zoom Functionalities ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in)
• On-board Storage Slot type: MicroSD/SDHC/SDXC card slot Seamless Recording
• Compression H.265, H.264, MJPEG
• Maximum Frame Rate 30 fps @ (2688x1920) x 4
• Maximum Streams 3 simultaneous streams
• S/N Ratio 67 dB
• Dynamic Range 120 dB
• Video Streaming Adjustable resolution, quality and constant bit rate, configurable video cropping for bandwidth saving, Smart Stream III
• Image Settings Time stamp, text overlay, flip and mirror, scheduled profile settings, configurable brightness/contrast/saturation/sharpness, white balance, exposure control, gain, backlight compensation, privacy masks, defog, 3DNR
• Audio Capability Two-Way Audio (full duplex)
• Compression G.711, G.726
• Interface Built-in microphone, External microphone input, External line output
• Effective Range 5 meters
• Users Live viewing for up to 10 clients
• Protocols 802.1X, ARP, CIFS/SMB, CoS, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, NTP, PPPoE, QoS, RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS, UDP, UPnP
• Interface 10 Base-T/100 BaseTX/1000 Base-T Ethernet (RJ-45)
• ONVIF Supported
• Video Motion Detection Five-window video motion detection
• VADP Package Genetec Package, Trend Micro IoT Security
• Alarm Triggers Motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection, audio detection, SD card life expectancy, cybersecurity events (brute force attack event, cyberattack event and quarantine event)
• Alarm Events Event notification via digital output, email, HTTP, FTP, NAS server, SD card; File upload via email, HTTP, FTP, NAS server, SD card
• Connectors RJ-45 cable connector for 10/100/1000Mbps Network/PoE connection, Audio input*, Audio output*, AC 24V Power input*, Digital input*, Digital output* (* Requires AO-006 cable)
• LED Indicator System power and status indicator
• Power Input AC 24V 2.5A IEEE 802.3at PoE Class 4
• Power Consumption AC 24V: Max. 30 W, PoE: Max. 25. 5 W
• Dimensions Main body: 267 x 114 mm, With bracket: 275 x 118 mm
• Weight 2,700 g
• Casing IP66, IK10
• Safety Certifications CE, FCC Class A, UL, LVD, VCCI, C-Tick
• Operating Temperature Start Temperature: -30°C ~ 60°C (-22°F ~ 140°F), Working temperature: -40°C ~ 60°C (-40°F ~ 140°F)
• Humidity 90%
• Warranty 36 months
• Quick installation guide, warranty card, alignment sticker, desiccant bag, screw driver, screws pack
