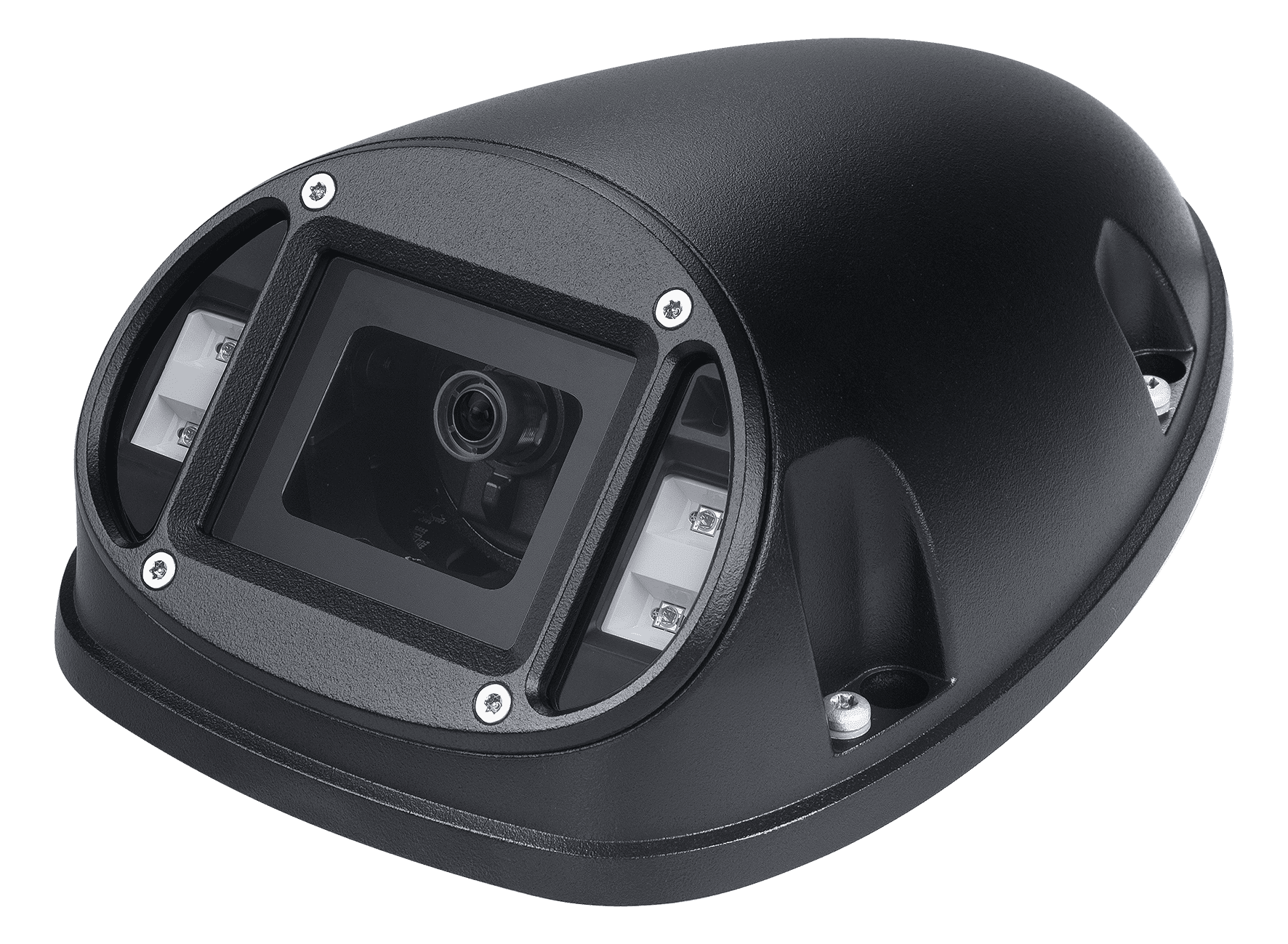

Vivotek - MD8564-EH-V2 - 5MP Mobile Dome Network Camera 3.6 mm
Part number:
Price:
- • Designed for Vehicle Exterior Monitoring
- • 5MP resolution with 2MP-level bitrate efficiency
- • Pan Lens for Pantograph & Side Platform Coverage
- • Smart heater for Front Glass Automatic De-icing
- • Cyber Protection via Trend Micro IoT Security
| System Information | |
|---|---|
| CPU | Multimedia SoC (System-on-Chip) |
| Flash | 8GB |
| RAM | 2GB |
| Camera Specifications | |
| Image Sensor | 1/2.7" Progressive CMOS |
| Max. Resolution | 2560X1920 |
| Lens Type | Fixed-focal |
| Focal Length | f = 3.6 mm |
| Aperture | F2.0 |
| Iris Type | Fixed-iris |
| Field of View | 83° (Horizontal) 61° (Vertical) 111° (Diagonal) |
| Shutter Time | 1/5 sec. to 1/32,000 sec. |
| WDR Technology | WDR Pro |
| Day/Night | Yes |
| Removable IR-cut filter | Yes |
| Illuminators | Built-in IR illuminators, effective up to 50 meters with Smart IR, IR LED*4 |
| Minimum Illumination | 0.1 Lux @ F2.0 (Color) 0.01 Lux @ F2.0 (B/W) 0 Lux with IR illumination on |
| Pan Range | max: ± 0°~25° |
| Tilt Range | max: 0°~+40° |
| Rotation Range | ±170° (Tool-free) |
| Pan/Tilt/Zoom Functionalities | ePTZ: 48x digital zoom (4x on IE/Edge/Chrome plug-in, 12x built in) |
| Storage | Micro SD/SDHC/SDXC card slot Seamless Recording |
| Video | |
| Compression | H.265, H264, MJPEG |
| Maximum Frame Rate | 30 fps @ 2560X1920 60 fps @ 1920x1080 |
| Maximum Streams | 3 simultaneous streams (Up to 8 configurable profiles) |
| S/N Ratio | 60dB |
| Dynamic Range | 120dB |
| Video Streaming | Adjustable resolution, quality and bitrate; Smart Stream III |
| Image Settings | video title and time stamp overlay video orientation (flip, mirror, rotation), day/night settings illuminators, anti-overexposure Image settings: size, quality and bit rate, white balance, image adjustment (brightness, contrast, saturation, sharpness, gamma curve), defog, 3DNR, HLM, EIS, scene mode (SignalLight, RailTrack) Exposure: BLC, HLC, exposure control (exposure level, iris adjustment, exposure time, gain control, iris mode), AE speed adjustment, WDR Privacy mask Scheduled profile settings |
| Network | |
| Users | Live viewing for up to 10 clients |
| Security | Access list, Account block, Audit log, Configurable password strength protection, CSRF protection, Digest authentication, HTTPS, IEEE 802.1x, Secure boot, Session timeout, Signed firmware, Trend Micro IoT Security (Brute force attack event, Cyberattack event, Quarantine event), User access log, User account management |
| Protocols | 802.1X, ARP, Bonjour, CIFS/SMB, CoS, DDNS, DHCP, DNS, FTP/SFTP, HTTP, HTTPS, ICMP, IGMPv3, IPv4, IPv6, NTP, PPPoE, QoS, RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS, UDP, UPnP |
| Interface | 10Base-T/100 BaseTX Ethernet (M12, Female, 4pin D-coded) |
| ONVIF | Profile G, S, T supported, specification available at www.onvif.org |
| AI Analytics | |
| Compute Capability | SoC with built-in hardware deep learning accelerator |
| Solution Integration | VADP Package Trend Micro (3-year free trial), Onboard AI (Smart Motion Detection) |
| Video Motion Detection | |
| Motion Detection | Five-window video motion detection, people detection, time filter |
| Alarm and Event | |
| Event Trigger | Motion detection, manual trigger, periodical trigger, system boot, recording notification, camera tampering detection, SD card life expectancy, shock detection, system boot Cybersecurity events (brute force attack event, cyberattack event, quarantine event) with activated Trend Micro package. |
| Event Action | Event notification via camera link, email, HTTP, FTP/SFTP, NAS server, SD card, push notification File upload via email, HTTP, FTP/SFTP, NAS server, SD card |
| General | |
| Connectors | Single HL3 cable with distributed connectors: - M12 4pin D-coded, Female connector for Network/PoE x1 - M12 5pin A-coded, male connector for DC 24V heater x1 Earth/grounding point: M6 x1 + M8 x1 Venting valve with water-proof breathable membrane x1 |
| LED Indicator | System power and status indicator |
| Power Input | Camera: IEEE 802.3af PoE, B type, Class 0 (37V~57V) Heater: DC 24V* *Comply with EN50155 #5.2 Table 4: Supply voltage limits and performance criteria |
| Power Consumption | Camera + IR: Max. 12.54W / 7.24W (IR ON/OFF) Heater: 48W (24V, 2A) |
| Dimensions | 241 x 162 x 83 mm |
| Weight | approx. 1490g |
| Casing | IP68, IP6K9K, NEMA 4X, IK10+ casing with AR-coated Heat-Strengthened glass |
| Certifications | EMC: CE (EN 55035, EN 55032 Class A), FCC (FCC Part 15 Subpart B Class A), RCM (AS/NZS CISPR 32 Class A), VCCI (VCCI-CISPR 32 Class A) Safety: UL (UL 62368-1), CB (IEC/EN 62368-1, IEC/EN 60950-22, IEC/EN 62471) Environment: IK10+, Casing with color RAL9011, IP68/6K9K, NEMA 4X, 5mm Heat-Strengthened glass with Anti-Reflection coating Railway: EN 50155: 2021 (OT4/ST1, nominal 24V DC), EN 50121-3-2:2016, EN 50121-4, EN 60068-2-1:2007, EN 60068-2-2:2007, EN 61373:2010, EN 45545-2, IEC 60571 Ed 3.0, IEC 62236-3-2 Ed 3.0 Automotive/Vehicles: ECE R118 BI: BSMI |
| Operating Temperature | Starting Temperature: -40°C ~ 70°C (14°F ~ 158°F) Working Temperature: -40°C ~ 70°C (14°F ~ 158°F) (IR off), -40°C ~ 65°C (14°F ~ 149°F) (IR on) |
| Humidity | 98% RH (non-condensing) |
| Storage Temperature | -40°C ~ 70°C (14°F ~ 158°F) |
| System Requirements | |
| Operating System | Microsoft Windows 11/10/7 Mac 10.4 (Chrome only) |
| Web Browser | Chrome 110.0 or above Internet Explorer 10/11; Microsoft Edge |
| Other Players | VLC: 3.0 or above |
| Included Accessories | |
| Packing Contents | Quick installation guide, screwdriver, alignment sticker, screw pack |
Name
Description
Size
Downloads
File
Specification
0.6mb
File
Certification CE
0.7mb
File
Certification EN
1.5mb
The Vivotek MD8564-EH-V2 is a rugged 5MP mobile dome camera engineered for extreme transportation and railway environments. It features a 3.6mm fixed lens with 83° horizontal FOV and captures 2560x1920 resolution at 30fps (60fps at 1080p). With WDR Pro (120dB), Smart IR up to 50m, and a 60dB S/N ratio, it delivers clear imaging in harsh lighting. Built to withstand shock, vibration, and extreme temperatures (-40°C to 70°C), it meets EN50155 railway, ECE R118, IP68/IP6K9K, IK10+, and NEMA 4X standards. The unit includes an M12 PoE connector and a separate DC 24V heater input for cold-start reliability. Powered by an on-device deep learning accelerator, the camera performs real-time AI analytics including people detection and Smart Motion Detection with time filters. H.265 compression and Smart Stream III optimize bandwidth efficiency. Security is reinforced with Secure Boot, signed firmware, and Trend Micro IoT Security (3-year free trial). It supports ePTZ, edge storage up to 1TB, and ONVIF G/S/T compliance, making it ideal for rolling stock, buses, and heavy-duty mobile surveillance.
