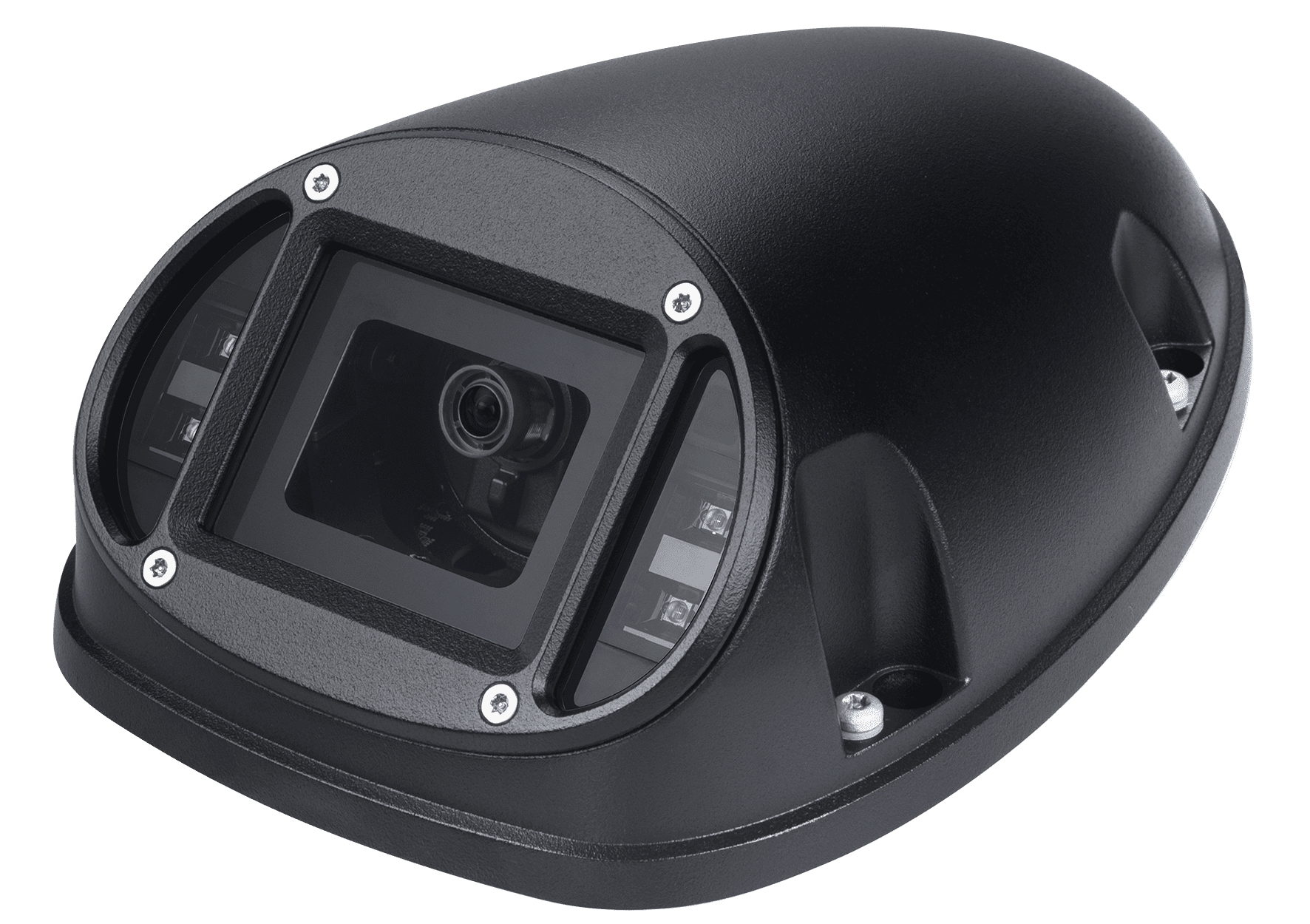

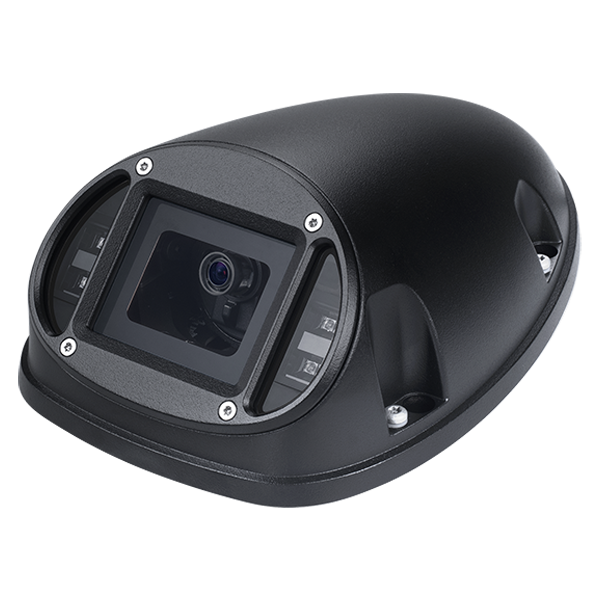

Vivotek - MD8564-EH-V2 - 5MP Outdoor Vehicle Dome Network Camera 6mm
Part number:
Price:
- • Designed for vehicle exterior monitoring.
- • 5MP resolution with a 2MP-level bitrate efficiency.
- • Pan lens for pantograph and side platform coverage.
- • Smart heater for front glass with automatic de-icing.
- • Cyber protection via Trend Micro IoT Security.
| System Information | |
|---|---|
| CPU | Multimedia SoC (System-on-Chip) |
| Flash | 8GB |
| RAM | 2GB |
| Camera Specifications | |
| Image Sensor | 1/2.7" Progressive CMOS |
| Max. Resolution | 2560X1920 |
| Lens Type | Fixed-focal |
| Focal Length | f = 6 mm |
| Aperture | F2.0 |
| Iris Type | Fixed-iris |
| Field of View (H/V/D) | 50° / 37° / 63° |
| Shutter Time | 1/5 sec. to 1/32,000 sec. |
| WDR Technology | WDR Pro |
| Day/Night | Yes |
| Removable IR-cut filter | Yes |
| Illuminators | Built-in IR illuminators, effective up to 50 meters with Smart IR, IR LED*4 |
| Minimum Illumination | 0.1 Lux @ F2.0 (Color) 0.01 Lux @ F2.0 (B/W) 0 Lux with IR illumination on |
| Pan Range | max: ± 0°~25° |
| Tilt Range | max: 0°~+40° |
| Rotation Range | ±170° (Tool-free) |
| Pan/Tilt/Zoom Functionalities | ePTZ: 48x digital zoom (4x on IE/Edge/Chrome plug-in, 12x built in) |
| Storage | Micro SD/SDHC/SDXC card slot, Seamless Recording |
| Video | |
| Compression | H.265, H264, MJPEG |
| Maximum Frame Rate | 30 fps @ 2560X1920 60 fps @ 1920x1080 |
| Maximum Streams | 3 simultaneous streams (Up to 8 configurable profiles) |
| S/N Ratio | 65 dB |
| Dynamic Range | 120dB |
| Video Streaming | Adjustable resolution, quality and bitrate; Smart Stream III |
| Image Settings | Video title and time stamp overlay video orientation (flip, mirror, rotation), day/night settings Illuminators illuminators, anti-overexposure Image settings size, quality and bit rate, white balance, image adjustment (brightness, contrast, saturation, sharpness, gamma curve), defog, 3DNR, HLM, EIS, scene mode (SignalLight, RailTrack) Exposure BLC, HLC, exposure control (exposure level, iris adjustment, exposure time, gain control, iris mode), AE speed adjustment, WDR Privacy mask Scheduled profile settings |
| Network | |
| Users | Live viewing for up to 10 clients |
| Security | Access list, Account block, Audit log, Configurable password strength protection, CSRF protection, Digest authentication, HTTPS, IEEE 802.1x, Secure boot, Session timeout, Signed firmware, Trend Micro IoT Security (Brute force attack event, Cyberattack event, Quarantine event), User access log, User account management |
| Protocols | 802.1X, ARP, Bonjour, CIFS/SMB, CoS, DDNS, DHCP, DNS, FTP/SFTP, HTTP, HTTPS, ICMP, IGMPv3, IPv4, IPv6, NTP, PPPoE, QoS, RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS, UDP, UPnP |
| Interface | 10Base-T/100 BaseTX Ethernet (M12, Female, 4pin D-coded) |
| ONVIF | Profile G, S, T supported, specification available at www.onvif.org |
| AI Analytics | |
| Compute Capability | SoC with built-in hardware deep learning accelerator |
| Solution Integration - VADP Package | Trend Micro (3-year free trial), Onboard AI (Smart Motion Detection) |
| Video Motion Detection | Five-window video motion detection, people detection, time filter |
| Alarm and Event | |
| Event Trigger | Motion detection, manual trigger, periodical trigger, system boot, recording notification, camera tampering detection, SD card life expectancy, shock detection, system boot Cybersecurity events (brute force attack event, cyberattack event, quarantine event) with activated Trend Micro package. |
| Event Action | Event notification via camera link, email, HTTP, FTP/SFTP, NAS server, SD card, push notification File upload via email, HTTP, FTP/SFTP, NAS server, SD card |
| General | |
| Connectors | Single HL3 cable with distributed connectors: - M12 4pin D-coded, Female connector for Network/PoE x1 - M12 5pin A-coded, male connector for DC 24V heater x1 Eearth/grounding point: M6 x1 + M8 x1 Venting valve with water-proof breathable membrane x1 |
| LED Indicator | System power and status indicator |
| Power Input | Camera: IEEE 802.3af PoE, B type, Class 0 (37V~57V) Heater: DC 24V* *Comply with EN50155 #5.2 Table 4: Supply voltage limits and performance criteria |
| Power Consumption | Camera + IR: Max. 12.54W/7.24W (IR ON/OFF) Heater: 48W (24V, 2A) |
| Dimensions | 241 x 162 x 83 mm |
| Weight | approx. 1490g |
| Casing | IP68, IP6K9K, NEMA 4X, IK10+ casing with AR-coated Heat-Strengthened glass |
| Certifications | EMC: CE (EN 55035, EN 55032 Class A), FCC (FCC Part 15 Subpart B Class A), RCM (AS/NZS CISPR 32 Class A), VCCI (VCCI-CISPR 32 Class A) Safety: UL (UL 62368-1), CB (IEC/EN 62368-1, IEC/EN 60950-22, IEC/EN 62471) Environment: IK10+, Casing with color RAL9011, IP68/6K9K, NEMA 4X, 5mm Heat-Strengthened glass with Anti-Reflection coating Railway: EN 50155: 2021 (OT4/ST1, norminal 24V DC), EN 50121-3-2:2016, EN 50121-4, EN 60068-2-1:2007, EN 60068-2-2:2007, EN 61373:2010, EN 45545-2, IEC 60571 Ed 3.0, IEC 62236-3-2 Ed 3.0 Automotive/Vehicles: ECE R118 BI: BSMI |
| Operating Temperature | Starting Temperature: -40°C ~ 70°C (14°F ~ 158°F) Working Temperature (IR off): -40°C ~ 70°C (14°F ~ 158°F) Working Temperature (IR on): -40°C ~ 65°C (14°F ~ 149°F) |
| Humidity | 98% RH (non-condensing) |
| Storage Temperature | -40°C ~ 70°C (14°F ~ 158°F) |
| System Requirements | |
| Operating System | Microsoft Windows 11/10/7 Mac 10.4 (Chrome only) |
| Web Browser | Chrome 110.0 or above Internet Explorer 10/11; Microsoft Edge |
| Other Players | VLC: 3.0 or above |
| Included Accessories | |
| Packing Contents | Quick installation guide, screwdriver, alignment sticker, screw pack |
Name
Description
Size
Downloads
File
Spec_MD8564-EH-V2 (6 mm)_EN_0.pdf
0.6mb
File
Certification_MD8564-(D)EH-V2_CE_DoC_1.pdf
0.7mb
File
Certification_MD8564-(D)EH-V2_EN45545 DoC_2.pdf
1.5mb
This 5-megapixel fixed-focus vandal-resistant dome camera has been specifically engineered for use in harsh transportation and industrial environments. It uses a 1/2.7" CMOS sensor paired with a fixed 6 mm lens to provide a horizontal field of view of 50 degrees, offering a narrower, more focused perspective than a wider-angle camera. The camera features onboard AI for people detection and includes built-in IR illuminators with an effective range of up to 50 metres. The camera is powered by a system on a chip with 2 GB of RAM.
It supports H.265, H.264 and MJPEG compression, offering a maximum frame rate of 30 fps at 5 MP. Power redundancy is offered via IEEE 802.3af PoE for the camera, as well as a dedicated 24 V DC input for an integrated heater. The total maximum power consumption is 60.54 W. Its rugged casing is rated IP68/IP6K9K, IK10+ and NEMA 4X, meeting stringent railway and vehicle standards such as EN 50155. It operates from -40°C to 70°C with IR on.
