Optimize Bandwidth and Storage Usage with H.265: Featuring H.265 compression and VIVOTEK’s Smart Stream technology, it provides HD video clarity at reduced bit rates, cutting file sizes and maximizing recording capacity while maintaining superior quality over conventional H.264 systems.
Secure Power and Data Protection: VIVOTEK's mobile NVRs feature swappable dual SSDs with RAID 0/1 support, ensuring secure and reliable data storage. They also have built-in supercapacitor and isolated power unit to safeguard against power outage. In a sudden failure, video footage is securely saved within seconds.
Reliable Design: EN50155:2021, MIL-STD-810G: Compliance with transportation standards EN50155 and MIL-STD-810G, which ensures meeting anti-vibration and anti-shock requirements, and operable in tough conditions such as extremely low temperatures, high humidity, and even surge protection.
Seamless Integration with CAN Bus: VIVOTEK’s Mobile NVR supports USB, CAN (Controller Area Network) Bus integration, ignition control, and multiple I/Os, making it ideal for fleet management. It offers centralized information access for seamless and efficient operations.
WiFi & LTE Connection Options: The mobile NVRs support remote video streaming and data transmission to the control center via WiFi (802.11a/b/g/n/ac) or LTE connections, enabling seamless real-time monitoring.
Built-in G-sensor: The built-in G-sensor enhances driving safety by detecting sudden impacts. Users can adjust the sensitivity level to suit their needs, ensuring the system is triggered during accidents or harsh driving conditions, making it ideal for onboard mobile NVR applications.
GPS Tracking on Google Maps: The embedded GNSS receiver supports GPS and GLONASS systems for different area applications. Remotely using VAST Security Station, it allows users to have both live video display and GPS tracking from Google Maps.
Features:
- 802.3at/af Compliant PoE & Management Efficiency
- Build-in Super-capacitor & Isolated Power Unit
- Swappable Dual SSD with RAID 0/1
- Built-in G-sensor and CAN Bus port
- EN50155:2021 and MIL-STD-810G Certified
| Technical Speci cations | - |

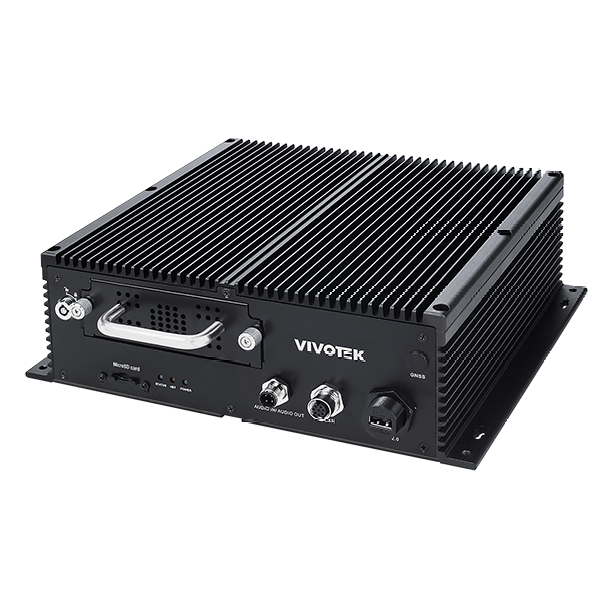

| Descriptions | 16-CH Embedded PoE Mobile NVR(M12) |
| Device | - |
| OS | Embedded Linux |
| Watchdog | Hardware + Software |
| Power Restoration | System Restart Automatically after Power Recovery |
| Display | - |
| LiveView Display | 16 Channels Multi-layout display: 1x1, 2x2, 3x3, 4x4, 1M+5,1M+12, 1P+3,1P+6,2P+3, 3V |
| Video Output | HDMI x1, VGA x1 |
| Display Resolution | 3840x2160,1920x1080, 1280x720 |
| Stream Application | Constant\Auto Adaptive Stream |
| Fisheye Dewarp | Local: 1O, 1P, 1R, 1O3R, 1O8R, 1P3R Web: 1O, 1R, 1P |
| PTZ Operation | Direction Control, Home, Iris, Preset, Patrol (Group) |
| Audio | - |
| Audio Format | G.711, G.726, AAC |
| Audio In/Out | Line out x 1 |
| Record | - |
| Recording Time (sec.) | Pre-Record: 5 (Max. 10) Post-Record: 20 (Max. 300) |
| Recording Stream | Dual |
| Recording Throughput | 192Mbps |
| Recording Mode | Continuous, Schedule, Manual, Event |
| Recording Setting | Recycle (unit: Day) |
| Watermark | Supported |
| Storage & Backup | - |
| DISK Devices | Up to 2x 2.5" industrial-grade SSDs (sold separately) with a cold-swappable storage bay featuring a secure key lock |
| HDD Max. Capacity | Please refer to SSD supported list on VIVOTEK website |
| RAID | RAID 0,1 |
| Disk Management | Create, Format and Remove Disk HDD S.M.A.R.T |
| SD Card | SD card slot x1 (reserved) |
| Video Clip Export | USB Dongle (FAT Format) |
| Schedule Backup | FTP |
| Playback | - |
| Playback Display | 4 Channels Multi Layout Display: 1x1,2x2,1P+3,1V+3 |
| Playback Control | Regular (Play, Pause, Stop), Rewind, Next / Previous Frame, Speed Control, Calendar, Event, Timeline, Timeline Scale, Thumbnail (Storyboard) |
| Video Search | By Calendar, Date/Time, and Alarm |
| Thumbnail Explorer (Storyboard) | Listing the thumbnail of recorded video (Max. 2 CH) |
| Snapshot | JPEG |
| Video Clip Export | EXE |
| Network | - |
| Ethernet | 10/100/1000Mbps Ethernet x 1 |
| Network Throughput in total | 224 Mbps |
| WiFi | 802.11a/b/g/n/ac 2T2R (optional module) |
| Mobile Network | LTE (optional module) |
| PoE | 802.3at/af compliant PoE ports x 8 (M12) (Total Max. 64W) |
| PoE Management | Supported |
| Protocols | IPv4, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, SMTP, FTP, DHCP, NTP, DNS, DDNS, IP Filter |
| System | - |
| Camera Integration | ONVIF Pro le S |
| GNSS | GPS/GLONASS, L1 band, 1(default)~10Hz NEMA0183 output rate |
| G-sensor | Support 16-bit resolution, 128 to 1024 samples/sec, range:±2, ±4, ±8, ±12, ±16g |
| Event | Motion Detection, PIR Detection, Tampering Detection, Camera DI/DO, Camera Disconnected, Disk Failure, Disk Full, NVR DI/DO, GPS disconnected, GPS speed, G-sensor, PoE error |
| Event Action | Video recording, email with snapshot, buzzer, PTZ, FTP, DO (camera, system), full screen, send to CMS |
| User Management | User level: administrator, regular user |
| Log | System, Recording, User, Error |
| Date&Time | Time Zone, Manual, Automatic Sync NTP, Daylight Saving Time |
| Language | Czech, English, French, German, Italian, Japanese, Korean, Portuguese, Polish, Russian, Spanish, Simpli ed Chinese, Traditional Chinese, Arabic |
| Remote Client | - |
| Software AP | Shepherd , VSS |
| Mobile/Tablet App | iViewer (Android & iOS) |
| Web Browser | Chrome |
| General | - |
| Power Input | DC 12V~48V |
| Power Management | Programmable delay on/off relative to ignition or other switched voltage |
| Power Consumption | max.155W |
| Dimensions | 284 (W) x 230 (D) x 90.6 (H) mm |
| Weight | approx. 4.4 kg (without HDD) |
| Operating Temperature | -40°C ~ 55°C (-40°F ~ 131°F) |
| Humidity | 0 ~ 95% |
| Safety Certi cations | CE, FCC, VCCI, C-Tick, EN50155(OT2/ST0/norminal 24VDC), EN61373, UL, CB, EN45545, EN50121-32/EN50121-4, MIL-STD-810G |
| External Interface | - |
| USB | Front x1 (USB 2.0) Back x1 (USB 2.0) |
| CAN | Signaling x2 pair in one M12 connector |
| Alarm In | x8 (DI: 5V~ 30VDC) |
| Alarm Out | x4 (DO: max. 1A 30VDC or 0.5A 125VAC) |
| Audio | Line out x 1 |
| Antenna Interface | GNSS x1, WiFi x2, LTE x2 ( Reserved) |
| RS232 | 1 Port (Reserved) |
