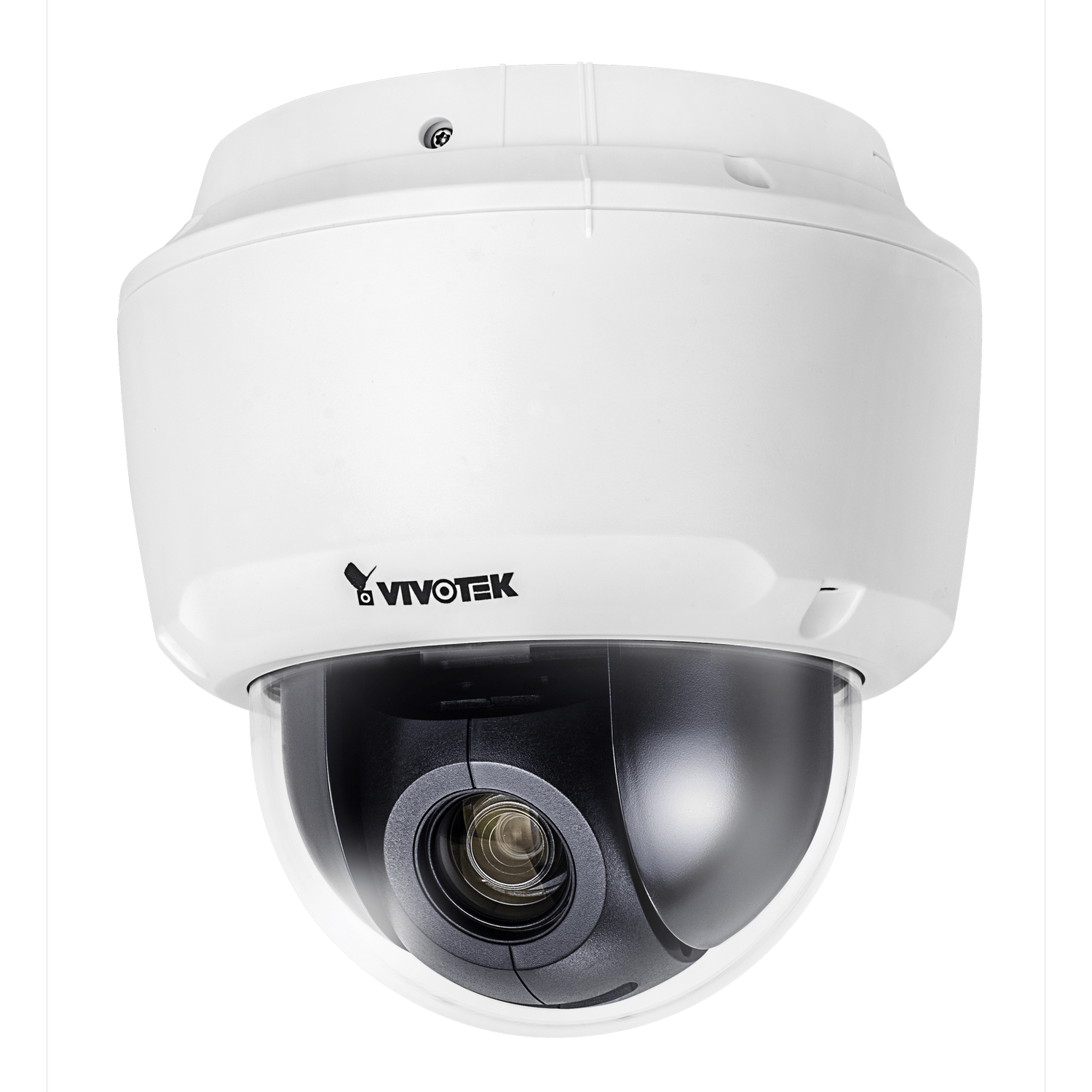

VIVOTEK's SD9161-H is a high-performance H.265 speed dome network camera, offering 1080p Full HD resolution and consistently superb image quality. Adopting the power of a 10x optical zoom lens and the maneuverability of a sophisticated pan/tilt mechanism, the SD9161-H is able to capture fine detail at top-notch quality and is especially suitable for wide-open indoor spaces, such as airports and lobbies, where the highest levels of reliability and precision are required.

Featuring the Wide Dynamic Range Technology, WDR Pro, the SD9161-H provides improved visibility in both extremely dark and light environments. Additionally, this unique camera also supports VIVOTEK's sophisticated Smart Stream II, enabling the optimization of quality for desired regions and thus delivering the maximum possible efficiency of bandwidth usage. Combining H.265 compression technology and VIVOTEK's Smart Stream II technology, users can enjoy bandwidth savings of up to 80%* compared to traditional H.264 systems.

Incorporating a number of advanced features standard for VIVOTEK cameras, including EIS, MicroSD/SDHC/SDXC card slot, and VIVOTEK's 32-channel recording software, the SD9161-H is the ideal solution for your indoor surveillance needs.

Features :

Image Sensor

1/3" Progressive CMOS

Max. Resolution

1920x1080 (2MP)

Lens Type

10x Optical Zoom, Auto Focus

Focal Length

f = 5.1 ~ 51 mm (10x zoom)

Aperture

F1.6 ~ F1.8

Auto-iris

DC-iris

Field of View

4.9° ~ 54° (Horizontal)
4° ~ 31° (Vertical)
6.7° ~ 68° (Diagonal)

Shutter Time

1/8 sec. to 1/30,000 sec.

WDR Technology

WDR Pro

Day/Night

Yes

Removable IR-cut Filter

Yes

Minimum Illumination

0.2 Lux @ F1.6 (Color)
0.01 Lux @ F1.6 (B/W)

Pan Speed

0.05° ~ 360°/sec.

Pan Range

360° endless

Tilt Speed

0.05° ~ 360°/sec.

Tilt Range

180°

Preset Locations

256 preset locations, 128 presets per tour

Pan/Tilt/Zoom Functionalities

128x digital zoom (4x on IE plug-in, 32x built-in)
Auto pan mode
Auto patrol mode

On-board Storage

Slot type: MicroSD/SDHC/SDXC card slot
Seamless Recording

Video

Video Compression

H.265, H.264, MJPEG

Maximum Frame Rate

30 fps @ 1920x1080
In all compression modes

Maximum Streams

4 simultaneous streams

S/N Ratio

50 dB

Dynamic Range

100 dB

Video Streaming

Adjustable resolution, quality and bit rate control, Smart Stream II

Image Settings

Timestamp, text overlay, flip & mirror, configurable brightness/contrast/saturation/sharpness, white balance, exposure control, gain, backlight compensation, privacy masks (up to 24), scheduled profile settings, EIS, 3D noise reduction, defog

Audio

Audio Capability

Two-way Audio (full duplex)

Audio Compression

G.711, G.726

Audio Interface

External microphone input
External line output

Network

Users

Live viewing for up to 10 clients

Protocols

802.1X, ARP, CIFS/SMB, CoS, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, NTCIP, NTP, PPPoE, QoS, RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS, UDP, UPnP

Interface

10 Base-T/100 Base-TX Ethernet (RJ-45)
*It is highly recommended to use standard CAT5e & CAT6 cables which are compliant with the 3P/ETL standard.

ONVIF

Supported, specification available at www.onvif.org

Solution Integration

Video Motion Detection

Five-window video motion detection

Auto-Tracking

Auto-tracking on moving object

VADP Package

Trend Micro IoT Security

Alarm and Event

Alarm Triggers

Motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, audio detection, cybersecurity events (brute force attack event, cyberattack event, quarantine event)

Alarm Events

Event notification via digital output, email, HTTP, FTP, NAS server, SD card
File upload via email, HTTP, FTP, NAS server, SD card

General

Connectors

RJ-45 cable connector for 10/100Mpbs Network/PoE connection
Audio input
Audio output
DC/AC 24V power input
Digital input*4
Digital output*2

LED Indicator

System power and status indicator

Power Input

DC 24V
AC 24V
IEEE 802.3at PoE Class 4

Power Consumption

Max. 15 W

Dimensions

Ø 172 x 157 mm (Camera body)

Weight

1,043 g

Safety Certifications

CE, LVD, FCC Class A, VCCI, C-Tick, UL

Operating Temperature

Starting Temperature: -10°C ~ 55°C (14°F ~ 131°F)
Working Temperature: -10°C ~ 55°C (14°F ~ 131°F)

Humidity

90%

Warranty

36 months

System Requirements

Operating System

Microsoft Windows 8/7
Mac 10.12 (Chrome only)

Web Browser

Chrome 58.0 or above
Internet Explorer 10/11

Other Players

VLC: 1.1.11 or above
Quicktime: 7 or above

Included Accessories

CD

User's manual, quick installation guide, Installation Wizard 2, ST7501 32-channel recording software

Others

Indoor pendant mount, quick installation guide, alignment sticker, L-wrench, software CD, power cable
