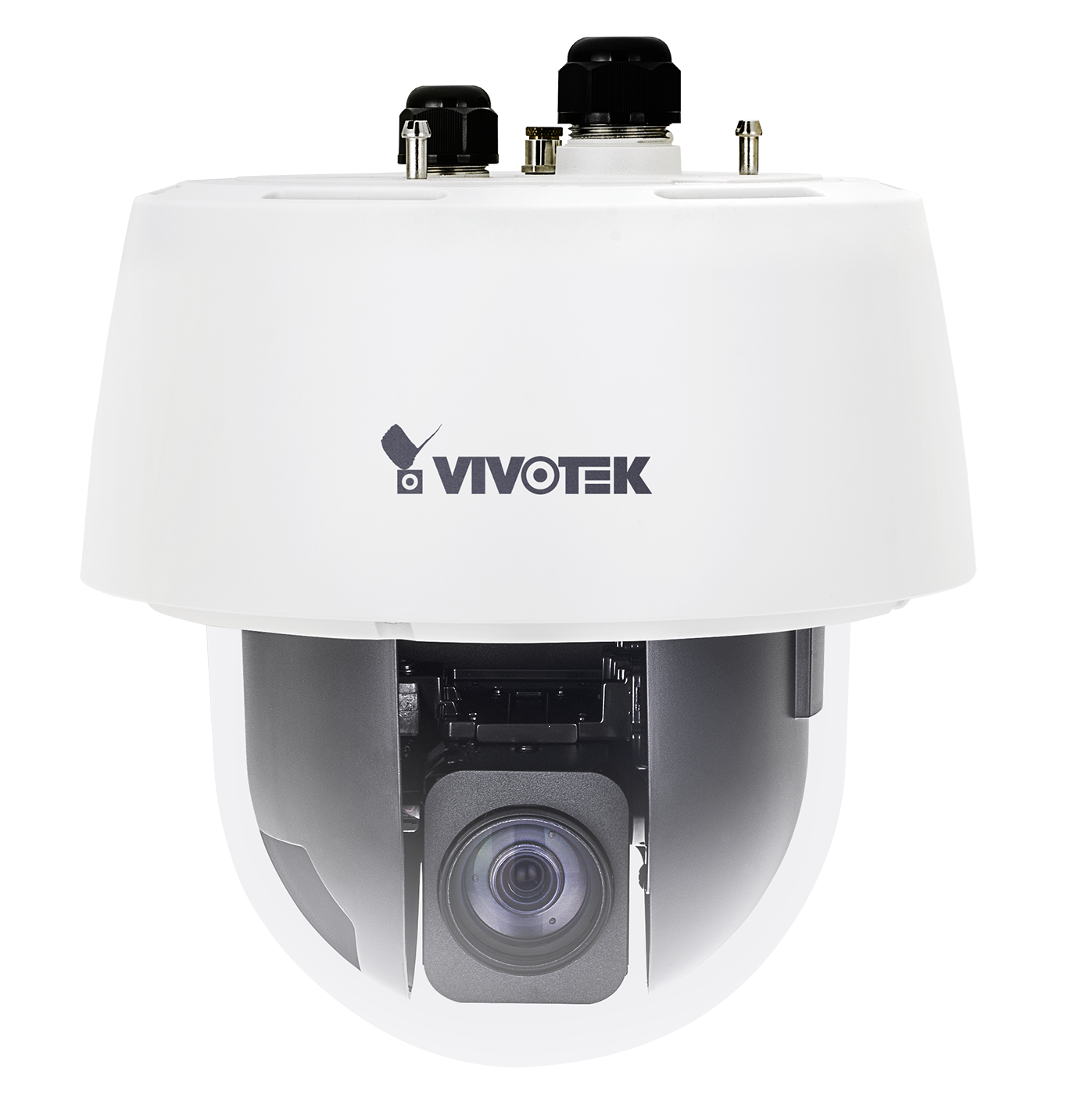

VIVOTEK’s SD9362-EH-v2 is a high-performance H.265 Full HD speed dome network camera. Armed with a 30x optical zoom lens, the camera is able to capture fine details at top-notch quality. By combining both H.265 and VIVOTEK’s Smart Stream II technology which enables the camera to optimize quality for desired regions and therefore to maximize efficiency of bandwidth usage, it is capable of reducing both bandwidth and storage consumption by up to 80%* while maintaining the highest standard of image quality.

Offering extra smooth video quality with resolutions of up to 60 fps at 1920x1080, the SD9362-EH-v2 is also equipped with WDR Pro technology and IR-cut filter for seamless day/night operation. This enables the camera to cope effortlessly with the challenging lighting conditions faced in 24/7 surveillance. Further, the water-proof IP68-rated, vandal-proof IK10-rated and NEMA 4X-rated housing of the SD9362-EH-v2 protects the camera body against rain, dust and corrosion and provides a wide operating-temperature range of between -40°C and 55°C. This combination of robustness and high performance ensures that the SD9362-EH-v2 is especially suitable for monitoring wide, open, harsh indoor or outdoor spaces such as airports, highways and parking lots where high-level reliability and precision are called for.

Features:

• Image Sensor 1/2.8" Progressive CMOS
• Max. Resolution 1920x1080 (2MP)
• Lens Type 30x Optical Zoom, Auto Focus
• Focal Length f = 4.3 ~ 129 mm (30x zoom)
• Aperture F1.6 ~ F4.7
• Auto-iris DC-iris
• Field of View 2.3° ~ 64° (Horizontal), 1.3° ~ 36° (Vertical), 2.6° ~ 73° (Diagonal)
• Shutter Time 1 sec. to 1/10,000 sec.
• WDR Technology WDR Pro
• Day/Night Yes
• Removable IR-cut Filter Yes
• Minimum Illumination 0.195 Lux @ F1.6 (Color), 0.01 Lux @ F1.6 (B/W)
• Pan Speed 0.05° ~ 450°/sec.
• Pan Range 360° endless
• Tilt Speed 0.05° ~ 450°/sec.
• Tilt Range 220° (-110° ~ +110°)
• Preset Locations 256 preset locations, 128 presets per tour
• Pan/Tilt/Zoom Functionalities 48x digital zoom (4x on IE plug-in, 12x built-in)
• Auto pan mode
• Auto patrol mode
• On-board Storage Slot type: MicroSD/SDHC/SDXC card slot, Seamless Recording
• Video Compression H.265, H.264, MJPEG
• Maximum Frame Rate H.265 & H.264: 60 fps @ 1920x1080, MJPEG: 30 fps @ 1920x1080
• Maximum Streams 4 simultaneous streams
• S/N Ratio 66 dB
• Dynamic Range 130 dB
• Video Streaming Adjustable resolution, quality and bit rate control, Smart Stream II
• Image Settings Time stamp, text overlay, flip & mirror, configurable brightness/contrast/saturation/sharpness, white balance, exposure control, gain, backlight compensation, privacy masks (up to 24), scheduled profile settings, EIS, 3D noise reduction, defog, HLC
• Audio Capability Two-way Audio (full duplex)
• Audio Compression G.711, G.726
• Audio Interface External microphone input, External line output
• Users Live viewing for up to 10 clients
• Protocols 802.1X, ARP, CIFS/SMB, CoS, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, NTCIP, NTP, PPPoE, QoS, RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS, UDP, UPnP
• Interface 10 Base-T/100 Base-TX Ethernet (RJ-45)
• ONVIF Supported
• Video Motion Detection Five-window video motion detection
• Auto-Tracking Auto-tracking on moving object
• VADP Package Genetec package, Amazon Kinesis Video Streams
• Alarm Triggers Motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, audio detection, SD card life expectancy
• Alarm Events Event notification via digital output, email, HTTP, FTP, NAS server, SD card, File upload via email, HTTP, FTP, NAS server, SD card
• Connectors RJ-45 cable connector for 10/100Mpbs Network/PoE connection*1, Audio input*1, Audio output*1, AC/DC 24V power input*1, Digital input*4, Digital output*2, RS-485 for PTZ control (PelcoD protocol, Baud rate 2400)*1, LED Indicator, System power and status indicator
• Power Input UPoE (60W), AC/DC 24V
• Power Consumption PoE: Max. 48/26 W (Heater on/off), AC/DC 24V: Max. 40/21 W (Heater on/off)
• Dimensions Ø 162 x 221 mm
• Weight 4.35 kg (with bracket), 2.95 kg (without bracket)
• Casing IP68, IK10, NEMA 4X
• Safety Certifications CE, FCC Class A, VCCI, C-Tick, UL
• Operating Temperature Starting Temperature: -40°C ~ 55°C (-40°F ~ 131°F), Working Temperature: -40°C ~ 55°C (-40°F ~ 131°F)
• Humidity 98%
• Warranty 36 months
• Others Wall mount bracket, I/O combo cable, screws, waterproof connectors, quick installation guide, alignment sticker, L-wrench, desiccant bags
