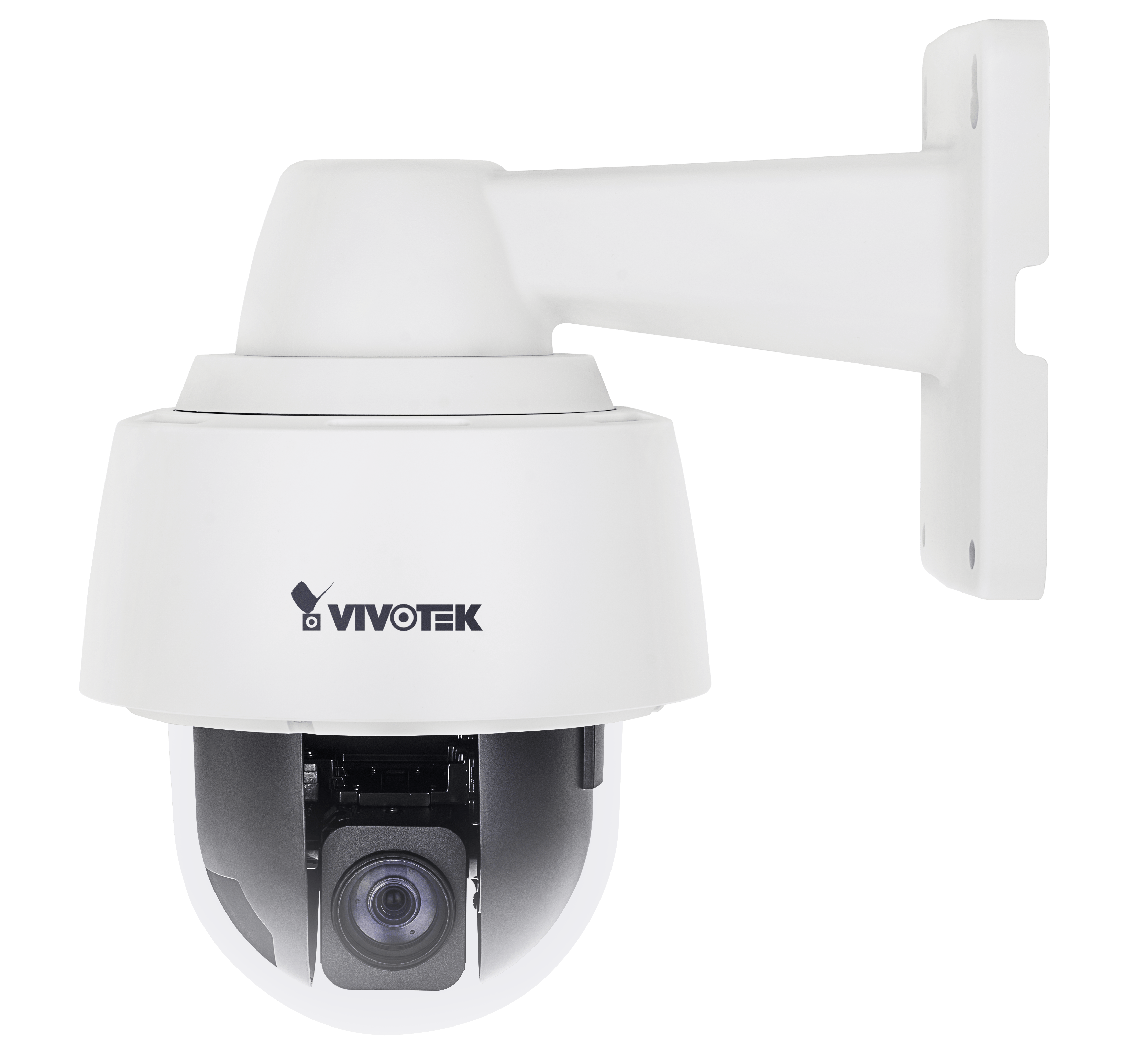

VIVOTEK’s SD9362-EHL is a high performance H.265 Full HD speed dome network camera. Armed with a 30x optical zoom lens, the camera is able to capture fine details at top-notch quality. By combining both H.265 and VIVOTEK’s Smart Stream II technology which enables the camera to optimize quality for desired regions and therefore to maximize efficiency of bandwidth usage, it is capable of reducing both bandwidth and storage consumption by up to 80%* while maintaining the highest standard of image quality.

Offering extra smooth video quality with resolutions of up to 60 fps at 1920x1080, the SD9362-EHL is also equipped with WDR Pro technology and IR-cut filter for seamless day/night operation. This enables the camera to cope effortlessly with the challenging lighting conditions faced in 24/7 surveillance. Further, the water-proof IP68-rated, vandal-proof IK10-rated and NEMA 4X-rated housing of the SD9362-EHL protects the camera body against rain, dust and corrosion and provides a wide operating-temperature range of between -40°C and 55°C. This combination of robustness and high performance ensures that the SD9362-EHL is especially suitable for monitoring wide, open, harsh indoor or outdoor spaces such as airports, highways and parking lots where high-level reliability and precision are called for.

Features:

• Max Resolution: 1920 x 1080 (2MP)
• Image Sensor: 1/3" Progressive CMOS
• Day/Night: Yes
• Mechanical IR Cut Filter: Yes, Removable IR-cut filter for day & night function
• Minimum Illumination: 0.53 Lux @ F1.6 (Color) & 0.01 Lux @ F1.6 (B/W)
• IR Illuminators: No
• IR Illuminator Range: N/A
• Lens Type: 30x Optical Zoom, Auto Focus
• Focal Length: f= 4.3 ~ 129 mm / F1.6 ~ F4.7
• Zoom: 30x optical zoom, 128x digital zoom (4x on IE plug-in, 32x built-in)
• Pan Range: 360° endless
• Tilt Range: 110°
• Number of Presets: 256 preset locations, 128 presets per tour
• Modes: Auto pan & Auto patrol
• Iris: DC-iris
• Focus: Auto
• Field of View: 2° ~ 59° (Horizontal), 2° ~ 45° (Vertical), 3° ~ 71° (Diagonal)
• Compression Styles: H.265, H.264, MJPEG
• Frame Rate: H.265 & H.264: 60 fps @ 1920x1080 or MJPEG: 30 fps @ 1920x1080
• WDR Technology: WDR Pro (100dB)
• Image Settings: Time stamp, text overlay, flip & mirror; Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks (up to 24); Scheduled profile settings, EIS, 3DNR, defog
• Privacy Mask: Yes, up to 24
• Built-in Microphone: No
• Audio Capabilities: Supports two-way audio with audio input/output (full duplex)
• Alarm/Event Management: Motion detection-Five-window video motion detection, Auto-Tracking-Auto-tracking on moving object manual trigger, digital input, periodical trigger, system boot, recording notification, audio detection, Event notification using digital output, HTTP, SMTP, FTP, NAS server and SD Card File upload via HTTP, SMTP, FTP, NAS server and SD card
• ONVIF: Yes
• Users: Live viewing for up to 10 clients
• On-board Storage: Yes, Slot type: SD/SDHC/SDXC card slot Seamless Recording
• Indoor/Outdoor: Outdoor
• Housing/Enclosure Rating: Weather-proof IP68-rated, Vandal-proof IK10-rated, and NEMA 4X-rated mated housing
• Dimensions: Ø 162 x 221 mm
• Weight: 2.95 kg
• Operating Temperature: -40°C ~ 65°C (-40°F ~ 149°F)
• Operating Humidity: 90%
• Power: 60W UPoE, AC 24V, DC 24V / Max. 48/26 W (Heater on/off)
• Warranty: 3 years
• What's Included: Wall mount bracket, screws, waterproof connectors, quick installation guide, alignment sticker, L-wrench, software CD, desiccant bags, I/O combo cable, software CD (User's manual, quick installation guide, Installation Wizard 2, VAST)
