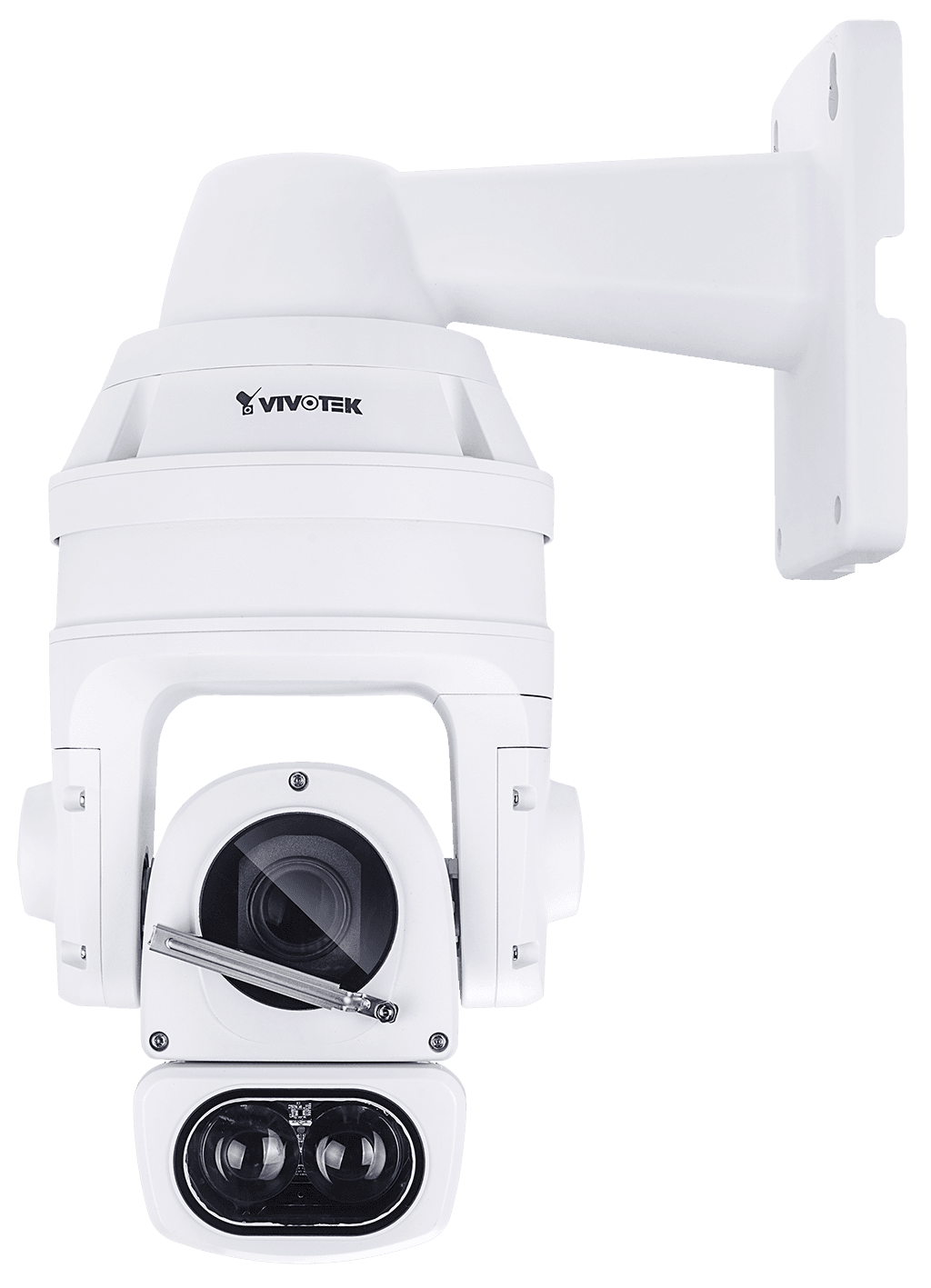

The SD9366-EH-v2 is the latest professional IR speed dome camera with wiper from VIVOTEK, specifically designed to enhance low light surveillance in large coverage areas. Equipped with 250M IR illuminators and a 30x optical zoom lens, the SD9366-EH-v2 provides a superb low light image in the most challenging situations. The camera also adopts VIVOTEK's Smart IR II technology, Vari-Angle IR. VIVOTEK's Vari-Angle IR provides smooth vari-angle adjustment of the IR illuminators, allowing broad coverage FOV and highly uniform IR intensity while avoiding hot-spots traditionally associated with IR illumination.

The SD9366-EH-v2 is the PTZ surveillance camera with IR Illumination to utilize H.265 compression technology. When combined with VIVOTEK's Smart Stream II technology users can obtain bandwidth savings of up to 80%* compared to traditional H.264. By combining 1080p full HD resolution with H.265, IR illuminators, Vari-Angle IR, WDR, and 30x optical zoom, the SD9366-EH-v2 is able to capture fine details at top-notch quality, 24 hours a day, 7 days a week.

VIVOTEK further strengthened the camera performance with an IP66- and NEMA 4X-rated housing to protect the camera against rain, dust, and corrosion. The SD9366-EH-v2 has a wide operating temperature range from -50°C to 55°C, ensuring continuous operation under the most extreme weather conditions and hazardous environments. This makes the SD9366-EH-v2 ideally suited to monitor wide open spaces such as ports, highways, cities, and parking lots where high-level precision is required.

Features:

• Image Sensor 1/2.8" Progressive CMOS
• Max. Resolution 1920x1080 (2MP)
• Lens Type 30x Optical Zoom, Auto Focus
• Focal Length f = 4.3 ~ 129 mm (30x zoom)
• Aperture F1.6 ~ F4.7
• Auto-iris DC-iris
• Field of View 2.3° ~ 64° (Horizontal), 1.3° ~ 36° (Vertical), 2.6° ~ 73° (Diagonal)
• Shutter Time 1 sec. to 1/10,000 sec.
• WDR Technology WDR Pro
• Day/Night Yes
• Removable IR-cut Filter Yes
• IR Illuminators Built-in IR Illuminators up to 250 meters with Smart IR II, IR LED*2
• Minimum Illumination 0.195 Lux @ F1.6 (Color), 0.01 Lux @ F1.6 (B/W), 0 Lux with IR illumination on
• Pan Speed 0.1° ~ 300°/sec.
• Pan Range 360° endless
• Tilt Speed 0.1° ~ 300°/sec.
• Tilt Range 220° (-110° ~ +110°)
• Preset Locations 256 preset locations, 128 presets per tour
• Pan/Tilt/Zoom Functionalities 48x digital zoom (4x on IE plug-in, 12x built-in)
• Auto pan mode
• Auto patrol mode
• On-board Storage Slot type: MicroSD/SDHC/SDXC card slot, Seamless Recording
• Video Compression H.265, H.264, MJPEG
• Maximum Frame Rate H.265 & H.264: 60 fps @ 1920x1080, MJPEG: 30 fps @ 1920x1080
• Maximum Streams 4 simultaneous streams
• S/N Ratio 66 dB
• Dynamic Range 130 dB
• Video Streaming Adjustable resolution, quality and bit rate control, Smart Stream II
• Image Settings Timestamp, text overlay, flip & mirror, configurable brightness/contrast/saturation/sharpness, white balance, exposure control, gain, backlight compensation, privacy masks (Up to 24), scheduled profile settings, defog, 3D noise reduction, EIS, HLC
• Audio Capability Two-way Audio (full duplex)
• Audio Compression G.711, G.726
• Audio Interface External microphone input, External line output
• Users Live viewing for up to 10 clients
• Protocols 802.1X, ARP, CIFS/SMB, CoS, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, NTCIP, NTP, PPPoE, QoS, RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS, UDP, UPnP
• Interface 10 Base-T/100 Base-TX Ethernet (RJ-45)
• ONVIF Supported
• Video Motion Detection Five-window video motion detection
• Auto-Tracking Auto-tracking on moving object
• VADP Package Genetec package, Amazon Kinesis Video Streams
• Alarm Triggers Motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, audio detection, SD card life expectancy
• Alarm Events Event notification via digital output, email, HTTP, FTP, NAS server, SD card, File upload via email, HTTP, FTP, NAS server, SD card
• Connectors RJ-45 cable connector for 10/100Mpbs Network/PoE connection*1, Audio input*1, Audio output*1, AC/DC 24V power input*1, Digital input*4, Digital output*2, RS-485 for PTZ control (PelcoD protocol, Baud rate 2400)*1, LED Indicator, System power and status indicator
• Power Input PoH/PoE (95W), AC/DC 24V
• Power Consumption PoH/PoE (95W): Max. 70 W (Heater on), Max. 51 W (Heater off), AC/DC 24V: Max. 63 W (Heater on), Max. 45 W (Heater off)
• Dimensions 237 x 364 mm
• Weight 7.1 kg (with bracket), 5.7 kg (without bracket)
• Casing IP66, IK10, NEMA 4X
• Safety Certifications CE, FCC Class A, VCCI, C-Tick, UL
• Operating Temperature Starting Temperature: -40°C ~ 55°C (-40°F ~ 131°F), Working Temperature: -40°C ~ 55°C (-40°F ~ 131°F), DC 24V power input, -50°C ~ 55°C (-58°F ~ 131°F), AC 24V/ PoH(95W) power input *Wiper is functional at 10°C ~ 55°C (50°F ~ 131°F)
• Humidity 98%
• Warranty 36 months
• Wall mount bracket, I/O cable, screws, waterproof connectors, terminal blocks, quick installation guide, warranty card, alignment sticker, ground wire, T25 star driver, desiccant bags
