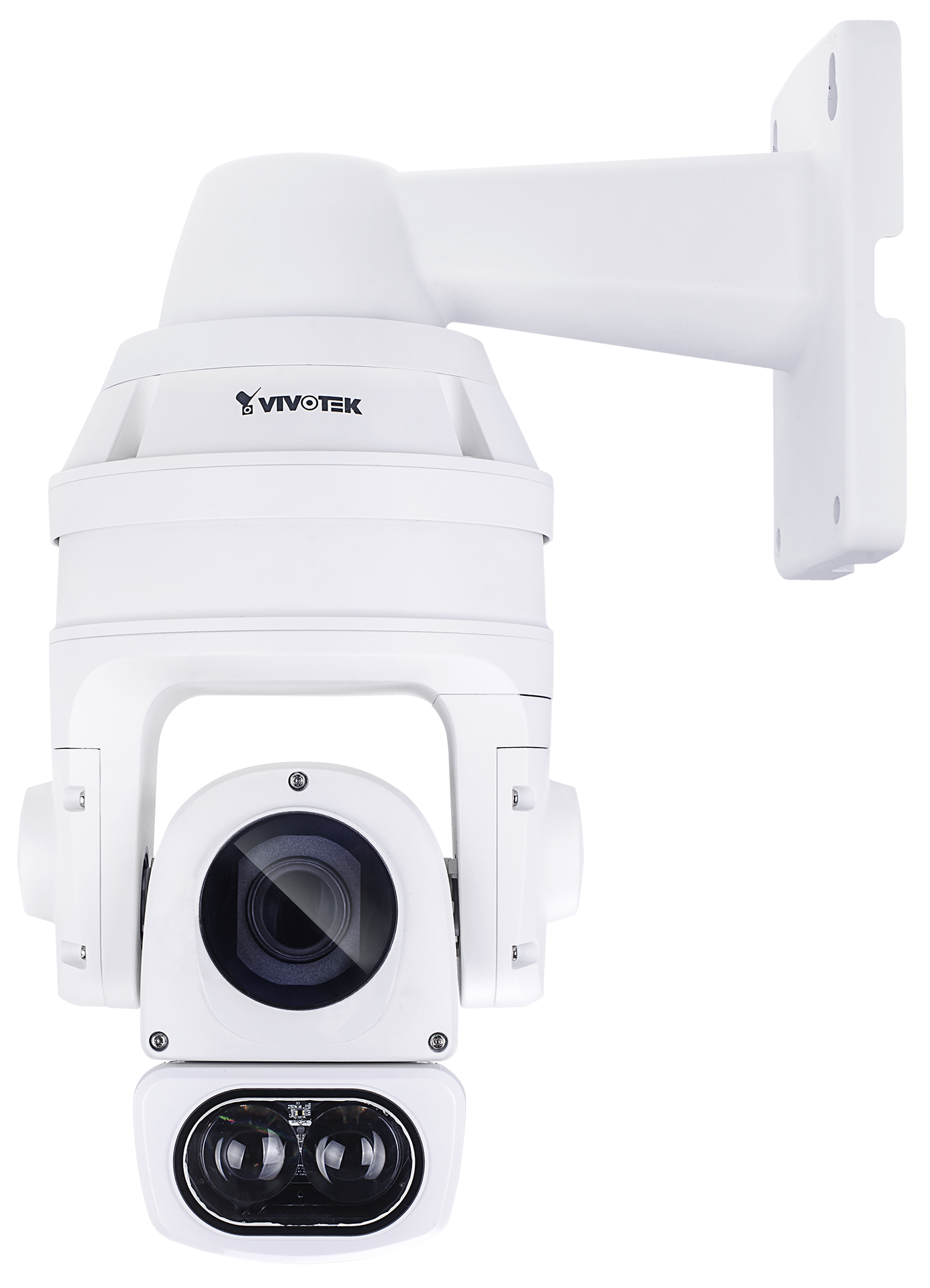

The SD9374-EHL is VIVOTEK's latest professional IR speed dome camera with 4MP resolution, specifically designed to enhance video surveillance in large coverage areas. Equipped with 250M IR illuminators and a 36x optical zoom lens, the SD9374-EHL provides a crystal clear image with 2560x1440 pixels in the most challenging situations. The SD9374-EHL also adopts VIVOTEK's Smart IR II technology, Vari-Angle IR. VIVOTEK's Vari-Angle IR provides smooth vari-angle adjustment of the IR illuminators, allowing broad coverage FOV and highly uniform IR intensity while avoiding hotspots traditionally associated with IR illumination.

The SD9374-EHL utilizes H.265 compression technology. When combined with VIVOTEK's Smart Stream III technology, users can obtain ultra low bandwidth while maintaining high image quality compared to H.264 compression. By combining 4MP resolution with H.265, IR illuminators, Vari-Angle IR, WDR, and 36x optical zoom, the SD9374-EHL is able to capture fine details at top-notch quality, 24 hours a day, 7 days a week. VIVOTEK further strengthens the camera performance with an IP66- and NEMA 4X-rated housing to protect the camera against rain, dust, and corrosion. The SD9374-EHL has a wide operating temperature range from -40°C to 55°C, ensuring continuous operation under the most extreme weather conditions and hazardous environments. This makes the SD9374-EHL ideally suited to monitor wide open spaces such as ports, highways, city surveillance, and parking lots where high-level precision is required.

As with all VIVOTEK true day/night cameras, the SD9374-EHL features a removable IR-cut filter, maintaining clear images 24 hours a day. Audio detection is included by recognizing changes in ambient noise. The SD9374-EHL also includes a MicroSD/SDHC/SDXC card slot and supports up to 30 fps in 4MP. For the most demanding outdoor surveillance application, there is nothing that compares to the VIVOTEK SD9374-EHL.

Features:

• Image Sensor 1/2" Progressive CMOS
• Max. Resolution 2560x1440
• Lens Type 36x Optical Zoom, Auto Focus
• Focal Length f = 6 ~ 216 mm (36x zoom)
• Aperture F1.5 ~ F4.8
• Iris type DC-iris
• Field of View 1.85° ~ 49.27° (Horizontal), 1.04° ~ 28.93° (Vertical), 2.13° ~ 55.5° (Diagonal)
• Shutter Time 1 sec. to 1/30,000 sec.
• WDR Technology WDR Pro
• Day/Night Yes
• Removable IR-cut Filter Yes
• IR Illuminators Built-in IR Illuminators up to 250 meters with
• Smart IR II, IR LED*2
• Minimum Illumination 0.19 Lux @ F1.5 (Color), 0.01 Lux @ F1.5 (B/W), 0 Lux with IR illumination on
• Pan Speed 0.1° ~ 300° / sec.
• Pan Range 360° endless
• Tilt Speed 0.1° ~ 300° / sec.
• Tilt Range 220° (-110° ~ +110°)
• Preset Locations 256 preset locations, 128 presets per tour
• Pan/Tilt/Zoom Functionalities 128x digital zoom (4x on IE plug-in, 32x builtin), Auto pan mode, Auto patrol mode
• On-board Storage Slot type: MicroSD/SDHC/SDXC card slot, Seamless Recording
• Compression H265, H264, MJPEG
• Maximum Frame Rate 30 fps @ 2560x1440
• Maximum Streams 4 simultaneous streams
• S/N Ratio 66 dB
• Dynamic Range 120 dB
• Video Streaming Adjustable resolution, quality and bitrate, Smart Stream III
• Image Settings Time stamp, text overlay, flip & mirror, configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks (up to 24), scheduled profile settings, defog, 3DNR, EIS, HLC
• Audio Capability Two-way audio (full duplex)
• Compression G.711, G.726
• Interface External microphone input
• External line output
• Users Live viewing for up to 10 clients
• Protocols 802.1X, ARP, CIFS/SMB, CoS, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, NTCIP, NTP, PPPoE, QoS, RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS, UDP, UPnP
• Interface 10 Base-T/100 BaseTX/1000 BaseTX Ethernet (RJ45)
• ONVIF Supported
• Video Motion Detection Five-window video motion detection
• Auto-Tracking Auto-tracking on moving object
• VADP Package Trend Micro IoT Security
• Alarm Triggers Motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, audio detection, SD card life expectancy, cybersecurity events (brute force attack event, cyberattack event, quarantine event)
• Alarm Events Event notification via digital output, email, HTTP, FTP, NAS server, SD card; File upload via email, HTTP, FTP, NAS server, SD card
• Connectors RJ-45 cable connector for 10/100/1000Mbps Network PoE connection*1, Audio input*1, Audio output*1, AC/DC 24V power input*1, Digital input*4, Digital output*2, RS-485 for PTZ control (PelcoD protocol, Baud rate 2400)*1
• LED Indicator System power and status indicator
• Power Input PoH/PoE (95W) AC/DC 24V
• Power Consumption PoH/PoE (95W): Max. 70 W (Heater on, IR on), Max. 51 W (Heater off, IR on); AC/DC 24V: Max. 63 W (Heater on, IR on), Max. 45 W (Heater off, IR on)
• Dimensions 237 x 364 mm
• Weight 7.1 kg (with bracket) 5.7 kg (without bracket)
• Casing IP66, IK10, NEMA 4X
• Safety Certifications CE, FCC Class A, VCCI, C-Tick, UL
• Operating Temperature Starting Temperature: -40°C ~ 55°C (-40°F ~ 131°F), Working Temperature: -40°C ~ 55°C (-40°F ~ 131°F)
• Humidity 98%
• Warranty 36 months
• Wall mount bracket, I/O cable, screws, waterproof connectors, terminal blocks, quick installation guide, warranty card, alignment sticker, ground wire, T25 stardriver, desiccant bags
