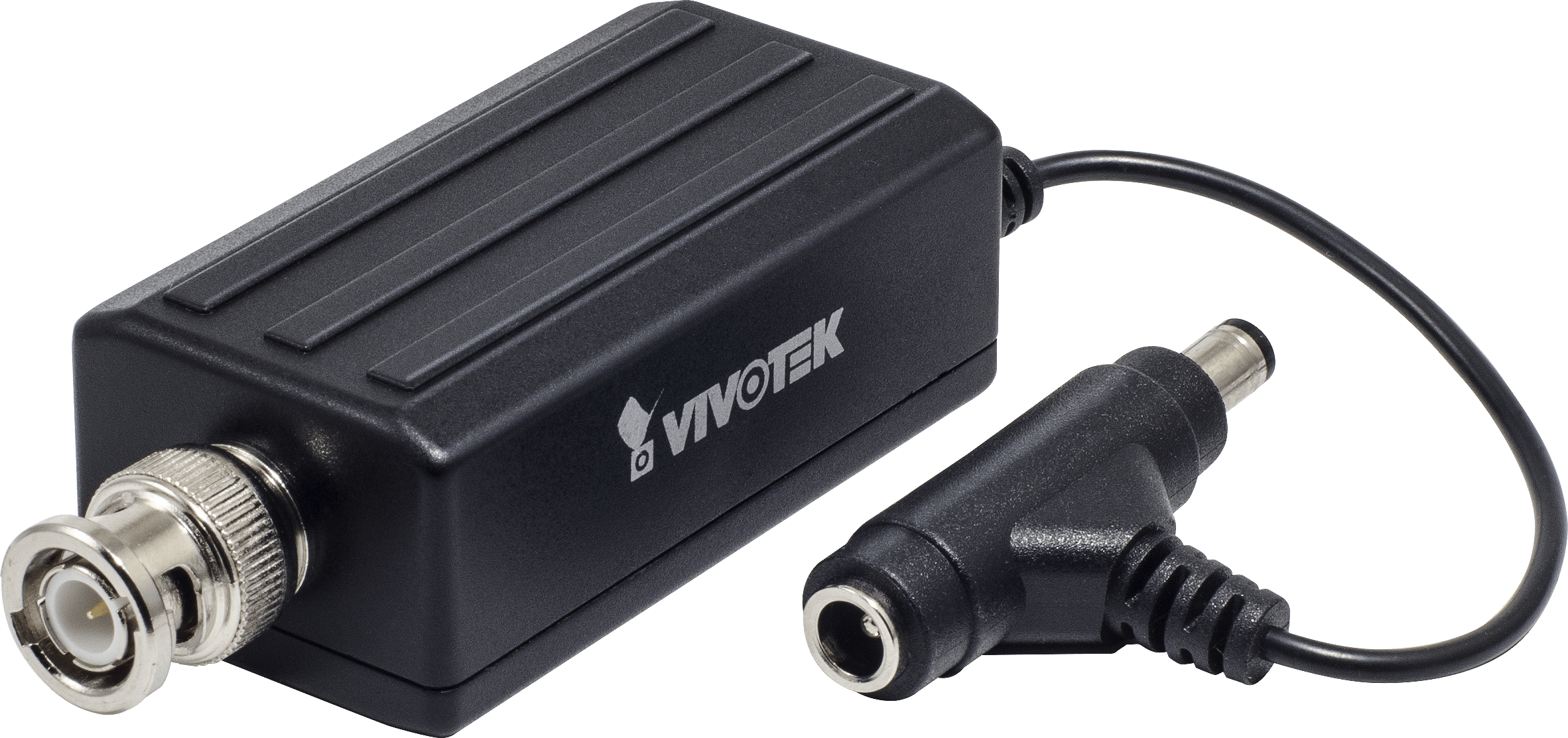

VIVOTEK VS8100-v2 is a small-sized H.264 1-CH video server that helps you migrate from analog to digital surveillance system with ease. Its power sharing with CCTV and tiny design make it ideal for front-end installation and surveillance applications such as home, offices, retail stores, banks, and city surveillance, where their power supply and IP network connections are already settled. VS8100-v2 supports a variety types of analog cameras, including PTZ cameras with its Pan/Tilt/Zoom control through the built-in RS-485 port.


With the high-performance H.264 compression format, it drastically reduces the file sizes and conserves valuable bandwidth and storage space. Supporting simultaneous multiple streams, the video streams can be transmitted in either of H.264 or MJPEG formats for versatile applications. The streams can also be individually configured with separate frame rates, resolution, and image quality so as to meet different platforms or bandwidth constraints.


When coupled with VIVOTEK’s Smart Stream II technology, the VS8100-v2 can reduce both bandwidth and storage consumption by up to 50%*.


Features:

• Maximum Frame Rate: 30 fps @ 720x480,  25 fps @ 720x576
• Compression: H.264 & MJPEG
• Maximum Streams: 3 simultaneous streams
• Video Streaming: Adjustable resolution, quality and bitrate, Smart Stream II
• Image Settings: Adjustable image size, quality and bit rate; Time stamp, text overlay, flip & mirror; Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks; Scheduled profile settings, 2DNR
• Audio Capability: One-way via external microphone input
• Users: Live viewing for up to 10 clients
• ONVIF: Yes
• Alarm/Event Management: Five-window video motion detection, manual trigger, periodical trigger, system boot, recording notification, camera tampering detection, audio detection, Event notification using HTTP, SMTP, FTP and NAS server File upload via HTTP, SMTP, FTP and NAS server
• Connectors: RJ-45 for Network connection, 1 Male BNC for Analog video input, 1 RS-485 Terminal Block, 1 Audio input, 1 DC 12V output (to camera), 1 DC 12V input (to power source)
• Supported PTZ Protocol: DynaDome/SmartDome, Pelco D, Pelco P, Lilin, Samsung scc643 and customized
• Power: DC 12V, Max. 3 W
• Dimensions: 65 mm (D) x 34 mm (W) x 25 mm (H)
• Operating Temperature: 0°C ~ 50 °C (32°F ~ 122°F)
• Warranty: 3 Years
