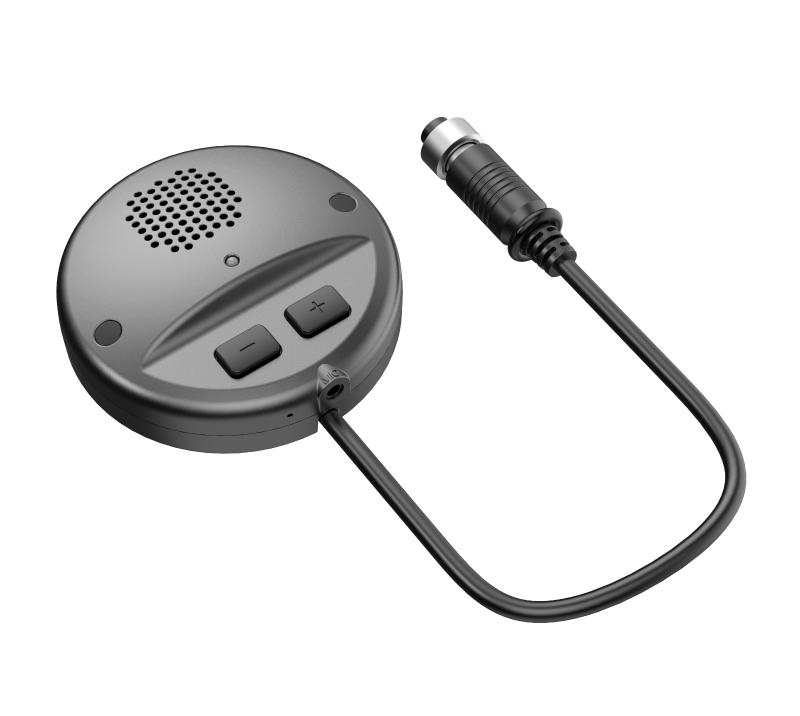

Hikvision - DS-1350HM(AE) - Voice Intercom Unit
Part number:
DS-1350HM(AE)
Price:
Voice intercom unit
Features:
- Independent audio processing chip, full duplex voice intercom, high fidelity, clear sound quality and low noise
- Multi level volume adjustment, physical buttons, supports 3 levels of volume adjustment to control the output sound level
- Built-in mic, supports external MIC with a standard 3.5mm connector
- Integrated design, small and light, easy to install and maintain
| Specification | |
| Interface | |
| Output interface definition | 1-LINE IN；2-LINE OUT；3-DC12V；4-GND |
| Output interface type | 4Pin aviation head (female head) |
| General | |
| Nominal voltage | DC12V |
| Working temperature | -10℃~+55℃ |
| Working humidity | 10%~95% |
| Intercom mode | Full duplex |
| Input impedance | 2.2K |
| Application | Suitable for bus, school bus, taxi, and other vehicle monitoring scenarios |
| Built-in Microphone | Yes |
| Built-in Speaker | Yes |
| Dimension | Φ85mm (Diameter) × 26mm (Height) |
