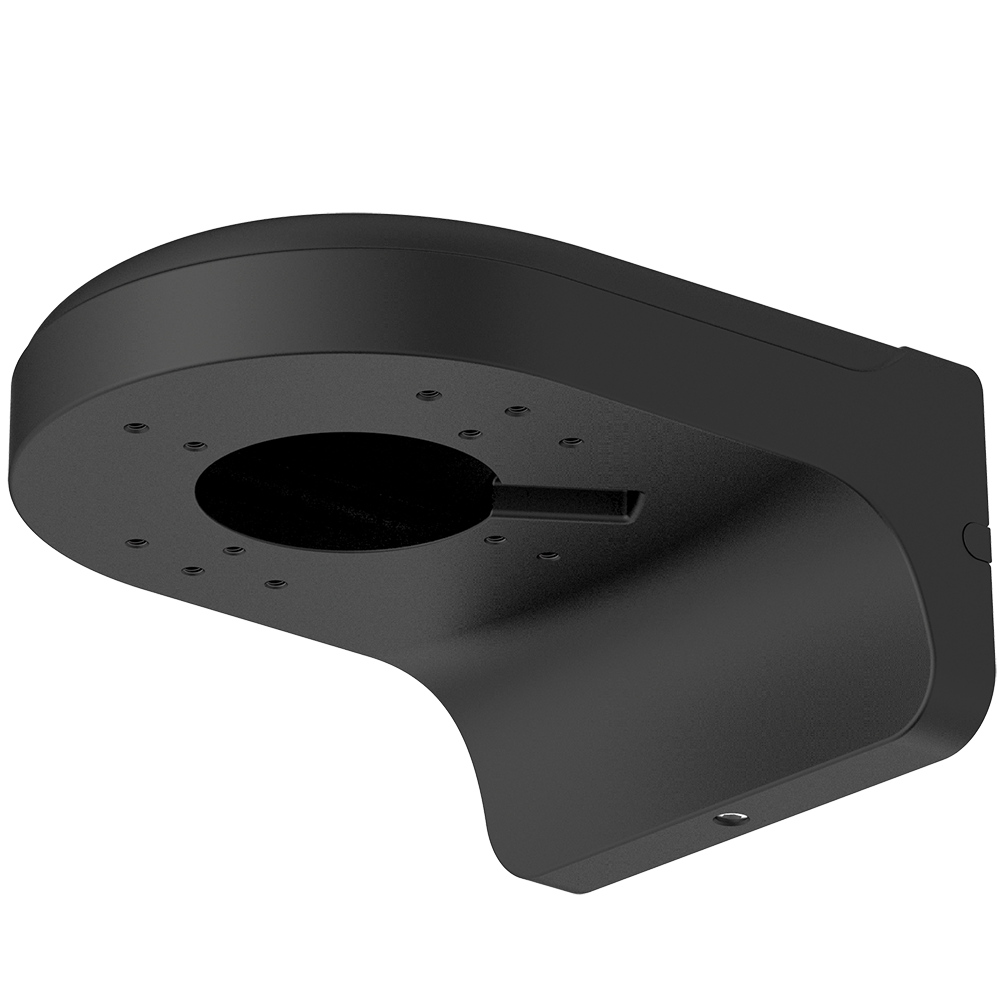

Dahua - DH-PFB204W-B - Wall Mount Bracket (Black)
Part number:
DH-PFB204W-B
Price:
Wall Mount Bracket (Black)
Features:
- Material: Aluminum and SECC
- Dimensions (L x W x H): 160.0 mm x 122.0 mm x 76.0 mm (6.30 in. x 4.80 in. x 2.99 in.)
- Operating Temperature: -40° C to 60° C (-40° F to 140° F)
- Humidity: 0 to 90% RH
- Load Bearing: 1.0 kg (2.20 lb)
- Weight: 0.49 kg (1.08 lb)
- Color: Black
| Technical Specifications | |
| Material | Aluminum and SECC |
| Color | Black |
| Dimensions (W x H x D) | 160.0 mm x 122.0 mm x 76.0 mm (6.30 in. x 4.80 in. x 2.99 in.) |
| Weight | 0.49 kg (1.08 lb) |
| Load Bearing Capacity | 1.0 kg (2.20 lb) |
| Operating Temperature | –40 °C to 60 °C (–40 °F to 140 °F) |
| Humidity | < 90% RH |
