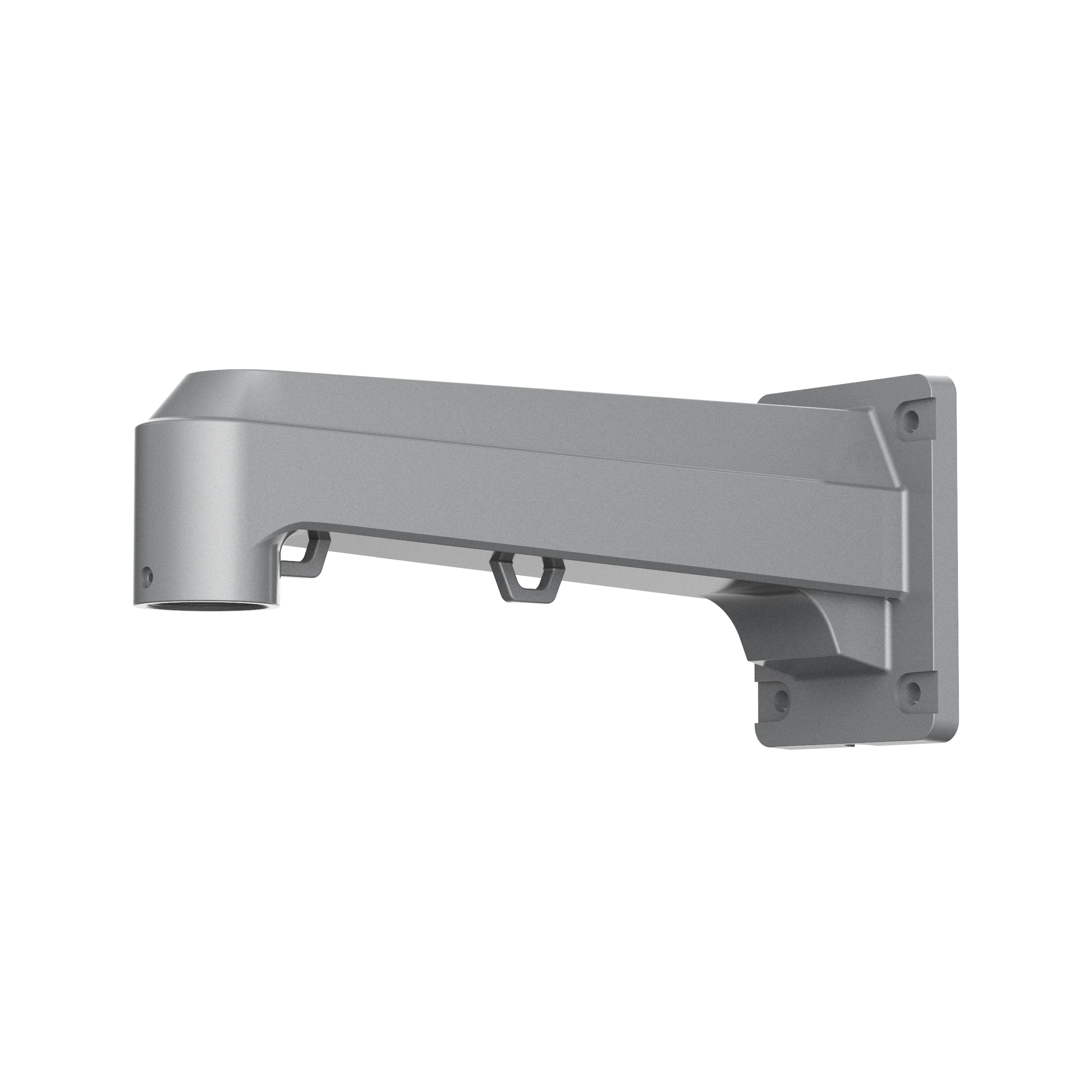

Dahua - DH-PFB710W-SG - Wall Mount Bracket (Silver-grey)
Part number:
DH-PFB710W-SG
Price:
Dahua’s Wall Mount Brackets work with front-end services to support installation methods such as wall mounting, pole mounting, corner mounting, and in-ceiling mounting. Select brackets are designed to suit challenging environments such as those with high temperatures and humidity, frequent vibrations, and highly-corrosive materials. These reliable brackets work in temperatures ranging from –40 °C to +60 °C (–40 °F to +140 °F) and in relative humidity of less than 90%.
Features:
- Stainless Steel Construction
- Compatible with DH-PSDW81642M-A360
| Technical Specification | |
| Structure | |
| Casing Material | SUS304 Stainless Steel |
| Product Dimensions (L x W x H) | 386.8 mm × 161.5 mm × 116.5 mm (15.23 in. × 6.36 in. × 4.59 in.) |
| Net Weight | 3.30 kg (7.28 lb) |
| Gross Weight | 3.95 kg (8.71 lb) |
| Load Bearing | 40.0 kg (88.19 lb) |
| Screw Thread Type | G1-1/2 |
| Packaging Dimensions (L x W x H) | 386.8 mm × 161.5 mm × 116.5 mm (15.23 in. × 6.36 in. × 4.59 in.) |
Name
Description
Size
Downloads
File
Datasheet
0.3mb
