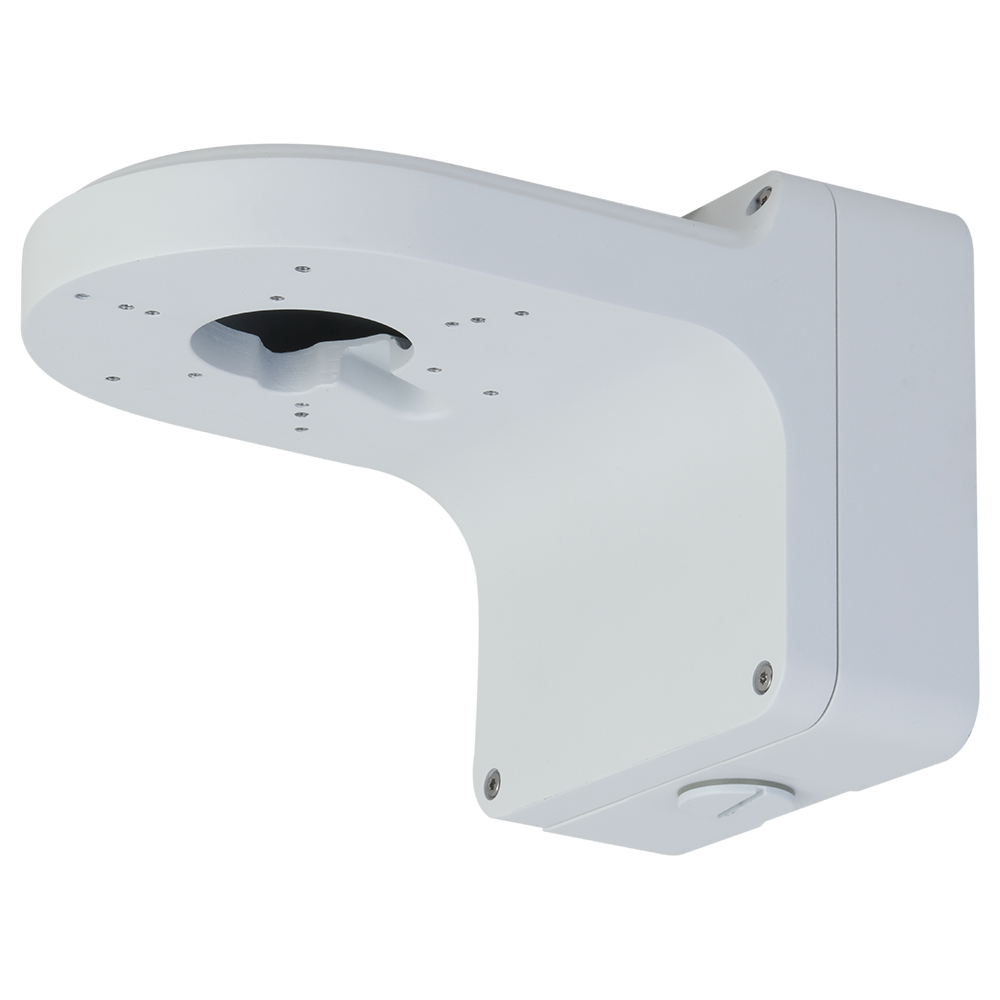

Dahua - DH-PFB206W - Wall Mount Bracket with Integrated Junction Box
Part number:
DH-PFB206W
Price:
Wall Mount Bracket with Integrated Junction Box
Features:
- Material: Aluminum Alloy
- Color: White
- Dimensions (L × W × H): 222.0 mm × 160.7 mm × 144.4 mm (8.66 in. × 6.33 in. × 5.68 in.)
- Net Weight: 1.1 kg (2.42 lb)
- Load Bearing Capacity: 3.0 kg (6.61 lb)
- Operating Temperature: –40 °C to 60 °C (–40 °F to 140 °F)
- Humidity: < 90% RH
| Technical Specification | |
| Structure | |
| Material | Aluminum Alloy |
| Dimensions (L × W × H) | 222.0 mm × 160.7 mm × 144.4 mm (8.66 in. × 6.33 in. × 5.68 in. ) |
| Color | White |
| Net Weight | 1.1 kg (2.42 lb) |
| Gross Weight | 1.5 kg (3.31 lb) |
| Load Bearing | 3.0 kg (6.61 lb) |
| Installation | Wall Mount |
| Screw Thread Type | G 3/4 |
| Packaging Dimensions (L × W × H) | 675.0 mm × 456.0 mm × 575.0 mm (26.57 in. × 17.95 in. × 22.64 in.) |
| Packaging Method | 12 Pieces per Master Carton |
| Environment | |
| Operating Temperature | –40 °C to 60 °C (–40 °F to 140 °F) |
| Operating Humidity | < 90% (RH) |
| Storage Temperature | –40 °C to 60 °C (–40 °F to 140 °F) |
| Storage Humidity | 10% to 90% (RH) |
