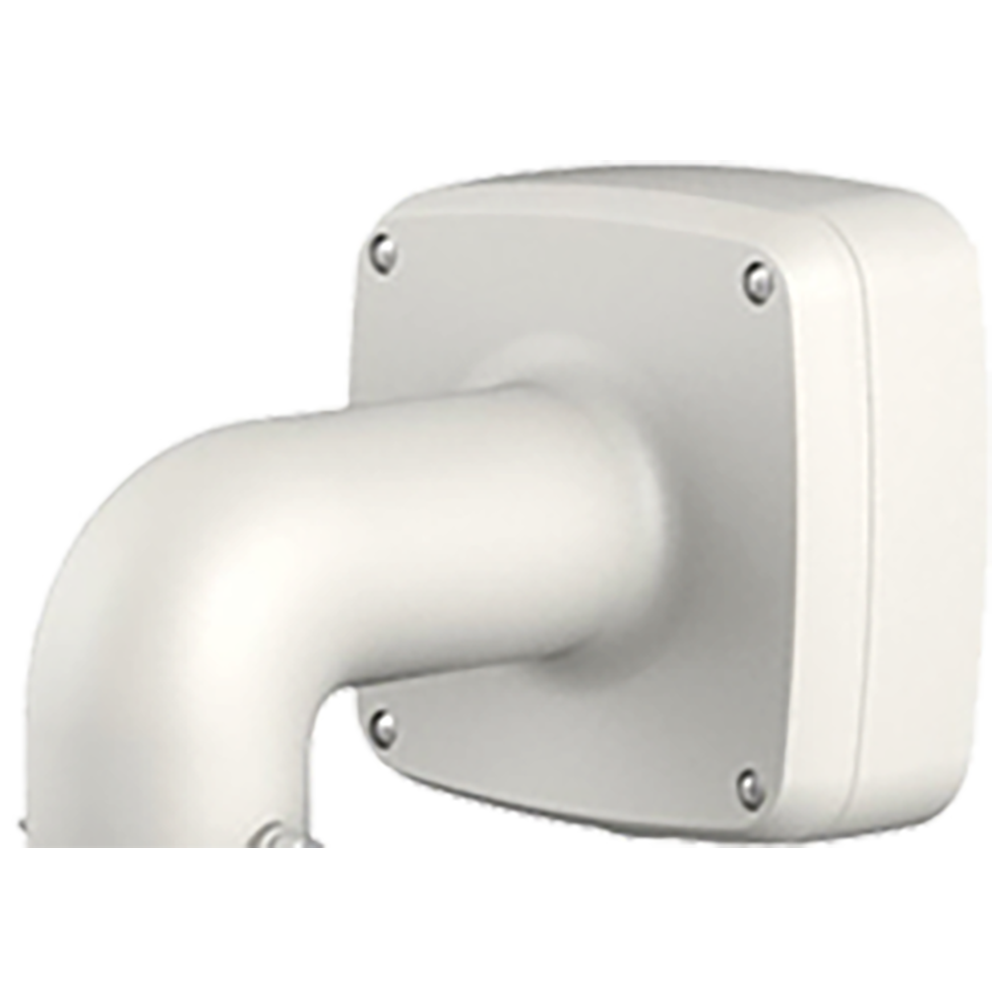

Wall Mount Bracket with IP66 Junction Box
Features:
- Material: Aluminum
- Dimension (W x H x D): 134.0 mm x 134.0 mm x 187.50 mm (5.28 in. x 5.28 in. x 7.38 in.)
- Pipe Thread: G1 1/2-in.; M20 (G1/2-in.)
- Operating Temperature: -40º C to 60º C (-40° F to 140° F)
- Humidity: 0 to 90% RH
- Load Bearing 3.0 kg (6.61 lb)
- Weight 0.70 kg (1.54 lb)
| Technical Specifications | |
| Model | DH-PFB302S |
| General | |
| Material | Aluminum |
| Dimension (W x H x D) | 134.0mmx133.5mmx187.5mm (5.28”x5.25.”x7.38”) |
| Pipe thread | G3/4” |
| Weight | 0.7kg(1.54lb) |
| Load bearing | 4.0kg(8.82lb) |
| Color | White |
| Protection | IP66 |
| Operating temperature | -40ºC ~60ºC(-40℉~140℉) |
| Humidity | 0~90% RH |
