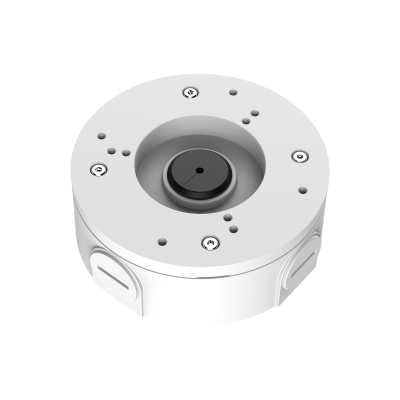

Dahua - DH-PFA5300R - Water-proof Junction Box
Part number:
DH-PFA5300R
Price:
Ideal for mounting cameras, it works in temperatures ranging from –40 °C to 60 °C (–40 °F to 140 °F) and in environments with relative humidity of less than 90%.
Features:
- Built of aluminum alloy
- Suitable for a variety of cameras and is elegant.
- IP66 junction box.
| Specifications | |
| Structure | |
| Product Material | Aluminum alloy |
| Product Dimensions | Φ123.4 mm × 44.9 mm (Φ4.86" × 1.77" ) |
| Appearance Color | White |
| Net Weight | 0.39 kg (0.86 lb) |
| Gross Weight | 0.51 kg (1.12 lb) |
| Load Bearing | 3.0 kg (6.61 lb) |
| Installation | Junction Mount |
| Screw Thread Type | G3/4 |
| Applicable Model | Please see "Camera Accessories Selection" |
| Packaging Dimensions | 187.0 mm × 164.0 mm × 72.0 mm (7.36" × 6.46" × 2.83") (L × W × H) |
| Transport Package Dimensions | 578.0 mm × 383.0 mm × 349.0 mm (22.76" × 15.08" × 13.74") (L × W × H) |
| Packaging Method | 30 pcs in each carton |
| Environment | |
| Protection | IP66 |
| Operating Temperature | –40°C to +60°C (–40°F to +140°F) |
| Operating Humidity | < 90% (RH) |
| Storage Temperature | –40°C to +60°C (–40°F to +140°F) |
| Storage Humidity | 10%–90% (RH) |
