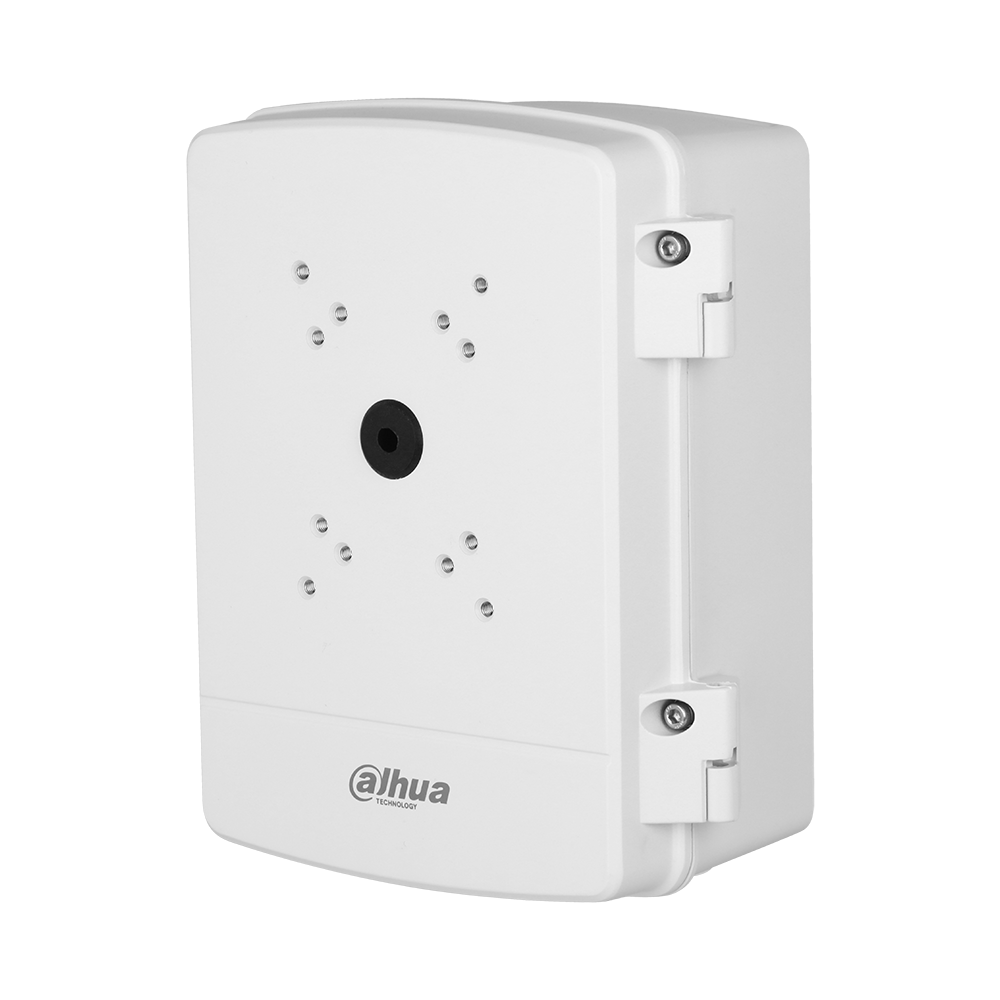

Dahua - DH-PFA6400S - Water-proof Power Box
Part number:
DH-PFA6400S
Price:
Waterproof Power Box
Features:
- Aluminum alloy and SECC Steel Construction
- IP66 Rating
- Compatible with 1A404XBNR, 40212TNI, 49425XBNR, 6AL445XANR, 5A445XANR,59232ICLA and 50432GBNR
- Supports Multiple Types of Power Sources
| Technical Specifications | |
| Construction | |
| Material | Aluminum Alloy and SECC |
| Product Dimensions (L x W x H) | 297.2 mm × 248.0 mm × 130.7 mm (11.70 in. × 9.76 in. × 5.15 in.) |
| Package Dimensions (L x W x H) | 366.0 mm × 298.0 mm × 183.0 mm (14.41 in. × 11.73 in. × 7.20 in.) |
| Net Weight | 3.38 kg (7.45 lb) |
| Gross Weight | 3.86 kg (8.51 lb) |
| Load Bearing Capacity | 8.0 kg (17.64 lb) |
| Installation | Wall, Pole, or Corner Mount |
| Screw Thread Type | G1/2 |
| Environmental | |
| Protection Rating | IP66 |
| Operating Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Operating Humidity | Wall, Pole, or Corner Mount |
| Storage Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Storage Humidity | 10% to 90% (RH) |
| Anti-corrosion Level | Basic Protection |
