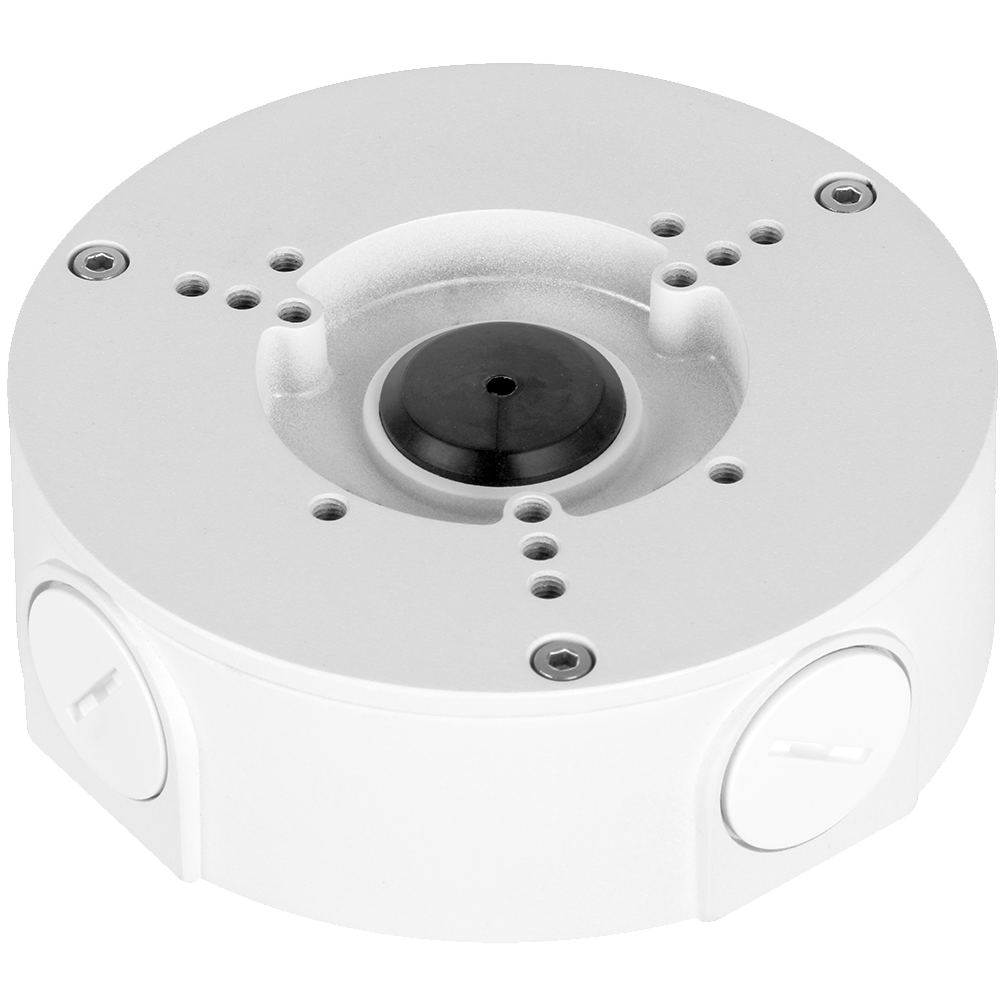

Waterproof Junction Box
Features:
- Material: Aluminum
- Dimensions (W x H x D): 124.10 mm x 41.0 mm (4.89 in. x 1.61 in.)
- Pipe Thread: G3/4 in.
- Weight: 0.35 kg (0.77 lb)
- Load Bearing Capacity: 3.0 kg (6.61 lb)
- Color: White
- Ingress Protection: IP66
- Operating Temperature: –40 °C to 60 °C (–40 °F to 140 °F)
- Humidity: < 90% RH
| Technical Specifications | |
| Material | Aluminum |
| Dimensions (W x H x D) | 124.10 mm x 41.0 mm (4.89 in. x 1.61 in.) |
| Pipe Thread | G3/4 in. |
| Weight | 0.35 kg (0.77 lb) |
| Load Bearing Capacity | 3.0 kg (6.61 lb) |
| Color | White |
| Ingress Protection | IP66 |
| Operating Temperature | –40 °C to 60 °C (–40 °F to 140 °F) |
| Humidity | < 90% RH |
